Summary of Contents for NBB SR8305-F

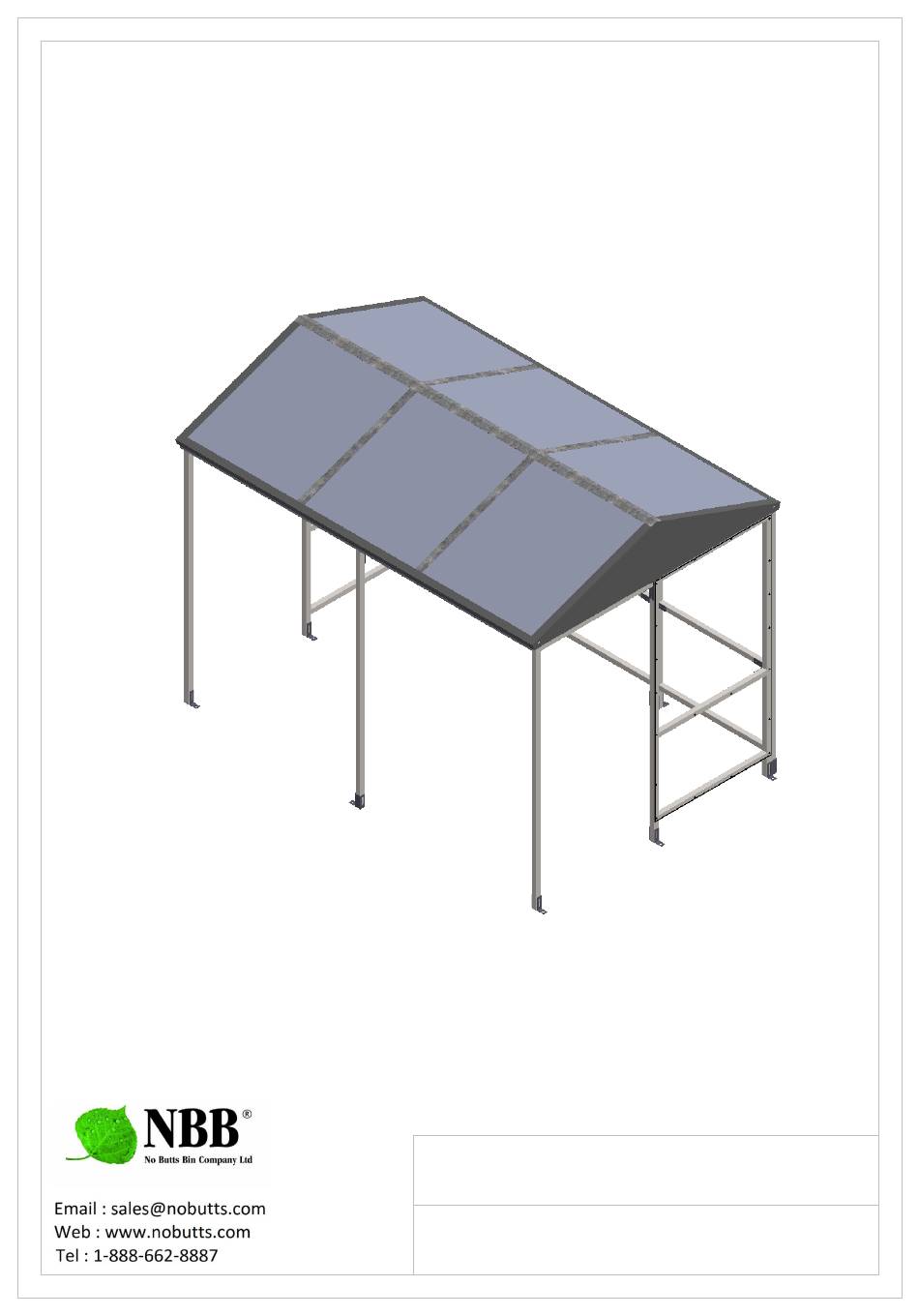

- Page 1 Assembly Instructions Shelter type: SR8305-F SR8305F-01-27102021-USA...
- Page 2 EXPLODED VIEW...
- Page 3 PARTS LIST ITEM PART NAME DRG NUMBER Size (inch) IMAGE QTY. 78.74 x 40.74 S1C Frame 4.3 x 4.3 x 1.57 CB1 Bracket 4.33 x 1.57 JF1 Bracket 78.74 x 40.74 P1 Post 60.75 ST5 Roof Tie 77.15 x 1.57 x Post P5 1.57 8.66 x 5.9...
- Page 4 FIXINGS / TOOLS...
- Page 5 Step 1 Assemble S1C frames to make up the main structure using CB1 brackets for the corners and JF1 brackets for the straight joints. Attach the P1 posts to the ST5 Roof ties, and fix these to the P5 post using the JFT Bracket as shown below Please note: 1.5"...
- Page 6 Step 2 Attach the AR2R Rafters using the DR Brackets. Screw the AR2IS End Panels into the top of the frames, ensuring they are put in place at the same time as the end rafters. AR2R AR2R AR2R AR2R AR2IS DR Bracket AR2IS ENSURE CORRECT...
- Page 7 Step 3 Attach the AR2CLTO and ARCLTI trims to the top of the rafters, with the AR2CLTO on the edges, and the AR2CTLI spaced evenly in the middle. Attach the ARFSO and ARFSI to the bottom of the rafters with the ARFSO on the edges and the ARFSI spaced in the middile.
- Page 8 Step 4 Align the AR2POA roof panels with the outside of the shelter and space the AR2PIA panels central. Attach the AR2TS Strips, screwing through the roof panels using 1.5" tech screws. Fix the AR2CUTO and AR2CUTI to the top of the shelter as shown below.
- Page 9 Step 5 Move the shelter to it's final position, and attach the FT1 and FT3 foot brackets. Then use the concrete bolts to fix it to the ground.
- Page 10 PLAN VIEW OVERALL DIMENSIONS AND GROUND FIXING POSITIONS Suggested size for concrete base: 8" oversized on all four sides. 40.75 39.17 40.75 81.87...
- Page 11 THANK YOU FOR PURCHASING THIS PRODUCT MAINTENANCE: To ensure your products give you many years of use we recommend that you: • Clean panels regularly with soapy water • Ensure all fittings are tight (for example after a big storm) •...
