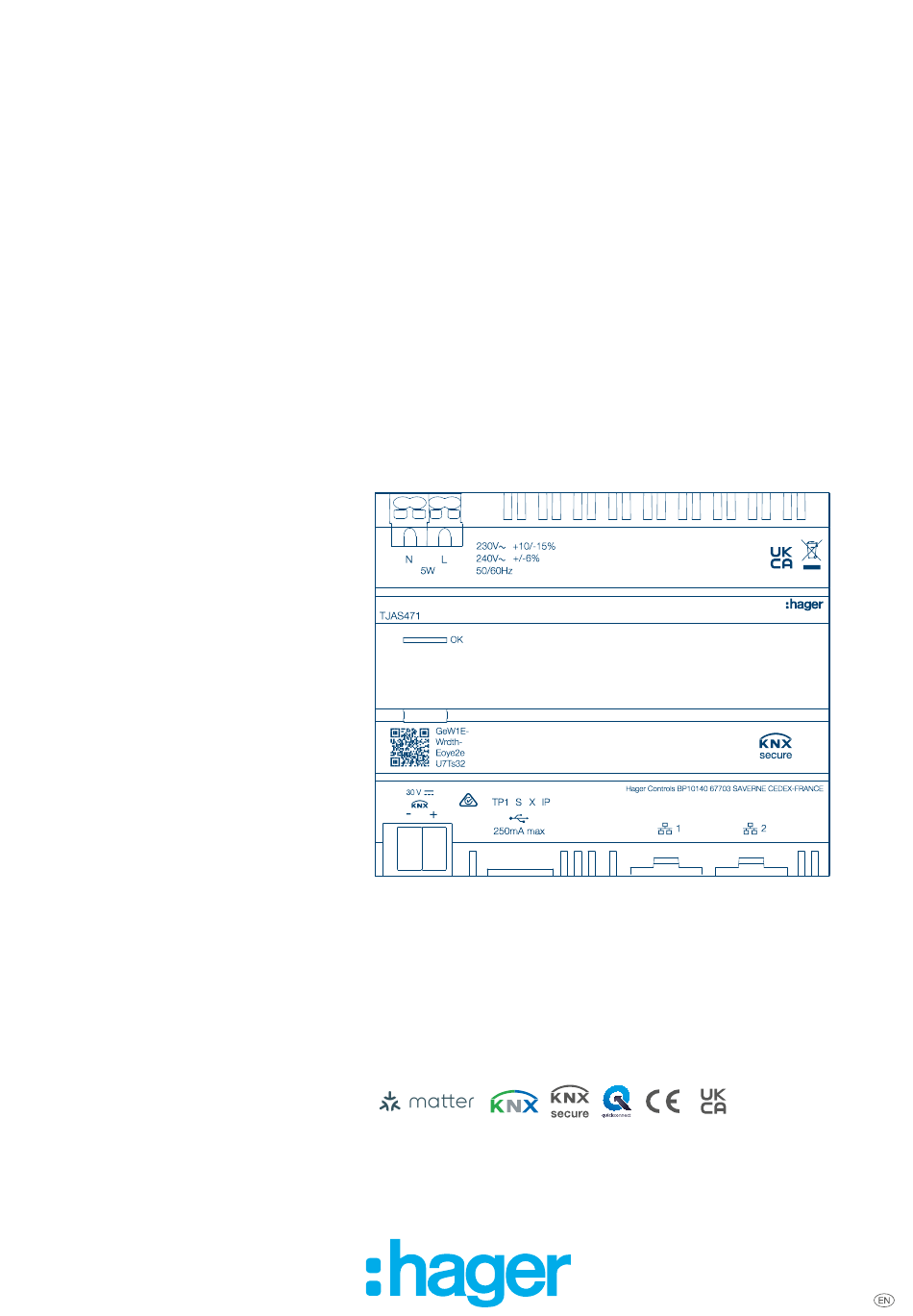

- Page 1 Operating and assembly instructions KNX building management system domovea domovea basic TJAS671 domovea plus TJAS471...
- Page 2 Table of contents Table of contents............2 Introduction..............4 Safety instructions............6 Scope of delivery............7 Design and layout of the device........ 8 Function................ 9 Functional description......................9 Correct use........................... 9 Product characteristics..................... 10 Operation..............11 RGB status LED........................11 Remote maintenance......................13 Firmware update........................
- Page 3 Table of contents Appendix..............25 Technical data........................25 Page break.......................... 25 Troubleshooting........................25 Page break.......................... 27 Accessories......................... 27 Regulatory Compliance Australia..................27 Disposal..........................27 Warranty..........................27...
- Page 4 Introduction Introduction These instructions describe the safe and correct installation and commissioning of domovea basic and domovea plus devices. These instructions are provided as information in addition to the product. The illustrations and descriptions in this manual are for clarification purposes only and may differ from the actual state of the software due to regular improvements being made.
- Page 5 Introduction Symbol Warning word Consequence of non-observance Danger Leads to serious injuries or death. Warning Can lead to serious injuries or death. Caution Can lead to minor injuries. Caution Can lead to device damage. Note Can lead to physical damage. Symbol Description Warning against electric shock.
- Page 6 Danger due to electric shock on the SELV/PELV installation. Not suitable for switching SELV/ PELV voltages. The KNX Secure code is generated dynamically by the application and is not printed on the de- vice. The KNX Secure code can be requested via the device settings using the Hager Pilot app.
- Page 7 Scope of delivery Scope of delivery https://hgr.io/r/TJAS471 Fig. 1: TJAS471 scope of delivery https://hgr.io/r/TJAS671 Fig. 2: TJAS671 scope of delivery...
- Page 8 Design and layout of the device Design and layout of the device Fig. 4: Design and layout of the device - view Fig. 3: Design and layout of the device - top view from below on KNX, USB and Ethernet interfaces Power supply connection (N, L) RGB status LED Illuminated programming button...
- Page 9 Configuration and operation is carried out via the Hager Pilot app. The device has integrates easyTool and allows the complete con- figuration of a KNX installation with easy-compatible devices.
- Page 10 Additional domovea plus product features (TJAS471) – Up to 50 IP cameras can be integrated – Up to 100 sequences can be set (via Hager Pilot) – KNXnet/IP tunnel interface: local access and remote access – Up to 10 virtual thermostats...
- Page 11 Operation RGB status LED Operation RGB status LED RGB status LED display domovea has an RGB status LED display (Fig. 3/2) to signal errors that have occurred or to display on- going operations in domovea (see Tab. RGB status LED display (Fig.
- Page 12 192.168.0.253 / 255.255.255.0. With a fixed IP address, the device immediately adopts the parameters of the server set in the Set- tings menu via the Hager Pilot app under the tab Configuration – Interface – IP address – Manual se- lection: –...
- Page 13 Operation Remote maintenance With a fixed IP address, the module does not automatically adopt the alternative address in the event of IP address conflicts in the network (other equipment is already using the fixed IP address). PC mode To be used when a PC is connected directly to the device. This mode activates the DHCP server inte- grated in the module.
- Page 14 Operation Firmware update Further information on the firmware update can be found in the application description. Update via USB stick To perform a firmware update via a USB stick, the following conditions must be met: – the USB stick must be empty –...
- Page 15 Update via Hager Pilot Firmware update via Hager Pilot only possible from firmware version 8.0.x. For more information about the Hager Pilot update, see Handbook/Installation manual – https://hgr.io/r/TJAS471. Open the Hager Pilot app and check the firmware version under Settings:...
- Page 16 Information for qualified electricians Installation and electrical connection Information for qualified electricians Installation and electrical connection Danger Electric shock when live parts are touched! An electric shock can lead to death! Disconnect all connection cables before working on the device and cover any live parts in the area! 8.1.1 Installing the device...
- Page 17 Information for qualified electricians Installation and electrical connection 8.1.2 Connecting the device Danger Electric shock when live parts are touched! An electric shock can lead to death! Isolate all connection cables before working on the device and cover any live parts in the area! The device is installed on the DIN rail in accordance with ISO 60715.
- Page 18 Information for qualified electricians Installation and electrical connection Fig. 12: Connecting the network cable Another network cable can be connected to the other port to connect a second LAN de- vice. The domovea device then works as a switch. The switch provides a bandwidth of 100 Mbit/s.
- Page 19 Failure to do so can result in data loss or theft, or even a third-party taking control of the system in the worst-case scenario. It is recommended to install the Hager Pilot app (installer) and the domovea app (customer) on the respective end device (tablet/PC/laptop/smartphone) in advance.
- Page 20 Information for qualified electricians Commissioning...
- Page 21 Information for qualified electricians Commissioning If the device is not automatically found in the Hager Pilot app, the UID or QR code can be entered or scanned in the bottom left corner of the device. Configure the device in the Hager Pilot app.
- Page 22 Information for qualified electricians Commissioning Follow the instructions on the screen. The customer will receive an e-mail with an invitation code. As soon as the customer completes the takeover, the installer access is blocked. If required, installer access can be unblocked by the customer in the domovea app.
- Page 23 Information for qualified electricians Dismounting Fig. 14: Disconnecting the connection cables 8.3.2 Disconnecting the bus connection terminal The bus voltage is switched off. Removing the bus connection terminal from the device. Fig. 15: Removing the bus connection terminal 8.3.3 Disconnecting the network cable The bus connection cable and the load cables have been disconnected.
- Page 24 Information for qualified electricians Dismounting Disconnect all connected network cables from the device. Fig. 16: Disconnecting the network cable 8.3.4 Dismantling the device The load cables have been disconnected. The bus connection cable has been disconnected. The network cables have been disconnected. Removing the device from the DIN rail.
- Page 25 Appendix Technical data Appendix Technical data Medium TP1-256 Supply voltage 21 ... 32 V SELV Current consumption 3.3 mA Power supply Supply voltage 230 V~ +10 %/-15% 240 V~ +/- 6% Frequency 50/60 Hz Power consumption depending on CPU load 230 V~ Type 2.5 ...
- Page 26 The system time on the server may be invalid. Start the domovea app or the Hager Pilot app to connect to the server. The apps check and syn- chronise the server clock with their own clock. In the event of a deviation, make an adjustment.
- Page 27 Note Further help is available at FAQ – www-FAQ-online.com – or at matter.com. Page break Accessories Additional software Hager Pilot app domovea app Regulatory Compliance Australia Disposal Correct Disposal of this product (Waste Electrical & Electronic Equipment). (Applicable in the European Union and other European countries with separate collection systems).
- Page 28 Hager Controls BP10140 67703 Saverne Cedex France +33 (0) 3 88 02 87 00 info@hager.com hager.com 2025-02...
