McIntosh HT-3 Owner's Manual

Hide thumbs

Table Of Contents

Quick Links

Download this manual

Loudspeaker System

Flush Mount

Surface Mount

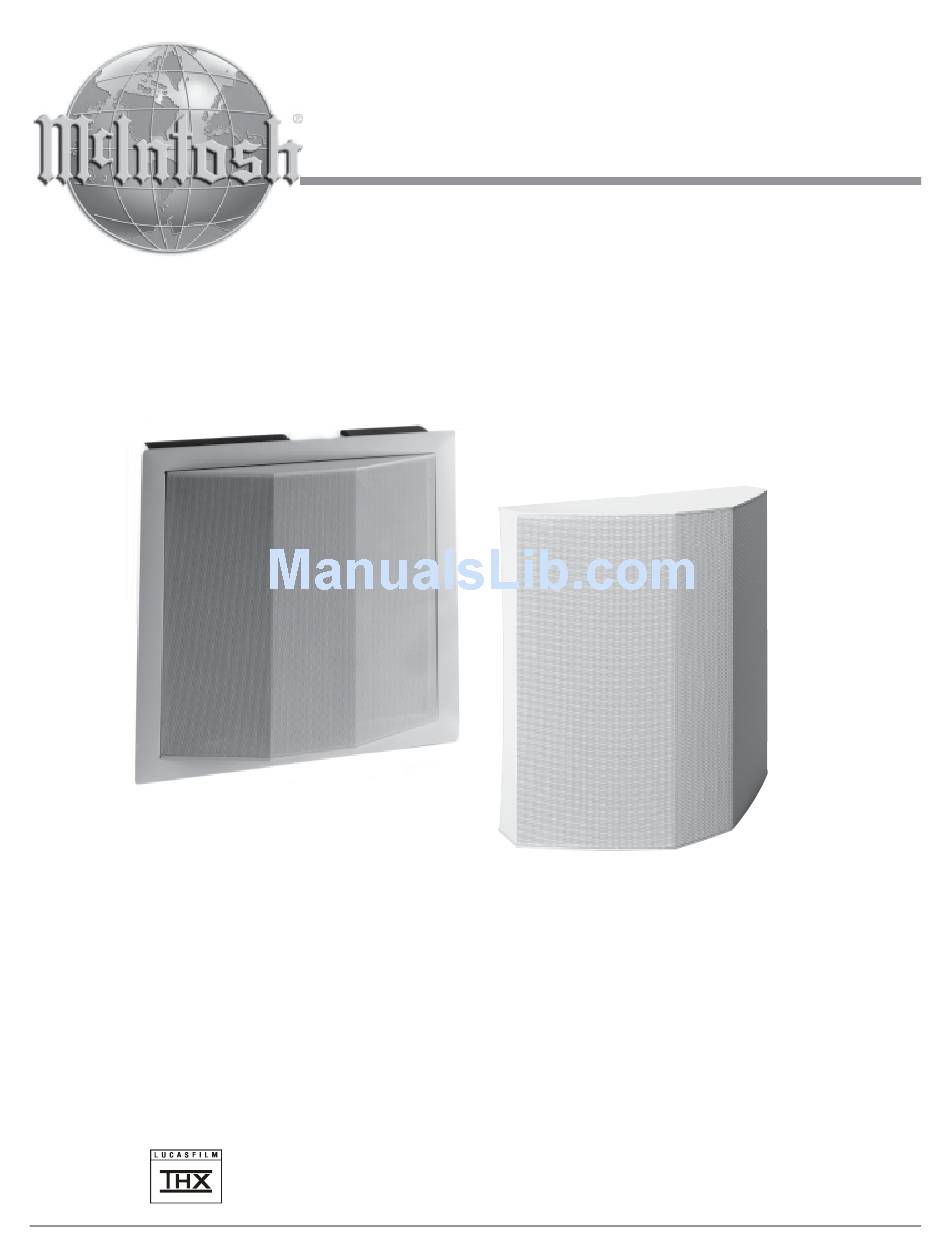

HT-3

Owner's Manual

Manufactured under license from Lucasfilm Ltd.. Additionally licensed under the following

patent U. S. number 5,043,970. Foreign patents pending. Lucasfilm THX Audio and Home

THX Cinema are trademarks of Lucasfilm Ltd.. Lucasfilm is a trademark of lucasfilm Ltd..

McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549

Table of Contents

Need help?

Do you have a question about the HT-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for McIntosh HT-3

Page 1: Surface Mount
U. S. number 5,043,970. Foreign patents pending. Lucasfilm THX Audio and Home THX Cinema are trademarks of Lucasfilm Ltd.. Lucasfilm is a trademark of lucasfilm Ltd.. McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549...
Page 2: Important Safety Instructions
WARNING - TO REDUCE RISK OF NO USER-SERVICEABLE PARTS FIRE OR ELECTRICAL SHOCK, DO INSIDE. REFER SERVICING TO NOT EXPOSE THIS EQUIPMENT TO QUALIFIED PERSONNEL. To prevent the risk of electric shock, do not remove cover or RAIN OR MOISTURE. back.
Page 3: Table Of Contents
Phone: 607-723-1545 Fax: 607-723-3636 Customer Service If it is determined that your McIntosh product is in need of repair, you can return it to your Dealer. You can also return it to the McIntosh Laboratory Service Department. For as- sistance on factory repair return procedure, contact the McIntosh Service Department at: McIntosh Laboratory, Inc.
Page 4: Introduction
5-inch low frequency and two 1-inch grating superb surround sound into a room without draw- dome tweeters. The HT-3 is designed to work as Surround ing attention to the Loudspeakers. The removable metal Loudspeaker in a Home Theater System.
Page 5: Dimensions
Dimensions HT-3 Dimensions The following dimensions can assist in determining the best location for your HT-3 Loudspeaker System. HT-3 Surface Mount without Grille HT-3 Surface Mount with Grille " " -7/8 -1/2 37.78 34.29 " -15/16 15.09cm " -7/8 14.92 "...
Page 6 Introduction ing the HT-3 Loudspeakers so that the listener is not on the The McIntosh HT-3 Surround Loudspeaker is specifically null of the system but perhaps 20 degrees forward or back- optimized for sound applications. The Surround Loud- ward of the null. The selected volume level of the surround...
Page 7 HT-3 in place and then tighten the screws. ness of the HT-3 back panel. 7. Place the trim frame in position over the HT-3 and se- Note: The fasteners must have a total of 20 pounds or cure it to the loudspeaker system using the supplied more of load capacity.
Page 8: How To Connect
1. Connect a Loudspeaker cable from the Negative (-) posts for speaker wire connections. Prepare the Loud- Binding Post of the Amplifier to the HT-3 Binding Post speaker Hookup Cables that attach to the Power Amplifier with the black strip.
Page 9 Notes...
Page 10: Specifications
Overall Dimensions HT-3 Surface Mount with grille: 14-7/8 inches (37.78cm) Height, 14-7/8 inches (37.78cm) Width, 5-15/16 inches (15.09cm) Depth HT-3 Flush Mount with grille and trim frame: 15-7/16 inches (39.22cm) Height, 15-7/16 inches (39.22cm) Width, 5-3/16 inches (14.75cm) Depth Finish...
Page 11: Packing Instruction
Foam center cap bottom if they are in good serviceable condition. If a shipping car- 033093 Air cap (24 inches wide) ton or any of the interior part(s) are needed, please call or write Customer Service Department of McIntosh Labora- tory.
Page 12 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, NY 13903 The continuous improvement of its products is the policy of McIntosh Laboratory Incorporated who reserve the right to improve design without notice. Printed in the U.S.A. McIntosh Part No. 04092000...
