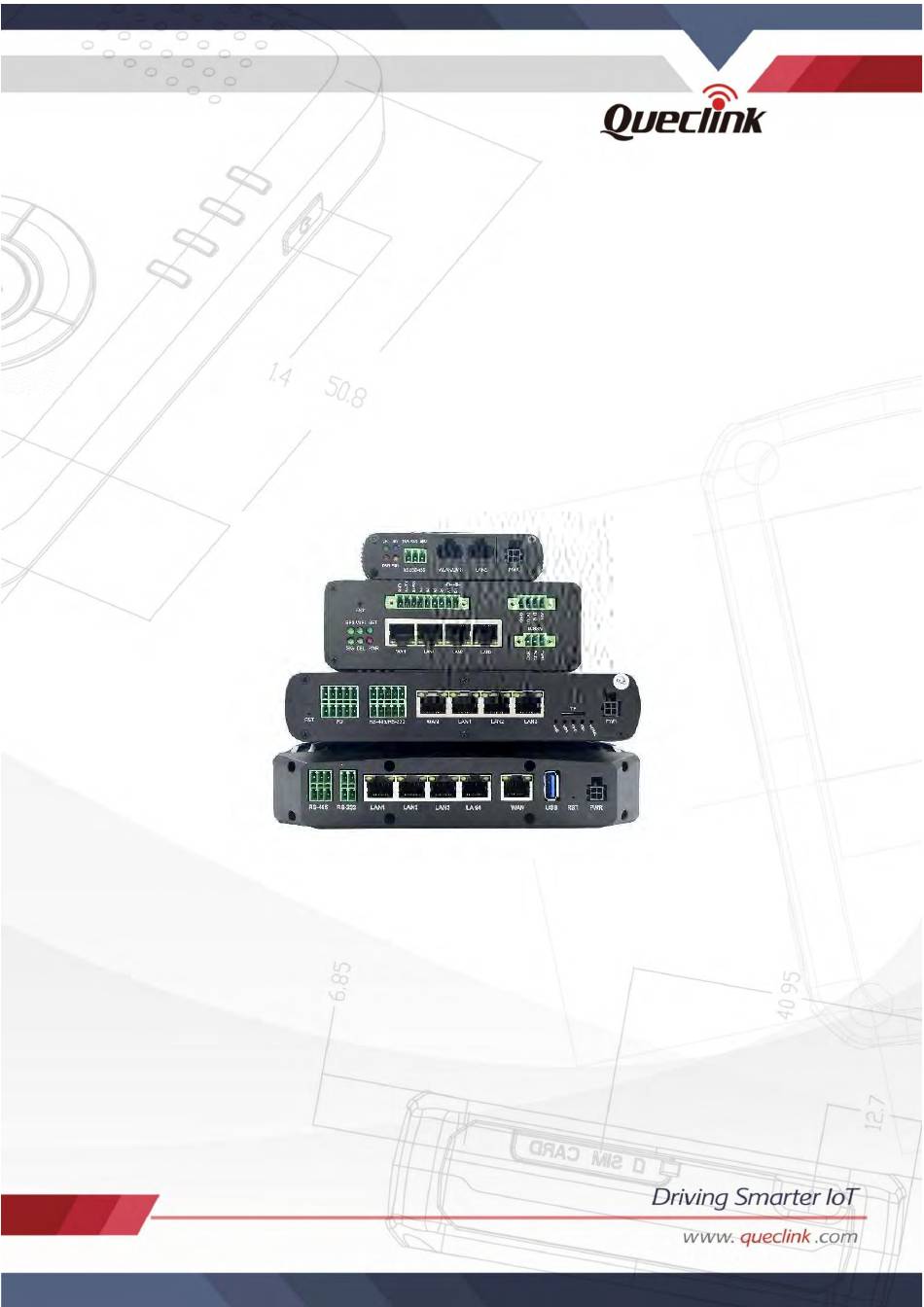

Page 1 Queclink Industrial CPE User Manual Version: 4.00...
Page 2: General Notes
Released General Notes Queclink offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Queclink. The information provided is based upon requirements specifically provided to Queclink by the customers. Queclink has not undertaken any independent search for additional relevant information, including any information that may be in the customer’s possession.
Page 3: Table Of Contents
WR100LNA User Manual Contents 0. Revision History ........................1 1. Overview ..........................2 1.1 Description ........................2 1.2 Software Architecture ...................... 2 2. Hardware ..........................3 2.1 Structure ........................... 3 2.2 Interfaces .......................... 6 2.3 Connector Definition ......................7 2.4 LEDs ..........................9 2.5 Installation ........................
Page 4 WR100LNA User Manual 4.2.6 Routing ........................41 4.2.6.1 Static ......................41 4.2.6.2 Rip ....................... 42 4.2.7 Firewall ........................43 4.2.7.1 NAT ......................43 4.2.7.2 Domain Filter ....................44 4.2.7.3 IP/MAC Filter ....................45 4.2.7.4 DMZ ......................46 4.2.7.5 DDOS ......................46 4.3 Applications ........................
Page 5 WR100LNA User Manual 4.3.11.2 COMMUNITY ..................... 95 4.3.12 Tracker ........................95 4.3.12.1 General ...................... 95 4.3.12.2 Device ......................96 4.3.12.3 Report ......................98 4.3.13 Hotspot ........................ 100 4.3.14.1 General ....................100 4.3.14.2 Local Users ....................102 4.4 System .......................... 102 4.4.1 Setup Wizard ......................
Page 6: Revision History
WR100LNA User Manual 0. Revision History Version Date Author Description of Change 2022-06-07 Vincent Initial 2023-10-31 Vincent Build a unified version 2024-3-4 Vincent Change the name from Router to CPE. Update some content.
Page 7: Overview
1. Overview 1.1 Description The Queclink dual SIM industrial CPE is a series of rugged CPE offering high-speed stable mobile connectivity for machine to machine (M2M) applications. Based on 3G/4G LTE and 5G technology, the devices adopt high-performance processor and embedded operating system design.
Page 8: Hardware
WR100LNA User Manual 2. Hardware 2.1 Structure WR100: WR201:...
Page 9 WR100LNA User Manual WR210:...
Page 10 WR100LNA User Manual WR300:...
Page 11: Interfaces
WR100LNA User Manual 2.2 Interfaces WR100: WR201:...
Page 12: Connector Definition
WR100LNA User Manual WR210: WR300: 2.3 Connector Definition WR100: Power...
Page 13 WR100LNA User Manual RS-485/RS -232 WR201: Power RS-485/RS -232 WR210: Power...
Page 14: Leds
WR100LNA User Manual RS-485/RS -232 WR300: Power RS-485 RS-232 2.4 LEDs WR100: Name Status Description Red, solid Power on Power off Wi-Fi Orange, solid Wi-Fi on and working...
Page 15 WR100LNA User Manual Orange blinking every 350ms Data is being transferred Wi-Fi off Green, solid Connecting to 4G network Green blinking every 0.5s Connecting to 2G/3G network No SIM or bad PIN SIGNAL Blue, solid 23 to 32 (RSSI) Blue blinking every 1s 11 to 23 Blue blinking every 0.5s 1 to 10...
Page 16 WR100LNA User Manual WR210: Name Status Description Green, solid Power on Power off Green, solid Wi-Fi on and working properly Wi-Fi Green blinking every 250ms Data is being transferred Wi-Fi off or abnormal Green, solid GPS on and working properly GPS off or abnormal Green,solid Link connection is working...
Page 17: Installation
WR100LNA User Manual Wi-Fi off or abnormal Green,solid GPS on and working properly GPS off or abnormal Red,solid No SIM card or wrong PIN Green and red blinking evey 1s Connected to 2G network Green and red blinking evey 1s Connected to 3G network Green blinking evey 1s...
Page 18 WR100LNA User Manual Note: The device is compatible with mini-SIM (2FF) size cards. 2. Attach External LTE, Wi-Fi and GPS Antenna: Attach the SMA external antenna to the device’s connector and twist tightly. Make sure that the antenna type corresponds to the antenna connector. You can see the antenna type by the silk printing on the antenna.
Page 19 WR100LNA User Manual 5. Fix the device You can use the mounting bracket to fix the device on the wall or other flat surface. WR210 and WR310 series can support DIN rail installation, and you can consult with local sales representatives to order related accessories.
Page 20: Initial Configuration
WR100LNA User Manual 3. Initial Configuration Queclink Industrial CPEs have a friendly WebUI which make users easily configure the device through. Make sure your computer has an Ethernet interface and web browser such as IE, Chrome, Firefox, etc. 3.1 Configure the PC There are two methods to get IP address for the PC, one is to obtain an IP address automatically from “Local Area Connection”, and another is to configure a static IP address manually within the...
Page 21: Login To Device
WR100LNA User Manual 3. Choose Internet Protocol Version 4 (TCP/IPv4) and click Properties. 4. Use the following IP address: Configured a static IP address manually within the same subnet of the device, the default IP address is 192.168.1.1. Click OK to finish the configuration. 3.2 Login to device 1.
Page 22 WR100LNA User Manual The following chapters provide a detailed description on all firmware features and how to configure their parameters through web management system. Depending on the model, some of the features may not be available in your device, you can skip the chapters without affecting your understanding of the other content.
Page 23: Software Configuration
WR100LNA User Manual 4. Software Configuration 4.1 Status This section includes the running status of the device. 4.1.1 Overview The Overview page contains various information summaries, such as connection state, mobile connection state and traffic, etc. It is also the homepage of the WebUI. The figure bellow is an example of the Overview page: 4.1.2 Device The Device page displays the device’s hardware, software and modem related information.
Page 24: Network->Mobile
WR100LNA User Manual instead of the LAN IP address to communicate with the device inside the local network. Firmware version Displays the firmware version currently used by the device. Displays the device's kernel version. A kernel is a computer Kernel version program responsible for connecting a device's software to its hardware.
Page 25 WR100LNA User Manual The APN (Access Point Name) provides a phone with the information needed to connect to wireless service. The IMEI (International Mobile Equipment Identity) is a unique 15 decimal digit number used to identify mobile modules. GSM IMEI network operators use the IMEI to identify devices in their networks.
Page 26: Network->Wan
WR100LNA User Manual A netmask is used to define how "large" a network is by specifying Netmask which part of the IP address denotes the network and which part denotes the device. Gateway of the default route - an IP address through which the Gateway device reaches the Internet.
Page 27: Network->Wlan
WR100LNA User Manual The Refresh button is to refresh all information fields in the page. Field Name Description LAN Information Name LAN interface name. IP address LAN IP address. A netmask is used to define how "large" a network is by specifying Netmask which part of the IP address denotes the network and which part denotes the device.
Page 28: Applications
WR100LNA User Manual The Refresh button is to refresh all information fields in the page. Field Name Description The broadcasted SSID (Service Set Identifier) of the wireless SSID network. Currently used channel. In most countries there are 13 Wi-Fi Channel channels on the 2.4 GHz band (14 in Japan) to choose from.
Page 29: Routes
WR100LNA User Manual Field Name Description Name Associated VPN name. Enable Display the enable/disable status of this VPN. Status Destination network address. Mode Current operating mode. Can either be Server or Client. IP/Client Number If the VPN is a client, it displays the IP address allocated by the server.
Page 30: Mobile Traffic
WR100LNA User Manual ARP Parameter description: Field Name Description IP address IP address of a local host. MAC address MAC address of a local host. Interface Interface through which the device is associated with the host. Routes Parameter description: Field name Description Interface Associated network interface name.
Page 31: Log
WR100LNA User Manual 4.1.11 Log The Log Viewer page is to display the contents of the system log or kernel log. You can select which log file to display with the drop-down box. Refresh button is to refresh the content. You can save the current log as txt file through the Save file button.
Page 32 WR100LNA User Manual can also work in Load Balancing mode; the device will divide traffic between two interfaces. Field Name Value Description Select from “Modem” “WAN”  Modem: Select to make mobile as the primary wireless Primary Link Modem|WAN|WLAN link. ...
Page 33 WR100LNA User Manual Field Name Value Description Associated interface to configure Link Modem |Wan|Wifi2.4G|Wifi5G the failover strategy. Health monitor Disable|5 sec|10 sec|20 sec|30 Number of seconds between each interval sec|60 sec|120 sec test. Indicates the host try to ping, Health monitor Disable|DNS select custom to manually ICMP host...
Page 34: Mobile
WR100LNA User Manual 4.2.2 Mobile The Mobile page is used for setting parameters related to the mobile data connection. There have two SIM slots in the device, each slot can insert a SIM card, and the user can select one SIM as the primary SIM and allow the switchover between two SIMs.
Page 35: Sim Management
WR100LNA User Manual and another computer network. Depending on the contract, some operators may require you to use an APN just to complete the registration on a network. In other cases, APN is used to get special parameters from the operator (e.g., a public IP address) depending on the contract.
Page 36: Data Limit
WR100LNA User Manual Field Value Description Enable automatic yes|no; default: yes Turns automatic SIM Switching on or off. switching The frequency at which the device will check for condition changes corresponding to SIM switch rules. If such a condition Check interval integer;...
Page 37: Wan
WR100LNA User Manual connection to establish a data connection until the limit period is over or the limit is reset by the user. Field Value Description Enable data yes|no; default: no Turns mobile data limitations on or off. connection limit Data limit* (MB) integer;...
Page 38 WR100LNA User Manual Field name Value Description Static|DHCP|PPPoE; Protocol The protocol used by the WAN interface. default: DHCP IPv4 address ip; default: none IP address on the WAN network. Netmask defines how "large" a network IPv4 netmask ip; default: none The address where the device will send all IPv4 gateway ip;...
Page 39 WR100LNA User Manual Field Name Value Description Static|DHCP|PPPoE; Protocol The protocol used by the WAN interface. Default: DHCP Hostname to send ip|hostname; Default: Host name to which the DHCP request will when requesting device's hostname be sent to. DHCP Required for certain ISPs (Internet Service Use broadcast flag yes|no;...
Page 40 WR100LNA User Manual with your device). In this field you can enter your computer’s MAC address and fool the gateway in to thinking that it is communicating with your computer. Maximum Transmission Unit (MTU) – integer [0..1500]; Default: Override MTU specifies the largest possible size of a data 1500 packet.
Page 41: Lan
WR100LNA User Manual Presumes peer to be dead after given echo failure integer; default: 0 amount of LCP echo failures. Leave it at 0 threshold to ignore failures. Sends LCP echo requests at the given interval in seconds. This function is only LCP echo interval integer;...
Page 42 WR100LNA User Manual leases section. IP Aliases section allows you to multi IP address for the device. It is a way of defining or reaching a subnet that works in the same space as the regular network. This is useful if you need to reach the device that is located in the same network but in a different subnet.
Page 43: Wlan
WR100LNA User Manual The duration of an IP lease. Leased out addresses will expire after the amount of time specified in this field and the device that was using the lease will have to request a new DHCP lease. However, if the device stays connected, its lease will be time in minutes;...
Page 44 WR100LNA User Manual You can select the Wi-Fi mode from the drop-down menu. a) Wireless Access Point: The page will display the overview of the Wireless Configuration. It displays all configured access points and stations. You can disable or enable the Wi-Fi interfaces, remove unwanted access points or stations or enter a configuration window of any Wi-Fi interface, where you can configure this interface more comprehensive.
Page 45 WR100LNA User Manual No encryption|WPA2-PSK| WPA-PSK/WPA2-PSK mixed Encryption The type of Wi-Fi encryption used. mode; Default: No encryption Force CCMP (AES)| Force An algorithm for performing encryption or Cipher TKIP and CCMP (AES); decryption. Default: Force CCMP (AES) Pre-shared key, a custom passphrase used string;...
Page 46: Routing
WR100LNA User Manual After the scan finishes, you will see a list of Wi-Fi Access Points. Choose one according to your liking and click the Join button next to it, enter the password to connect to that access point. 4.2.6 Routing 4.2.6.1 Static Static routes specify over which interface and gateway a certain host or network can be reached.
Page 47: Rip
WR100LNA User Manual Field Name Value Description WAN|Mobile|Wifi2.4G|Wifi5 Interface The zone where the target network resides. G; Default: WAN (Wired) Destination subnet ip; Default: 0.0.0.0 The address of the destination network. address A Mask that is applied to the Target to Netmask ip;...
Page 48: Firewall
WR100LNA User Manual network interface; Default: Network interface to be used with the RIP Interface br-lan interface. Sets the specified interface to passive mode. On passive mode interface, all Passive interface yes|no; Default: no receiving packets are processed as normal and rip does not send either multicast or unicast RIP packets.
Page 49: Domain Filter
WR100LNA User Manual Translated IP A.B.C.D The translated IP address. Translated Port 1~65535 The translated port. Field Name Value Description OFF/ON ON|OFF To turn on/off the section. ALL|TCP|UDP|ICMP|TCP Select the protocol to translate the IP and Protocol +UDP Defaule:ALL Port. WAN|PPTP|L2TP|OPENV Applied On PN|GRE...
Page 50: Ip/Mac Filter
WR100LNA User Manual Mode of operation. • Whitelist - allow every site included in the list Blacklist|Whitelist; Mode and block everything else. Default: Blacklist • Blacklist - block every site included in the list and allow everything else. Website name or IP address. The formats accepted are either www.website.com or website.com, i.e., the protocol and subdomains Domain name...
Page 51: Dmz
WR100LNA User Manual included in the list and allow everything else. Src address ip; Default: 0.0.0.0 The IP address of client to be configured. MAC address mac; Default: none The MAC address of client to be configured. All|TCP|UDP|TCP+UDP|ICM Protocol Specifies the protocol to blocked/unblock. P|;...
Page 52 WR100LNA User Manual SYN Flood Protection: SYN Flood Protection allows you to protect yourself from attacks that exploit part of the normal TCP three-way handshake to consume resources on the targeted server and render it unresponsive. Essentially, with SYN flood DDOS, the offender sends TCP connection requests faster than the targeted machine can process them, causing network over-saturation.
Page 53: Applications
WR100LNA User Manual 4.3 Applications This section shows you how to configure the service applications of the device. 4.3.1 GPS (Available for Specific Models Only) 4.3.1.1 Map The Global Positioning System (GPS) is a space-based radio navigation system. The Map page displays the device's current coordinates and position on the map. To have the device's location on the map, make sure to attach the GPS antenna on the device and place it outside, and GPS is enabled in the general page.
Page 54: Nmea
WR100LNA User Manual 4.3.1.3 NMEA The NMEA forwarding section is used to configure and enable NMEA forwarding to a server filled in the hostname. NMEA is a standard data format supported by all GPS manufacturers, much like ASCII is the standard for digital computer characters in the computer world. Field Name Value Description...
Page 55: Vpn
WR100LNA User Manual default: 8500 will be forwarded. The device caches NMEA forwarding information if NMEA forwarding is enabled. This section is used to select the memory type where the cache will be stored and the maximum amount of data that will be saved. The NMEA sentence settings section provides the possibility to configure which NMEA sentences will be forwarded or collected and at specify period.
Page 56 WR100LNA User Manual Refer to the figure and table below for information on the PPTP client's configuration fields: Field Name Value Description Enable yes|no; default: no Turns the PPTP instance on or off. When turned on, this connection will become the device's default route.
Page 57: L2Tp
Username string; default: WR201 this PPTP server. Password used for authentication to Password string; default: queclink this PPTP server. Assigns an IP address to the client that uses the adjacent authentication info. This field is optional and if left empty PPTP Client's IP ip;...
Page 58 WR100LNA User Manual L2TP client: An L2TP client is an entity that initiates a connection to an L2TP server. To create a new client instance, select Role as Client, enter a custom name and click the Add icon to create a new instance, then click Edit icon to go to L2TP client configuration page.
Page 59 WR100LNA User Manual When turned on, this connection will become the device's default route. This means that all traffic directed to the Internet will go through the L2TP server and the server's IP address Default route yes|no; default: no will be seen as this device's source IP to other hosts on the Internet.
Page 60: Openvpn
WR100LNA User Manual Username used for authentication to this L2TP Username string; default: user server. Password used for authentication to this L2TP Password string; default: pass server. Assigns an IP address to the client that uses the adjacent authentication info. This field is L2TP Client's IP ip;...
Page 61 WR100LNA User Manual Field Name Value Description Enable yes|no; default: no Turns the OpenVPN instance on or off. Enable OpenVPN Enables custom OpenVPN configuration from yes|no; default: no config from file file. Virtual network device type. • TUN - a virtual point-to-point IP link TUN (tunnel)|TAP which operates at the network layer (OSI TUN/TAP...
Page 62 WR100LNA User Manual when reliability is crucial (for example, in file transfer). User Datagram Protocol (UDP) - packets are sent to the recipient without error-checking or back-and-forth quality control, meaning that when packets are lost, they are gone forever. This makes it less reliable but faster than TCP;...
Page 63 WR100LNA User Manual 128|AES-192-CBC 192|AES-256-CBC 256|none ; default: BF-CBC 128 All|DHE+RSA|Custom; TLS: TLS cipher Packet encryption algorithm cipher. default: All TLS: Allowed TLS All|DHE+RSA|Custom; A list of TLS ciphers accepted for this ciphers default: All connection. Remote host/IP IP address or hostname of an OpenVPN ip;...
Page 64 WR100LNA User Manual chain TLS/Password: none|SHA1|SHA256| HMAC SHA384|SHA512; HMAC authentication algorithm type. authentication default: SHA1 algorithm none|Authentication TLS/Password: only (tls-auth)| An additional layer of HMAC authentication Additional HMAC Authentication and on top of the TLS control channel to protect authentication encryption (tls-crypt);...
Page 65 WR100LNA User Manual Field Name Value Description Enable yes|no; default: no Turns the OpenVPN instance on or off. Enable OpenVPN Enables custom OpenVPN configuration from yes|no; default: no config from file file. Virtual network device type. • TUN - a virtual point-to-point IP link which TUN (tunnel)|TAP operates at the network layer (OSI layer 3), TUN/TAP...
Page 66 WR100LNA User Manual that when packets are lost, they are gone forever. This makes it less reliable but faster than TCP; therefore, it should be used when transfer speed is crucial (for example, video streaming, live calls). TCP/UDP port number used for the connection.
Page 67 WR100LNA User Manual Static key: Remote LAN IP address of the remote network ip; default: none network IP address (client). Static key: Remote netmask; default: LAN IP subnet mask of the remote network network IP netmask none (client). TLS/TLS/Password: All|DHE+RSA|Custom Packet encryption algorithm cipher.
Page 68: Ipsec
WR100LNA User Manual pre-shared key client authentication. Certificate authority is an entity that issues TLS/TLS/Password: digital certificates. A digital certificate .ca file; default: none Certificate authority certifies the ownership of a public key by the named subject of the certificate. TLS/TLS/Password: A type of digital certificate that is used to .crt file;...
Page 69 WR100LNA User Manual Field Name Value Description Enable yes|no; default: no Turns the IPsec instance on or off. Internet Key Exchange (IKE) version used for key exchange. IKEv1 - more commonly used but contains known issues, for example, dealing with NAT.
Page 70 WR100LNA User Manual Internet Security and Key Management Protocol (ISAKMP) phase 1 exchange mode. Main - performs three two-way exchanges between the initiator and the receiver (a total of 9 messages). Main|Aggressive; default: Aggressive - performs fewer exchanges than Mode Main main mode (a total of 6 messages) by storing most data into the first exchange.
Page 71 WR100LNA User Manual number of messages when the opposite peer in unavailable and as failover mechanism. Dead Peer The frequency of checking whether a peer Detection: integer; default: none is still available or not. Delay (sec) Time limit after which the IPsec instance Dead Peer will stop checking the availability of a peer Detection:...
Page 72: Gre Tunnel
WR100LNA User Manual 3072|MODP4096; default: provide more security, but take longer and MODP1536 use more resources to compute the key. Defines a time period after which the phase Lifetime integer; default: 8 hours will re-initiate its exchange of information. 4.3.2.5 GRE Tunnel Generic Routing Encapsulation (GRE) is a tunneling protocol used to establish point-to-point connections between remote private networks.
Page 73 WR100LNA User Manual Field Name Value Description Enabled yes|no; default: no Turns the GRE Tunnel instance on or off. network interface; Network interface used to establish the GRE Tunnel source default: none Tunnel. External IP address of another GRE instance Remote endpoint ip;...
Page 74: Sms Utilities
WR100LNA User Manual configuring the route refer to the figure and table below. Field Name Value Description Remote subnet IP IP address of the network behind the ip; default: none address device that hosts the remote GRE instance. Remote subnet Subnet mask of the network behind the netmask;...
Page 75 WR100LNA User Manual Enter a custom MQTT server name and click the Add icon to create a new MQTT server instance and go to the configuration page. You can click edit button on the right to edit an existing MQTT server instance.
Page 76: Rs232/Rs485
WR100LNA User Manual Require Toggles Require authentication yes|no; default: no authentication between ON or OFF. Authentication Username used for authentication when string; default: none username connecting to the Broker. Authentication Password used for authentication when string; default: none password connecting to the Broker. Toggles the TLS authentication between yes|no;...
Page 77 WR100LNA User Manual The user can configure the parameters of RS232 port, including baud rate, data bits, etc. The serial type is the working type of RS232. By default, RS232 is working as a console port. Field Name Value Description Enabled yes|no;...
Page 78 WR100LNA User Manual Even (E) - the parity bit is set so that the number of "logical ones (1s)" has to be even Stop bits sent at the end of every character allow the receiving signal hardware to detect the end of a character Stop bits 1|2;...
Page 79 WR100LNA User Manual Field Name Value Description Specifies the protocol used in the Protocol TCP|UDP; Default: TCP communication process Specifies device's role connection: Server|Client; Mode Server - the device waits for incoming Default:Server connections Client - the device initiates the connection integer [0..65535];...
Page 80: Modbus
WR100LNA User Manual Server waits incoming Server|Client; connection Mode Default: Server Client - initiates the connection Server address to which the client will Server address host|ip; Default: no connect to integer [0..65535]; Default: The port number used to listen for Port "...
Page 81 WR100LNA User Manual Field Name Value Description Enabled yes | no; default: no Turns the slave on or off. Name characteristic Name of a slave Slave ID integer [1..255]; Slave ID. Each slave in a network is default: no assigned a unique identifier ranging from 1 to 255.
Page 82 WR100LNA User Manual Multiple Holding Register (03H) | Write Single Holding Register (06H) | Write Multiple Holding Register (10H); default: Read Coils First Register String [1..FFFF]; default: 1 First Modbus register from which data will (Hex) be read. Register count String [1..FFFF];...
Page 83 WR100LNA User Manual Field Name Value Description time String Acquisition time of the query. IMEI String The device's IMEI,Used to identify unique devices. Integer ID of the message, to identify the message slave Integer Modbus slave ID function Integer Function code values_len Integer The length of return value...
Page 84: Modbus Tcp To Rtu
WR100LNA User Manual You can also forward the data to HTTP servers.Select the protocol as HTTP: In HTTP mode, only the device can send messages to the server. The format is the same as MQTT. 4.3.6.2 Modbus TCP to RTU This function allows redirecting Modbus TCP data coming to a specified port to RTU specified by the Slave ID.
Page 85: Input
WR100LNA User Manual To configure a DDNS instance, click the Add icon button or the Edit icon of the existing instance. The figure below is an example of the edit page of the default DDNS instance: Field Name Value Description Enable yes|no;...
Page 86: Status
WR100LNA User Manual This section is to provide the control on the input ports. 4.3.8.1 Status The Status page displays the current states of the device's input ports: 4.3.8.2 Report The page provides a way to report an input event to a MQTTT/TCP server. To add a new report, Click the Icon to enter the configuration page.
Page 87 WR100LNA User Manual Field Name Value Description Enable yes|no; default: yes Turns the input rule on or off. Digital Input|Digital isolated|Analog|Digital Port Selects to which input pin the rule will apply. Input(PWR); default: Digital Input Both |Low level |High level; default: both Selects which input state will trigger the Trigger Inside range |Outside...
Page 88 WR100LNA User Manual IMEI String The device's IMEI,Used to identify unique devices. String Execution result. "success" indicates success; "fail" indicates failure. port String Index of I/O port. value String The value of this input port. The following is an example command for querying IO status (in JSON format): {"service":"0", "port": "6,8,5,12"} Field Name Value...
Page 89: Local Control
WR100LNA User Manual The mapping table of port index, input port and value: Port Value Digital input 0: Low level; 1: High level Digital galvanically isolated input 0: High level; 1: Low level Analog input ADC value Digital input (PWR) 0: High Level;...
Page 90: Application Example
WR100LNA User Manual output|Relay|Open collector output; Default:Galvanically isolated open collector output Used to set the activated time for the output port. At once:Activate the output port immediately when the input port switches to the set state. Second:After the input port switches to the set Output At once|Second|Delayed state, activate the output port immediately...
Page 91: Output
WR100LNA User Manual 4.3.9 Output All devices can support more than one digital or analog output, for example, WR201 has 3 outputs. This section is to provide the control on the output ports. 4.3.9.1 Status The Status page displays the current states of the device's output ports: 4.3.9.2 Default State The page is to set the default state of the output ports when the device powers on.
Page 92: Switch
WR100LNA User Manual 4.3.9.3 Switch The Switch page is used to turn the device's outputs on or off manually. This action does not save the state permanently, meaning that after a reboot the states will revert back to their default values.
Page 93 WR100LNA User Manual Field Name Value Description Enable yes|no; default: yes Turns the Periodic Control rule on or off. Galvanically isolated open collector output|Relay|Open Port collector output(PWR); Selects which output pin the rule will apply. default: Galvanically isolated open collector output ON|OFF|Contact The state of the selected output will be set to...
Page 94: Control
WR100LNA User Manual which the CPE will perform will perform the action. the action 4.3.9.5 Control The page provides two ways to control the output port through MQTTT and TCP servers. The MQTT server sends control and query command with JSON format message. Field Name Value Description...
Page 95: Application Example
WR100LNA User Manual value String Target control status The following is an example of responses, {"time":"2022-05-08 17:39:05", "IMEI":"863553065142923", "rtn":"success", "port": "8,5,12", "value": "0,0,1"} To forward the data to TCP server, you must select Protocol as TCP. The message format follows the MQTT format, a starting symbol "@" and anending symbol "$" need to be added in the message.
Page 96: Auto Recovery
WR100LNA User Manual ➢ In some cases, you may want WR201 release to automatically press the key to turn on the high-power load, which can be connected according to the following figure: 4.3.10 Auto Recovery Auto Recovery pages provides you several applications as a precautionary measure to ensures the device will recover from unexpected issues, such as mobile connection is down.
Page 97: Icmp
WR100LNA User Manual Field Name Value Description Enable yes|no; Default: no Turns the rule ON or OFF Task Name string Name of ICMP rule Reboot|Restart The action that will be taken when timer Action modem|Restart mobile reached connection; Default: Reboot The hour of the day on which the device Hour integer [0..23];...
Page 98 WR100LNA User Manual fields that make up that rule: Field Name Value Description Enable yes|no; Default: no Turns the rule ON or OFF Name string Name of ICMP rule Reboot|Restart Action if no modem|Restart mobile The action that will be taken if no ICMP echo is echo is connection|;...
Page 99: Snmp
WR100LNA User Manual 4.3.11 SNMP Simple Network Management Protocol (SNMP) is a network management protocol used for collecting information and configuring network devices. 4.3.11.1 SNMP The SNMP settings page is used to configure SNMP connectivity and general SNMP information for your device. Field Name Value Description...
Page 100: Community
Access mode for current community. default: read-only 4.3.12 Tracker The Tracker section is used to configure the device to send GNSS reports with Queclink 2 Generation Trakcer Protocol. Please contact our FEA engineers to get the document of the protocol.
Page 101: Device
WR100LNA User Manual 4.3.12.2 Device The Device page is used to configure Backend Server /Acknowledgement and Hearbeat information for Tracker. You can click CMD drop down button to display and configure the parameters. The content will change according to which CMD is selected. Backend Server is used to configure the IP address (or domain name) and port of the backend server, Transmission Mode, etc.
Page 102 WR100LNA User Manual Field Name Value Description ACK mode 0-Respond to sender 0 - Respond to sender only. The terminal only|1-Respond to receives the command from which physical path sender and backend (for example, Cellular Network, SMS, RS232.), server; and replies the ACK (or NACK) only from which default:0-Respond to physical path.
Page 103: Report
WR100LNA User Manual Field Name Value Description Profile ID 0-Profile 0 (Default) Specify the associated profile ID. Heartbead 0 - Disable|1 - Enable 0 - Disable. The terminal does not send the HBD mode (periodic)|2 - Enable frame to the backend server. (aperiodic);...
Page 104 WR100LNA User Manual Field Name Value Description Device Startup Report Select the report to configure. (01H)|Connection Starts Report (03H)|Device Basic Information Report (11H)|Real-time Location Report (12H)|Fixed Report (50H); default:Device Startup Report (01H) Mode 0 - Disable|1 - Enable 0 - Disable. The terminal no longer generates Report|11 - Enable and sends the record.
Page 105: Hotspot
(WLAN) with a device connected to an Internet service provider. Queclink CPE can configure a Hotspot service that provides authorization and accounting for a network. This chapter descibe how to configure a WIFI hotspot. 4.3.14.1 General .The General page displays the created instance and its major parameters. By default, a Hotspot instance does not exist on the device.
Page 106 WR100LNA User Manual Field Name Value Description Enable off | on; default: on Turns the Hotspot instance on or off. Interface Wifi2.4G|Wifi5G Interface to provide hotspot service. Hotspot ip/netmask; IP address and subnet of the Hotspot network. Network default: 192.168.2.0/24 IP Address Defines the IP address of your Hotspot in default: 192.168.2.254...
Page 107: Local Users
WR100LNA User Manual 4.3.14.2 Local Users The Local Users page is used to create and manage users that can connect to the Hotspot. To add a local user: Clicking Add icon to create a new user instance, and entering a Username, Password. Clicking Save button to apply the change.
Page 108 WR100LNA User Manual Step3 is used to configure the device's local area network (LAN) and DHCP server settings. Step4 is used to configure the device's Wi-Fi access point (AP).
Page 109: Administration
WR100LNA User Manual You can also skip any of above steps and configure the setting later in the according section. 4.4.2 Administration 4.4.2.1 General This page is for you to set up some of the device's system parameters, such as password, host name.
Page 110: Configuration
WR100LNA User Manual Field Name Value Description Turns SSH access from the local network Enable SSH access yes|no; default: yes (LAN) on or off. Turns SSH access from remote networks Remote SSH access yes|no; default: no (WAN) on or off. integer [0..65535];...
Page 111: Reboot
WR100LNA User Manual 4.4.3 Reboot This page is used only to reboot the device. Click the Reboot button if you wish to reboot the device. 4.4.4 Diagnostic The Diagnostic is used to execute network diagnostic tests, including traceroute, ping and Tcpdump.
Page 112: Ntp
WR100LNA User Manual Field Name Value Description Select interface network interface; Only captures packets that move through default: All the specified network interface. Select protocol filter All | ICMP | TCP | UDP | Only captures packets that match the ARP;...
Page 113: Cli
The name of NTP server. 4.4.6 CLI command-line interface (CLI) is a command line program that accepts text input to execute operating system functions. You can login the CLI with root account and password to execute any commands supported by Linux or Queclink’s applications.
Page 114: Rms
WR100LNA User Manual 4.4.7 RMS RMS (Remote Management System) is a cloud system designed by Queclink and used for remote monitoring and management of Queclink CPE products. The figure below is an example of the RMS section from a device which has been connected to...
Page 115: Upgrade
Turns RMS service on or off. Host Address of the RMS server. If you're using Host name/URL default:rms.quecklinksz Queclink RMS, just leave the default address. .com The interval of heartbeat between device and HeartBeat Interval integer; default: 60 RMS server. It’s used to detect whether the device is online or not.
Page 116: Fota
4.5 Reset Button All Queclink CPEs has a reset button to return the device back to its default factory settings, please kindly note returning to default factory setting means the device will delete all custom configurations.
Page 117: Faq
WR100LNA User Manual 5. FAQ 5.1 SIM Slot Phenomenon: Discontinue during dialing, dial failure Possible Reason: SIM card network type do not match ⚫ SIM charges owed ⚫ Power supply do not match ⚫ Modem setting wrong ⚫ Solution: Change to a suitable SIM card ⚫...
Page 118 WR100LNA User Manual VPN port abnormal ⚫ VPN parameter setting wrong ⚫ VPN peer server abnormal ⚫ Solution: Make sure the device is online ⚫ Set the correct port to VPN ⚫ Check all VPN parameters ⚫ Check VPN peer server ⚫...
Page 119: Glossary
WR100LNA User Manual Glossary Abbr. Description Access Point Name CHAP Challenge Handshake Authentication Protocol Decibel Direct Current Digital Input Digital Output FDD LTE Frequency Division Duplexing Long Term Evolution generic route encapsulation Global System for Mobile Communications HSPA High Speed Packet Access identification data IMEI International Mobile Equipment Identity...
Page 120 WR100LNA User Manual Appendix This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interf erence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
