Summary of Contents for ALLNIC AUDIO H-5500

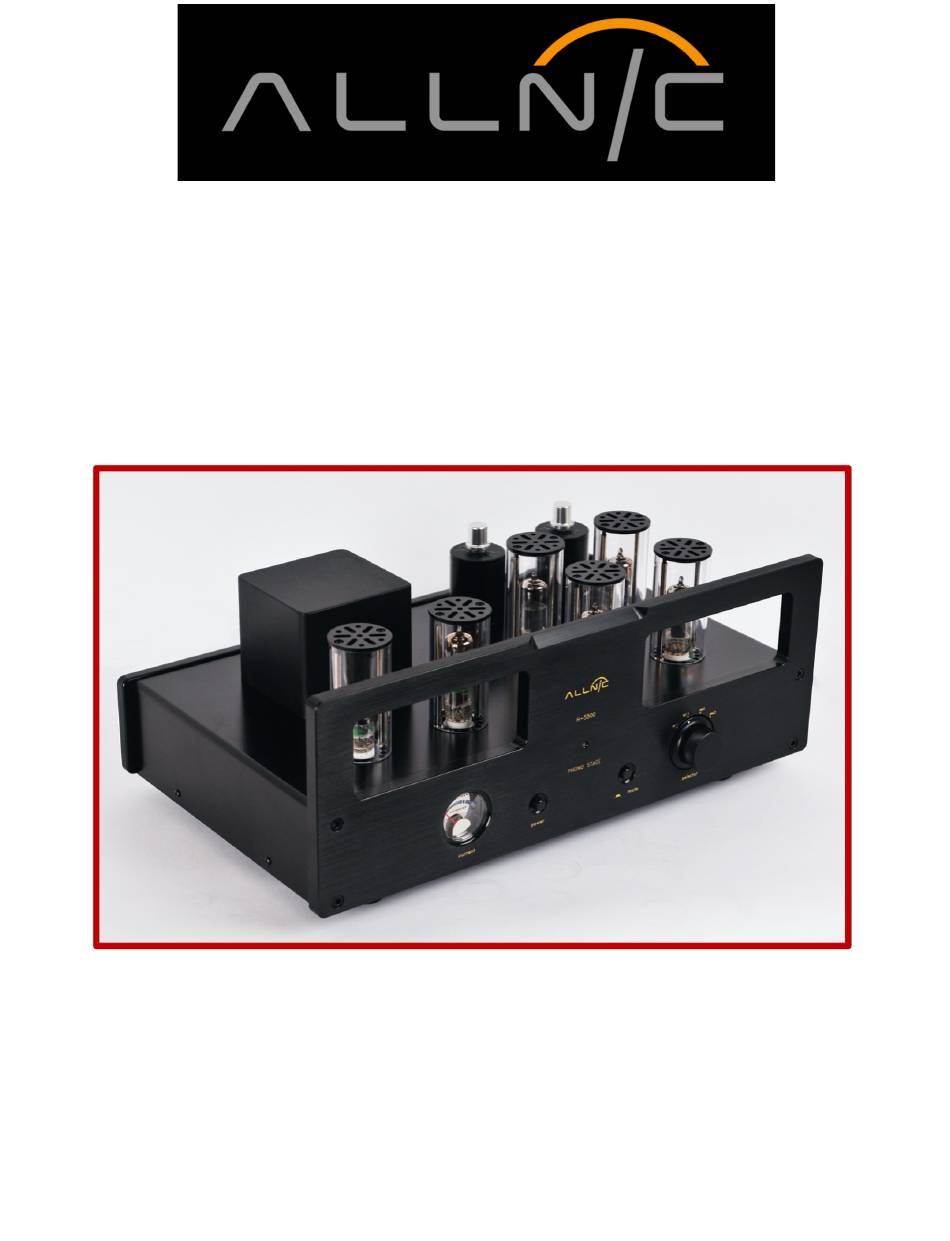

- Page 1 ALLNIC AUDIO H-5500 PHONO-STAGE PREAMPLIFIER OWNER’S MANUAL...
- Page 2 H-5500 PHONO–STAGE PREAMPLIFIER Thank you for purchasing this Allnic Audio H-5500 Phono-Stage Preamplifier. We are certain your trust in Allnic Audio and its dealers worldwide, as well as your appreciation for the sound of this high-quality device, will be rewarded by its excellent operation for years to come.
-
Page 3: Table Of Contents
CURRENT METER TUBES SPECIFICATIONS WARRANTY FIGURES Please read about SAFETY before you attempt to use the H-5500 Phono- Stage Preamplifier - we care about our customers and the equipment, and we want you to enjoy this product for a long time! -
Page 4: Introducing The H-5500 Phono-Stage Preamplifier
H-5500 to your AC mains. Contact your authorized Allnic representative (See Figure 1). We advise that you keep the box and other packing materials that your H-5500 came in. It will be useful if you sell your H-5500 or in the unlikely event you need to ship it for service. -
Page 5: Cleaning
INITIAL SET-UP LOCATION, LOCATION, LOCATION Like all audio products using tubes, the Allnic Audio H-5500 needs to be placed on a solid stand in a location that provides good air circulation around the phono-stage. •... -
Page 6: Power Connection
RCA output connection is just to the left of the MC RCA input pairs (when facing the front of the H- 5500, to their right). Facing the rear of the H-5500, the left channel RCA output connection is just to the right of the MC RCA input pairs (when facing the front of the H-5500, to their left (See Figure 1). -
Page 7: Operation
To turn on the H-5500, press in the button switch labelled “power” just to the right of the current meter on the left of the front panel. Pressing the power button again will power down the H-5500 (See Figure 2). -
Page 8: Tubes
Allnic dealer. Allnic Audio and its authorized representatives are not liable in any way whatsoever for any damage to the H-5500 or any injury or loss incurred by the user resulting from the user changing or attempting to change tubes. - Page 9 (Total Harmonic Distortion): Less than 0.3% (1KHz, Output 1V) Output Impedance: 1.2KΩ (on-off method) S/N Ratio: -68dB (CCIR, 1KHz) Power Consumption: 20W / 220V @ 60Hz Tubes: E180CC x 4 - New old stock - (electrically equivalent: 6414, CV8431, 7062, 5965, 12AV7, 6829) gain tubes.
-
Page 10: Warranty
FOR WARRANTY SERVICE, PLEASE CONTACT YOUR AUTHORIZED ALLNIC DEALER. Except for the tubes, this Allnic Audio product is warranted against materials and manufacturing defects only for two (2) years from date of purchase. The tubes in this product are warranted against materials and manufacturing defects only for six (6) months from date of purchase. -
Page 11: Figures
FIGURES Figure 1 – H-5500 Rear Panel View Figure 2 – H-5500 Front Panel View... - Page 12 Figure 3 – H-5500 Chassis Top View - MC Transformer Controls Figure 4 – H-5500 Top View...
