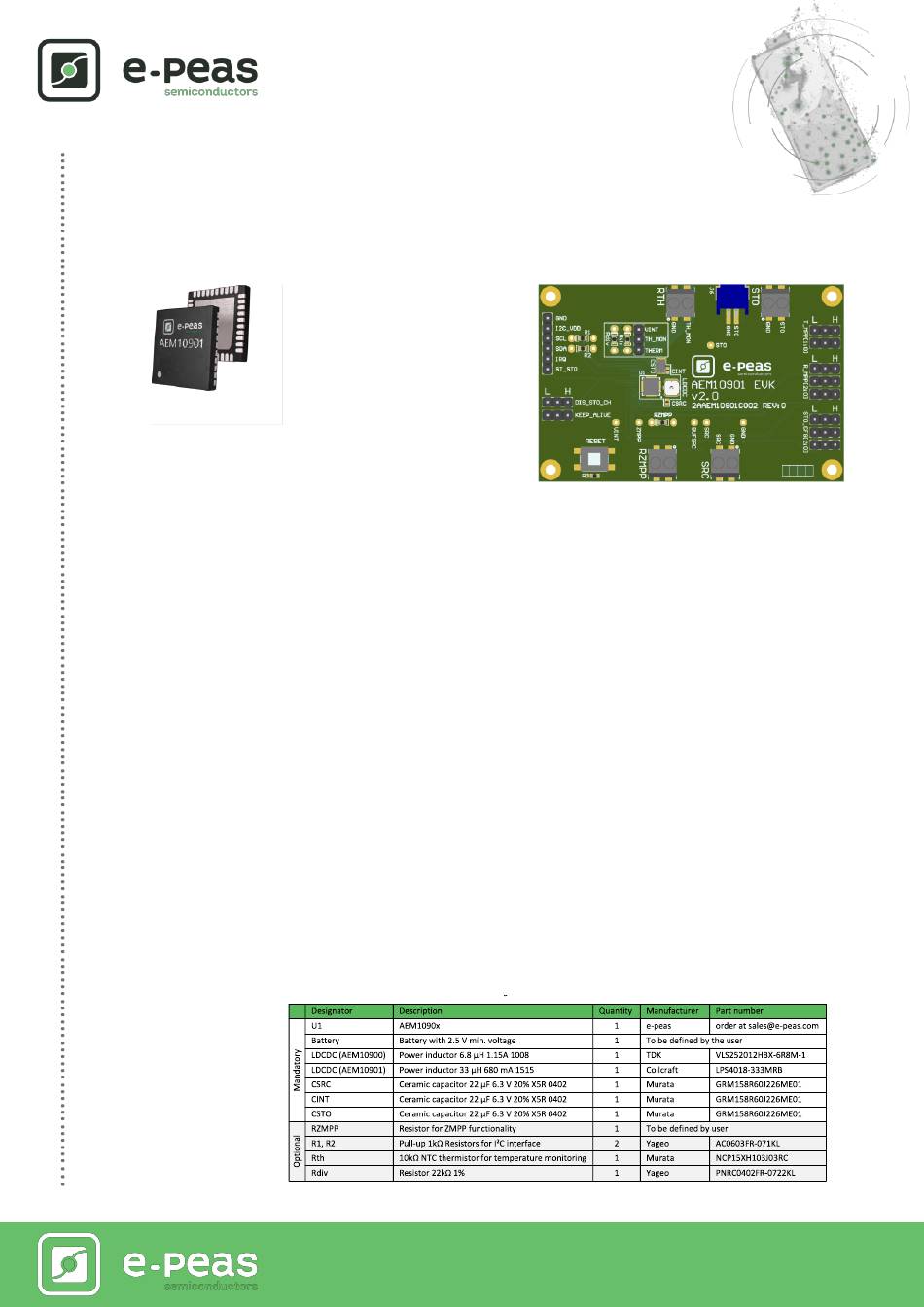

AEM10901 – QFN 28
Quick Start Guide EVK
FEATURES
Connectors
• 1 screw connector for the photovoltaic cell.
• 1 screw connector + 1 JST connector for the storage element.
• 1 screw connector for thermal monitoring.
• 1 screw connector for RZMPP.
Configuration
• 3 R_MPP[2:0] headers to define the MPP ratio linked to the harvester technology.
• 2 T_MPP[1:0] headers to define the MPP timing.
• 3 STO_CFG[2:0] headers to define the storage element protection levels.
• 1 TH_MON header to enable/disable the thermal monitoring.
• 6-pin header for the I²C communication and ST_STO.
• 2 headers for the KEEP_ALIVE and DIS_STO_CH features.
Reset
• 1 reset button (press for 5 seconds minimum to reset the AEM).
Size
• 76mm x 49mm.
• 4 x M2.5 mounting holes.
SUPPORT PCB
BOM around the AEM10901
Footprint & Symbol:
information available on the datasheet.
www.e-peas.com
© 2024 e-peas S.A.
QSG-AEM10901_QFN28_EVK2.0-v1.0
