AEM00940

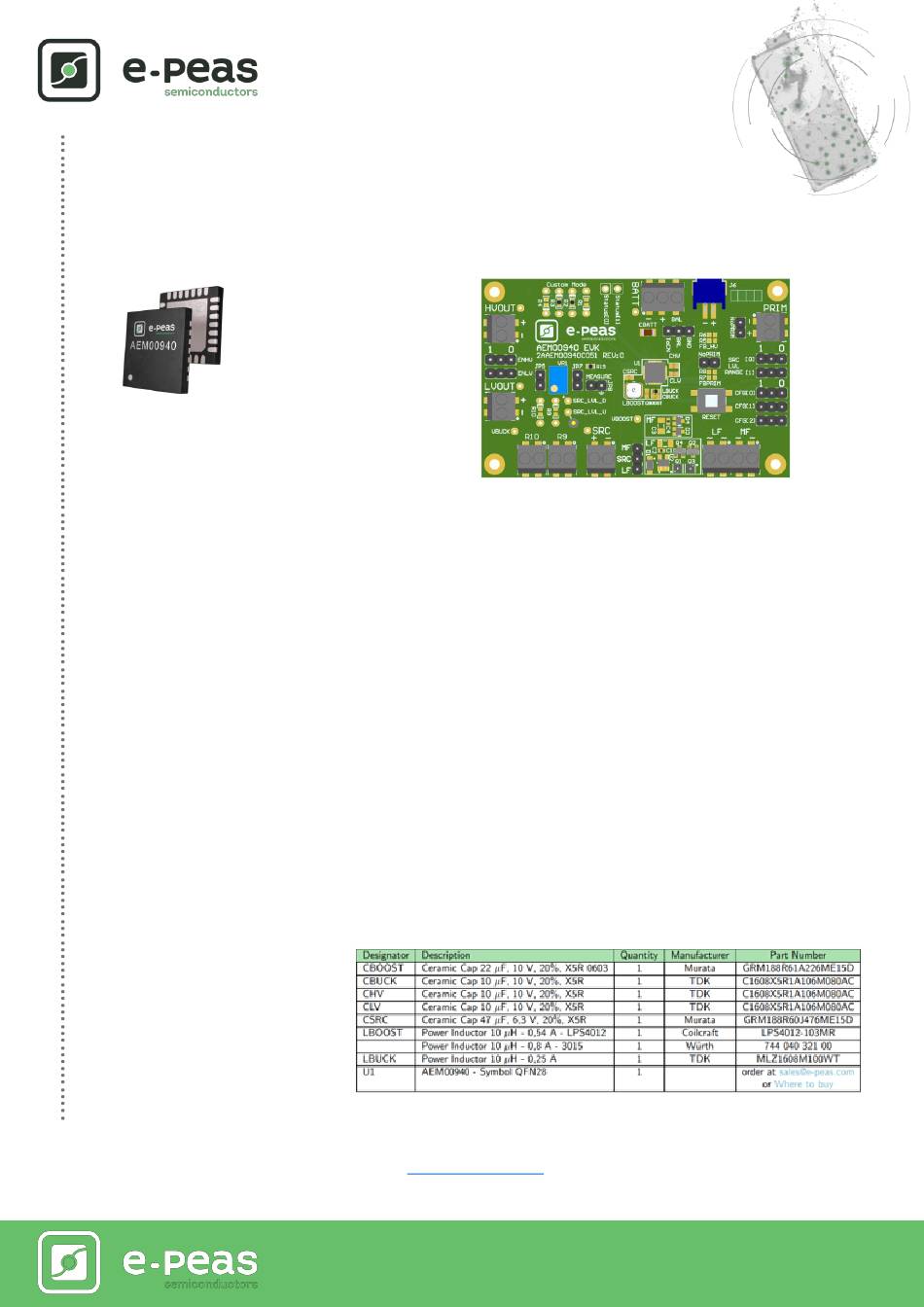

Quick Start Guide EVK
FEATURES
Connectors
• 1 screw connector for the source (SRC) + 2 screw connectors for AC input signal (LF/MF)
• 1 screw connector + 1 JST connector for the Storage Element (BATT)
• 1 screw connector for Primary Battery (PRIM)
• 1 screw connector for HVOUT LDO output (80mA @ 1.8 – 4.2 V)
• 1 screw connector for LVOUT LDO output (20mA @ 1.2 or 1.8 V)
Configuration
• 2 jumpers SRC_LVL_RANGE[1:0] to define the GAIN ratio linked to the harvester technology
• 3 Jumpers CFG[2:0] to define the storage element protection levels
• 6 resistors footprint related to the custom mode (CFG[2:0]=000)
• 2 jumpers to enable/disable the internal LDOs
• 2 jumpers to define the primary battery minimum level
• 2 resistors to define the harvesting level
• 1 potentiometer to define the harvesting voltage
• 1 jumper to set the dual cell supercapacitor BAL feature
Size
• 79mm x 49mm
• 4 x M2.5 Mounting holes
SUPPORT PCB
BOM around the AEM00940
Footprint & Symbol:
Available on the
web product page
www.e-peas.com
© 2022 e-peas S.A.
V1.0
