E-peas AEM00920 Quick Start Manual

Mini evk
Hide thumbs
1
2
3

Advertisement

Quick Links

Download this manual
AEM00920

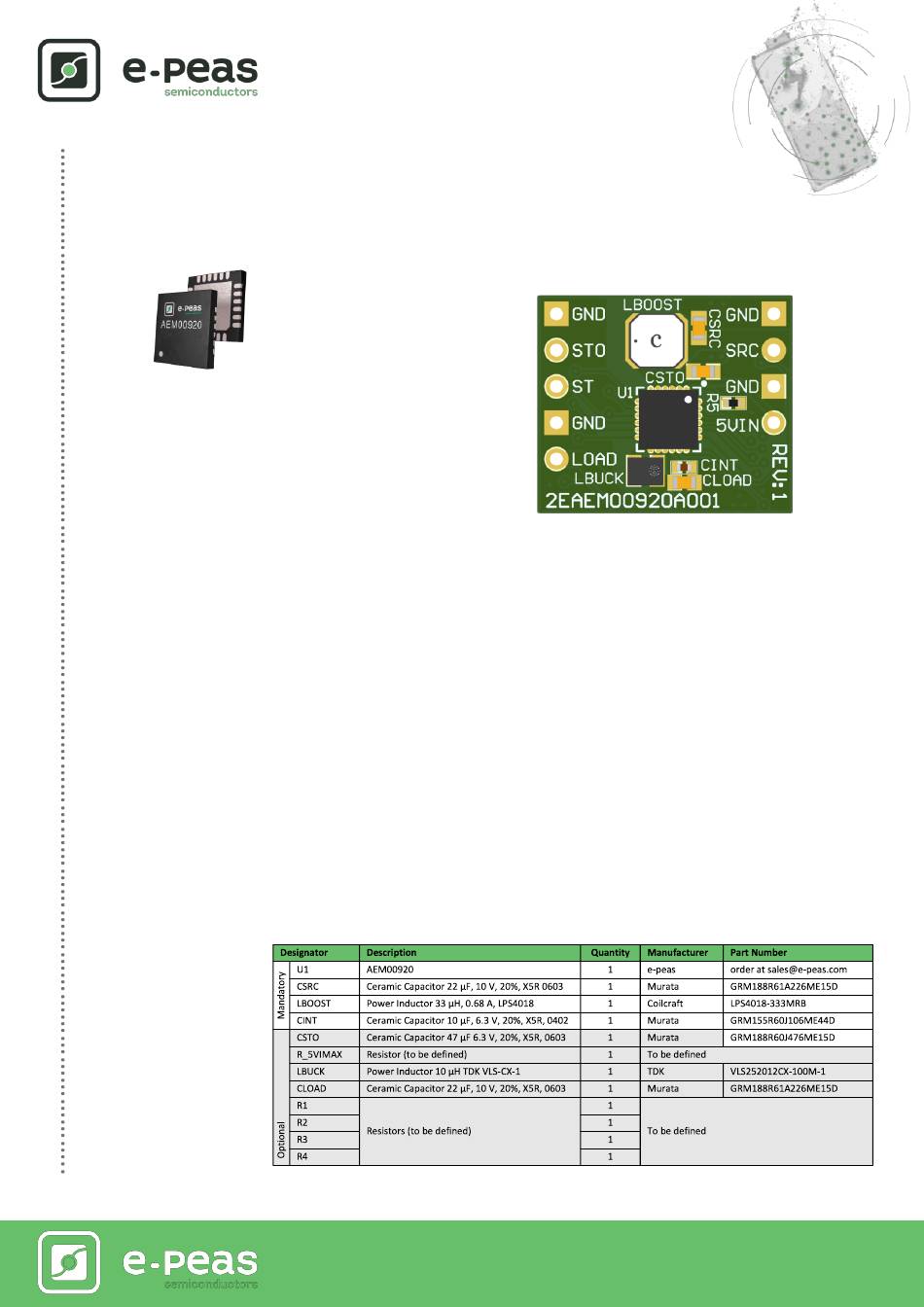

Quick Start Guide Mini EVK
FEATURES
Headers
• 1 header for the DC source.
• 1 header for the storage element.
• 1 header for the load / application circuit.
• 1 header for the 5 V DC power input.
• 1 header for ST_STO.
Configuration
• 5 solder bridges SRC_LVL_CFG[4:0] to configure the SRC constant voltage regulation.
• 2 solder bridges STO_CFG[1:0] to define the storage element protection levels.
• 2 solder bridges LOAD_CFG[1:0] to configure the application circuit regulated voltage.
• 1 resistor to configure the 5 V charger maximum current (R5).
• 1 solder bridge to configure the boost converter timings.
• 1 solder bridge to enable the shipping mode.
• 1 solder bridge to disable the custom mode.
Reset
• To reset the AEM, short nodes to GND following the sequence: SRC, VINT, LOAD.
Size
• 18mm x 16mm.
SUPPORT PCB
BOM around the
AEM00920:
Footprint & Symbol:
information available in the datasheet.
www.e-peas.com
© 2024 e-peas S.A.
QSG-AEM00920_QFN24_miniEVK1.1-v1.0
