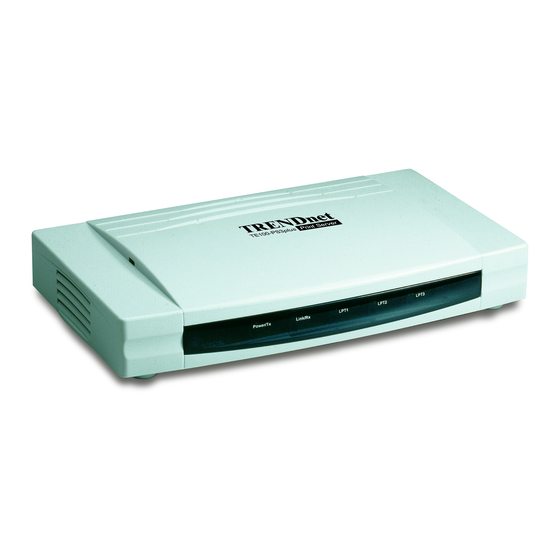

Trendnet te100-ps3plus print server:
Hide thumbs Also See for TE100-PS3plus:

Advertisement

Quick Links

Download this manual
TE100-PS3plus F.A.Q.
Q: Why doesn't PS-Admin utility detect my print server?
A:
If you are using Windows XP you will have to disable the built in firewall. But for all operating
systems you have to disable any other form of firewall software such as Norton Internet Security,
Black Ice, and Zone Alarm.
Make sure that you have "Client Services for Netware" installed, it should automatically install
IPX/SPX. IF not please do so.
install Client Services for Netware.
Q: How do I change the IP address of my print server?
A:
Step 1.
Open up the PS-Admin Utility and click on TCP IP Protocol.
Step 2.
Change IP Address:
In this dialog box, you can Manually Assign. When completed, click OK.
Note: Windows XP Home edition does not have the capability to

Advertisement

loading
Need help?

Need help?

Do you have a question about the TE100-PS3plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TE100-PS3plus

Summary of Contents for TRENDnet TE100-PS3plus

  • Page 1 TE100-PS3plus F.A.Q. Q: Why doesn't PS-Admin utility detect my print server? If you are using Windows XP you will have to disable the built in firewall. But for all operating systems you have to disable any other form of firewall software such as Norton Internet Security, Black Ice, and Zone Alarm.
  • Page 2 TE100-PS3plus F.A.Q. Q: How do I find the Port Name of the Print Server? Step 1. Click on “Server Device”. Step 2. Click on the port that you have your printer plugged into. Step 3. Write down the Port Names for future reference.
  • Page 3 TE100-PS3plus F.A.Q. Q: How do I install my printer on Windows 95/98/ME? In Windows 98/Me you will need to install the LPR client. For Windows 98/ME you will also need to know the port name that you are printing to (The Port Name is the PS-xxxxxx-P1, X being the actual number listed in the Port Name box).
  • Page 4 TE100-PS3plus F.A.Q. Step 4. Click OK 3 times. Step 5. From the list highlight LPR For TCP/IP and click on Properties. Step 6. Click on Add Port.
  • Page 5 TE100-PS3plus F.A.Q. In the top field type in the IP address of your print server. In the bottom field type in the port name of your print server, For the TEW-P1P/U the port name is lp1. For the P2U1P the port names are lp1 for the parallel, lp2 for the top USB and lp3 for the bottom USB.
  • Page 6 TE100-PS3plus F.A.Q. Select Network Printer and click on Next. Step 3. Click on the Browse button and browse to the print server.
  • Page 7 TE100-PS3plus F.A.Q. Highlight the Print Server and click on OK to return to the Add Printer Wizard. Click on Next. If you are unable to do this you can manually enter the Print Server by using two backlashes, the IP address, one backlash and the port name of you printer.
  • Page 8 TE100-PS3plus F.A.Q. If you can not find your printer from the list, click on the Have Disk button and browse to the printer drivers for your printer (floppy, CD, or downloaded). Step 5. If you find your printer in the list, click on it and then click on OK. Windows will install the drivers.
  • Page 9 TE100-PS3plus F.A.Q. Step 3. Select Create a New Port and select Standard TCP/IP port. Click Next. Step 4. Enter the IP address of the router (192.168.0.1). Leave the port name with the default name. Click Next.
  • Page 10 TE100-PS3plus F.A.Q. Step 5. You will get a message saying that additional port information required. Step 6. Select Custom and then click Settings. Step 7. Set Protocol to LPR. Step 8. For the LPR Settings for the TE100-PS3 Plus the “Queue Name” will be PS-xxxxxx-...
  • Page 11 TE100-PS3plus F.A.Q. Step 9. Select OK > Finish. Step 10. Continue with the Add Printer Wizard. Choose your printer from the list or click Have Disk and point to your printer driver disk. Q: Does the TE100-PS3 Plus support Macintosh operating systems? Yes, but you must assign the print server an IP address from a Windows based operating system first.
  • Page 12 TE100-PS3plus F.A.Q. Q: Why is my parallel printer, printing a lot of garbage characters? Make sure that you have the latest print drivers for you printer. You can also try changing the port speed to low from with in the PS-Admin Utility to “Low”.
  • Page 13 TE100-PS3plus F.A.Q. Step 3. Change the Speed using the drop down menu.
