Fanimation TR360 Manual

Model # TR360
DC POWER CEILING FAN REMOTE CONTROL MANUAL
INSTALLATION INSTRUCTIONS
This unit is to be used for the control of DC power ceiling fan and in an AC120V 60Hz power
NOTE:
supply only. Output Power: 50W (Max.) for motor and 50W (Max.) for LED light.
Important: Using a full range dimmer switch (not included) to control fan speed will damage the fan.
To reduce the risk of fire or electrical shock, do not use a full range dimmer switch to control fan speed.
LEARNING PROCESS
NOTE: The Hand Held Remote Control is equipped with a learning ID function which has code combinations to
prevent potential interference from other remote units. This unit finished learning process inside manufactory, if
replace transmitter or receiver, user need to redo learning process before using this unit. Receiver could
remember up to 3pcs transmitter.

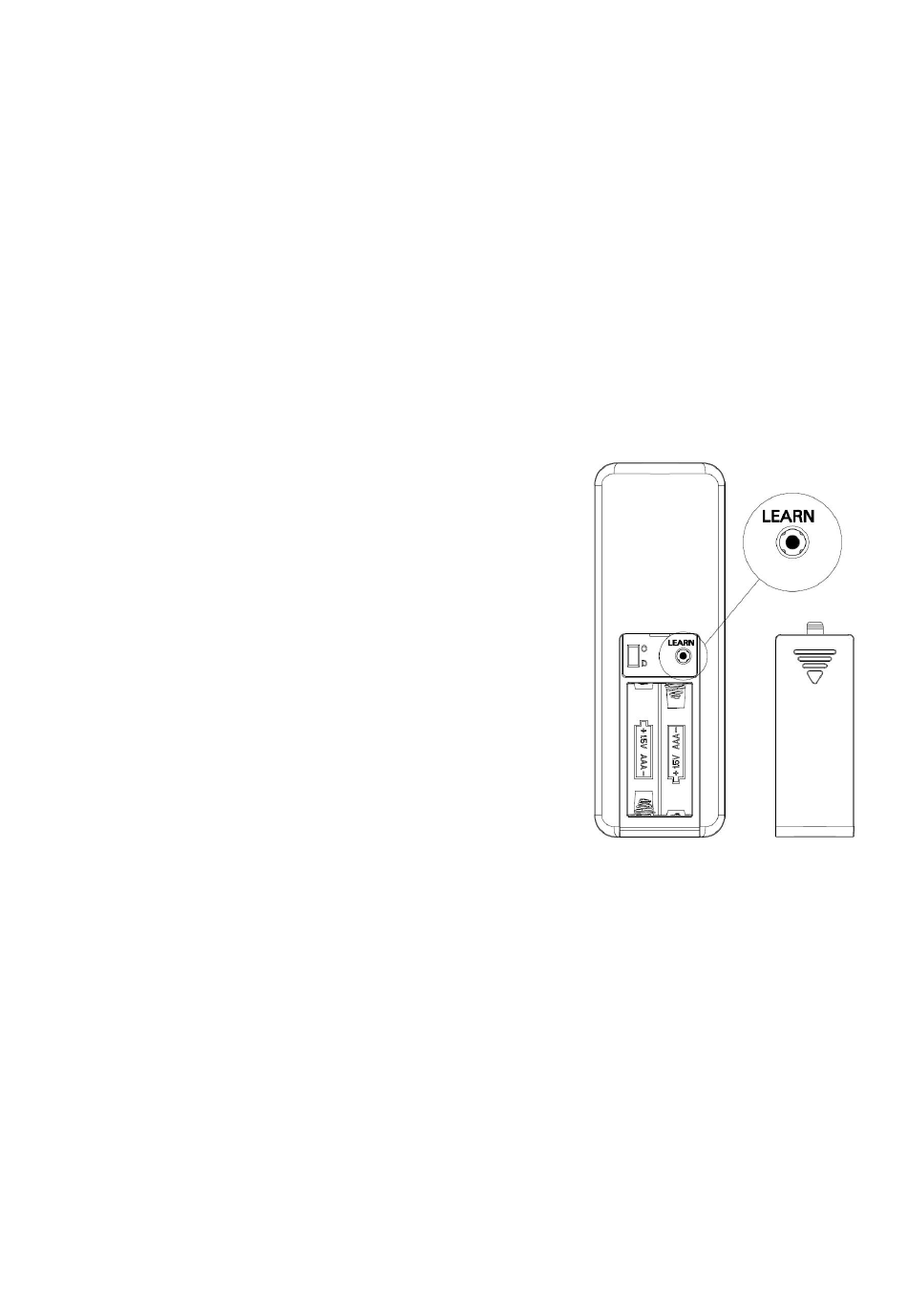

Step: 1. Install the batteries AAA /1.5V 2 PCS in transmitter. Within 60
seconds of turning the Receiver AC power ON, press the transmitter
LEARN button.
Step: 2. Hold LEARN button about 1 second, once the receiver has
detected the ID, the light will blink twice then turn off and fan running at
medium speed to indicate the pairing process have been completed.
Then the transmitter can control the receiver.
Note: After the AC power is on, do not press any other buttons on the
transmitter before learning ok. Because doing so will cause the
procedure to fail.
After completing the steps above, you should be able to operate the
ceiling fan and light. If the ceiling fan is not responding to the
transmitter, please turn the power off to the receiver and repeat step 1
and 2.
Remove the batteries if not used for long periods of time to prevent
damage to the hand held remote. The batteries must be removed from
the transmitter before it is scrapped and the batteries shall be
disposed of safety.
Please note that the transmitter can learn in multiple receiver, when doing learning process please make sure
.
not learn in other receiver. Suggest to separate power switches of fans in 2 meter range
If you want to clear these pairing transmitters, turn off ceiling fan and turn on within 60 seconds, press and hold
the LEARN button over 8 seconds. The lights blink twice then turn off and fan running at medium speed. This will
indicate the ceiling fan is only controlled by one remote.
