Fanimation TR28 Specification And Instruction Sheet

TR28 Remote Control
SPECIFICATION and INSTRUCTION SHEET
DESCRIPTION: One Ceiling Fan and Light, 3 Speed, Reversing, Demo Remote Control
FAN MODEL USED: See Catalog or visit our website www.fanimation.com for more
information
How to Wire and Operate Your TR28 Transmitter
NOTE: If fan or supply wires are different colors than indicated,
have this unit installed by a qualified electrician.
WARNING
To avoid possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.
1. Setting the Code: The remote unit has 16 different code
combinations. It may be necessary to test a couple frequency
code settings to improve signal reception and/or eliminate
interference from other remote control household items.
Multiple fans should have different code settings to allow
independent fan control. To set the code, perform these
steps.
2. Transmitter: remove battery cover. Press firmly below
arrow and slide battery cover off. Slide code switches to your
choice of up or down position. Factory setting is all up. Do not
use this position. With a small screwdriver or ball point pen
slide firmly up or down (Figure 1a). Replace battery cover on
the transmitter.
3. Receiver: Slide code switches to the same positions as
set on your transmitter (Figure 1b).

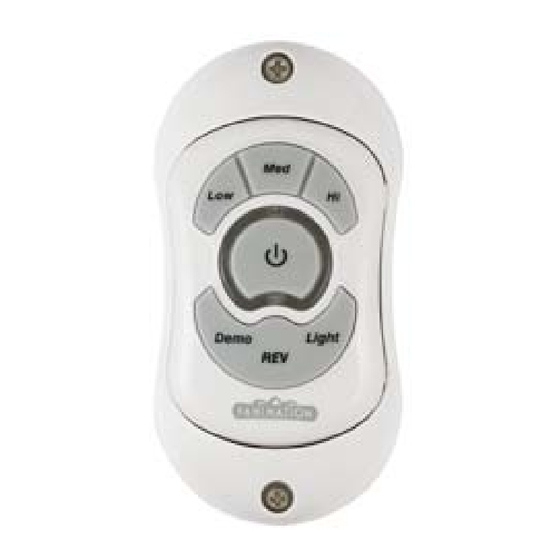

4. Operating & Using Remote Transmitter (Figure2):
Install two piece of 3 volt battery (If not using for long periods
of time, remove battery to prevent damage to transmitter).
Store the transmitter away from excess heat or humidity.
• HI Push Button – high fan speed
• MED Push Button – medium fan speed
• LOW Push Button – low fan speed
• Push Button – fan off
• REV Push Button – toggles between air upflow and
air downflow
• *Demo Push Button – on/off auto demo mode
• Light Push Button – on/off f and brightness control for
optional down light.
NOTE: 1. To control either light hold down key to increase or
decrease brightness. Tap key quickly to turn light on or off.
The light keys have auto resume and will stay at the same
brightness as the last time it was turned off.
2. Demo mode is initiated by pressing the Demo button on
the remote, lights will flash 3 times. Fan runs for 2½ minutes
then shuts off for ½ minute.
continue until any other button is pressed on the remote
control.
The 2 ½ / ½ minute run cycles
Remote Transmitter
Unit Detail
Figure 1a
3V, CR2032
BATTERY
2 PCS
Figure 2
Receiver Unit Detail
Figure 1b
