Fanimation TR20WH Specification And Instruction Sheet

TR20WH Remote Control
SPECIFICATION and INSTRUCTION SHEET
READ AND SAVE THESE INSTRUCTIONS
DESCRIPTION: One Ceiling Fan and Light, 3 Speed, Reversing Remote Control.
FAN MODELS USED: See Catalog or visit our website www.fanimation.com for more information.
How to Wire and Operate Your Remote Control
NOTE: If fan or supply wires are different colors than
indicated, have this unit installed by a qualified electrician.
WARNING
To avoid possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring.
NOTE: If you are not sure if the outlet box is grounded,
contact a licensed electrician for advice, as it must be
grounded for safe operation.

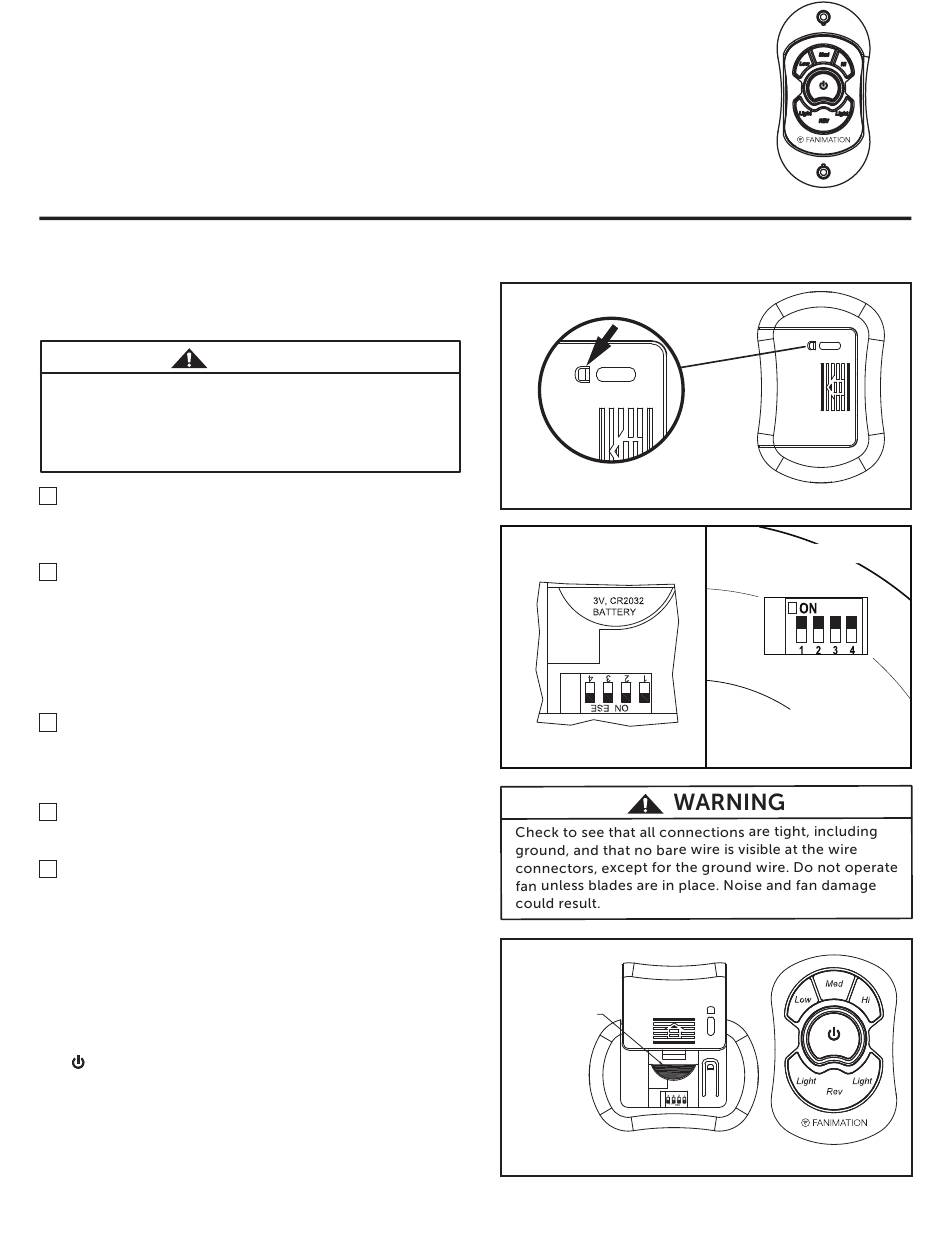

1. Remove battery cover with a small screwdriver or
ball point pen firmly press the tab and slide battery
cover off. (Figure 1)
2. Setting the Code: The remote unit has 16 different
code combinations. It may be necessary to test a
couple frequency code settings to improve signal
reception and/or eliminate interference from other
remote control household items. Multiple fans should
have different code settings to allow independent fan
control. To set the code, perform these steps.
3. Remote Control: Slide code switches to your choice
of up or down position. Factory setting is all up. Do not
use this position. With a small screwdriver or ball point
pen slide firmly up or down. (Figure 2a)
4. Receiver: Slide code switches to the same positions
as set on your remote control. (Figure 2b)
5. Operating & Using Remote Control (Figure 3):
Install two piece of 3 volt battery (If not using for long
periods of time, remove battery to prevent damage to
store remote control). Store the remote control away
from excess heat or humidity.
• HI Push Button - high fan speed
• MED Push Button - medium fan speed
• LOW Push Button - low fan speed
• REV Push Button - toggles airflow direction
•
Push Button - fan off
• Light Push Button - on/off, hold for infinite light level
Remote
Control
Figure 1
Remote Control
Dip Switch
Figure 2a
3V, CR2032
BATTERY
(2 PCS)
Figure 3
Receiver Dip Switch
Figure 2b
