Related Manuals for Westinghouse WH25UP21
Summary of Contents for Westinghouse WH25UP21

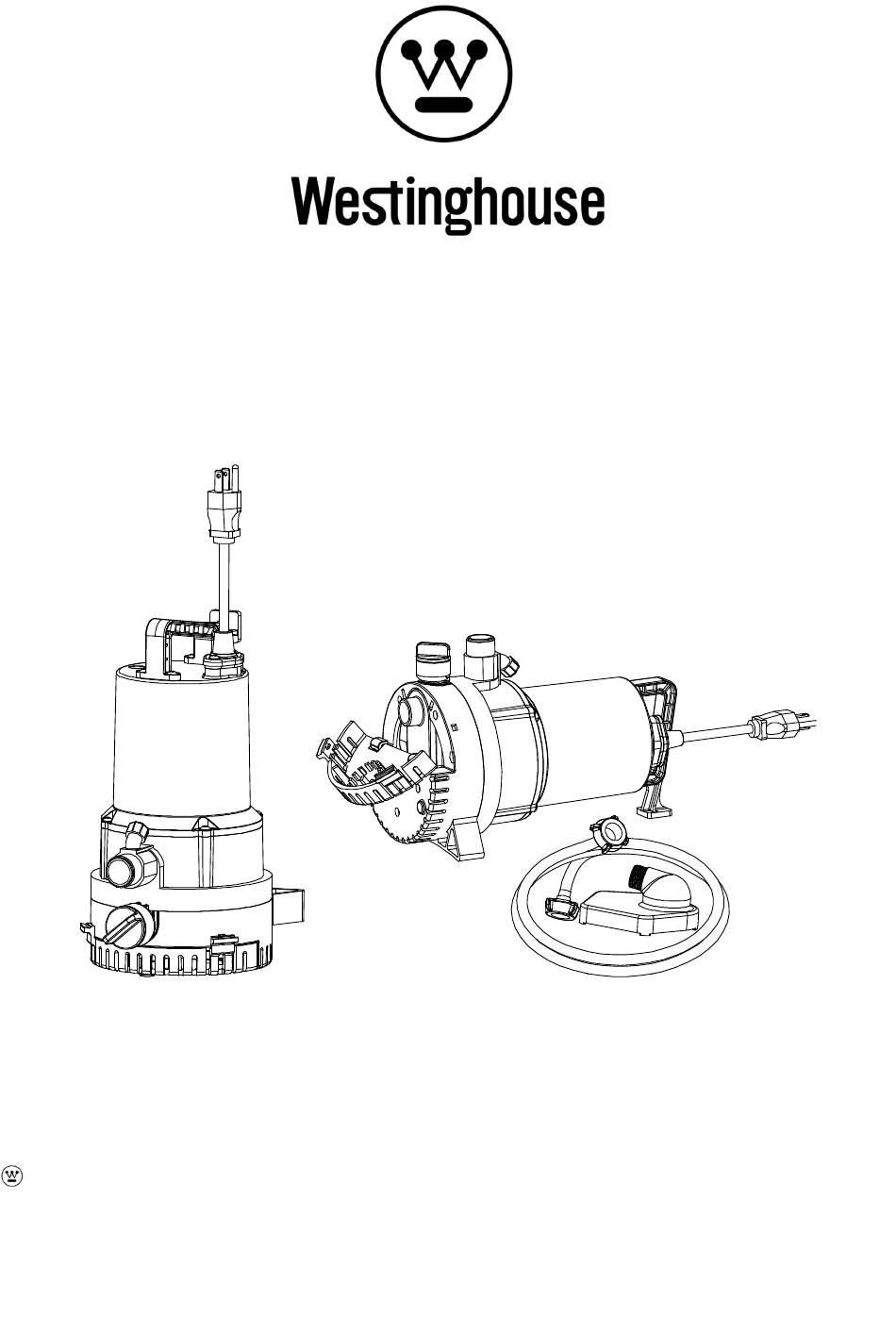

- Page 1 OWNER’S MANUAL 2-IN-1 UTILITY PUMP Model# WH25UP21 and Westinghouse are trademarks of Westinghouse Electric Corporation. Used Under License by Westinghouse Residential Pumps. All Rights reserved.
-
Page 2: Pre-Installation
25 ft. Submersible Utility Pump 1,600 1,500 1,300 30 ft. Function WH25UP21 Non- Submersible 30 ft. Transfer Pump Function PRE-INSTALLATION APPLICATION This pump can be used as a submersible utility pump. It is suitable for draining or removing water from the ... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS DANGER : Indicates a hazardous situation that, if not avoided, will result in death or serious injury. 1. Do not pump flammable or explosive liquids such as oil, gasoline, kerosene, ethanol, etc. Do not use in the presence of flammable or explosive vapors. Using this pump with or near flammable liquids can cause an explosion or fire, resulting in property damage, serious personal injury, and/or death. -
Page 4: Package Contents
Ensure the electrical power source is adequate for the requirements of the pump. Before using the pump, check the hose for holes or excess wear, which could cause leaks, and ensure the hose is not kinked or making sharp angles. A straight hose allows the pump to move the greatest amount of water quickly, and also check that all hose connections are tight to minimize leaks. - Page 5 SUBMERSIBLE UTILITY PUMP INSTALLATION DANGER: Always use the handle to lift the pump. Never use the power cord to lift the pump. To avoid skin burns, unplug the pump and allow time for it to cool after periods of extended use. DANGER: Always disconnect power source before attempting to install, service, or maintain the pump.
- Page 6 AIRLOCK This pump is a centrifugal utility pump, designed to efficiently remove water. However, it cannot move air. If air is trapped inside the pump (a condition called “airlock”), the pump cannot pump water out even though the pump is completely submerged.
- Page 7 1. Connect the Suction Strainer and Suction Hose Attach the Suction hose included with your pump to the Suction Strainer. Make sure the gaskets in the Suction hose are airtight or the pump will not pump water. Lay the pump on its side and open the bottom cover. Attach the other end of the Suction hose to the pump inlet.
-
Page 8: Care And Cleaning
4. Operating the Pump Place the Suction Strainer on a level surface IN the water. The garden hose and pump should be OUT of the water. Plug the pump into a properly grounded 115V GFCI outlet. The pump should start within 30 seconds. Monitor the pump’s progress and unplug the pump before it runs dry. -
Page 9: Troubleshooting
TROUBLESHOOTING Possible Causes Corrective Action Pump does not start or run 1. The circuit breaker has tripped. 1. Reset the circuit breaker by switching the breaker to the "ON" position. 2. The plug is disconnected. 2. Make sure the plug is securely connected. 3. -
Page 10: Warranty
The product has been allowed to operate dry (liquid supply cut off). Westinghouse Residential Pumps shall NOT be responsible or liable for the cost of field labor or other charges incurred by customer in removing or reinstalling any product, part, or component. - Page 11 LIMITATIONS Westinghouse Residential Pumps only obligation, and user’s only remedy, shall be the replacement and/or repair by Westinghouse Residential Pumps of the product as described above. WESTINGHOUSE RESIDENTIAL PUMPS SHALL NOT BE LIABLE FOR ANY INJURY, LOSS OR DAMAGE, DIRECT,...
