Summary of Contents for Westinghouse WH50SS

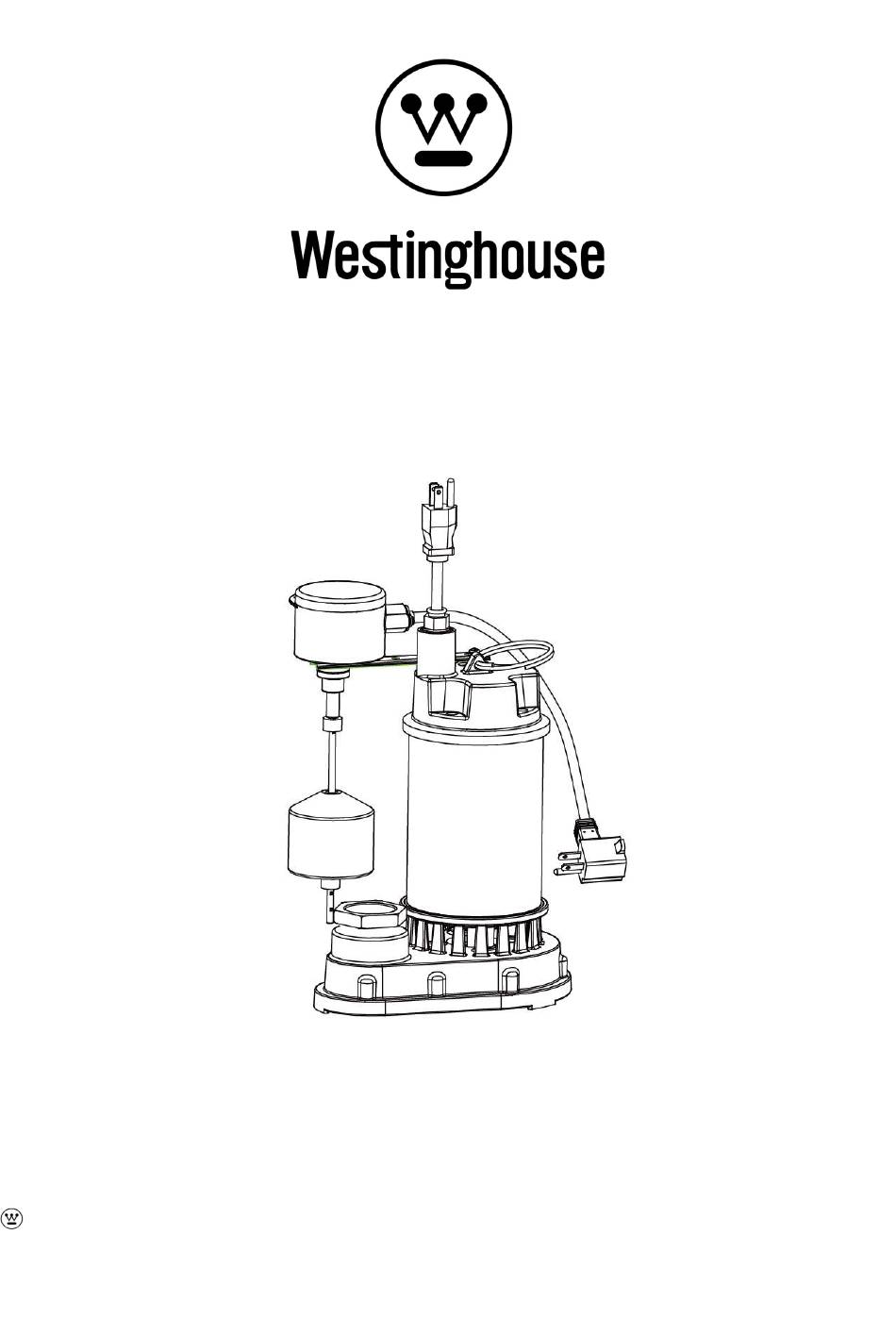

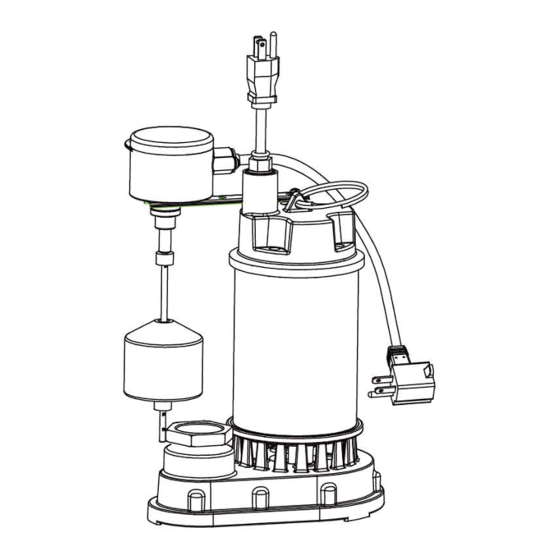

- Page 1 OWNER’S MANUAL SUBMERSIBLE SUMP PUMP Model# WH50SS / WH75SS and Westinghouse are trademarks of Westinghouse Electric Corporation. Used Under License by Westinghouse Residential Pumps. All Rights reserved.
-
Page 2: Safety Instructions
PERFORMANCE GPH of Water @ Total Feet of Lift Max. Model Lift 0 ft. 5 ft. 10 ft. 15 ft. 20 ft. 25 ft. WH50SS 5200 4650 4200 3650 3000 2200 30 ft. WH75SS 6000 5500 5100 4650 4100 3400 30 ft. -
Page 3: Pre-Installation
20. This pump is made of high-strength, corrosion-resistant materials. It will provide trouble-free service for a long time when properly installed, maintained, and used. However, inadequate electrical power to the pump, dirt, or debris may cause the pump to fail. Please carefully read the manual and follow the instructions regarding common pump problems and remedies. -
Page 4: Specifications
SPECIFICATIONS Power supply 115V, 60 HZ., 15 Amp Circuit Liquid temp. range 32°F to 95°F (0°- 35°C) Discharge size 1-1/2 in. FNPT or 1-1/4 in. FNPT (with adaptor) Min. 14 in. (356 mm) diameter, 18 in. (457 mm) depth for tethered switch Sump basin Min. -
Page 5: Operation
6. Power Supply: Pump is designed for 115 V, 60 Hz, operation and requires a minimum 15 amp individual branch circuit. Plug the pump power cord plug into the piggyback switch plug outlet, and then plug the switch plug into a 115V GFCI power outlet for automatic operation. -
Page 6: Care And Cleaning
CARE AND CLEANING CAUTION: Always use the handle to lift the pump. Never use the power cord to lift the pump. To avoid skin burns, unplug the pump and allow time for it to cool after periods of extended use. Do Not When the power is disconnected, inspect the Do not disassemble the motor housing. -
Page 7: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Corrective Action The pump does not start or 1. The fuse is blown. 1. Replace the fuse. run. 2. The breaker is tripped. 2. Reset the breaker. 3. The plug is disconnected. 3. Secure the plug. 4. -
Page 8: Warranty
The product has been allowed to operate dry (liquid supply cut off). Westinghouse Residential Pumps shall NOT be responsible or liable for the cost of field labor or other charges incurred by customer in removing or reinstalling any product, part, or component. - Page 9 LIMITATIONS Westinghouse Residential Pumps only obligation, and user’s only remedy, shall be the replacement and/or repair by Westinghouse Residential Pumps of the product as described above. WESTINGHOUSE RESIDENTIAL PUMPS SHALL NOT BE LIABLE FOR ANY INJURY, LOSS OR DAMAGE, DIRECT,...
