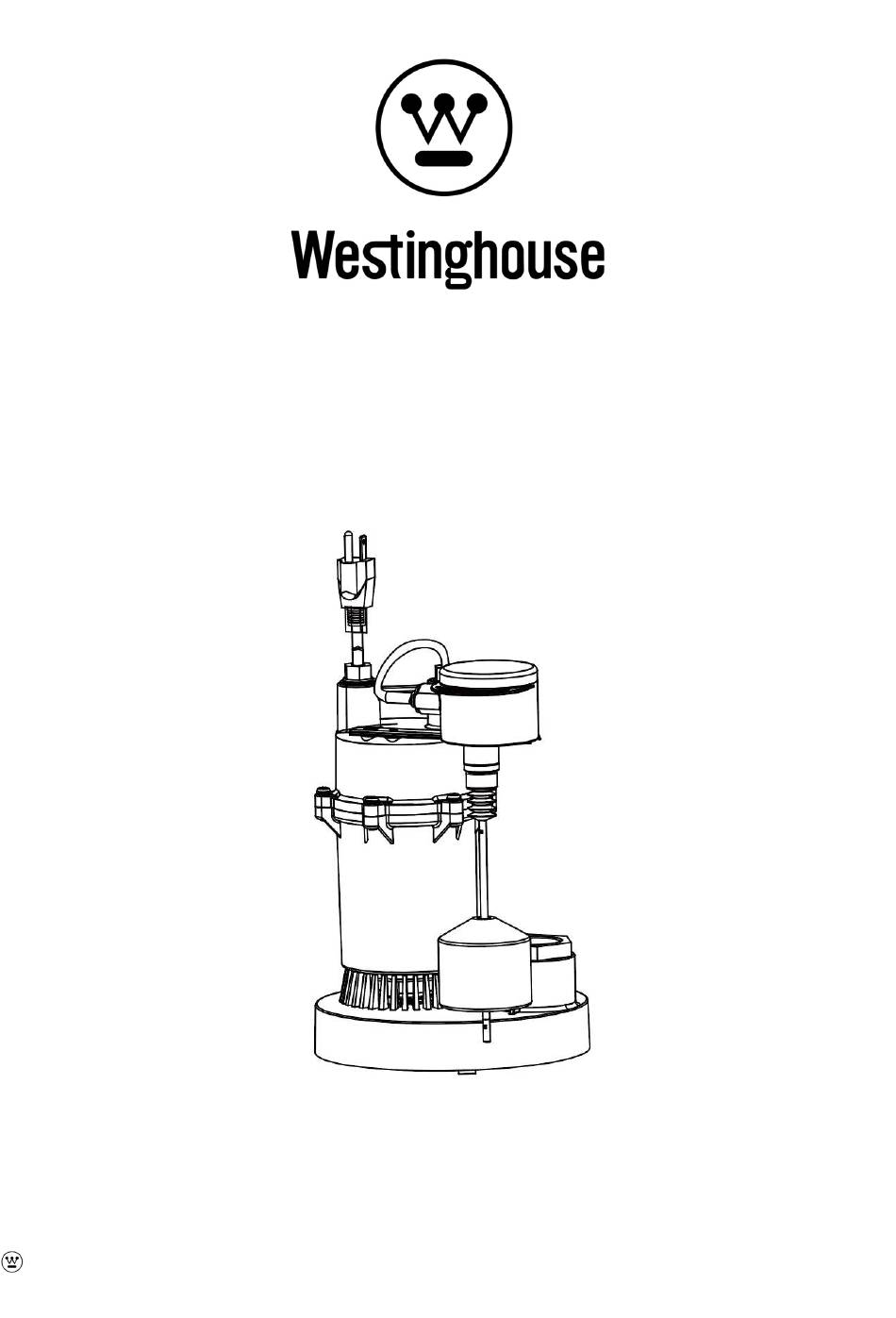

- Page 1 OWNER’S MANUAL THERMOPLASTIC SUMP PUMP Model# WH33TP/WH50TP and Westinghouse are trademarks of Westinghouse Electric Corporation. Used Under License by Westinghouse Residential Pumps. All Rights reserved.
-
Page 2: Safety Instructions
PERFORMANCE GPH of Water @ Total Feet Of Lift Max. Model Lift 0 ft. 5 ft. 10 ft. 15 ft. 20 ft. 25 ft. WH33TP 3600 3400 3000 2500 1900 1000 28 ft. WH50TP 4100 3800 3500 2900 2300 1600 29 ft. -
Page 3: Pre-Installation
19. Ensure the electrical power source is adequate for the requirements of the pump. 20. This pump is made of high-strength, corrosion-resistant materials. It will provide trouble-free service for a long time when properly installed, maintained, and used. However, inadequate electrical power to the pump, dirt, or debris may cause the pump to fail. -
Page 4: Specifications
SPECIFICATIONS Power supply 115V, 60 HZ., 15 Amp Circuit Liquid temp. range 32 to 95°F (0- 35°C) Discharge size 1-1/2 in. FNPT or 1-1/4 in. FNPT (with adaptor) Sump basin Min. 10 in. (254 mm) diameter, 14 in. (356 mm) depth NOTE: Do not reduce size of discharge pipe or hose below 1-1/4 in. -
Page 5: Operation
7. Power Supply: Pump is designed for 115 V, 60 Hz, operation and requires a minimum 15 amp individual branch circuit. Plug the power plug into a 115V GFCI power outlet. WARNING: Risk of electric shock. Can shock, burn or kill. Pump should always be electrically grounded to a suitable electrical ground such as a grounded water pipe or a properly grounded metallic raceway, or ground wire system. -
Page 6: Care And Cleaning
CARE AND CLEANING CAUTION: Always use the handle to lift the pump. Never use the power cord to lift the pump. To avoid skin burns, unplug the pump and allow time for it to cool after periods of extended use. Do Not When the power is disconnected, inspect Do not disassemble the motor housing. -
Page 7: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Corrective Action The pump does not start or run. The fuse is blown. Replace the fuse. The breaker is tripped. Reset the breaker. The plug is disconnected. Secure the plug. The plug is corroded. Clean the plug prongs. There is thermal overload. -
Page 8: Warranty
The product has been allowed to operate dry (liquid supply cut off). Westinghouse Residential Pumps shall NOT be responsible or liable for the cost of field labor or other charges incurred by customer in removing or reinstalling any product, part, or component. - Page 9 LIMITATIONS Westinghouse Residential Pumps only obligation, and user’s only remedy, shall be the replacement and/or repair by Westinghouse Residential Pumps of the product as described above. WESTINGHOUSE RESIDENTIAL PUMPS SHALL NOT BE LIABLE FOR ANY INJURY, LOSS OR DAMAGE, DIRECT,...
