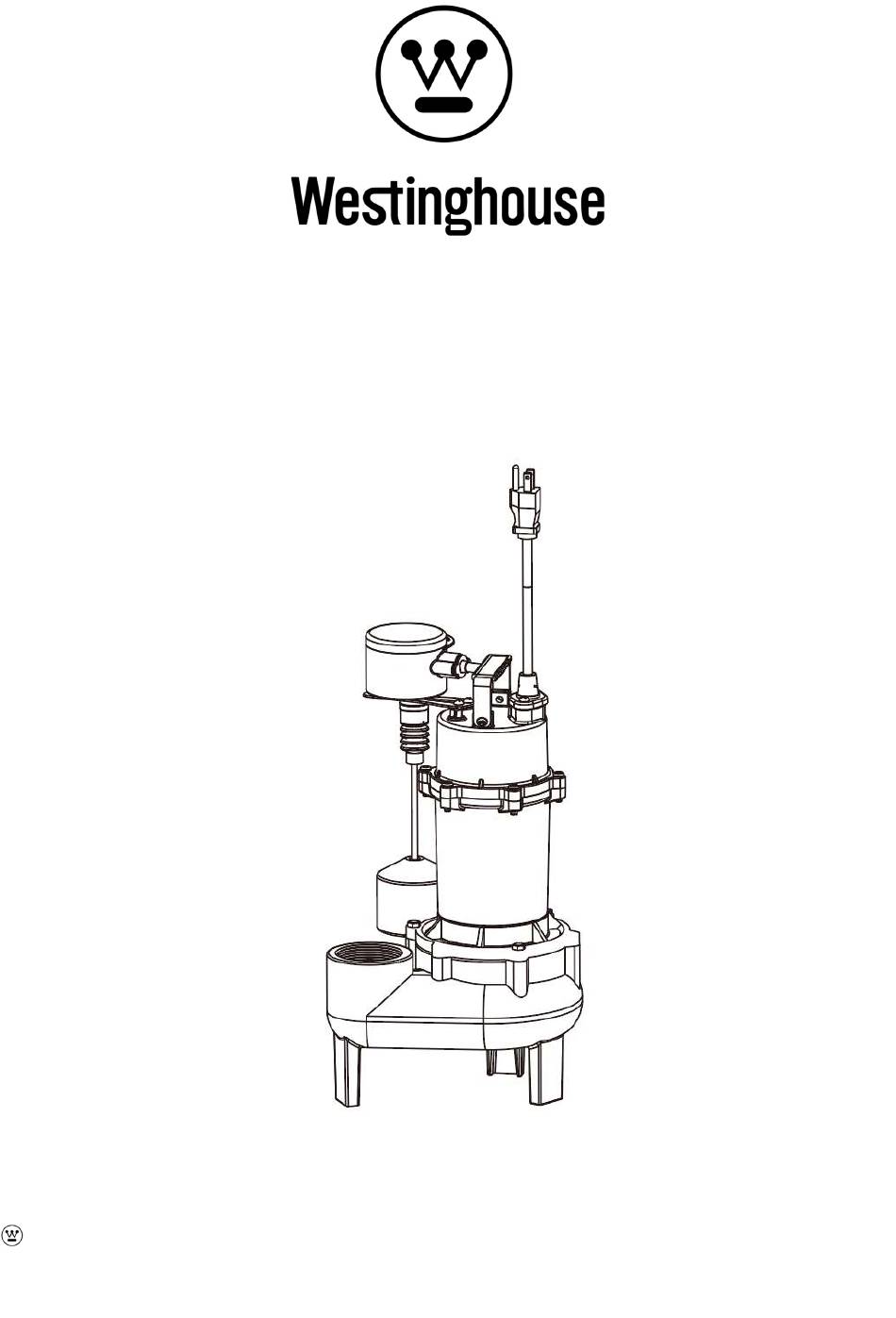

- Page 1 OWNER’S MANUAL SEWAGE PUMP Model# WH50SP and Westinghouse are trademarks of Westinghouse Electric Corporation. Used Under License by Westinghouse Residential Pumps. All Rights reserved.
-
Page 2: Safety Instruction
GPH of Water @ Total Feet Of Lift Max. Lift 0 ft. 5 ft. 10 ft. 15 ft. 18 ft. WH50SP 6500 5000 4200 2400 SAFETY INSTRUCTION Do not pump flammable or explosive liquids such as oil, gasoline, kerosene, ethanol, etc. Do not use in the presence of flammable or explosive vapors. -
Page 3: Pre-Installation
20. This pump is made of high-strength, corrosion-resistant materials. It will provide trouble-free service for a long time when properly installed, maintained, and used. However, inadequate electrical power to the pump, dirt, or debris may cause the pump to fail. Please carefully read the manual and follow the instructions regarding common pump problems and remedies. -
Page 4: Specifications
SPECIFICATIONS Power supply 115V, 60 HZ., 15 Amp Circuit Liquid temp. range 32-131°F (0-55°C) Discharge size 2” FNPT Sump basin Minimum 14 in. (355 mm) diameter, 18 in. (457 mm) depth NOTICE: Read this Owner’s Manual for installation, operation, and safety information. INSTALLATION Install the pump on a solid, level foundation, or in a sump pit constructed of tile, concrete, steel, or plastic. -
Page 5: Operation
Drill a 1/8” (3.1 mm) hole in discharge pipe about 1"-2” (2.5 - 5.1 cm) above pump discharge connection to prevent air-locking the pump. Power Supply: Pump is designed for 120 V, 60 Hz, operation and requires a minimum 15 amp individual branch circuit. -
Page 6: Care And Cleaning
CARE AND CLEANING CAUTION: Always use the handle to lift the pump. Never use the power cord to lift the pump. To avoid skin burns, unplug the pump and allow time for it to cool after periods of extended use. Do Not When the power is disconnected, inspect the Do not disassemble the motor housing. -
Page 7: Troubleshooting
TROUBLESHOOTING Do not disassemble the motor housing. This motor has NO repairable internal parts, and disassembly may cause an oil leak or dangerous electrical wiring issues. DO NOT lift up the pump by power cord. Problem Solution The pump fails to operate. Check to be sure that the power cord is securely plugged into an outlet. -
Page 8: Warranty
The product has been allowed to operate dry (liquid supply cut off). Westinghouse Residential Pumps shall NOT be responsible or liable for the cost of field labor or other charges incurred by customer in removing or reinstalling any product, part, or component. - Page 9 LIMITATIONS Westinghouse Residential Pumps only obligation, and user’s only remedy, shall be the replacement and/or repair by Westinghouse Residential Pumps of the product as described above. WESTINGHOUSE RESIDENTIAL PUMPS SHALL NOT BE LIABLE FOR ANY INJURY, LOSS OR DAMAGE, DIRECT,...
