User manual
B A U R
G m b H
T + 4 3 5 5 2 2 4 9 4 1 - 0 ▪ F + 4 3 5 5 2 2 4 9 4 1 - 3 ▪ w w w . b a u r . e u ▪ h e a d o f f i c e @ b a u r . a t
AC/DC HV test set
PGK HB
phd

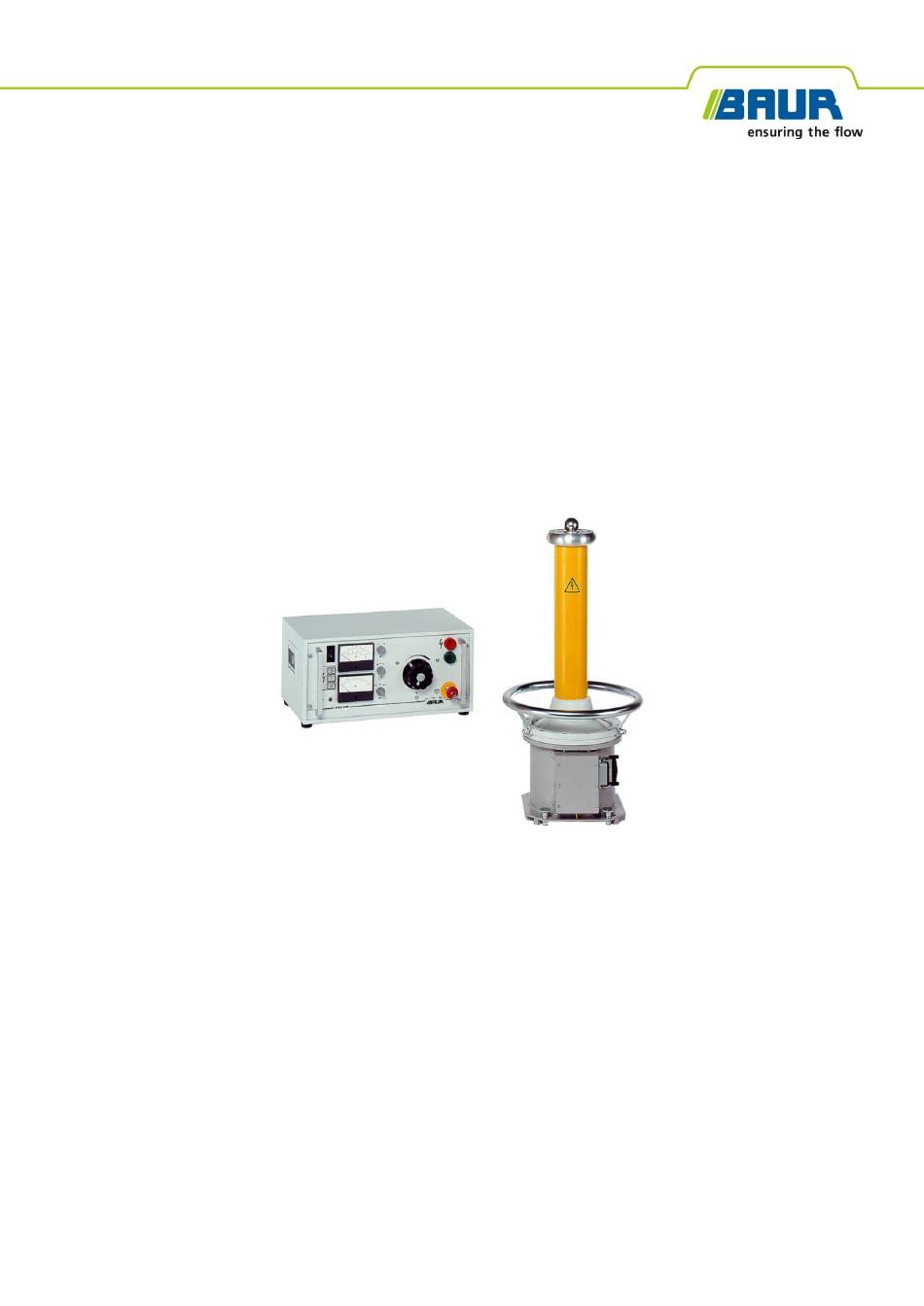

The figure is illustrative (PGK 70 HB)
PGK 70 HB
PGK 70/2,5 HB
PGK 110 HB
PGK 150 HB
PGK 260 HB
▪
R a i f f e i s e n s t r .
▪
8
6 8 3 2
S u l z ,
A u s t r i a
