1-port gigabit galvanic network isolator

Advertisement

Quick Links

1-Port Gigabit Galvanic Network Isolator
Product ID
1G-NETWORK-ISOLATOR

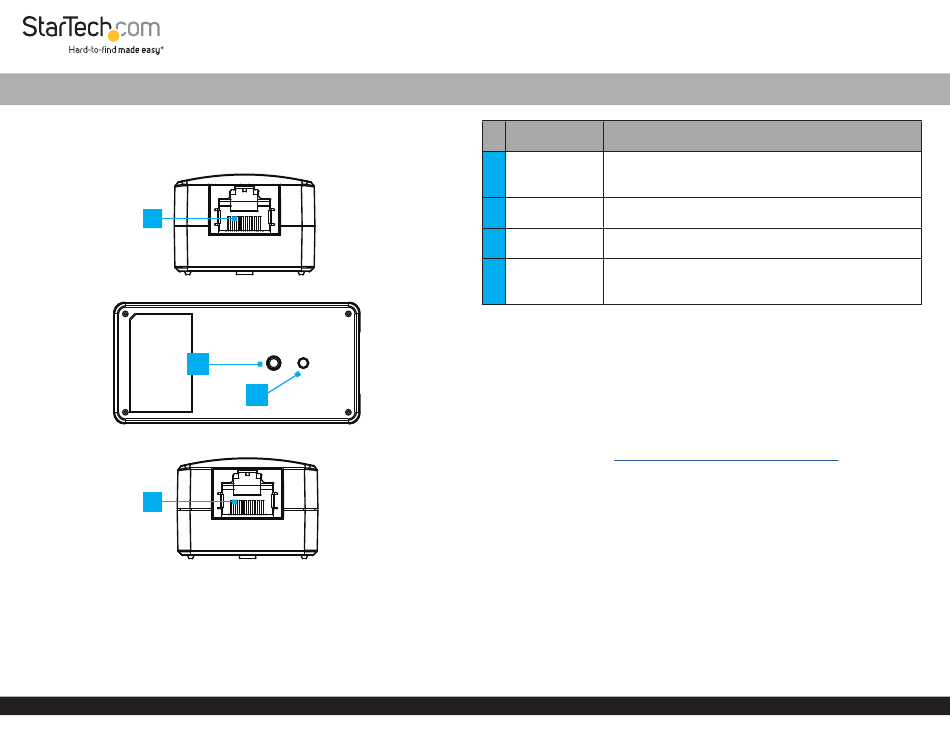

Front View
1
Bottom View
2
Rear View
4
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
3
*Product may vary from image
Port/Connector
• Connect an RJ45 Ethernet Cable
1
RJ45 Port 1
• Supported speeds: 1Gbps, 100Mbps, and 10Mbps
• The port is bidirectional
DIN Rail
2
• Use to secure the included DIN Rail Mounting Kit
Mounting Point
• Helps to install the DIN Rail Mounting Kit in one specific
3
Guide Peg
orientation
• Connect an RJ45 Ethernet Cable
4
RJ45 Port 2
• Supported speeds: 1Gbps, 100Mbps, and 10Mbps
• The port is bidirectional
Package Contents
• Network Isolator x 1
• Adhesive Strip x 1
• DIN Rail Mounting Kit x 1
• Quick-Start Guide x 1
Requirements
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
www.StarTech.com/1G-NETWORK-ISOLATOR
• Phillips head screwdriver
Installation
1. Connect the network Input RJ45 Ethernet Cable to one of the RJ45 Ports of the
Network Isolator.
2. Use an RJ45 Ethernet Cable to connect the remaining RJ45 Port on the Network
Isolator to an RJ45 Port of the Networked Device.
DIN Rail Mounting (optional)
1. Use the Guide Peg at the bottom of the Network Isolator to align the
DIN Rail Mounting Kit into it's correct position. Use a Phillips Head Screwdriver to
install the Self-Tapping Screw and secure the DIN Rail Mounting Kit. (Figure 1)
Quick-Start Guide
Function
Manual Revision: September 9, 2024
