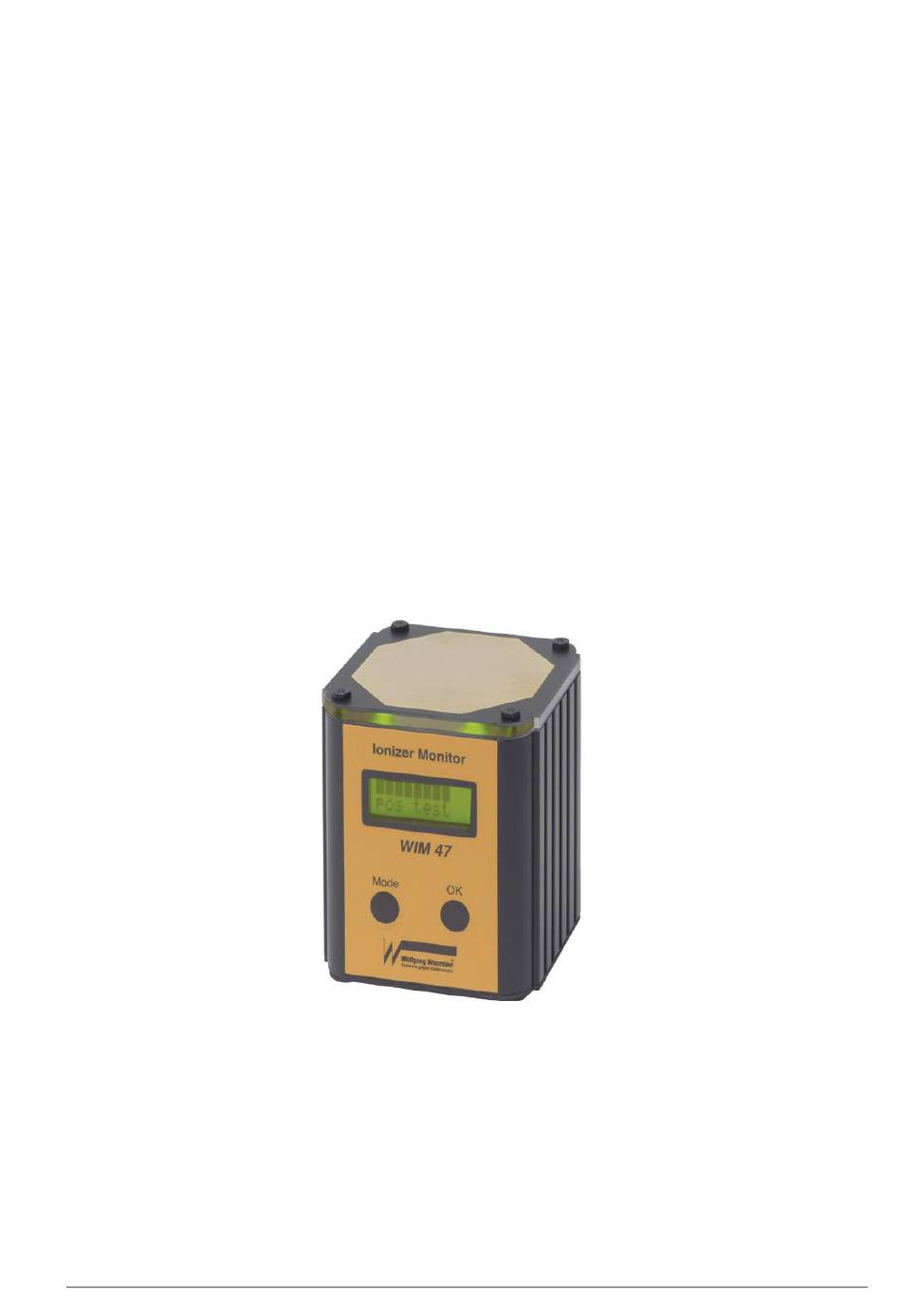

- Page 1 User Manual WORKSTATION IONIZER MONITOR WIM47 Part.-No.: 7100.WIM47 Wolfgang Warmbier GmbH & Co. KG | Untere Gießwiesen 21 | D-78247 Hilzingen | +49 (0)7731 8688 0 | www.warmbier.com...
-
Page 2: Scope Of Supply
◼ Installation Place the WIM47 on the work area in order that the air flow of the ionizer will neutralise the test plate. The WIM47 must me grounded via the 4 mm banana plug socket on the back side of the unit. -
Page 3: Power Supply
• The WIM47 must be grounded. Ground the WIM47 on the 4 mm banana plug socket on the back side of the unit directly with “protective earth”. Earth bonding points (EBP) with a safety resistor shall not be used to ground the WIM 47. -
Page 4: Operation
User Manual – WIM47 Part-No.: 7100.WIM47 ________________________________________________________________________________________________ ◼ Measurement The monitoring measurements will start shortly after the power supply is plugged in and will be repeated in cycles. There is no additional activity from the user needed. When the ionized air flow from the ionizer is present the display will be illuminated in GREEN. When an inadequate ionization performance is detected, the display will be illuminated in YELLOW. - Page 5 User Manual – WIM47 Part-No.: 7100.WIM47 ________________________________________________________________________________________________ Mode: MONITOR In this mode the automatic checking will be started in the following steps: 1. Ground Test The unit checks if the sensor plate is o.k. and that there are no “ripple” voltages present. Any residual charge on the sensor plate will be discharged before the measurement.
-
Page 6: Device Return And Environmentally Compatible Disposal
User Manual – WIM47 Part-No.: 7100.WIM47 ________________________________________________________________________________________________ Messages Message Root cause / Troubleshooting Configuration menu CONFIG Short waiting time before next measurement WAIT Switching output will be switched to start the ionizer Ionizer ON Grounding test failed GND fail ➔ Check sensor plate if there are any parts touching or if there is a contamination ➔...
