Summary of Contents for Wolfgang Warmbier EFM 51

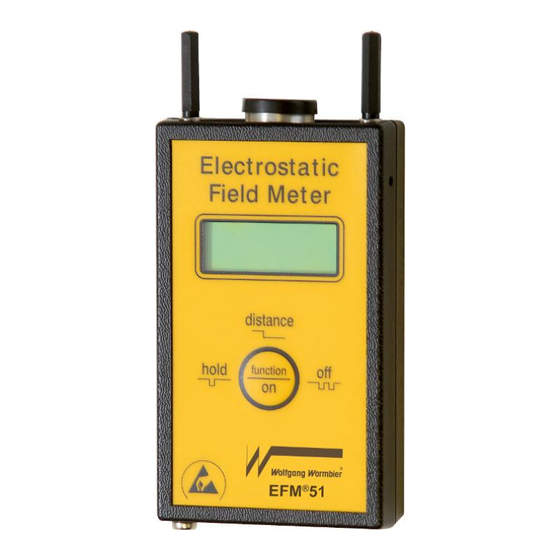

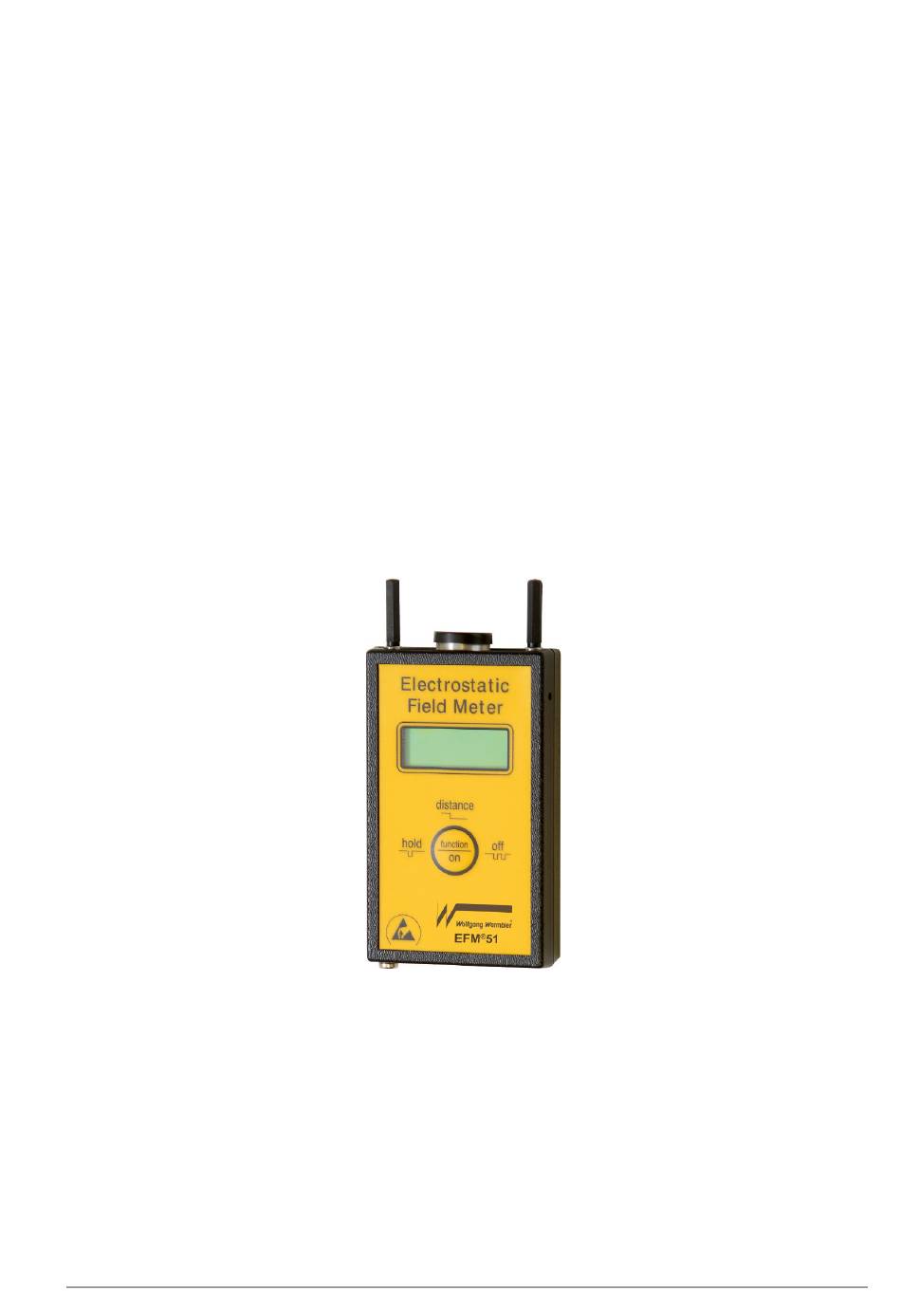

- Page 1 User Manual ELECTRO STATIC FIELDMETER ® Part-No.: 7100.EFM51 Wolfgang Warmbier GmbH & Co. KG | Untere Gießwiesen 21 | D-78247 Hilzingen | +49 (0)7731 8688 0 | www.warmbier.com...
-
Page 2: Scope Of Supply
User Manual - EFM ® Part-No.: 7100.EFM51 ________________________________________________________________________________________________ ◼ Scope of Supply • ® Electro field meter EFM 51 incl. 2 distance guides (2 cm) • Grounding cable 0.5 m and 1 m • Alligator clip • 1 pcs rechargeable battery 9V •... -
Page 3: Warranty
User Manual - EFM ® Part-No.: 7100.EFM51 ________________________________________________________________________________________________ ◼ Technical Data Dimensions: 70 x 122 x 26 mm (W x L x H) Weight: 130 g (without battery) Power Supply: 9V-Alkaline monoblock battery IEC 6F22 or rechargeable NiMH battery 1 cm ➔ Measurement Range: Distance 0.. -
Page 4: Battery Control
User Manual - EFM ® Part-No.: 7100.EFM51 ________________________________________________________________________________________________ ◼ Measuring Distance / Measuring Mode Press and hold the „function/on“-key (approximately 2 seconds) until „change cm“ will appear. The pre-selected distance in cm is displayed in the first line. Pressing the „function/on“-key changes the measuring distance. 2 cm =>... -
Page 5: Zero Adjust
User Manual - EFM ® Part-No.: 7100.EFM51 ________________________________________________________________________________________________ ◼ Zero Adjust In general zero adjustment is not necessary. However the trimmer (6) can be used for zero adjust if the instrument does not indicate U=000 or U=00X when the rotating chopper is shielded by the protection cap. The last digit can be ignored, as it is much lower than the specified tolerance.
