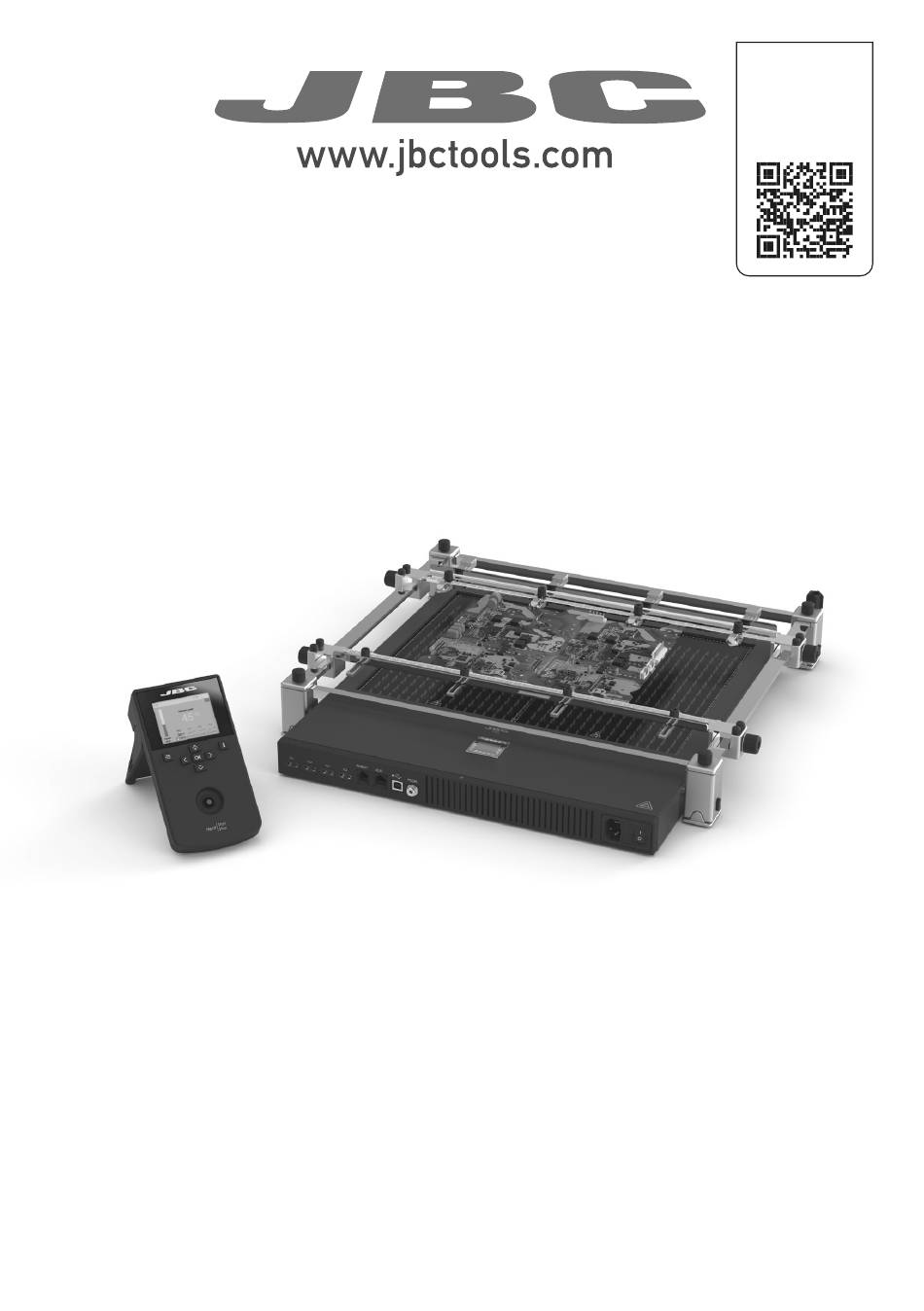

- Page 1 Product website 130 mm INSTRUCTION MANUAL PHBEK Preheater Set for PCBs up to 36x28cm/14x11”...
-
Page 2: Packing List
This manual corresponds to the following references: PHBE-9KB (100 V) PHBE-1KB (120 V) PHBE-2KB (230 V) Packing List The following items are included: PHBE Preheater Unit ......1 unit PHBS Support ........ 1 unit Ref. PHB-SA Console ......1 unit RJ45 Cable ....1 unit Power Cord .....1 unit Ref. -
Page 3: Features And Connections
para manuales - negro plano 200 mm Features and Connections 130 mm 130 mm Preheater Unit Heating Areas 100 mm Zone A Zone B Fuse 80 mm Led Status Indicator Fixing Brackets for PHBS Support Thermocouple Connectors x4 (Type K) 60 mm Main Switch RJ12 Connector... -
Page 4: Placement Instructions
Placement Instructions The equipment must be installed on a flat surface without any deformation. An uneven surface, either caused by its own weight or by the weight of the preheater or support, can lead to damage to the equipment. Height Adjustment PHBS support allows adjustment for 3 heights between the PCB and the Heating Area of the Pre- heater Unit. - Page 5 para manuales - negro plano 200 mm Fast PCB Replacement 130 mm 130 mm The support lets you replace PCBs of the same batch fast and easily thanks to the spring-loaded clamps, located at the frontal sliding guide. To do this, there is no need to open the sliding guide knob (1) and nor to move the sliding guides.
-
Page 6: Status Indicator
Status Indicator The led status indicator indicates as follows the status of the preheater: Blue: The unit is resting, not heating. On the display, the symbol “Stop” (1) is shown. Green: The unit is running and heating accordingly Led status indicator to the operating mode. -
Page 7: Troubleshooting
para manuales - negro plano 200 mm Work Display 130 mm 130 mm The console offers an intuitive user interface, which provides quick access to station parameters. Status 100 mm Indicator 19:29 Status Bar 80 mm Max. Heating Instant Power Rate Supplied to Heater... -
Page 8: Recommended Guidelines
Setting Thermocouples Function Select Thermocouples from the Work mode menu to set them up. The thermocouples (TC) can work in three different ways depending on what is needed. · Control: the unit maintains the selected temperature. · Protection: the Heater Unit stops if the TC reaches the selected temperature. ·... -
Page 9: Work Mode
para manuales - negro plano 200 mm 19:29 Work Mode 130 mm 130 mm Temperature Mode: Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected 100 mm temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection temperature limit. - Page 10 Work Mode Temperature Mode: This function allows you to set a maximum value for the temperature increase per second when heating. Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection The maximum heating rate value can be set between 0.1ºC/s and 2.0ºC/s (2) or “None”...
- Page 11 para manuales - negro plano 200 mm Profile Modes 130 mm 130 mm Select Profile Mode from the Work Mode Menu. In this mode the heater unit regulates the temperature of the TC1 thermocouple according to the selected profile as long as the other TCs do not reach the control/protection temperature limit.
-
Page 12: Profile Editor
JBC Predefined Profiles There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain gradual warming. -
Page 13: Process Analysis
para manuales - negro plano 200 mm Process Analysis 130 mm 130 mm By pressing Graphics in the main MENU, the temperature of TC1 thermocouple and power fi gures in real time are displayed. 100 mm Graphics 80 mm 19:29 Power (%) 60 mm 50 mm... - Page 14 Insert a USB flash drive into the USB-A connector to export/import profiles. Update the Station Software 1. Download the JBC Update File from 2. Insert the USB flash drive into the console. www.jbctools.com/software.html and save The icon is displayed while updating.
-
Page 15: Maintenance
- Only if it is absolutely necessary and if cleaning with isopropyl alcohol (IPA) is not enough, it is recommended to use a scraper to remove dirt in the glass area. - Replace any defective or damaged parts. Use original JBC spare parts only. 60 mm - Repairs should only be performed by a JBC authorized technical service. - Page 16 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than PCB preheating. Incorrect use may cause a fire. - The mains cable must be plugged into approved bases. Make sure that it is properly grounded before use.
- Page 17 para manuales - negro plano 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm...
- Page 18 Notes...
-
Page 19: Specifications
- negro plano 200 mm Specifications 130 mm 130 mm PHBEK Preheater Set for PCBs up to 36x28cm/14x11” 100 mm Ref. PHBE-9KB 100 V. Input 100 V 50/60 Hz. Fuse 20 A. Ref. PHBE-1KB 120 V. Input 120 V 50/60 Hz. Fuse 20 A. Ref. PHBE-2KB 230 V. Input 230 V 50/60 Hz. Fuse 10 A. - Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. If you register, you will receive e-mail notifications about new software updates for your registered product.
