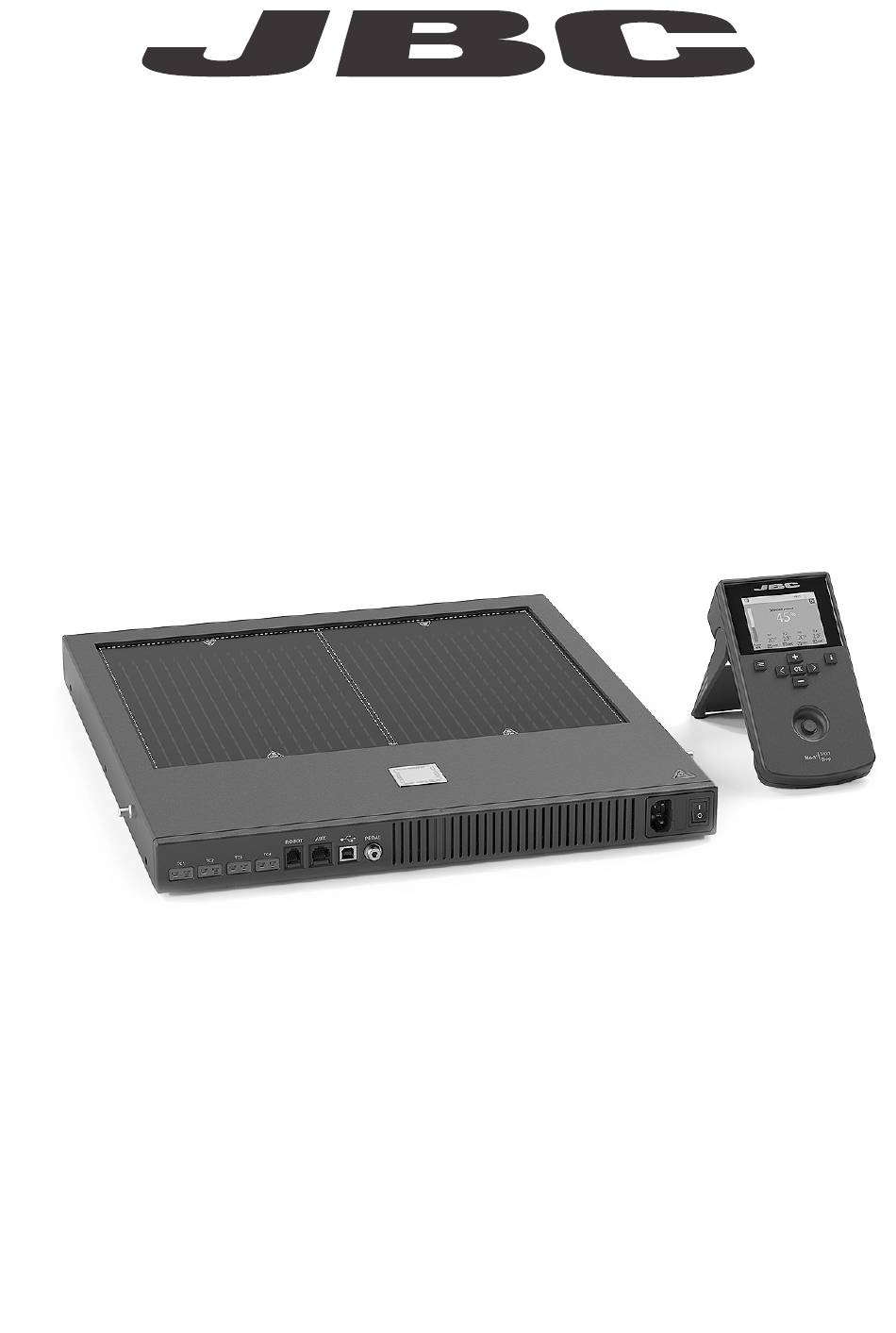

- Page 1 INSTRUCTION MANUAL Convection Preheater Ref. PHBE-A...
-
Page 2: Packing List
PHBE-9A (100V) Heater Unit Console Thermocouple .......... 1 unit Power Cord ..........1 unit Ref. PH218 Ref. 0016814 (100V/120V) 0009401 (230V) Kapton Tape ..........1 unit Manual ............1 unit Ref. PH217 Ref. 0023518 w w w.jbctools.com Convection Preheater Ref. PHBE-A... - Page 3 w w w.jbctools.com Features Heater Unit Heating Areas Zone A Zone B Fixing brackets for PHB-SA Convection Preheater Support Thermocouple connectors x4 Power RJ12 connector Power socket to Robot Pedal socket (optional) RJ45 connector Ref. P-005 or P-405 to Console USB-B connector Console Push the button...
-
Page 4: Temperature Mode
Temperature mode Select Temp. mode from the Work mode menu. In this mode the heater unit maintains the selected temperature for the TC1 thermocouple as long as the other TCs do not reach the control/protection temperature limit. Status bar 14:15 Status indicator Instant power... -
Page 5: Power Mode
w w w.jbctools.com Power mode Select Power mode from the Work mode menu. In this mode the heater unit maintains the selected power as long as the thermocouples do not reach the control/protection temperature limit. Status bar 14:15 Status indicator Selected power Instant power supplied to... - Page 6 Profiles mode Select Profile mode from the Work mode menu. In this mode the heater unit regulates the temperature of the TC1 thermocouple according to the selected profile as long as the other TCs do not reach the control/protection temperature limit. 14:15 PROFILE1 Stop...
-
Page 7: Profile Editor
JBC set profiles There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain a gradual warming. -
Page 8: Process Analysis
Process analysis By pressing Graphics in the main MENU, temperature of TC1 thermocouple and power figures in real time are displayed. Graphics 17:14 Power (%) Temperature Power[%] Ext.Temp[ºC] Switch Y axis between power and temperature... - Page 9 Insert a USB flash drive into the USB-A connector to export / import profiles. Update the station software 1. Download the JBC Update File from 2. Insert the USB flash drive to the station. www.jbctools.com/software.html and save The icon is diplayed while updating.
-
Page 10: Recommended Guidelines
Recommended Guidelines 1. Place the Thermocouple (TC) as near as possible to the component being worked on. Fix the TC with Kapton Tape Protection Thermocouple (TC) 2. If there are any sensitive components, use a Thermocouple as protection. You can select the protection temperature in the Thermocouples menu. If the selected tempertare is reached, the Heater Unit will stop the process and a warning message will be shown. -
Page 11: Maintenance
Maintenance Before carrying out maintenance or storage, always allow the equipment and the support to cool. - Check periodically that the PHBE-A is clean. - Use a damp cloth when cleaning. Alcohol can only be used to clean the metal parts. - Page 12 Safety It is imperative to follow safety guidelines to protect health and prevent electric shock, injury, fire or explosions. - Do not use the units for any purpose other than PCB preheating. Incorrect use may cause fire. - The mains cable must be plugged into approved bases. Make sure that it is properly grounded before use.
-
Page 13: Specifications
w w w.jbctools.com Specifications Convection Preheater PHBE-1A 120V. Input 120V 50/60Hz Fuse 15A PHBE-2A 230V. Input 230V 50/60Hz Fuse 10A PHBE-9A 100V. Input 100V 50/60Hz Fuse 15A - Ambient operating temperature: 10 - 40 ºC (50 - 104 ºF) - Weight: 6,9 kg (15.4 lb) - Dimensions (Heater Unit): 426 x 444 x 41 mm (16.8 x 17.5 x 1.6 in) - Page 14 Notes...
- Page 15 w w w.jbctools.com...
- Page 16 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
