Instrument tour

This section describes the front, rear and side view of the instrument including all
function keys and connectors.
5.1

Front view

This section provides an overview of the MXO 5 front panel.

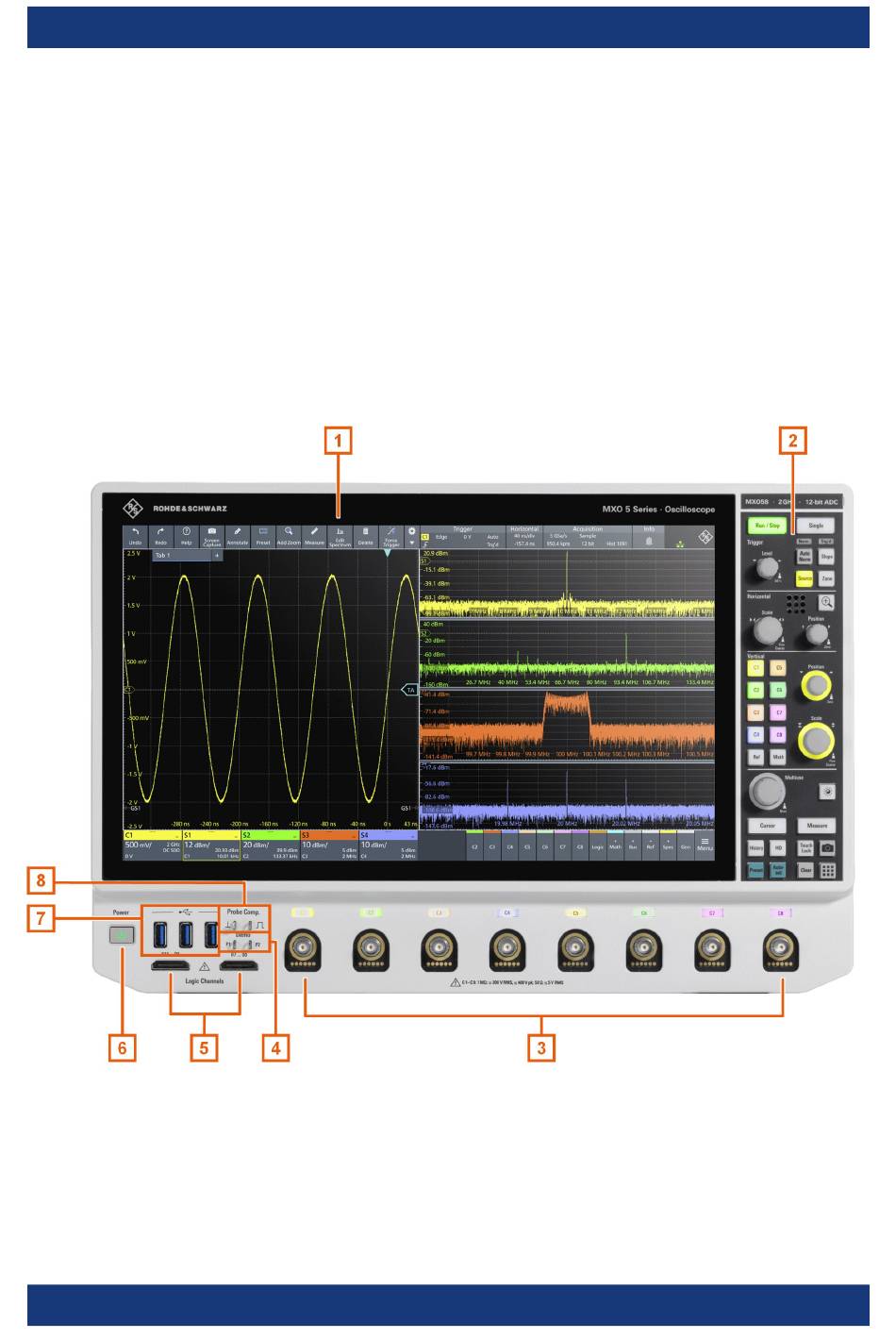

Figure 5-1: Front view of MXO 5 with 8 input channels
1 = Display
2 = Keys and controls
3 = Analog input channels
4 = Connectors for demo signal output
5 = Connectors for logic probe (R&S MXO5-B1 Mixed Signal Option)
