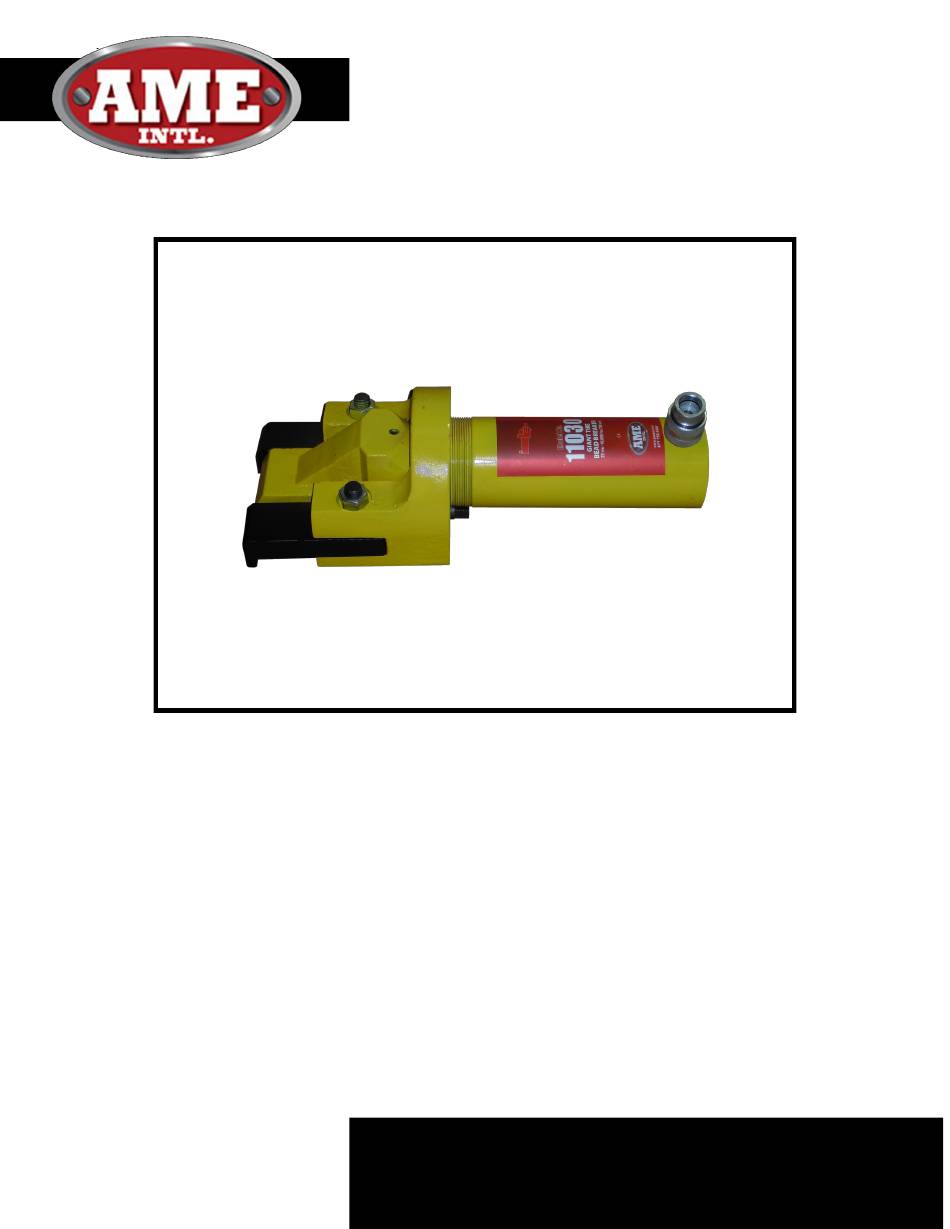

- Page 1 INSTRUCTION MANUAL Model 11030 OTR 2000 Giant Tire Bead Breaker with 6" Stroke 2347 Circuit Way, Brooksville, Florida, USA 34604 Phone: (+1) 352-799-1111 Toll Phone: (+1) 877-775-4AME (4263) Fax: (+1) 352-799-1112 E-mail: sales@ameintl.net www.ameintl.net...
-
Page 2: Safety Information
To avoid serious personal in- jury, always wear proper pro- The 11030 Bead Breaker is used on 39", 45", 49", 51", 57", and larger tective gear, such as hard multi-piece rims with pry bar pockets. The 11030 has a 6.25" stroke and hats, safety glasses, gloves, is designed to break giant off-the-road tire beads on any rim. - Page 3 INSTRUCTION MANUAL WARNING To avoid serious personal injury, always wear proper protective gear, such as hard hats, safety glasses, gloves, and steel toe shoes when using hydraulic equipment. - 3 - AME INTERNATIONAL WWW.AMEINTL.NET...
- Page 4 INSTRUCTION MANUAL Activating the Bead Breaker CAUTION The bead breaker uses a long stroke and high force. Be careful not to damage or bend rim parts, such as the flange butt weld, when using the bead breaker. 1. Turn on the hydraulic pump to activate the bead breaker. 2.
- Page 5 INSTRUCTION MANUAL CAUTION To prevent damage to the rim, do not use the bead breaker within 12 inches of the flange butt weld. 5. Apply enough pressure to the bead breaker to completely break the tire bead. 6. Release the hydraulic pressure. NOTE: If you have gone all the way around the tire and the tire bead does not break: Repeat the steps in “Activating the Bead Breaker”...
- Page 6 1. Break the tire bead on this side of the tire by repeating the steps in USING THE 11030 BEAD BREAKER on pages 2 and 3. 2. Using a hoist, lift the rim base from the tire. Using the AME INTL.
- Page 7 INSTRUCTION MANUAL Do not mix parts from one rim with parts from another rim. Always use replacement parts that you can positively identify as the COR RECT replacement parts. All replacement rim parts MUST match the replacement part numbers stamped on the rim parts. Rims with different part numbers cannot be interchanged.
- Page 8 INSTRUCTION MANUAL 2. Inflate the tire to 5 psi [0,345 bar]. 3. Check all tire and rim parts again for proper positioning. Make sure the o-ring does not slip out of its groove. 4. If tire/rim parts are not seated properly, deflate the tire and correct the problem before proceeding. WARNING Never hammer, strike, or pry an inflated or partly inflated tire/rim assembly.
- Page 9 INSTRUCTION MANUAL Parts List For OTR 2000 Giant Tire Bead Breaker with 6" Stroke Model 11030 CAUTION The AME-11030 Bead Breaker, and tire tools, should be used only by persons OSHA regula- properly trained according to tion #29CFR1910.177, “Servicing Single-Piece & Multi-Piece Wheels”...
- Page 10 QTY. DESCRIPTION 11030-012 *CH800041 U-Cup 11030-013 F948209 Bushing 11030-014 B1014028 Screw 11030-015 *G731044 Wiper Ring 11030-016 G833055 11030-017 *G834167 Gasket 11030-018 B1157057 11030-019 G898107 Bearing * Indicates parts available in Repair Kit 11030-RK AME ITERNATIONAL AME INTERNATIONAL - 10 -...
- Page 11 INSTRUCTION MANUAL Parts List For OTR 2000 Giant Tire Bead Breaker with 6" Stroke Model 11030 ITEM PART # STOCK NO. QTY. DESCRIPTION 11030-020 G89044 Stop Ring 11030-021 *G907108 Washer 11030-022 *G908044 Retaining Ring 11030-023 16060 Female Coupler 11030-024 F937110...
