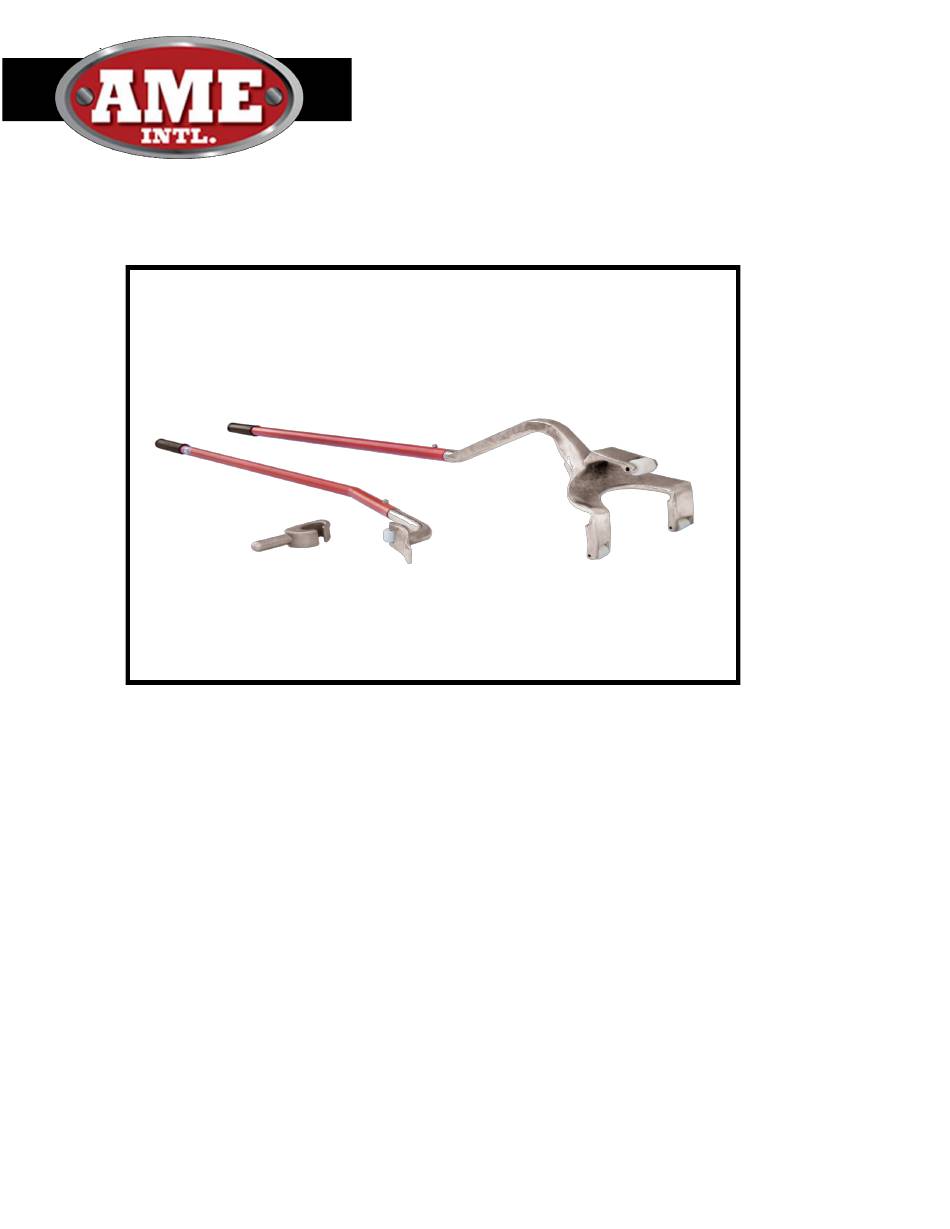

- Page 1 INSTRUCTION MANUAL & PARTS BREAKDOWN MODEL 71050 Golden Buddy Tool Instruction Manual...
- Page 2 INSTRUCTION MANUAL 71050 Demount Instructions 1. Remove valve core, break tire beads, lubricate well. 2. Kick tool between bead and rim 3. Pull handle across wheel to opposite side to demount top bead. (see figures below) 4. Keeping tool engaged, pull handle back to starting side.
- Page 3 INSTRUCTION MANUAL 71050 Demount Instructions 5. Repeat Steps 1-3 to demount bottom bead. 6. Pull handle down , remove tire. 7. You have just removed a tire the Buddy Way!
- Page 4 INSTRUCTION MANUAL 2. The Golden Buddy mount bar maybe used 1. Position the wheel drop center down to press the first bead over the lip allowing and position a clean, properly lubricated the bead to fall into the rim gutter. tire for mounting.
- Page 5 INSTRUCTION MANUAL STANDING METHOD 3. Stand on the tire to retain the bead. Be- gin working at one edge where the bead is not yet mounted. 4. Use the Golden Buddy Mount bar to pry the bead onto the wheel. Continue working the wheel until the tire is mounted.
- Page 6 INSTRUCTION MANUAL Parts List For Golden Buddy Model 71050 Parts # Description QTY (Needed) 71050-003 Dismount Handle 71050-004 Mount Handle for 71050 71050-007 Bead Keeper for Golden Buddy 71050-010 Rubber Grip for 71050...
-
Page 7: Parts Breakdown
PARTS BREAKDOWN Parts List For Golden Buddy Model 71050 Part # Description (Needed) 71050-001 Dismount Head Only 71050-002 Mount Head Only 71050-005 Handle Nut 71050-006 Handle Screw 71050-008 Pin for Roller 71050-008A Pin for Center Dismount Head Roller 71050-009 Roller for Mount/Dismount Head...
