Operating Instructions and Parts Manual
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect yourself
and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in
personal injury and/or damage to product or property. Please retain instructions for future reference.
Description
Westward Air/Manual Bottle Jacks are designed for use in shops, home, or industrial setting. The manual function
allows for normal operation any where, even without an air supply. RECOMMENDED AIR SUPPLY: 110-175 PSI at
7.8 CFM. A minimum of 150 PSI is required to lift rated capacity load.
Release Valve

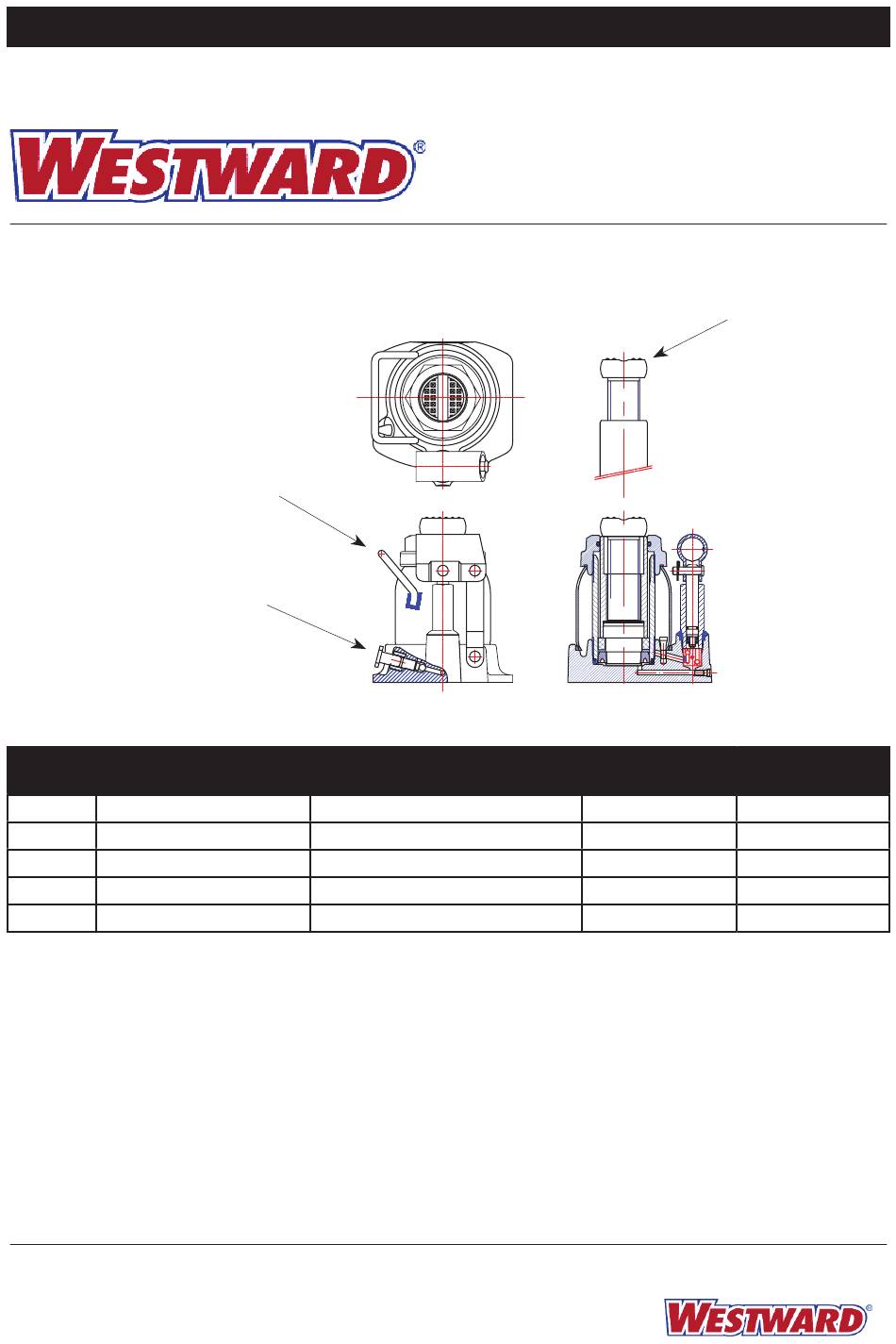

Figure 2 - Hydraulic Bottle
Jack Components
Specifications and Dimensions
Model
Capacity
3ZC62H
12 Ton (10,886 kg)
3ZC63I
20 Ton (18,143 kg)
3ZC56H
12 Ton (10,886 kg) Shorty
3ZC57H
20 Ton (18,143 kg) Shorty
3ZC64B
30 Ton (27,215 KG)
General Safety Information
Save these instructions. For your safety, read, understand, and follow the information provided with and on this
device before using. The owner and/or operator shall have an understanding of the device, its operating characteristics
and safety operating instructions before operating the equipment. The owner and/or operator shall be aware that use
and repair of this product may require special skills and knowledge. Instructions and safety information shall be read
to and discussed with the operator in the operator's native language, making sure that the operator comprehends their
contents, before use of this equipment is authorized. If any doubt exists as to the safe and proper use of this device,
remove from service immediately.
Inspect before each use. Do not use if abnormal conditions such as cracked welds, damaged, loose or missing parts
are noted. Any equipment that appears damaged in any way, is found to be worn, or operates abnormally shall be
removed from service until repaired. If the equipment has been or is suspected to have been subjected to an abnormal
load or shock, immediately discontinue use until inspected by a factory authorized repair facility (contact distributor or
manufacturer for list of authorized repair facilities). It is recommended that an annual inspection be made by an authorized
repair facility. Labels and Operator's Manuals are available from the manufacturer.
SHI003
Printed in China
012019
Handle
Base Dimensions
5-1/4" x 5-1/8" (13.3 x 13 cm)
6-1/4" x 5-7/8" (15.9 x 14.9 cm)
5-1/4" x 5-1/8" (13.3 x 13 cm)
6-1/4" x 5-7/8" (15.9 x 14.9 cm)
8-1/8" x 6-7/8" (20.64 x 17.46 cm)
3ZC56H, 3ZC57H, 3ZC62H, 3ZC63I, & 3ZC64B
Bottle Jacks
9-3/8" (23.8 cm)
9-1/2" (24.1 cm)
6-1/2" (16.5 cm)
11" (27.94 cm)
Saddle
Oil Filler Plug
not shown
Min Saddle
Max Saddle
Height
18-1/2" (47 cm)
18-5/8" (47.3 cm)
6" (15.2 cm)
10-3/8" (26.4 cm)
11-1/4" (28.6 cm)
18" (45.72 cm)
Height

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3ZC56H and is the answer not in the manual?

Questions and answers

Summary of Contents for Westward 3ZC56H

  • Page 1 Bottle Jacks Description Westward Air/Manual Bottle Jacks are designed for use in shops, home, or industrial setting. The manual function allows for normal operation any where, even without an air supply. RECOMMENDED AIR SUPPLY: 110-175 PSI at 7.8 CFM. A minimum of 150 PSI is required to lift rated capacity load.
  • Page 2: Operation

    3ZC56H, 3ZC57H, 3ZC62H, 3ZC63I, and 3ZC64B Westward Operating Instructions and Parts Manual Bottle Jacks NOTICE: Use Pump Handle provided by jack manu- Study, understand, and follow all facturer. The handle provided with this jack will safely instructions before operating this device. Do not engage the release valve and operate the Handle exceed rated capacity.
  • Page 3: Troubleshooting Chart

    3ZC56H, 3ZC57H, 3ZC62H, 3ZC63I, and 3ZC64B Westward Operating Instructions and Parts Manual Bottle Jacks CLEANING STORAGE Periodically check the pump piston and Ram Plunger for When not in use, store the jack with pump piston and signs of rust or corrosion. Clean as needed and wipe Ram Plunger fully retracted.
  • Page 4 3ZC56H, 3ZC57H, 3ZC62H, 3ZC63I, and 3ZC64B Westward Operating Instructions and Parts Manual Bottle Jacks For Repair Parts, call 1-800-323-0620 24 hours a day - 365 days a year Please provide following information: -Model number -Serial number (if any) -Part description and number as shown in parts list...
  • Page 5: Especificaciones Y Dimensiones

    Gatos de botella Descripción Los Gatos de botella neumáticos/manuales de Westward están diseñados para utilizarse en el taller, el hogar y los entornos industriales. La función manual permite el funcionamiento normal en cualquier lugar, incluso sin suministro de aire. SUMINISTRO DE AIRE RECOMENDADO: 110-175 PSI (7,5 a 12 bar) a 7,8 CFM. Se requiere una presión mínima de 150 psi (10,3 bar) para elevar la carga de capacidad nominal.
  • Page 6 Manual de piezas e instrucciones de 3ZC56H, 3ZC57H, 3ZC62H, 3ZC63I, and 3ZC64B funcionamiento de Westward Gatos de botella 3. Luego de retirar el gato de la parte de abajo de la Estudie, comprenda y siga carga, baje el pistón del ariete y el manguito de todas las instrucciones antes de poner en la manija para reducir la exposición al óxido y la...
  • Page 7: Localización Y Solución De Problemas

    Manual de piezas e instrucciones de 3ZC56H, 3ZC57H, 3ZC62H, 3ZC63I, and 3ZC64B funcionamiento de Westward Gatos de botella Localización y solución de problemas Síntoma Causa posible Medidas correctivas 1. La válvula de liberación no está 1. Asegúrese de que la válvula de El gato no levanta la carga.
  • Page 8 Manual de piezas e instrucciones de 3ZC56H, 3ZC57H, 3ZC62H, 3ZC63I, and 3ZC64B funcionamiento de Westward Gatos de botella Para solicitar piezas de repuesto, llame al 1-800-323-0620 las 24 horas del día, los 365 días del año Proporcione la siguiente información: - Número de modelo...
  • Page 9: Spécifications Et Dimensions

    Crics-bouteilles Description Les Crics-bouteilles manuels ou à air de Westward sont conçus pour être utilisés en usine, dans un environnement industriel ou à la maison. Le dispositif manuel permet de les utiliser de manière normale partout, même s'il n'y a pas d'alimentation en air. PARAMÈTRES RECOMMANDÉS POUR LA SOURCE D'ALIMENTATION EN AIR : 0,22 m³/min, 758 à...
  • Page 10: Entretien

    Manuel des consignes d'utilisation et des pièces 3ZC56H, 3ZC57H, 3ZC62H, 3ZC63I, and 3ZC64B de Westward Crics-bouteilles Inspectez avant chaque utilisation. N’utilisez pas ce ABAISSER produit s’il est dans un état anormal, comme lorsqu’il y a des souduresn fissurées, des dommages ou des Avant d'abaisser la charge, pièces manquantes ou mal fixées.
  • Page 11: Dépannage

    Manuel des consignes d'utilisation et des pièces 3ZC56H, 3ZC57H, 3ZC62H, 3ZC63I, and 3ZC64B de Westward Crics-bouteilles LUBRIFIER AVIS : N'utilisez pas de papier sablé ni de matériau Une lubrification périodique des points de pivotement, abrasif sur le piston du levier et le vérin à piston des axes et des charnières faite avec de l'huile légère...
  • Page 12 Manuel des consignes d'utilisation et des pièces 3ZC56H, 3ZC57H, 3ZC62H, 3ZC63I, and 3ZC64B de Westward Crics-bouteilles Pour obtenir des pièces de rechange, composez le 1 800 323-0620. Disponible 24 heures sur 24, 365 jours par année Veuillez fournir les informations suivantes : - numéro de modèle;...
