Westward 1VW32 Operating Instructions Manual

Operating Instructions Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself
and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain
instructions for future reference.
Westward
Service Jack SUV
Specifications
Model Capacity
1VW32 2-1/2 Ton
1AVR1 3 Ton
Handle
(Release Valve)
Handle
Fork

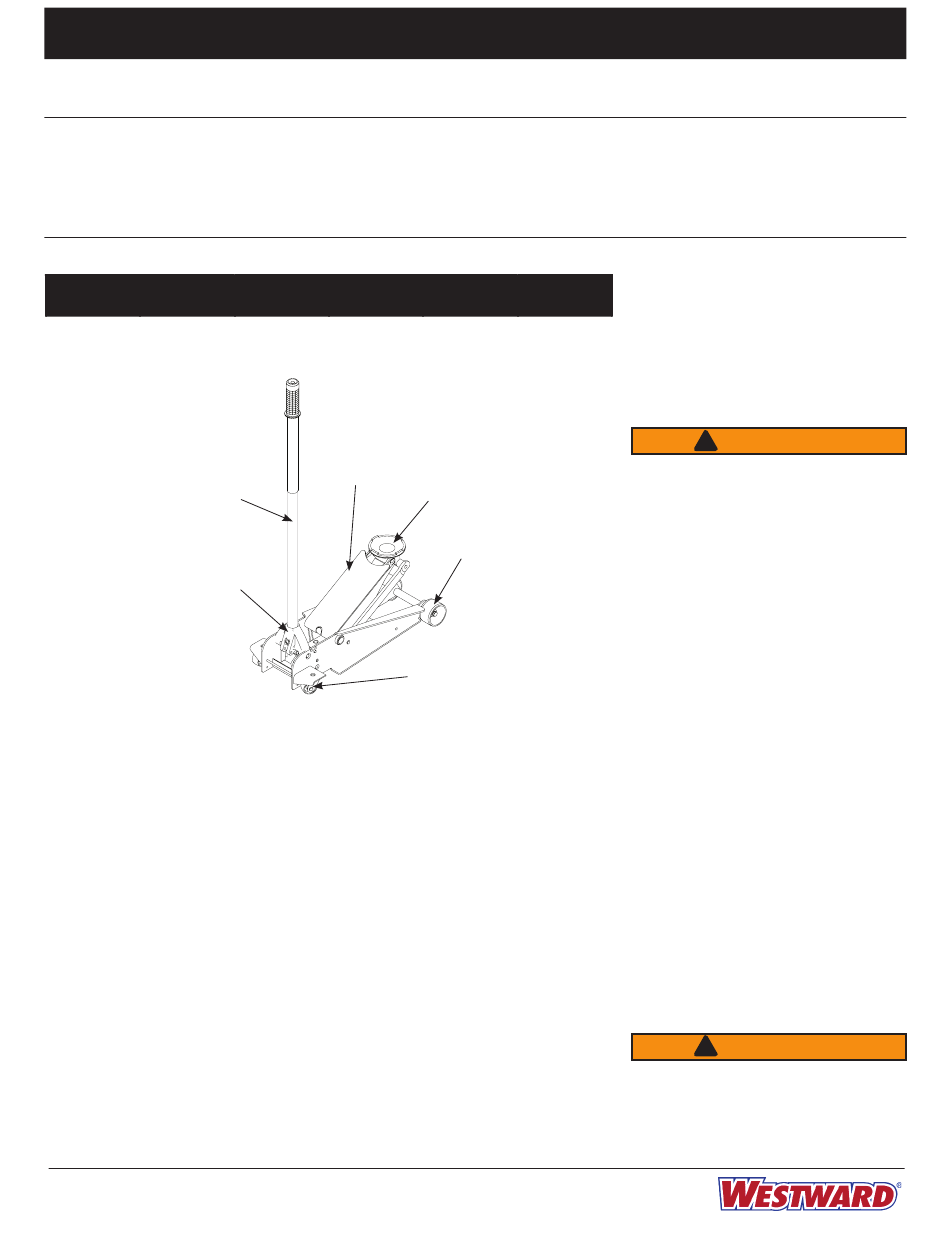

Figure 1- Model 1AVR1 Nomenclature
SAFETY AND GENERAL
INFORMATION
Save these instructions. For your safety,
read, understand, and follow the information
provided with and on this device before
using. The owner and/or operator shall
have an understanding of the device,
its operating characteristics and safety
operating instructions before operating the
equipment. The owner and/or operator shall
be aware that use and repair of this product
may require special skills and knowledge.
Instructions and safety information shall
be read to and discussed with the operator
in the operator's native language, making
sure that the operator comprehends their
contents, before use of this equipment is
authorized. If any doubt exists as to the safe
and proper use of this device, remove from
service immediately.
Inspect before each use. Do not use if
abnormal conditions such as cracked welds,
damaged, loose or missing parts are noted.
SHI 037
Printed in China
082012
Hydraulic Quick Lifting
®
Chassis Handle Min Saddle
Length Length
29-3/4" 49-7/8"
31-3/4" 51-1/2"
Lifting Arm
Saddle
Caster
Any equipment that appears damaged in
any way, is found to be worn, or operates
abnormally shall be removed from service
until repaired. If the equipment has been
or is suspected to have been subjected to
an abnormal load or shock, immediately
discontinue use until inspected by a factory
authorized repair facility (contact distributor
or manufacturer for list of authorized repair
facilities). It is recommended that an annual
inspection be made by an authorized repair
facility. Labels and Operator's Manuals are
available from the manufacturer.
PRODUCT DESCRIPTION

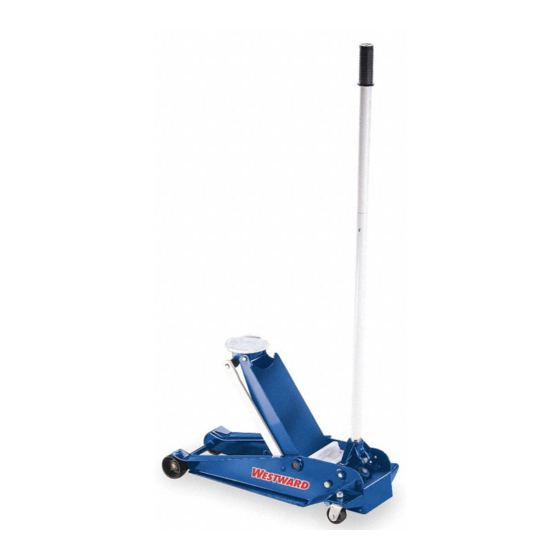

Westward Hydraulic Quick Lifting Jack is
designed for lifting, but not sustaining
rated capacity loads. The Service Jack
with Quick Lift System providing one
pump to lift point contact, which allows a
no-load lift possible in seconds. Intended
use: To lift one axle of a vehicle for the
purpose of service and /or repair of
Max Saddle
Height Height
4" 20"
4" 23"
Front
Wheel
1VW32 and 1AVR1
vehicle components. After lifting, loads
must be immediately supported by
appropriately rated jack stands. Check
with vehicle manufacturer's owners
manual for proper lift points. This jack
complies with applicable ANSI/PALD
Standards.
!
WARNING
• Study, understand, and follow all
instructions before operating this
device.
• Do not exceed rated capacity.
• Use only on hard, level surface.
• Lifting device only. Immediately after
lifting, support vehicle with
appropriate means.
• Do not move or dolly the vehicle
while on the jack.
• Ensure that the lift point is properly
centered on the jack saddle.
• Lift only on areas of the vehicle as
specified by the vehicle
manufacturer.
• No alteration of this product is
allowed.
• Failure to heed any one or
combination of these warnings may
result in severe personal injury and/
or property damage.
PREPARATION
Before Use
1. Assemble the 2-piece handle with
provided bolt.
2. Always secure the handle into the
handle fork by means of the bolt and
lock washer provided. Tighten securely
to prevent accidental removal of
handle while in use.
! WARNING
Do not lift or carry jack by handle.
Handle could dislodge and jack fall,
resulting in possible injury or property
damage.
