Operating Instructions
Please read and save these instructions. Read through this owner's manual carefully before using product. Protect
yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could
result in personal injury and/or damage to product or property. Please retain instructions for future reference.

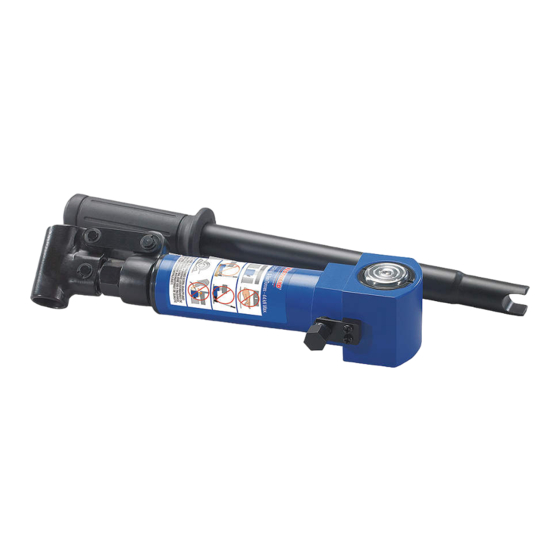

Westward Low Profile Jacks
®

Description

Westward Low Profile Jacks are suitable for a wide range
of lifting and pushing tasks. Usable vertically or horizontally,
their low profile design makes them ideal for working in tight
spaces. Spring return provides quick retraction of the ram
when hydraulic pressure is relieved.
This product is not intended for sustaining loads. Suitable
blocking and/or cribbing must be used to support the load
after it is lifted and/or moved. Westward products are designed
to meet or exceed applicable ASME/ANSI standards.

Specifications

Model Capacity
US tons (kN)
3CFK6 5 Ton (44)
3CFK7 5 Ton (44)
3CFK8 10 Ton (89)
3CFK9 10 Ton (89)
3CFL1 20 Ton (178)
3CFL2 20 Ton (178)
Conversion to kg: 5 US Tons = 4,541 kg • 10 US Tons = 9,083 kg • 20 US Tons = 18,165 kg

Safety Information

WARNING Study, understand
and follow all instructions before
operating this device. Use as a
Lifting device only. When lifting
vehicles, intended use is for lifting
part of a total vehicle, only one
wheel or axle at a time.
• Immediately after lifting, support
load with appropriate means.
• Do not exceed rated capacity. Use
only on hard, level surfaces capable
of sustaining rated capacity loads.
• When lifting vehicles, lift only on
those areas of the vehicle as speci-
fied by the vehicle manufacturer.
Ensure that the lift point is properly
centered on the jack saddle.
• Always wear safety glasses when
using this equipment.
ENP345 (L2793 Rev. A)
Printed in India
12/08
Min. Height Max. Stroke
inch (mm) inch (mm)
1.61 (41) 0.25 (5)
2.20 (56) 1.00 (25)
1.80 (48) 0.60 (15)
2.48 (63) 1.00 (25)
2.40 (61) 0.60 (15)
2.80 (71) 1.00 (25)
• Inspect jack before each use. Do
not use if bent, broken, leaking, or
damaged components are noted.
• No alteration of this product is al-
lowed. Do not use this device for any
purpose other than that for which it is
intended.
• Do not overload.
• Do not open oil fill plug for any rea-
son unless jack is fully lowered.
• Do not loosen release valve more
than one turn counterclockwise from
fully closed.
• Never attempt to loosen or remove
hex screw located on jack housing,
under the ram. This screw is used for
product assembly purposes only.
• Stop pumping immediately if maxi-
mum stroke indicator line appears.
Length Width
inch (mm) inch (mm)
12.04 (306) 3.19 (81)
11.42 (290) 3.19 (81)
12.24 (311) 3.43 (87)
11.14 (283) 3.43 (87)
12.79 (325) 4.13 (105)
15.15 (385) 4.13 (105)

3CFK6 3CFK7
3CFK9 3CFL1
WARNING Failure to heed any
one or combination of the following
precautions may result in severe
personal injury and/or property
damage.
A
C
D

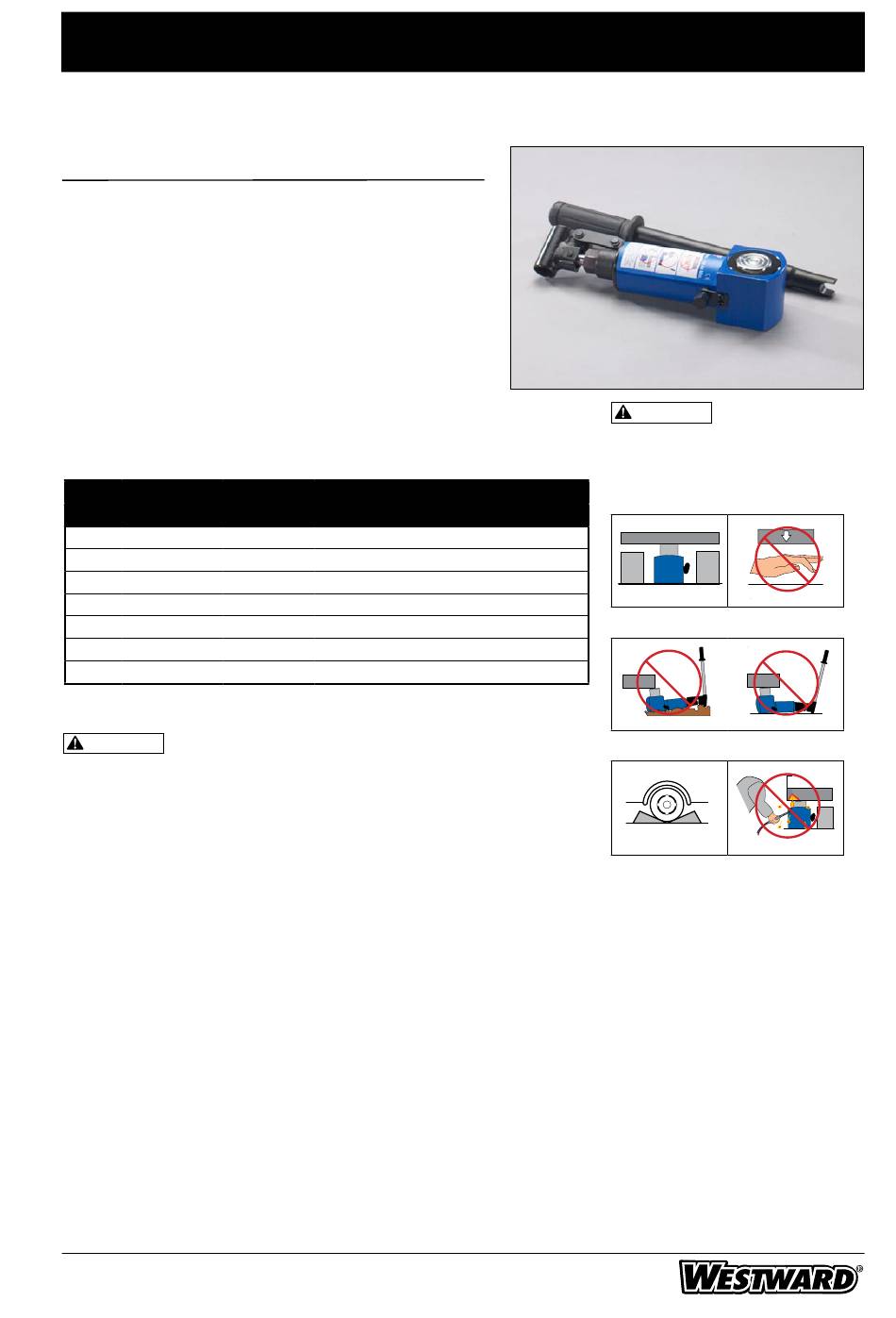

Fig. 1 - Safety Overview
A. After lifting is completed, the load
must be supported immediately by
other appropriate means.
B. Do not work under a load sup-
ported by hydraulics.
C. Lift only on hard, level surface
(≤ 5° slope) capable of sustaining
the load. Make sure lift point is stable
and load is centered on the jack
saddle.
D. When lifting vehicles, always
block tires before lifting load.
E. Keep equipment away from
flames and heat. Do not weld or
modify equipment.
3CFK8
3CFL2
B
E
