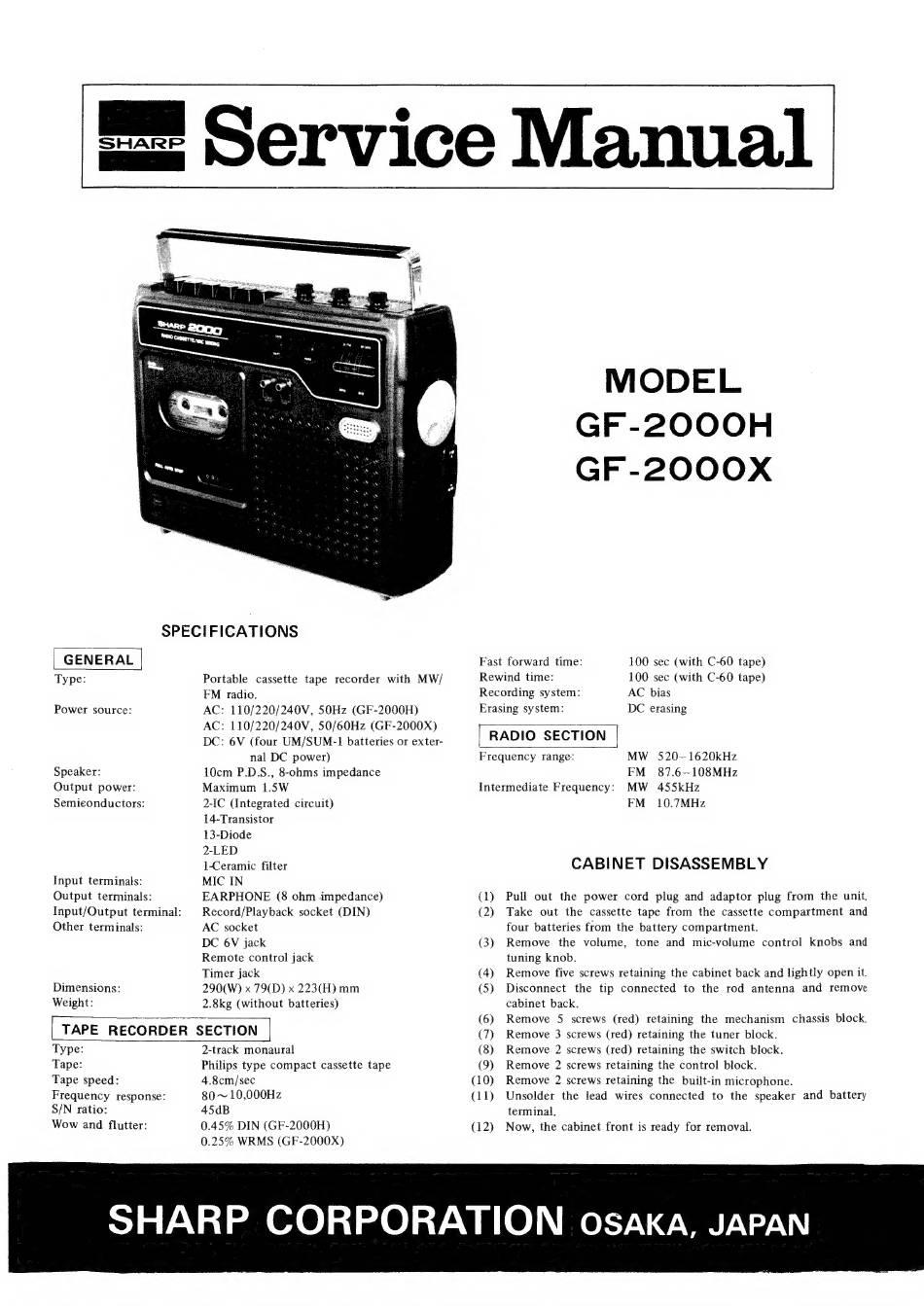

Sharp GF -2000H Service Manual

SPECIFICATIONS
| GENERAL
Type:
Power source:
Speaker:
Output power:
Semiconductors:
Input terminals:
Output terminals:
Input/Output terminal:
Other terminals:
Dimensions:
Weight:
Portable cassette tape recorder with MW/
FM radio.
AC: 110/220/240V, 50Hz (GF-2000H)
AC: 110/220/240V, 50/60Hz (GF-2000X)
DC: 6V (four UM/SUM-1 batteries or exter-
nal DC power)
10cm P.D.S., 8-ohms impedance
Maximum 1.5W
2-IC (Integrated circuit)
14-Transistor
13-Diode
2-LED
1Ceramic filter
MIC IN
EARPHONE (8 ohm impedance)
Record/Playback socket (DIN)
AC socket
DC 6V jack
Remote control jack
Timer jack
290(W) x 79(D) x 223(H) mm
2.8kg (without batteries)
| TAPE RECORDER SECTION
Type:
Tape:
Tape speed:
Frequency response:
S/N ratio:
Wow and flutter:
2-track monaural
Philips type compact cassette tape
4.8cm/sec
80 ~ 10,000Hz
45dB
0.45% DIN (GF-2000H)
0.25% WRMS (GF-2000X)
Fast forward time:
Rewind time:
Recording system:
Erasing system:
MODEL
GF -2000H
GF -2000X
100 sec (with C-60 tape)
100 sec (with C-60 tape)
AC bias
DC erasing
| RADIO SECTION
Frequency range:
Intermediate Frequency:
()
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
MW 520-—1620kHz
FM 87.6—108MHz
MW 455kHz
FM 10.7MHz
CABINET DISASSEMBLY
Pull out the power cord plug and adaptor plug from the unit.
Take out the cassette tape from the cassette compartment and
four batteries from the battery compartment.
Remove the volume, tone and mic-volume control knobs and
tuning knob.
Remove five screws retaining the cabinet back and lightly open it.
Disconnect the tip connected to the rod antenna and remove
cabinet back.
Remove 5 screws (red) retaining the mechanism chassis block.
Remove 3 screws (red) retaining the tuner block.
Remove 2 screws (red) retaining the switch block.
Remove 2 screws retaining the control block.
Remove 2 screws retaining the built-in microphone.
Unsolder the lead wires connected to the speaker and battery
terminal.
Now, the cabinet front is ready for removal.
SHARP CORPORATION OSAKA, JAPAN
