Workshop manual

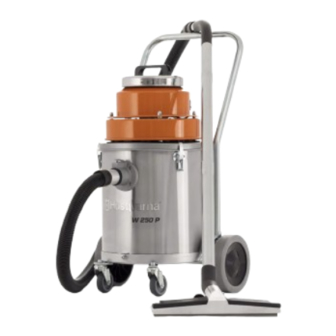

W 250 P
English
1399 - 002 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W 250 P and is the answer not in the manual?

Questions and answers

Related Manuals for Husqvarna W 250 P

Summary of Contents for Husqvarna W 250 P

  • Page 1 Workshop manual W 250 P English 1399 - 002 -...

  • Page 2: Table Of Contents

    Contents 1 Introduction 10 Diagrams 1.1 Document description..........3 10.1 Electrical schedule, EU version with filter 1.2 Target group............3 590427201..............20 1.3 Revisions..............3 10.2 Electrical schedule, EU version with filter 1.4 Safety..............3 548068901..............21 10.3 Electrical schedule, US version......22 2 Safety 11 Technical data 2.1 Safety definitions............4...

  • Page 3: Introduction

    1 Introduction 1.1 Document description This manual gives a full description of how to do maintenance and repair on the product. It also gives safety instructions that the personnel must obey. 1.2 Target group This manual is for personnel with a general knowledge of how to do repair and do servicing.

  • Page 4: Safety Definitions

    2 Safety 2.1 Safety definitions Warnings, cautions and notes are used to point out Always use an approved breathing mask. specially important parts of the manual. WARNING: Used if there is a risk of injury or death for the operator or bystanders if the Always use approved ear protection.

  • Page 5: Prepare And Do Servicing On The Product 3.1 Maintenance Schedule

    3 Prepare and do servicing on the product 3.1 Maintenance schedule The maintenance intervals are calculated from daily use of the product. The intervals change if the product is not used daily. Maintenance Before each use After each use Daily Weekly Do a check of the power cord on the product.

  • Page 6: Servicing Data

    4 Servicing data 4.1 Motor top 5.4 - 6.0 Nm 5.4 - 6.0 Nm 22.8 - 25.2 Nm 5.4 - 6.0 Nm 6 - Servicing data 1399 - 002 -...

  • Page 7: Tank And Frame

    4.2 Tank and frame 5.4 - 6.0 Nm 22.8 - 2 Nm 44.7 - 49.0 Nm 1399 - 002 - Servicing data - 7...

  • Page 8: Function Overview

    5 Function overview 5.1 Type plate/Product serial number The product serial number is given on the type plate. Supply the model name and the article number when you send an order for spare parts. 5.2 Type plate overview 1. Model 2.

  • Page 9: Troubleshooting

    6 Troubleshooting 6.1 Troubleshooting schedule Problem Cause Solution The motor does not start. There is no power supply. Connect the product to a power source. The power cord is defective. Replace the power cord. The ON/OFF switch is defective. Replace the ON/OFF switch. The motor stops immediately after There is an incorrect fuse.

  • Page 10: Product Overview For Repair And Servicing

    7 Product overview for repair and servicing 7.1 Product overview 1. Motor top 2. Pump 3. Float device 4. Waste container 5. Frame and wheels 7.2 To clean and examine the product parts • Clean and examine all parts fully. You find more instructions in the chapter for each part if special tools or procedures are necessary.

  • Page 11: Repair Instructions

    8 Repair instructions 8.1 Motor top 3. Remove the nuts (D) and screws (E). 8.1.1 To disassemble the motor 1. Remove the screws and washers. Lift the motor housing. 2. Remove the 2 motor cables (A) from the electrical filter (C). Remove the motor ground cable (B) from the motor housing.

  • Page 12: Pump

    8.2 Pump 8.1.3 To remove the ON/OFF switches 1. Remove the screws and washers from the motor 8.2.1 To remove the pump housing. 1. Disconnect the power cord from the motor housing. 2. Unlock the clamps. Remove the motor housing from the product.
  • Page 13 4. Remove the screw from the power plug. Pull the 8. Loosen the pipe from the outlet. Remove the pump power plug housing rearward. from the product. 5. Loosen the screw (C) and turn the cable plate (B) to loosen the cable (A). 9.
  • Page 14 8.2.2 To install the pump 3. Connect the wires (E and F) to the power plug. Attach the screws (D ). Connect the ground wire (H) 1. Attach the pipe to the pump. and attach the screw (G). 2. Put the pump into the tank. Attach the pipe to the 4.

  • Page 15: Float Device

    8.3 Float device 6. Attach the float plate and seal to the product. 8.3.1 To disassemble the float device 1. Disconnect the power cord from the motor top. 2. Unlock the clamps. Remove the motor top from the product. 7. Attach the motor top to the product. Lock the clamps.

  • Page 16: Waste Container

    8.4 Waste container 4. Remove the screws from the float device and remove the float device. 8.4.1 To disassemble the waste container 1. Disconnect the power cord from the motor housing. 2. Unlock the clamps. Remove the motor housing from the product.
  • Page 17 4. Pull the lockpin and remove the inlet from the inlet 8.4.2 To install the waste container valve. 1. Put the waste container into the container. 5. Remove the waste container from the container. 2. Pull the lockpin and attach the inlet to the inlet valve. Release the lockpin.

  • Page 18: Frame And Wheels

    8.5 Frame and wheels 3. Attach the bearing and the float plate to the container. 8.5.1 To disassemble the frame and wheels 1. Loosen the wing knobs (D). Remove the handle (E). 4. Attach the motor housing to the product. Lock the clamps.

  • Page 19: Transportation, Storage And Disposal

    9 Transportation, storage and disposal 9.1 Transportation of the product • Remove the dust from the container. • Put the product in a closed vehicle during transportation. • Do not put the product in frost or rain during transportation. • Let the product stay in an upright position during transportaton.

  • Page 20: Diagrams

    10 Diagrams 10.1 Electrical schedule, EU version with filter 590427201 PLUG ELECTRICAL ENCLOUSURE GLAND CABLE GND1 FILTER OUTLET 250V 20 - Diagrams 1399 - 002 -...

  • Page 21: Electrical Schedule, Eu Version With Filter 548068901

    10.2 Electrical schedule, EU version with filter 548068901 GLAND CABLE PLUG GND1 (2)L (4)N FILTER (1)U (3)U OUTLET ELECTRICAL ENCLOUSURE 1399 - 002 - Diagrams - 21...

  • Page 22: Electrical Schedule, Us Version

    10.3 Electrical schedule, US version PLUG ELECTRICAL ENCLOUSURE GLAND CABLE GND1 OUTLET 250V BLOWER MOTOR 22 - Diagrams 1399 - 002 -...

  • Page 23: Technical Data

    11 Technical data 11.1 Technical data Voltage,1 phase, V 220-230 Frequency, Hz Motor power, kW (HP) 1.55 (2.1) Maximum current, A Airflow, m /h (CFM) 160 (95) Vacuum, kPa (psi) 22 (88) Water lift, m (in.) 2.3 (90) Main hose diameter, mm (in.) 38 (1.5) Main hose length, m (ft) 3 (10)
  • Page 24 598893102 2024-06-17...
