TECHNICALMANUALS
Rebuild Kit #16274
Kit Includes:
- Inner spindle seal x 2
- Outer spindle seal x 2
- Inner Igus solid bearing x 2
- Outer Enduro cartridge bearing x 2
- Spindle nut x 2
- Outer bearing carrier x 2

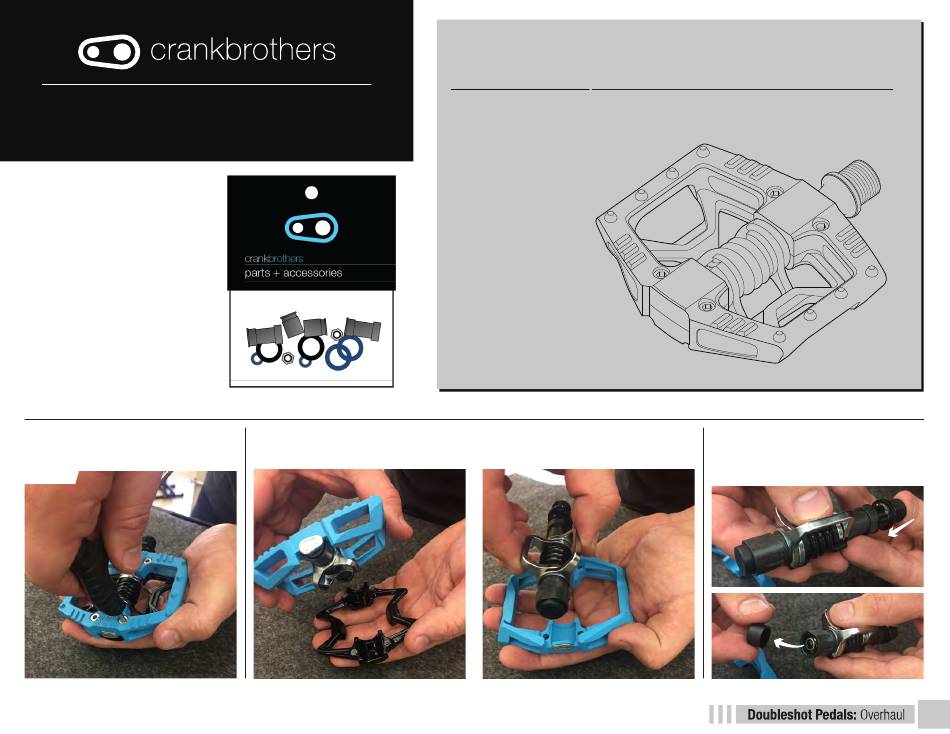

1. Disassembly: Remove the four body
screws with a 3mm hex wrench and set
aside.
2. Separate the body halves to expose the spindle / bearing / wing assembly. Clean
and set body halves aside.
Doubleshot Pedals
Doubleshot 2 / 3 Overhaul and rebuild kit install
Tools needed:
Grease
8mm Hex Wrench
Torque Wrench
3mm Hex Wrench
8mm Socket
Blue Threadlocker
3. Apply pressure to the spindle to expose
the end cap in the assembly. Remove,
clean and set aside.
1/5
Advertisement
Related Manuals for Crankbrothers Doubleshot 2
Summary of Contents for Crankbrothers Doubleshot 2
- Page 1 Doubleshot Pedals Doubleshot 2 / 3 Overhaul and rebuild kit install TECHNICALMANUALS Tools needed: Grease 8mm Hex Wrench Torque Wrench Rebuild Kit #16274 3mm Hex Wrench 8mm Socket Kit Includes: - Inner spindle seal x 2 Blue Threadlocker - Outer spindle seal x 2...
- Page 2 4. Using an 8mm hex and 8mm socket, unscrew the nut at the end of the spindle and 5. If needed, remove the inner seal from the inner Igus bearing. Remove the inner Igus set aside. Remove the spindle from the assembly. Slide the seal(s) off the spindle, bearing and outer Igus bearing carrier from the wing assembly and set aside.
- Page 3 2. Lightly grease the insides of the inner Igus bearing and outer Igus bearing carrier and 3. Install the inner and outer seals onto Orientation: install onto the sleeve. Note orientation: Each has a raised lip that faces in towards the the spindle.
- Page 4 8. Push the cap into the outer bearing 9. Slide the seal out just a bit to make 10. Lightly grease the bearing surfaces on the two pedal body halves. carrier. Tap on the endcap lightly with a room for the body halves to come hammer to fully seat the cartridge bearing.
- Page 5 13. Hold the body halves together and flip 14. Apply one drop of blue threadlocker to the four body screw threads and install into 15. Rotate the spindle and check the outer the pedal assembly over and place on the the flat side of the pedal.
