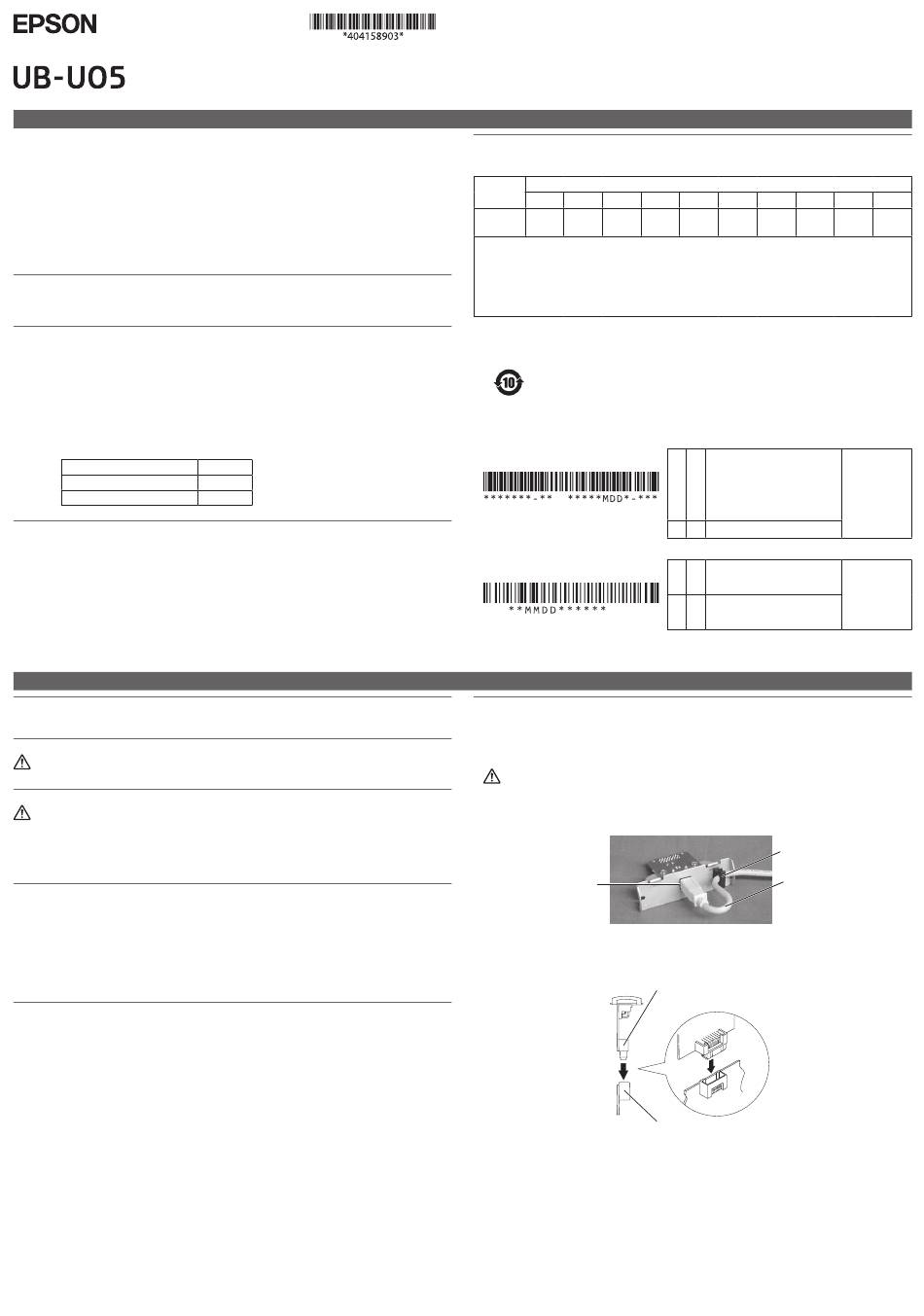

Epson UB-U05 User Manual

User's Manual / Manuel d'utilisation / ユーザーズマニュアル
Standards and Approvals
The following standards are applied only to the interface boards that are so labeled. (EMC is tested using the Epson
power supplies and TM series printers.)
Europe: CE marking
Oceania: Radiocommunications (Electromagnetic Compatibility) Standard, Class A
WARNING
This is a class A product. In a domestic environment this product may cause radio interference in which case the user
may be required to take adequate measures.
AVERTISSEMENT
Cet appareil est un produit de classe A. Dans un environnement résidentiel, il risque de provoquer un brouillage radio,
auquel cas l'utilisateur pourra être tenu de prendre des mesures adéquates.
For Users in Europe
CE Marking
U https://www.epson.eu/conformity
面向台灣地區使用者
產品名稱： 介面板
型號： UB-U05
製造商 ： Seiko Epson Corporation
地址 ： 3-5, Owa 3-chome, Suwa-shi, Nagano-ken 392-8502 Japan
網站： https://www.epson.com/
電話： 81-263-52-2552
進口商 ： 台灣愛普生科技股份有限公司
地址 ： 台北市信義區松仁路100號15樓
電話： (02) 8786-6688 （代表號）
生產國： 產品上用英文標示原產國。
產品標示
MADE IN THE PHILIPPINES
MADE IN CHINA
日本でご使用になる方へ
電波障害自主規制について
この装置は、クラスＡ情報技術装置です。この装置を家庭環境で使用すると電波妨害を引き起こすことがあ
ります。この場合には使用者が適切な対策を講ずるよう要求されることがあります。
English
Introduction
This manual describes how to replace the currently installed UB-BOARD with a UB-U05 board in TM series printers
designed for this board.
About the Symbol in This Manual
CAUTION:
Cautions must be observed to avoid minor injury to yourself or damage to your equipment.
Precautions
CAUTION:
Disconnect the power supply from the printer before you remove or install a UB-U05; otherwise you may damage the
UB-U05 and the printer. You must disconnect the power supply because the electrical current is flowing in some parts
of the printer circuit even when the power switch is turned off.
Wear a grounded wrist strap when handling the UB-U05 to prevent damage from static electricity.
To avoid contamination, do not touch the UB-U05 connector.
Operation Environments and Models
Operation Environments :
*1
Hardware: USB compliant PC
Software: You need device driver if you use the UB-U05.
Please ask your dealer how to get the device driver, how to install it, and the supported OS.
*1: Even if the above operation environments are satisfied, your system may not work properly, depending on the
devices connected to your system.
Supported printers:
There is limitation of the printers that can be used with the UB-U05. Please ask your dealer for the printer information.
Unpacking
Make sure you have these items. If any item is missing or damaged, please contact your dealer for assistance. If
necessary, you can get a wire saddle separately through your dealer by using the part number listed below in
brackets.
O UB-U05
O This manual
O Wire saddle [1091047]
生產國
菲律賓
中國
面向中国大陆地区用户
产品中有害物质的名称及含有的信息表
部件名称
Pb Hg
电路板/
× ○
电子部件
注1： ○： 表 示该有害物质在该部件所有均质材料中的含量均不超出电器电子产品有害物质
限制使用国家标准要求。
×： 表示该有害物质至少在该部件的某一均质材料中的含量超出电器电子产品有害物
质限制使用国家标准要求。
注2： 以 上未列出的部件， 表明其有害物质含量均不超出电器电子产品有害物质限制使用国家
标准要求。
产品环保使用期限的使用条件
本产品的环保使用期限， 表示按照本产品的安全使用注意事项使用的情况下， 从生产日开始，
在标志的年限内使用， 本产品含有的有害物质不会对环境， 人身和财产造成严重影响。
制造年份印在包装盒标签的右上角。
制造月份和日期以下列两种格式之一打印在电路板的标签上。
格式A
菲律宾制造/Made in the Philippines
格式B
中国制造/Made in China
VCCI-A
Procedure
If a UB-BOARD is currently installed in your printer, you need to remove it first before you install the new UB-U05
board. Disconnect the power supply from the printer and follow the steps below.
1. Removing the current UB-BOARD from the printer
Remove the two screws that secure the UB-BOARD; then pull the UB-BOARD to remove it. You will use the screws
when installing the UB-U05.
CAUTION:
Put the UB-BOARD into an anti-static bag for storage to prevent damage from static electricity.
2. Installing the Wire Saddle
Install the wire saddle in the position shown in the illustration below.
USB upstream connector
3. Installing the UB-U05 enclosed in the package
Hold the UB-U05 as shown in the illustration below. Push the UB-U05 in gently until you feel the connector fit into
the place.
4. Setting the UB-U05
Secure the UB-U05 with the two screws.
5. Setting the printer settings
Change the printer settings following the printer manual.
6. Installing the USB cable
You can hook USB cable through the wire saddle to keep it from falling out.
7. Installing the Software
Install the device driver for the UB-U05. Please ask your dealer how to install it.
©Seiko Epson Corporation 2003–2025
Printed in XXXXXX
Pays d'impression : XXXXXX
País de impressão: XXXXXX
Impreso en XXXXXX
YYYYYYYYYYYY
有害物质
Cd Cr(VI) PBBs PBDEs DBP
○ ○ ○ ○ ○
M 月 用单个字母数字字符表示。
1～9月： 1～9
10月： X
11月： Y
12月： Z
D 日 用两位数表示。
M 月 用两位数表示。
D 日 用两位数表示。
Wire saddle
USB cable
Connector of the UB-U05
Connector of the TM printer
DIBP BBP DEHP
○ ○ ○
例子：
Y09： 11月9日
例子：
0612： 6月12日
