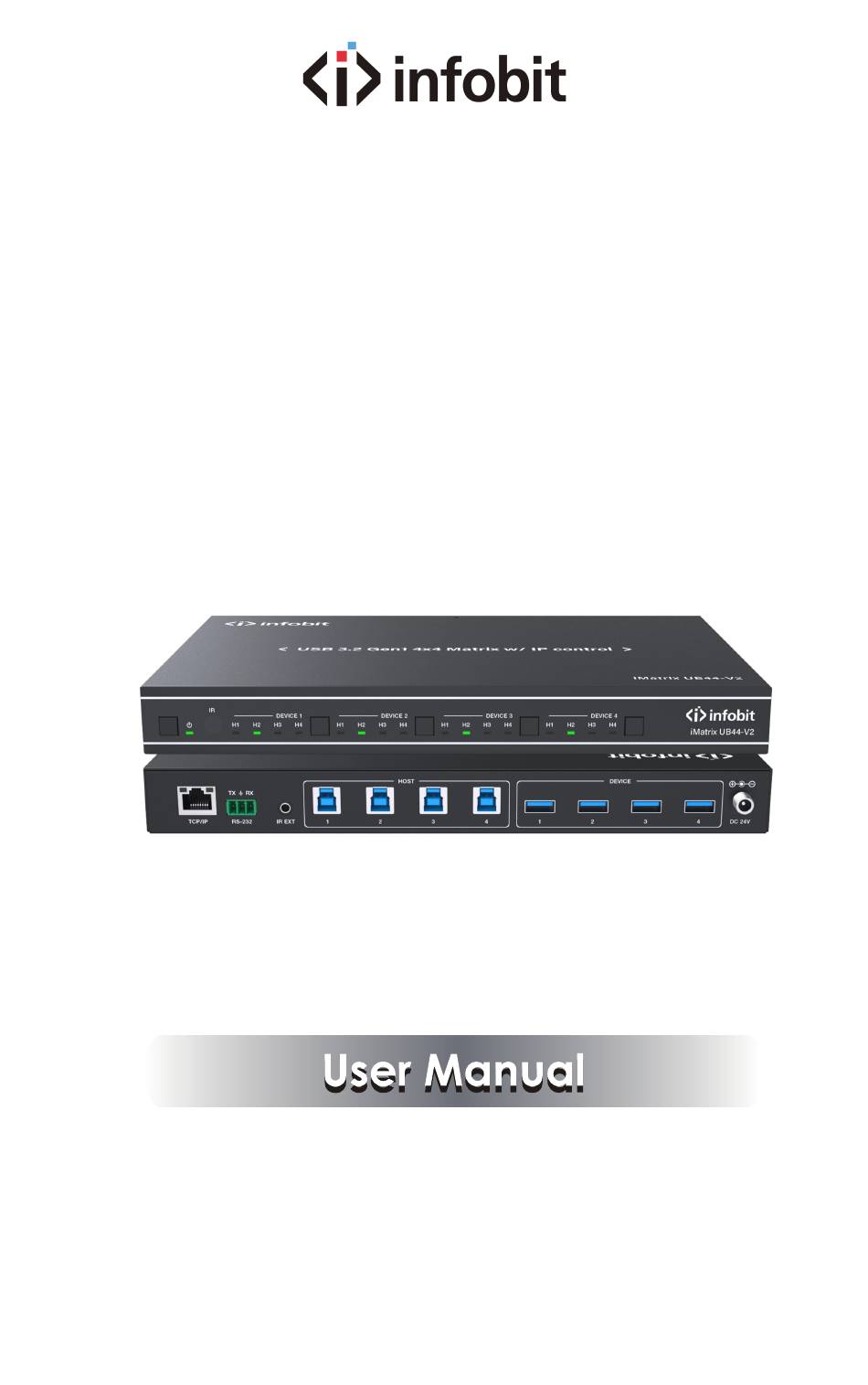

iMatrix UB44-V2
USB 3.2 Gen1 4x4 Matrix w/ IP control
VER 1.0
www.infobitav.com info@infobitav.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iMatrix UB44-V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for infobit iMatrix UB44-V2

Summary of Contents for infobit iMatrix UB44-V2

  • Page 1 UB44-V2 USB 3.2 Gen1 4x4 Matrix w/ IP control VER 1.0 www.infobitav.com info@infobitav.com...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction This is a 4x4 matrix allowing 4 USB devices to be shared between 4 host computers. It supports plug-and-play, and allows for a neat and tidy installation - the connecting cables are bundled to save the extra cost of purchasing USB cables. It is USB 3.2 Gen 1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB 1.1.

  • Page 4: Specifications

    4. Specifications Technical USB Protocol USB 3.2 Gen 1 Data Transfer Rate 5Gbps IR Level 5Vp-p IR Frequency Fixed 38KHz Transmission 3m/9.8ft for USB 3.2 Gen 1 5Gbps over passive cable Distance IEC 61000-4-2: ESD Protection ±8kV (Air-gap discharge) & ±4kV (Contact discharge) Connection Input ports 4×...

  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions Front & Rear Panel Name Function Description Short press the button to power on the matrix, and at this moment Power button & the LED is green; indicator Long press the button for 3 seconds to set it to standby mode, and at this moment the LED is red.

  • Page 6: Ir Remote

    Name Function Description USB-A device ports, with output power up to 5V/1.5A, connected to USB devices such as U disk, keyboard or mouse. DEVICE 1~4 Note: The USB 3.2 Gen 1 ports do not support DisplayPort™ Video (DP Alt Mode) or Power Delivery (PD). DC 24V/2A power input port.

  • Page 7: Web Gui User Guide

    8. Web GUI User Guide The Matrix can be controlled by Web GUI. The operation method is shown as below: Step 1: Get the current IP Address. The default IP address is 192.168.0.100. You can get the current Matrix IP address via API command.

  • Page 8: Information Page

    ■ Information Page The Information page provides basic information about the Model, the installed firmware version and the network settings of the device. The buttons at the top right of the web interface are always available: ■ Clicking the Logout button will log out of current user. ■...

  • Page 9: Network Page

    ■ USB Page You can rename each host or device on the USB page. The maximum length of Name is 16 characters. ■ Network Page You can modify the IP Mode/IP Address/Gateway/Subnet Mask/Telnet Port/ Domain Name as required on the Network page. Click “Save” to save the settings, and then it will come into effect.
  • Page 10 ■ System Page You can do the following operations on the System page: ① Account Password s : Enter the correct Old Password, New Password, and Confirm Password, and then click “Save”. Note: Input rules for changing passwords: (1) The password can’t be empty. (2) New Password can’t be the same as Old Password.

  • Page 11: Api Commands

    9. API Commands The product also supports API commands control. Connect the RS-232 port of the matrix to a control system. The connection method is as follows. Integrated Control System Then, open a Serial Command tool on PC connected to the control system and send ASCII command to control the Matrix.
  • Page 12 Function Description Example Feedback Default Command Code System Setting Enable/disable buzzer beep on set beep x function,z=0~1(z=0 beep set beep 0 beep on beep off off, z=1 beep on) get beep Get buzzer state get beep beep on / beep off Lock/unlock front panel panel panel button lock on...
  • Page 13 Command Code Function Description Example Feedback Default USB Matrix Setting recall from preset 1: device1 connect to host1 device2 connect to Call saved preset z set recall set recall preset x host1 no preset scenarios, z=1~8 preset 1 device3 connect to host1 device4 connect to host1...
  • Page 14 Command Code Function Description Example Feedback Default Network Setting set subnet mask: 255.255.255.0 (please use "s net set subnet reboot!" command set subnet xxx. Set network subnet subnet mask: 255.255.255.0 or repower device to xxx.xxx.xxx mask 255.255.0.0 apply new config!) dhcp on, device can't config subnet mask, set dhcp off first.

  • Page 15: Application Example

    10. Application Example 13 / 13...
