NAIM ACTIVE Manual page 8

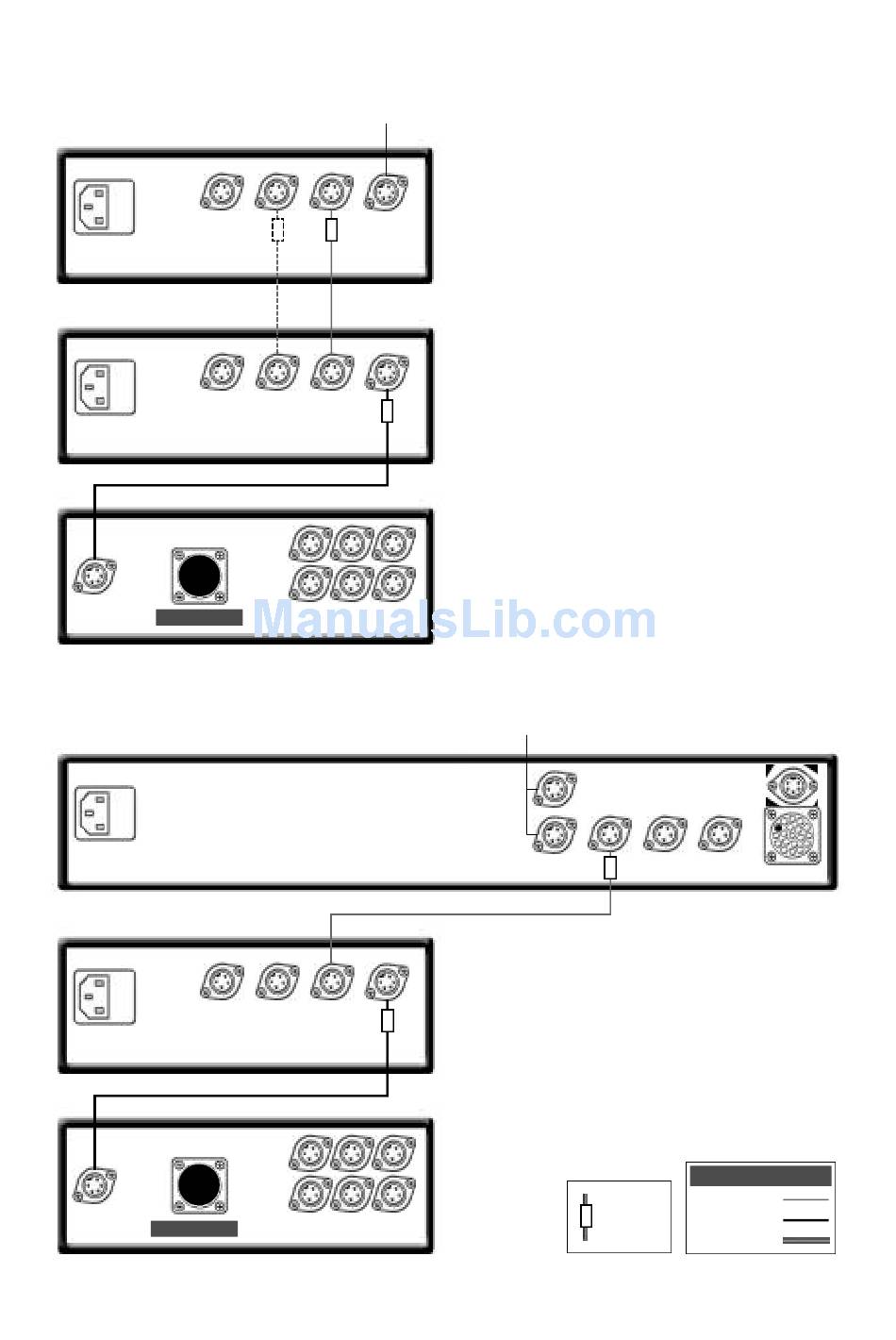

snaxo connection to hi-cap from nac 82 and two hi-caps
link plug fitted
snaxo connection to hi-cap from nac 82 and supercap
link plug fitted
to nac 82
note
If the nac 82 is powered by two hi-caps the connections are the same
(from 82 hi-cap number one).
hi-caps earlier than serial number 105469 must be connected together
via the second set of sockets rather than the third as illustrated by the
dotted connection cable.
to nac 82
Interconnect Cables
cable
4 to 4 pin DIN
direction
5 to 5 pin DIN
marker
Burndy
7
