H-2672

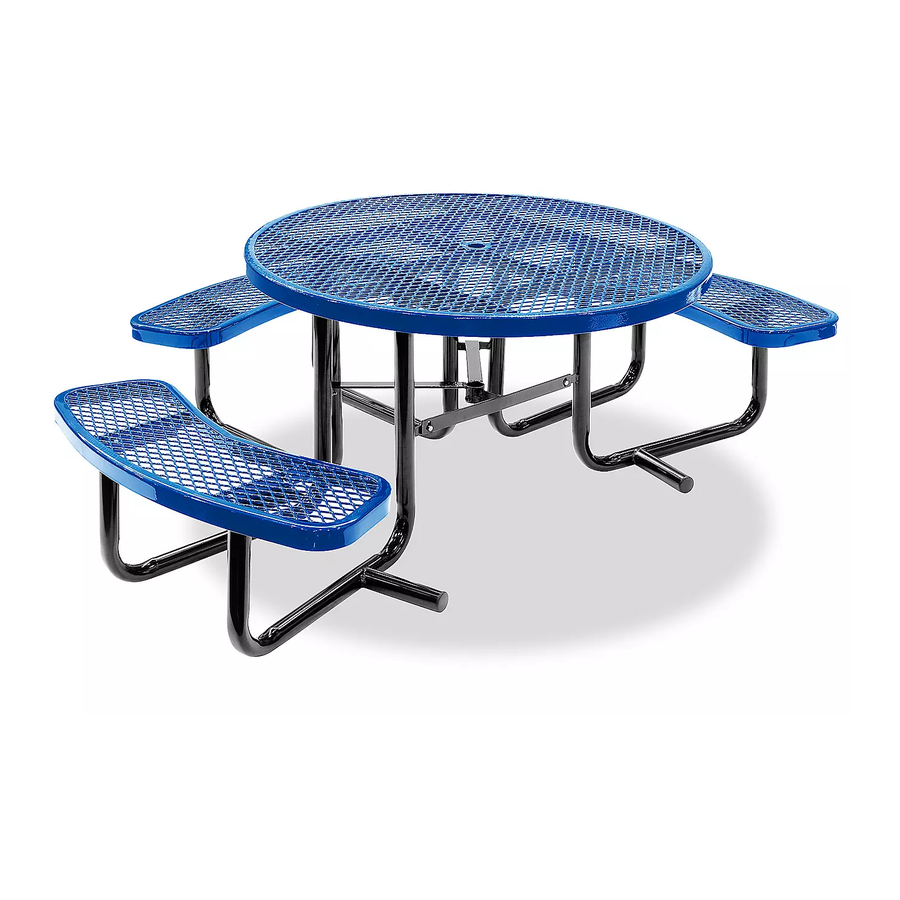

ROUND ADA
PICNIC TABLE
CoNTENTS
REF.
QTY.
DESCRIPTIoN
1
22
5/16" Hex Head Bolts
2
22
5/16" Washer
3
22
5/16" Nut
4
3
Bench Seats
5
1
Tabletop
6
4
Legs
7
1
V-Brace with Umbrella Holder
8
2
Leg with Support
4
6
PAGE 1 OF 2
1-800-295-5510
uline.com
5
8
Tool NEEDED
PARTS
7
1/2" Socket Wrench
1
2
3
1013 IH-2672
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for U-Line H-2672
Summary of Contents for U-Line H-2672
- Page 1 H-2672 1-800-295-5510 uline.com ROUND ADA PICNIC TABLE CoNTENTS REF. QTY. DESCRIPTIoN 5/16" Hex Head Bolts 5/16" Washer 5/16" Nut Bench Seats Tool NEEDED Tabletop Legs 1/2” Socket Wrench V-Brace with Umbrella Holder Leg with Support PARTS PAGE 1 OF 2...
- Page 2 ASSEMBlY INSTRUCTIoNS 1. Flip the tabletop (5) upside down. Take one leg (6) at a time and loosely attach to the tabletop using one bolt (1), one washer (2) and one nut (3). The leg braces are an inside mount. The legs are labeled Right left and right.
