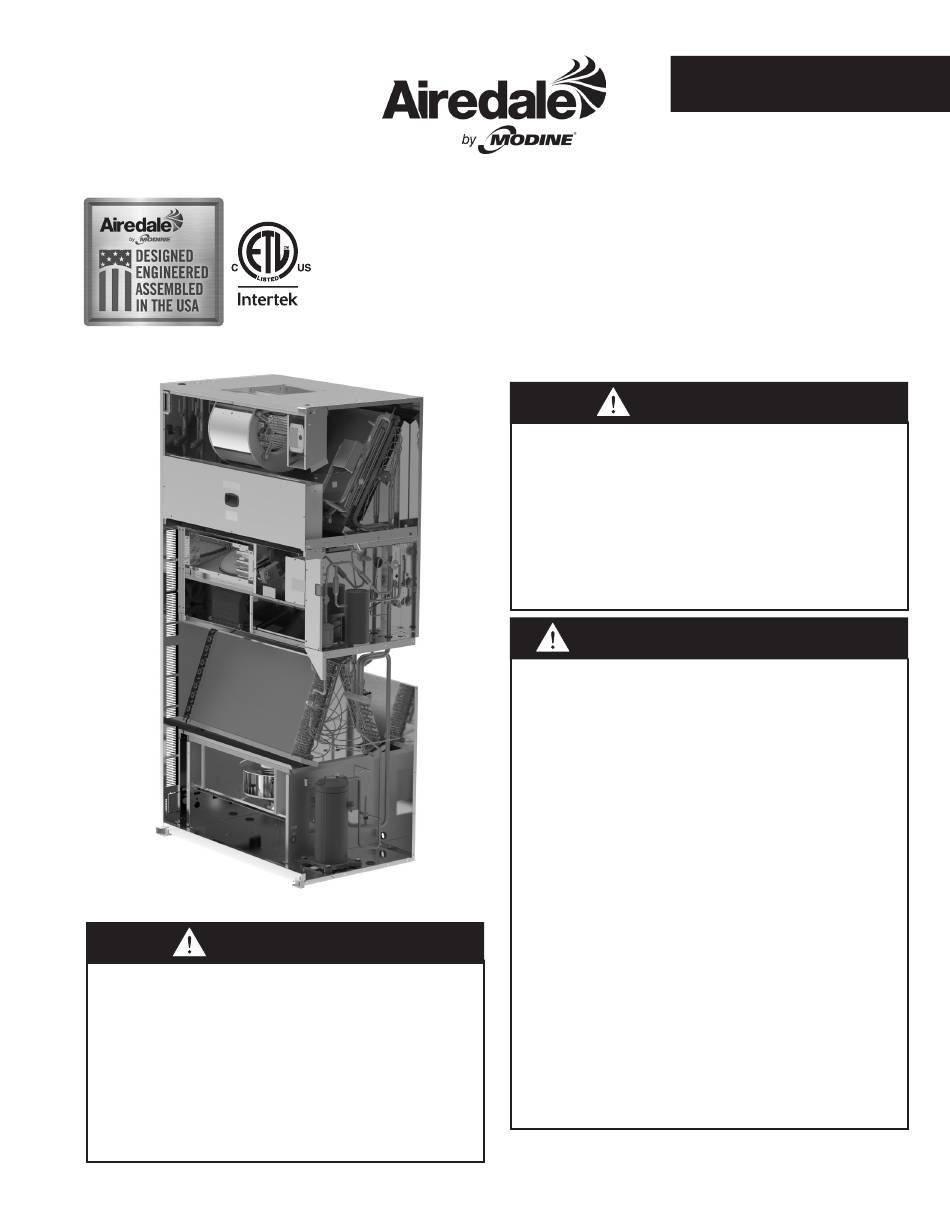

INSTALLATION AND SERVICE MANUAL
Single Package Vertical Unit, Models CMD, CMP
Cooling Split System Unit, Model CMS
Ground & Water Source HP Units, Models SMG, SMW
THIS MANUAL IS THE PROPERTY OF THE OWNER.
ClassMate
(R-454B Refrigerant Units)
®
SchoolMate
(R-454B Refrigerant Units)
®
2. This unit contains R-454B high pressure
refrigerant. Hazards exist that could result
in personal injury or death. Installation,
maintenance, and service must only be
performed by an HVAC technician qualified
in R-454B refrigerant and using proper tools
and equipment. Due to the high pressure
of R-454B refrigerant, DO NOT USE service
equipment or tools designed for refrigerants
other than R-454B.
AVERTISSEMENT
1. Une installation, un réglage, une altération,
une réparation ou une maintenance
impropre risque de causer des dommages,
des blessures ou la mort, et d'engendrer
une exposition à des substances dont
certains États ont déterminé qu'elles
étaient cancérogènes ou pouvaient causer
des malformations à la naissance et des
problèmes de reproduction. Lisez bien les
instructions d'installation, d'utilisation et de
maintenance avant d'installer ou de réparer
cet appareil.
2. Cette unité contient du réfrigérant haute
pression R-454B. Il existe des dangers
qui pourraient entraîner des blessures
corporelles, voire la mort. L'installation,
la maintenance et l'entretien doivent être
effectués uniquement par un technicien CVC
qualifié en réfrigérant R-454B et utilisant les
outils et équipements appropriés. En raison
de la pression élevée du réfrigérant R-454B,
N'UTILISEZ PAS d'équipement ou d'outils de
service conçus pour des réfrigérants autres
que le R-454B.
AIR 2-504.0
December 2024
WARNING
5H2003420000
