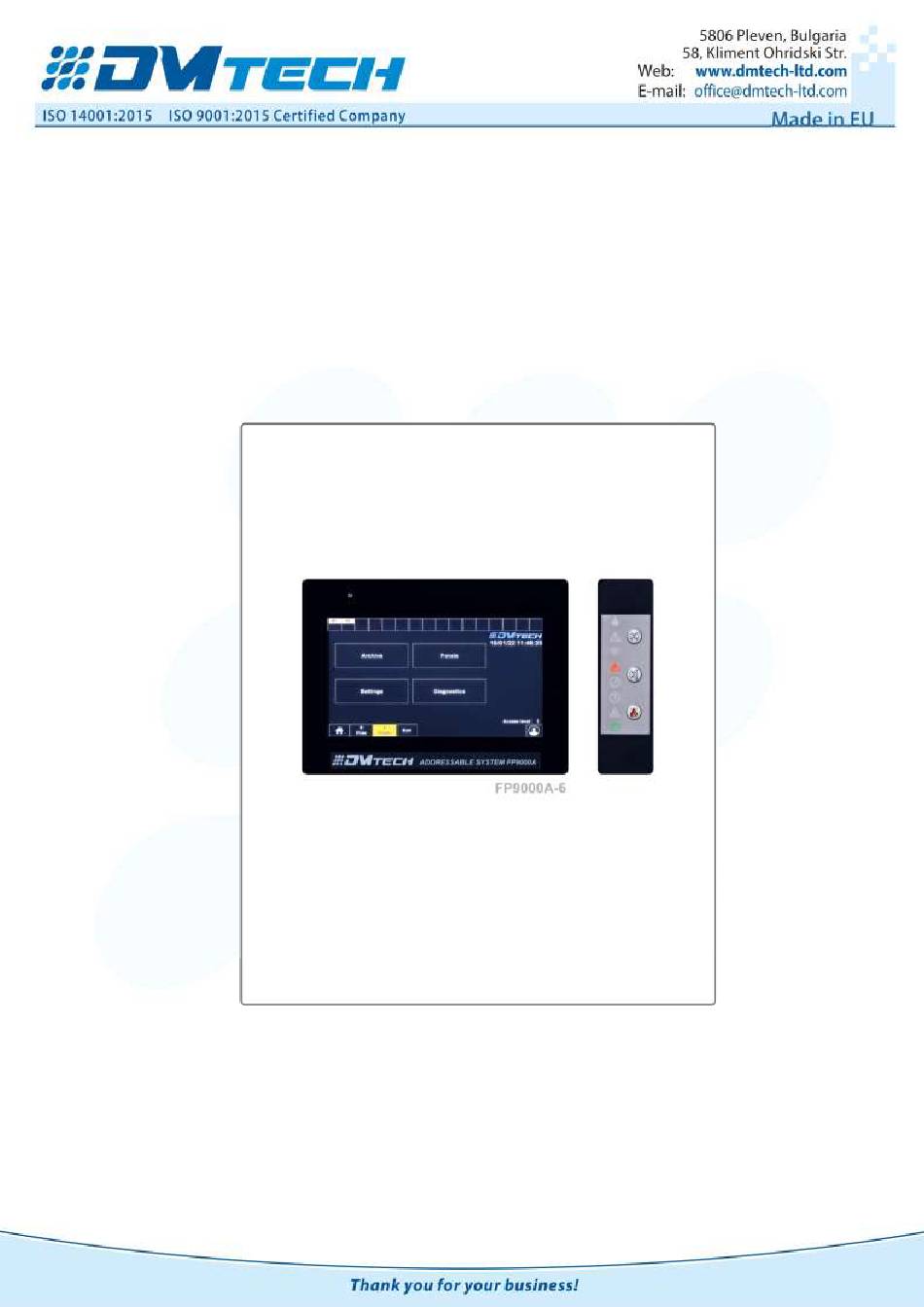

- Page 1 “DMTech”Ltd. Pleven Addressable Fire Alarm Panel FP9000A - 6 Instruction manual Rev 01:25...
- Page 2 1. Introduction FP9000A-6 is a modular addressable fire control panel with 2 built-in loops and the ability to add 6 more loop modules. Supports up to 6 loops and 1500 addressable devices. Ability to build a network of 8 addressable panels with visualization from each panel.
- Page 3 3.4. Dimensions Overall dimensions – 461x386x80 Weight – 5500 g 4. Content of delivery Addressable fire alarm panel FP9000A-6 – 1pc. Fuse 6,3A – 1pc. Set of resistors 4,7 kΩ Transport packaging – 1 pc.
- Page 4 Disabled component; Information and setup: Access level 2 is entered by entering a password; The following options are available: o All available at level 1; o Switching off the exits activated in case of fire; o Exit from Fire state; o The system functions of the panel.
- Page 5 Initial screen of the panel – in Fig. 2 is shown the homescreen with the 5.2.2. characteristic information areas and function buttons. Fig. 2 Pos. 1 – Fields for reconnection of 16 exchanges. By holding down on it, the setting options of the respective remote control unit are called up accordingly.
- Page 6 Information and The panel enters the Information and Control state when the main menu is activated. management In this state, information about the panel and its connected remote centers is displayed and control data is entered. Setup The panel enters the Setup state when the "Setup" submenu is activated from the Information and Control state.
- Page 7 DMTech communication protocol. Fig.5 FP9000A-6 panel can be expanded up to 6 loops. The module is attatched to the panel’s PCB board via pins and fixed by two M3x6 screws at the marked with white circle locations (Fig. 6).
- Page 8 *For convenience, a calculator has been developed for calculating the loop length and the cable cross section according to specified number and type of devices. - www.dmtech-ltd.com Fig. 7 - Example of devices connected in a loop Page 8 of 11...
- Page 9 5.4.5. Connection of signalling devicces Monitored outputs OUT1 and OUT2 provide 24VDC 0.5A to load, connected between them and a mass*. A 4.7 кОhm terminating resistor shall be connected in parallel to the device far off from the panel in the loop, so the panel is able to check the loop integrity – see Fig.8. Signaling or other devices can be connected to each monitored output OUT 1, OUT2 - Fig.
-
Page 10: Connection To Main Supply
5.4.7. Connection to main supply Power to the fire alarm panel is provided by connecting the main power supplymain cable to a 220V terminal, installed in fire alarm panel’s box. The wiring between the 220V terminal and the power supply unit is done by the manufacturer. 6. - Page 11 Fault Continuous signal Fatal system fault “Fault” “System fault” Interrupted signal Power fault “Fault” (1s sound, 1s pause) “Power fault” (“Stop alarm”). The local buzzer can be suppressed with a button DMTech wishes you pleasant work! Page 11 of 11...
