DMTech S9000A Instruction Manual

Type
S9000A Addresable siren with built-in isolator EN 54-3, EN 54-17
S9000AF Addresable siren with flash and built-in isolator EN 54-3, EN 54-17
The S9000A is an addressable siren intended for use in addressable fire alarm systems that support the DMTech
communication protocol. The siren receives power from the addressable panel and can be controlled via the
communication protocol.
1. Technical data

Certified according EN 54-3 and EN 54-17

LED indication

Built-in isolator for short circuit

Sound level – 3 selectable options
90dB.

Supply voltage from panel FP9000А

Supply voltage from the loop
Consumption
- current consumption in Duty mode
- current consumption in, with communication

Connecting wires

Operating temperature

Resistance to relative humidity

Degree of protection

Complete with base B9000A-Red

Weight

Sizes

Material (plastic) – ABS

Color - red transparent
2. Mounting the flag to the base (optional)

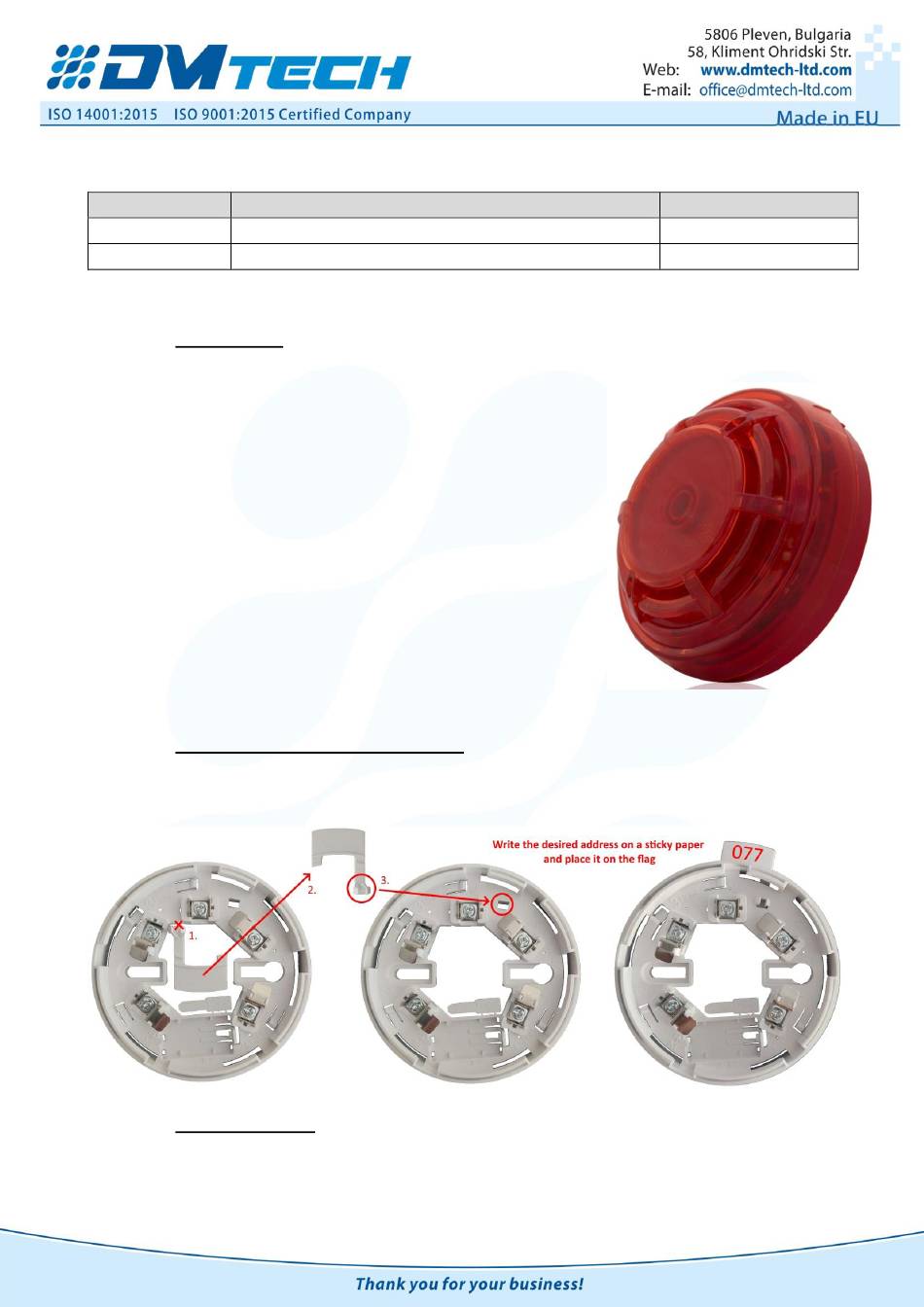

If you would like to use the flag included in the B9000A base set, follow the instructions and the illustrations in Fig. 1:
- detach the flag from the base (1.);
- write the desired address on a sticker and place it of the flag from the side of the plastic pins (2.);
-
push the plastic pins through the designated hole (3.).
3. Mounting the siren
select the location (according to the project drawings) for the installation of the siren;
-
- Install the base with suitable dowels and screws;
- connect the electrical cables according to the attached diagram (Fig. 2);
Instruction Manual
Addressable Indoor Siren S9000A
Characteristics
80dB / 85dB /
15-30V DC
< 500μA/28V DC
12.0mA
0.5mm² - 2.0mm²
-10°C up to +65°C
(93 ± 3)% at 40°C
IP40
~100g
Ø100x43mm
Fig. 1
Sound level
90 dB
90 dB
Page 1 of 2
