Instruction for installation and operation
Of Manual Call Point

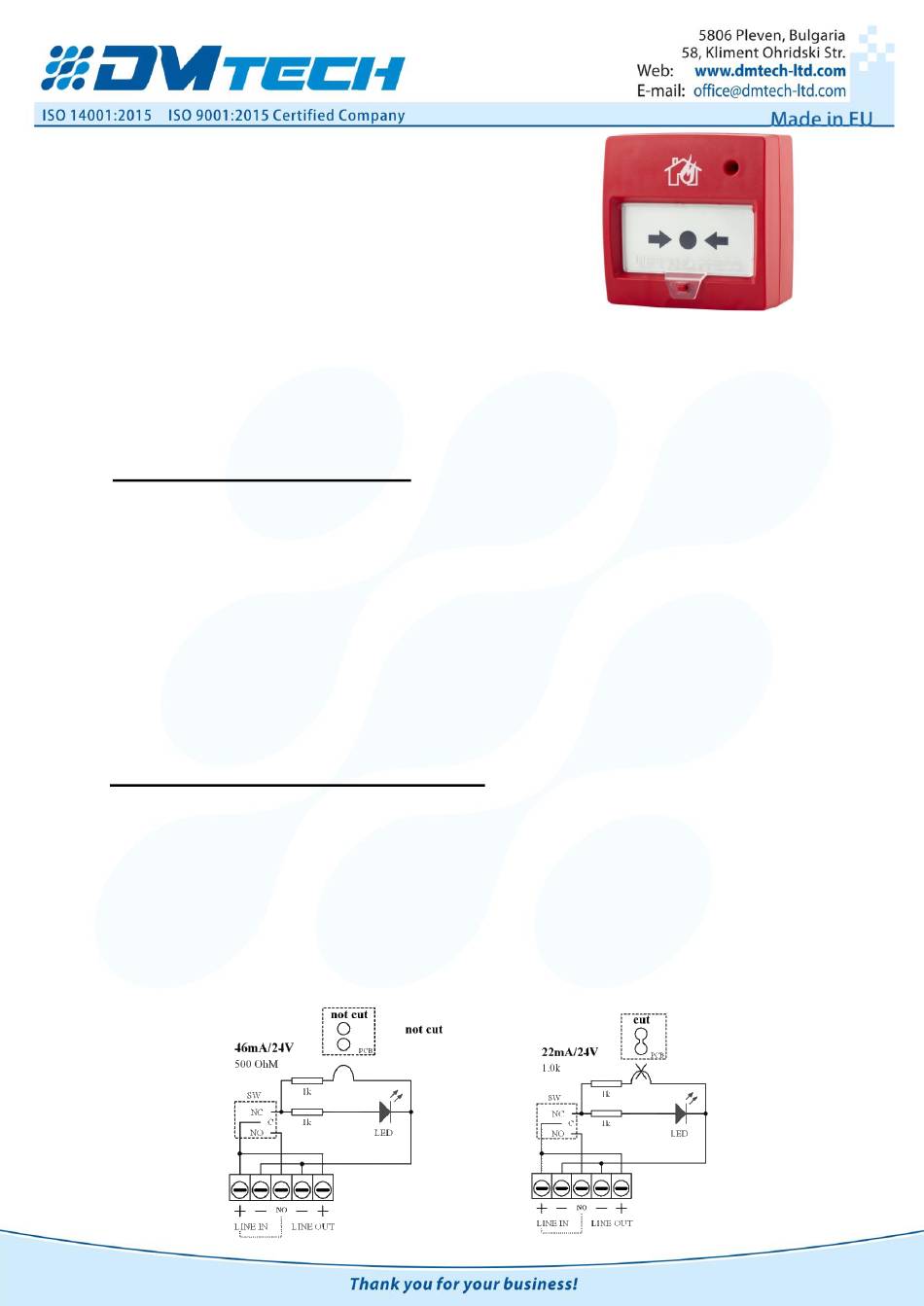

The D9000 MCP manual call point is designed for indoor operation in fire detection systems and meets the
requirements of European Standard EN54-11;
The fire detector is designed for easy installation and maintenance. There are built-in channels in the base for
inserting cables in three directions - left, right, and top. The key to open the fire detector and restore the removed
element is the same and is attached to the base. The D9000 MCP has a protective transparent cover and a possibility
of mounting a seal. Upon activation, except the graphic indication of the operating element, for visibility from a
distance is activated and red LED.
1.
TECHNICAL CHARACTERISTICS
-
Supply voltage
-
Resistance
-
Current at 24V
-
LED indicator
-
Protective cover
-
Cross section of connecting cables
-
operating temperature range
-
Humidity
-
Degree of protection
-
Dimensions
-
Weight
-
Material
2. INSTALLATION OF THE FIRE DETECTOR
-
Unpack the fire detector;
-
Remove the key from the base;
-
Insert the key in the base opening, push inward and open the two parts of the fire detector;
-
Select the location (according to the project drawings) for installation of the fire detector;
-
Install the base with suitable dowels and screws;
-
Connect the electric cables according to the diagram (fig.1);
In the factory fire detector is designed to switch 500Ω resistor or current in the line 46mA / at 24V DC;
-
It is possible to set the resistance, which can be set to 1 k Ω or current in the line 22mA / at 24V DC;
-
D9000 МСР
(9-30) V DC
500Ω / (1 kΩ in broken PCB bridge)
46mA/ (22mA in broken PCB bridge)
red
transparent
0,4÷1,5 mm2
minus 10ºС ÷ 50ºС
(93 ± 3)% at 40ºС
IP 40
(90 х 90 х 44) mm
0,120 kg
ABS plastic
Fig.1
