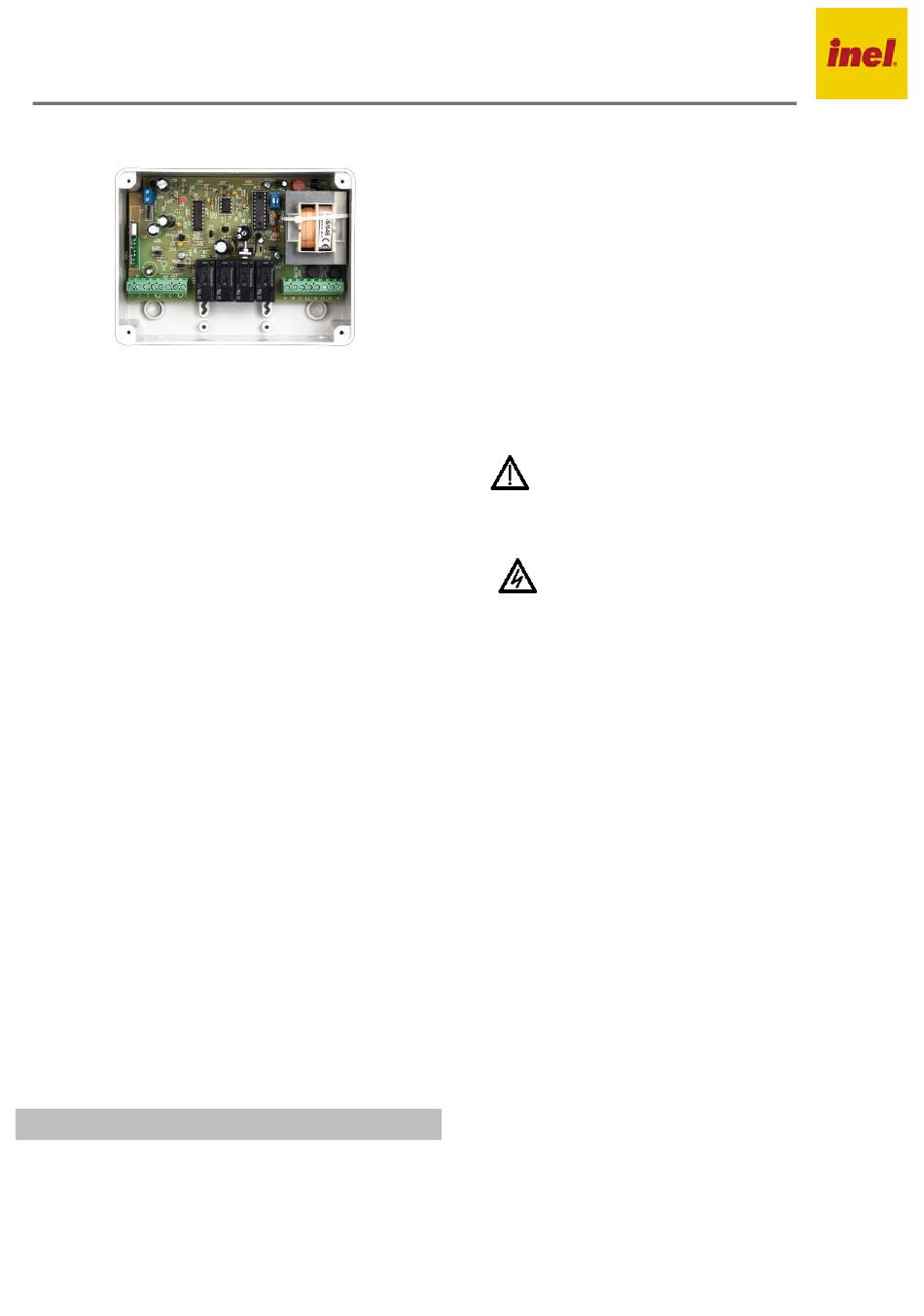

Instructions for installation and use of the control unit TYPE: CRS
The CRS-436XG two-channel control unit is designed for controlling
the following drives: roller shutters, gates and roll-up grilles
The CRS-436XG two-channel control unit is used to control drives
supplied with 230V AC.
The control unit has 3 modes of operation:
- two-channel operation - control of two independent operators - the
control unit can be controlled locally (by pressing the appropriate
button, separately for each operator) or remotely, by radio, using a
remote control. It is equipped with inputs from photocells (one for each
drive). Signals from the remote control or the local control button
cause the following cycle sequentially: movement in the opening
direction, stop, movement in the closing direction, stop. A signal from
the photocell (opening) in the closing phase will cause the drive to
stop. The operating time in any direction is limited. The limitation
value is adjustable with potentiometer R25 between 10 and 120 s.
- single channel normal mode - successive control signals (local or
from the remote control) cause the following cycle: movement in the
direction of opening, stopping, movement in the direction of closing,
stopping.
- single-channel automatic mode - each control signal is understood as
an open command, while closing takes place automatically after a set
time. This time is equal to the operating time set by potentiometer R25.
If the door is closed, the control signal (local or from the remote
control) will start the movement in the opening direction. This
movement will continue until the relevant limit switch is tripped or the
time set by potentiometer R25, further control signals will be ignored.
The gate will remain in the open state for the time specified by the
setting of R25. Any signal received while waiting for automatic
closing will cause this time to count from the beginning. 5 s before the
start of closing, the lamp flashes with a period of approx. 0.5 s to
indicate that closing will start. If the control signal is received or the
photocell is operated during the closing movement, it will immediately
return to the re-opening phase. This mode of operation is particularly
useful if multiple users operate the same door or barrier.
In single-channel mode, it is additionally possible to connect a
signal lamp (230VAC) and limit switches.
The signal lamp flashes more slowly when the drive is moving in the
direction of the
opening and faster during the drive's movement in the closing direction.
When
the door is open the lamp is lit continuously. At full
When closed, the lamp goes out. Limit switches cause the
to act earlier (than the fixed working time)
end of drive movement.
1. Safety instructions
1.1 Basic guidelines
The CRS-436XG control unit is commissioned in a condition for safe
installation and use, provided that all instructions in the operating manual
and the valid safety and accident prevention regulations applicable to the
application (e.g. gate or roller shutter) are observed.
Only qualified and authorised persons should work on the installation
and repair of electrical equipment. Alterations or modifications to the
CRS-436XG control unit are not permitted.
Instructions translated EN
Model:
CRS-436XG
.
Warranty repairs may only be carried out by the manufacturer. Only
original spare parts and accessories must be used for post-warranty
repairs.
The operational safety of the supplied CRS-436XG control unit is only
guaranteed when used in accordance with the manufacturer's
specifications. The limits specified in the technical data must not be
exceeded under any circumstances.
1.2 Supplementary safety provisions
When installing, commissioning, maintaining the control unit, the
important safety and accident prevention regulations applicable to the
application (e.g. gate or roller shutter) must be observed. The following
regulations require special attention:
1. Fire regulations
2 Accident prevention provisions.
1.3 General comments on hazards and safety measures
The specified notes are general guidelines for the use of INEL controls
in combination with other devices. These instructions must be strictly
adhered to during installation and operation of the devices.
CAUTION Warning of possible damage to the control or
other fixed values if appropriate precautions are not
taken.
Check the fixing of all screw connections before installing the
control and setting the limit switches.
Danger - Indicates that there is a danger to the life and
health of the user if appropriate precautions are not
taken.
• Check the fixing of all screw connections before installing the control
and setting the limit switches.
• Observe the safety and accident prevention regulations applicable to
the application (e.g. gate, roller shutter).
• Before replacing the fuses, disconnect the supply lines, then replace
the fuse and reconnect the supply lines.
• The installation of the CRS-436XG must be carried out with the safety
and protective devices required by the relevant regulations. Controls
containing crush protection systems with a sensor mounted on the
door, which relies on the door contacting an obstacle, must not cause
injury resulting from the movement of the door.
• For INEL equipment with a constant mains supply, a circuit breaker
providing a safe voltage break (e.g. a fuse disconnector) should be
used for the control in addition to the fuse protection, installed so that
all connections can be easily disconnected.
• Conductors and cables should be checked regularly for insulation
damage and localised breaks.
• If cables are found to be damaged, the damaged cables must be
replaced after the mains supply has been switched off immediately.
• Before switching on, it is necessary to check that the permissible
device voltage is compatible with the local supply voltage.
1.4 Warning - important for the safety of individuals:
do not let children play with the controls;
keep the remote control out of the reach of children;
watch a moving device (e.g. gate, awning) and keep people away
until it is fully open or closed;
users of the gate must be trained and instructed in the operation of
the gate and the dangers inherent in its use. People may be considered
trained if the employer, administrator or owner has allowed them to
operate the gate and has instructed them on how to use it.
