1 Safety rules
To limit the risk of fire, injury or damage to the device, follow the
rules given below.
Place the device on an even and smooth surface; do not cover the
vents.
Do not place the device on equipment that gets heated up.
Protect the device against direct sunlight, high temperature and
humidity.
Use only the provided power supply adapter.
Do not dismantle the cover.
Do not attempt to repair the device by yourself.
Use the device while maintaining a distance of minimum 1 m from
the user's body.
2 System description
InelSmart system permits comprehensive control of shutters, gates,
light spots, and similar devices.
PIL-99TSTX remote control is the main device used to manage the
system devices. Only local control is possible with the use of this
remote control. InelSmart control unit permits controlling devices
from any place on Earth with access to the Internet. The control
device in this case is a smartphone with InelSmart app.
Internet access is the condition necessary for the cooperation of
the system with the control unit both remotely and locally.
Return channel technology is used to transmit the device status
information to the user. The control app is available free-of-charge at
GooglePlay and AppStore.
InelSmart system elements:
Product
Device name
symbol
N-10PRX
N-13PRX
Motors with overload detection
N-20PRX
ST-01X
Single-channel light/socket controller
Controller for a standard motor of any
ST-01RX
manufacturer
ORS-01X
Gate control unit controller
PIL-01DLX
Single-channel remote control
PIL-05DLX
Five-channel remote control
Ninety-nine-channel remote control with a
PIL-99TSTX
touchscreen
InelSmart
Control unit
The system permits direct control of devices and automatic control
with the use of time programs activated according to a preset
schedule.
Up to 99 devices (motors, controllers) can be managed in the system.
Instructions translated EN
Operation instructions of control unit TYPE: InelSmart
Model:
InelSmart

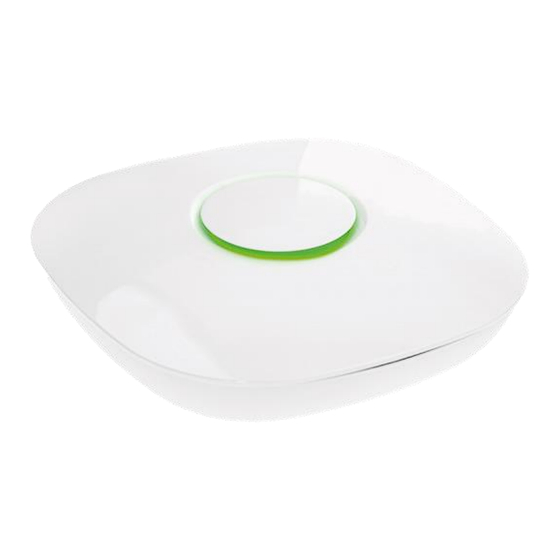

3 Starting up the control unit for the first
time
When starting up the control unit for the first time, carry out
the following steps in sequence:
•
Connect power to the control unit. Flashing backlight
indicates that power is on.
•
Download and install InelSmart app on your smartphone.
•
Start the app and create a server account by selecting Sign
up at the bottom of the screen.
•
Finish registration by activating your account in the e-mail
sent to you.
•
Log on to your account and add the control unit. The
control unit should be automatically detected via
Bluetooth. Select it from the list and enter PIN or scan the
QR code from the label on the control unit bottom.
Button
LED
Power connection
