Inline Design HBWA.005 Installing

Overview
This guide offers detailed steps for installing a Handrail Bracket Round into a wood stud.

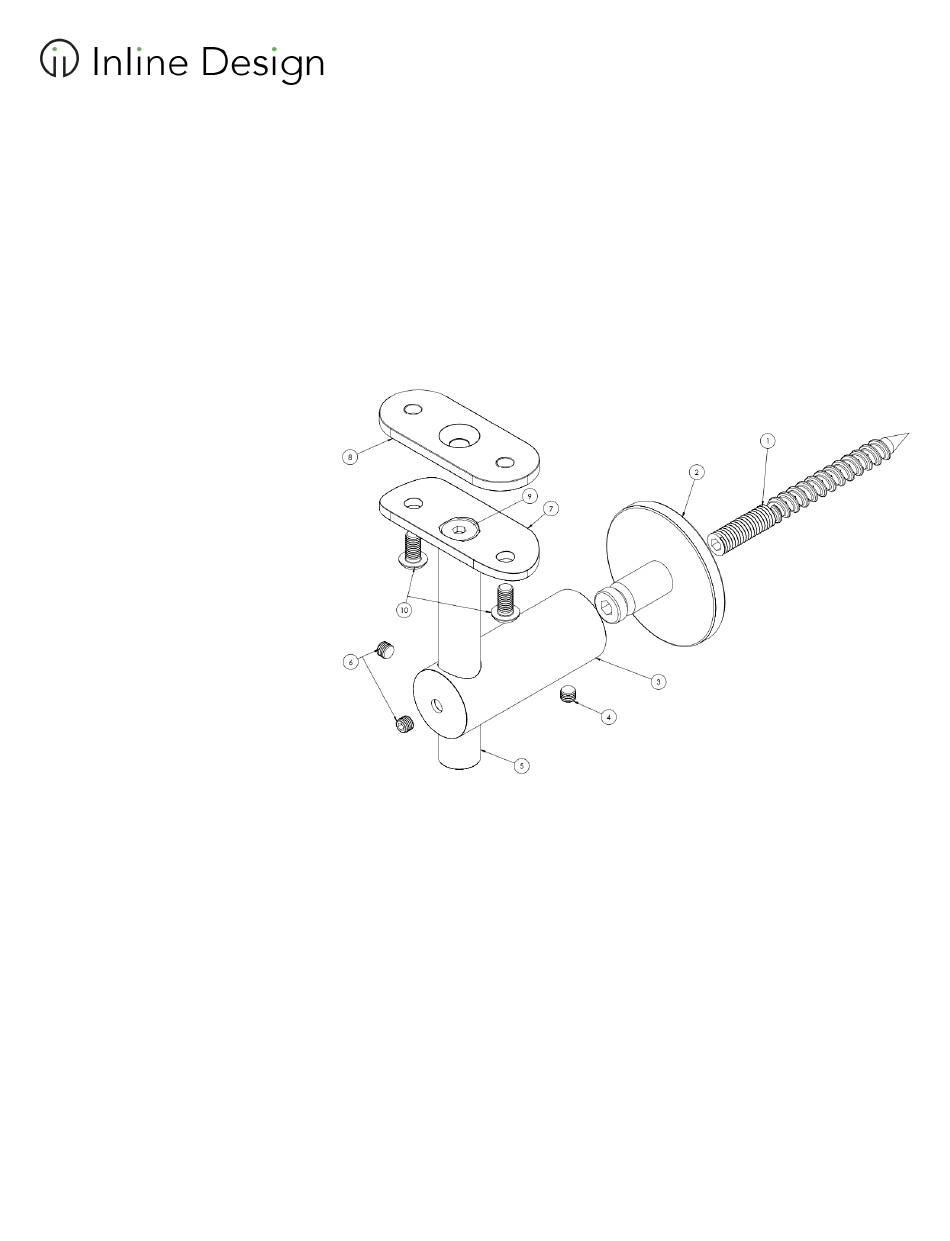

Bracket Components
1. Hanger Screw
2. Wall Flange
3. Bracket Horizontal
4. M5 Torx Set Screw
5. Bracket Vertical
6. 2 x M5 Torx Set Screw
7. Round Saddle
8. Flat Saddle
9. M6 Countersunk Screw
10. 2 x M5 Button Head Screw
Tools Required
1. Stud-Finder
2. Handheld Drill
3. 1/4" Drill Bit
4. 4, & 5mm Hex Wrench
5. M5x0.80mm Drill and Tap
6. T10 Torx Wrench
Instructions
1) Using a Stud-Finder, locate the middle of the wood stud. Spot drill using a 1/4" drill bit to avoid wood splitting.
2) Drive the Hanger Screw (part #1) into the pre drilled hole and secure the lag end of the stud using a 4mm Wrench.
3) Mount the Wall Flange (part #2). Then the Bracket Horizontal (part #3). Rotate the bracket to the desired angle
orientation and tighten the Torx Set Screw (part #4) using the T10 Torx Wrench.
4) Adjust the height of the Bracket Vertical (part #5) then tighten the 2 x Torx Set Screw (part #6) using the T10 Torx
Wrench.
5) Choose a Round Saddle (part #7) or Flat Saddle (part #8) to attach to the top of the Bracket Vertical (part #5) by
fastening the M6 Countersunk Screw (part #9) using a 5mm Wrench.
