Inline Design HBWA.008 Installation Instructions

Overview
This guide offers detailed steps for installing a Handrail Bracket Magnetar Square into a wood stud.

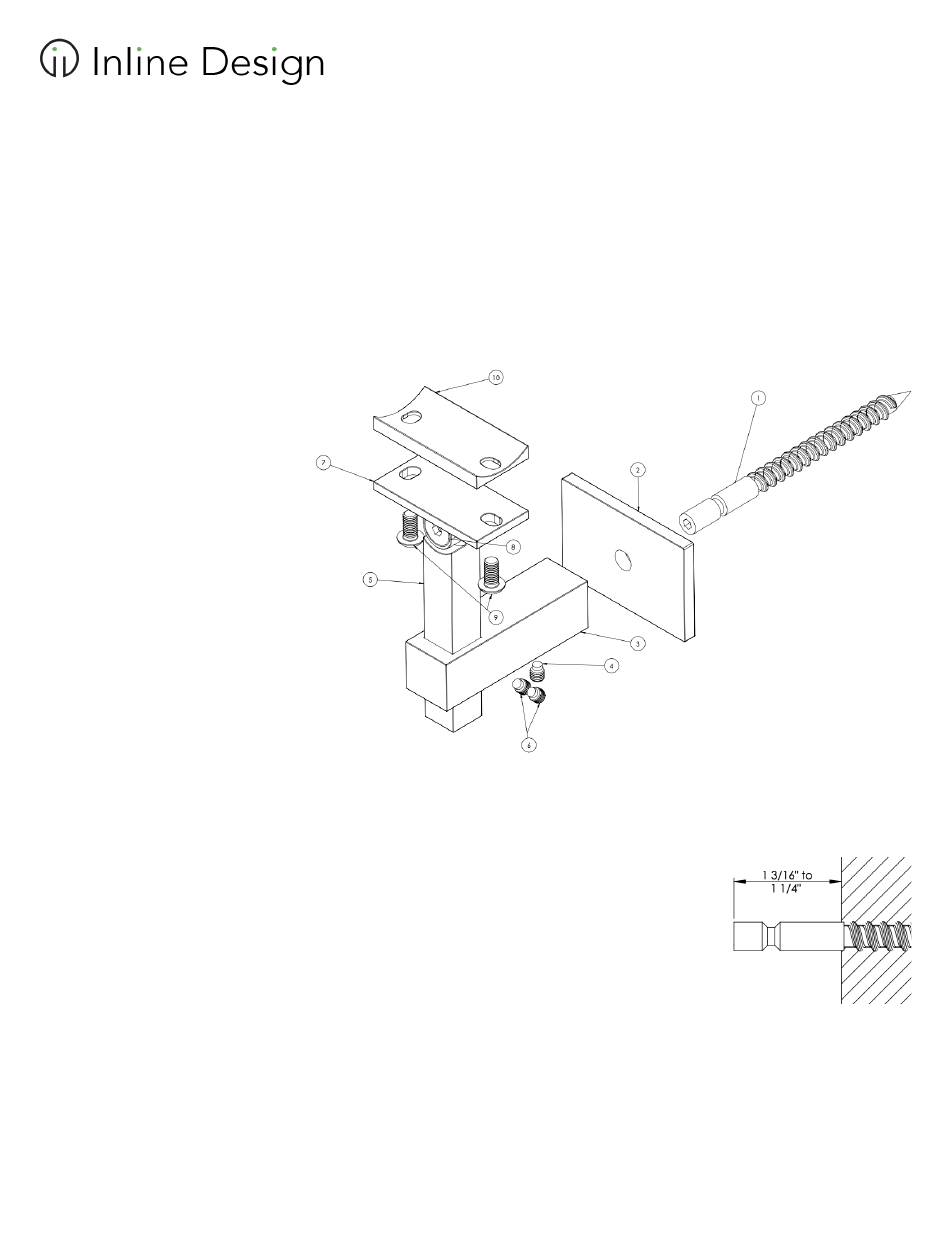

Bracket Components (Fig 1)
1. Hanger Screw
2. Wall Flange
3. Bracket Horizontal
4. M5 Set Screw
5. Bracket Vertical
6. 2 x M5 Set Screw
7. Pivot Saddle
8. M6 Countersunk Screw
9. 2 x M5 Button Head Screw
10. Round Saddle Adapter
Tools Required
1. Stud-Finder
2. Handheld Drill
3. 1/4" Drill Bit
4. 2.5, 4, & 5mm Hex Wrench
5. M5x0.80mm Drill and Tap
Instructions
1) Using a Stud-Finder, locate the middle of the wood stud. Spot drill using a 1/4" drill bit to
avoid wood splitting.
2) Drive the Hanger Screw (part #1) into the pre drilled hole and secure the lag end of the
stud using a 4mm Wrench. Desired distance from the wall is in between 1 3/16" to 1 1/4"
as shown in Fig 2.
3) Mount the Wall Flange (part #2). Then the Bracket Horizontal (part #3). Position/Rotate
the flange and the bracket to the desired angle orientation and tighten the Hex Screw
(part #4) using a 2.5mm Wrench.
4) Adjust the Bracket Vertical (part #5) then tighten the 2 x M5 Set Screw (part #6) using a
2.5mm Wrench. Adjust the angle of Pivot Saddle (part #7) then tighten the M6 Countersunk Screw (part #8) using a
5mm Wrench. Optionally use the Round Saddle Adapter (part #10) to connect to a round handrail.
5) When mounting to steel handrail tighten the supplied 2 x M5 Button Head Screw (part #9) using a 4mm Wrench. Steel
handrail needs to be drilled and tapped for
appropriate lag screw to replace the 2 x M5 Button Head Screw (part #9).
© InlineDesign.com
Installing Handrail Bracket Magnetar Square
SKU: HBWA.008
M5x0.80mm. If mounting a wooden handrail, customers must supply
Fig 1
6335 1st Ave S
Seattle, WA 98108
425 405 5505
Fig 2
