Inline Design HBWA.009 Installation Instructions

Overview
This guide offers detailed steps for installing a Handrail Bracket Magnetar Square Slim into wood studs.

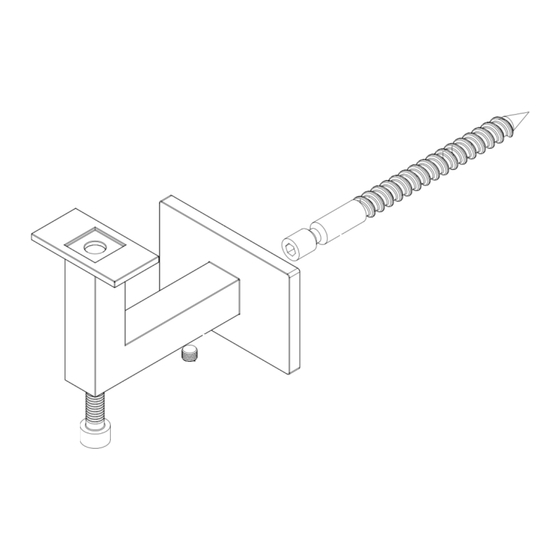

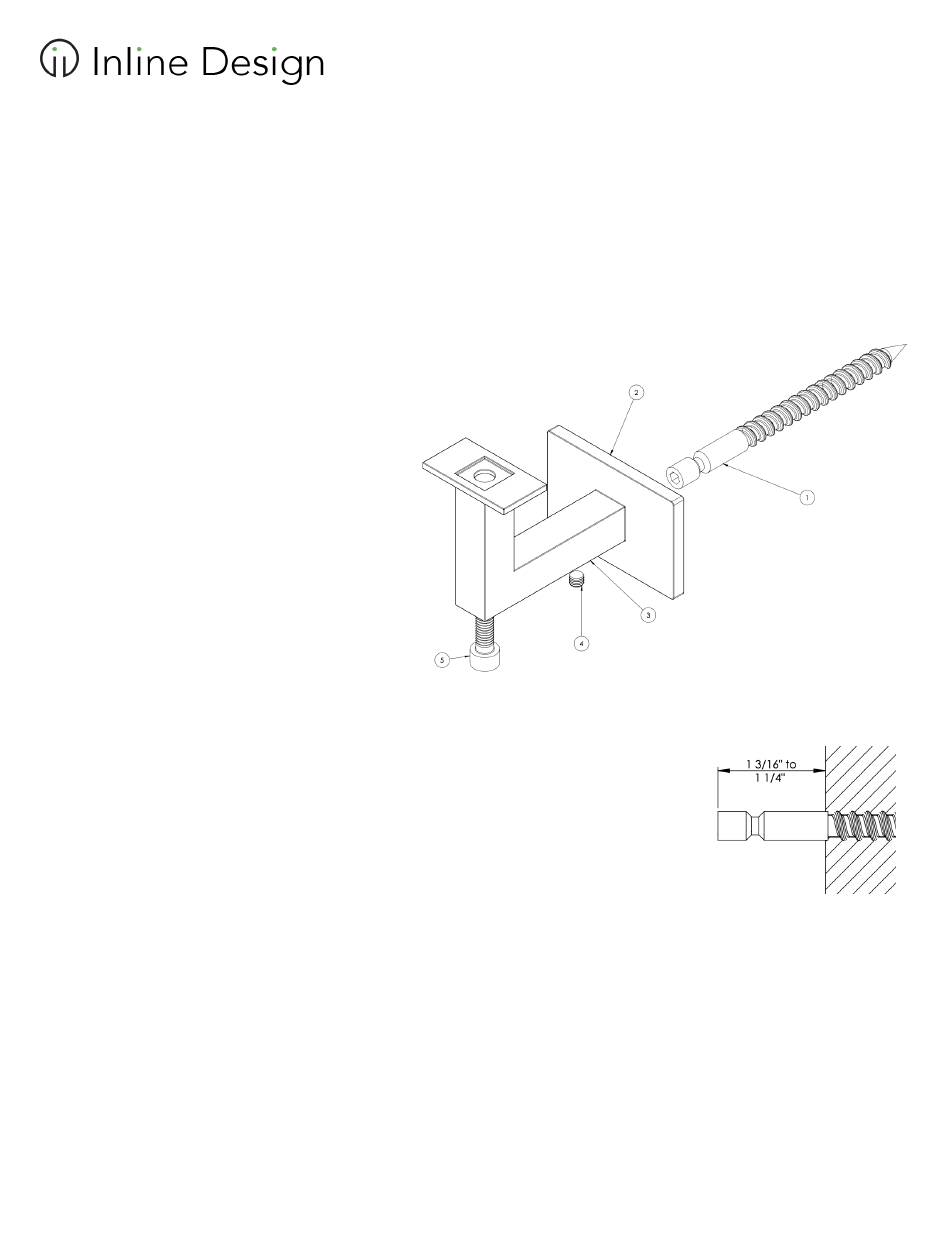

Bracket Components (Fig 1)
1. Hanger Screw
2. Wall Flange
3. Bracket Main Body
4. M5 Set Screw
5. M6 Socket Head Screw
Tools Required
1. Stud-Finder
2. Handheld Drill
3. 1/4" Drill Bit
4. 2.5, 4, & 5mm Hex Wrench
5. M6x1.00mm Drill and
Instructions
1) Using a Stud-Finder, locate the middle of
the wood stud. Spot drill using a 1/4" drill bit to avoid wood splitting.
2) Drive the Hanger Screw (part #1) into the pre drilled hole and secure the lag
end of the stud using a 4mm Wrench. Desired distance from the wall is in
between 1 3/16" to 1 1/4" as shown in Fig 2.
3) Mount the Wall Flange (part #2). Then the Bracket Main Body (part #3).
Position/Rotate the flange and the bracket to the desired angle orientation
and tighten the Hex Screw (part #4) using the 2.5mm Wrench.
4) When mounting to steel handrail tighten the supplied M6 Socket Head Screw
(part #5) using a 5mm Wrench. Steel handrail needs to be
a wooden handrail, customers must supply appropriate lag screw to replace the M6 Socket Head Screw
(part #5).
© InlineDesign.com
Installing Handrail Bracket Magnetar Square Slim
Tap
SKU: HBWA.009
drilled and tapped for
6335 1st Ave S
Seattle, WA 98108
425 405 5505
Fig 1
Fig 2
M6x1.00mm. If mounting
