Inline Design Quasar HBWA.011 Installation Instructions

Overview
This guide offers detailed steps for installing a Handrail Bracket from the Quasar Series into wood, drywall, or
sheetrock.

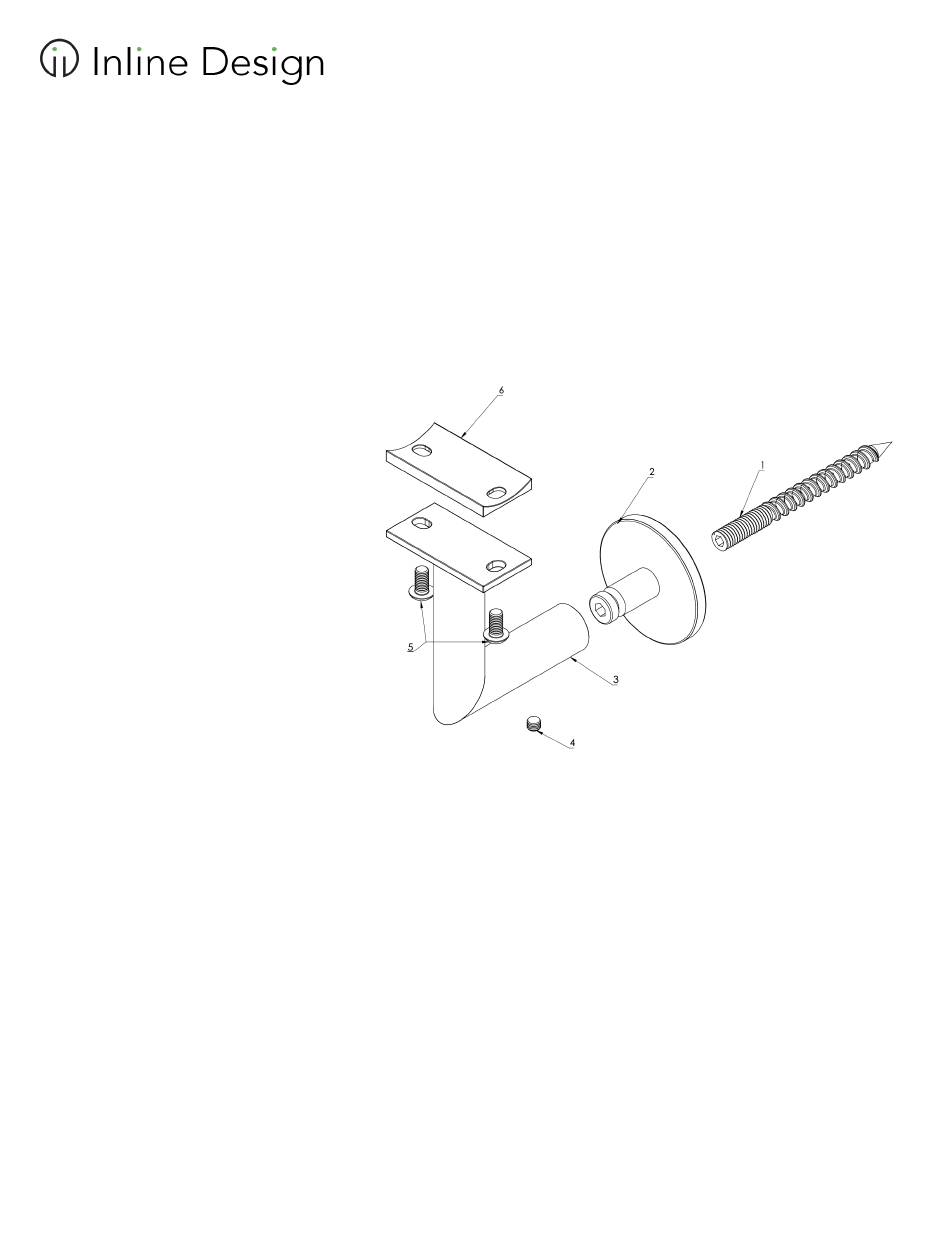

Bracket Components
1. Hanger Screw
2. Wall Flange
3. Bracket Main Body
4. M5 Set Screw
5. M5 Button Head screws
6. Round Saddle Adapter
Tools Required
1. Stud-Finder
2. Handheld Drill
3. 1/4" drill bit
4. 2.5, 4, & 5mm Hex Wrench
5. M5x0.80mm Drill and Tap
Instructions
1) Using a Stud-Finder, locate a stud and the vertical position off the nose of the step that you would like to
position the handrail bracket (this hole on average is 31" depending on your county code and comfort).
Spot drill using 1/4" drill bit to avoid wood splitting.
2) Drive the Hanger Screw (part #1) into the hole and secure the lag end of the stud using a 4mm Wrench.
Make sure to leave the sleeve out from the stub to mount the Wall Flange (part #2).
3) Mount the Wall Flange (part #2) into part #1 by screwing it in using a 5mm Wrench. Then the Bracket Main
Body (part #3) into the sleeve of part #2. Position/Rotate the flange and the bracket to the desired angle
orientation and tighten the Hex Screw (part #4) using the 2.5mm Wrench.
4) When mounting to steel handrail use the supplied M5 Button Head screws (part #5). Steel handrail needs
to be drilled and tapped for
handrail. If mounting a wooden handrail, customers must supply appropriate lag screw to replace the M5
Button Head screws (part #5)
© InlineDesign.com
Installing Handrail Bracket Quasar Series
SKU: HBWA.011, HBWA.012 & HBWA.013
M5x0.8mm. Use Round Saddle Adapter (part #6) to attach to a round
