Sencore VB2 Series Manual

Gige probes
Hide thumbs Also See for VB2 Series:

Advertisement

Quick Links

Download this manual
VB2xx GigE Probes
Applies to software release v6.5
Form 7653P • February 2025

Advertisement

loading
Need help?

Need help?

Do you have a question about the VB2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Sencore VB2 Series

Summary of Contents for Sencore VB2 Series

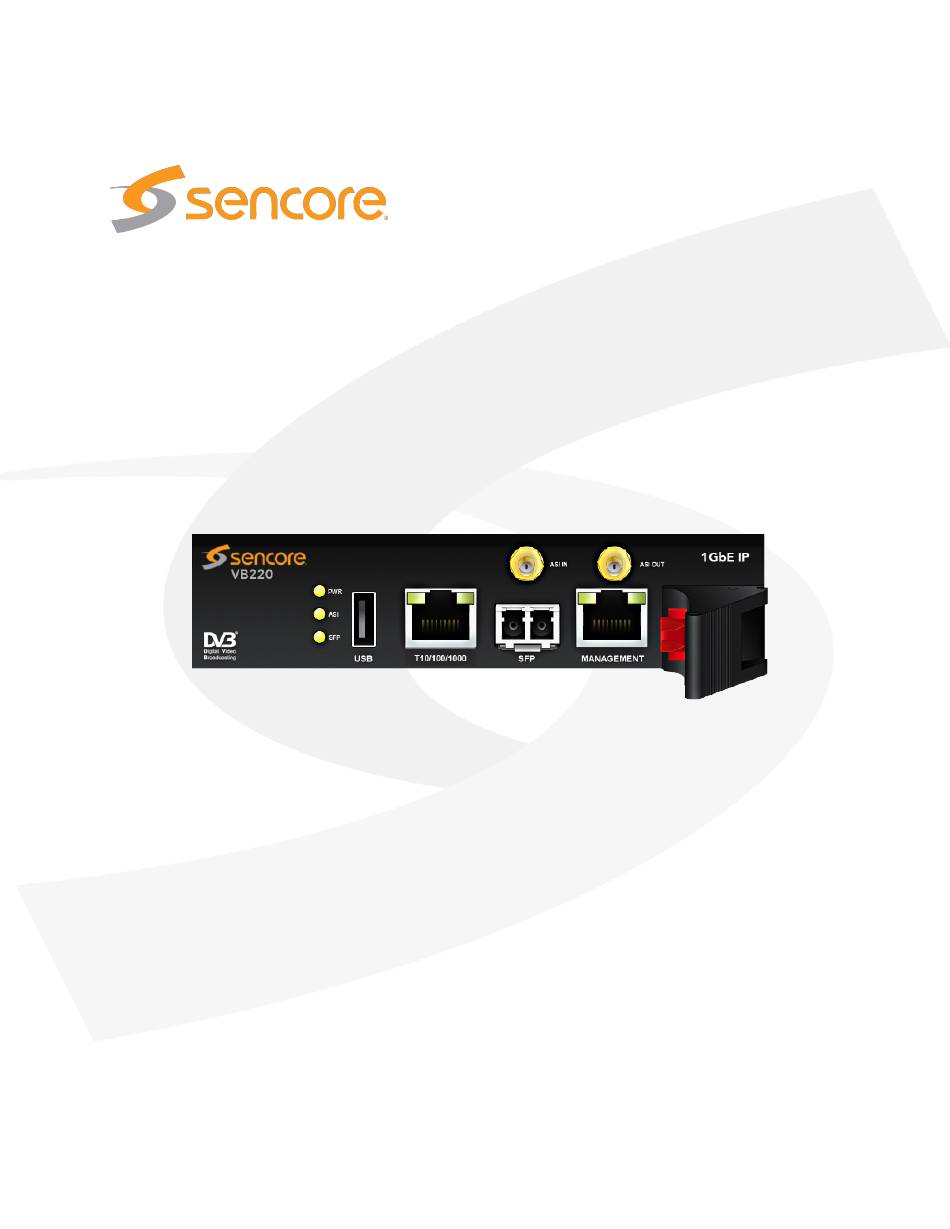

  • Page 1 VB2xx GigE Probes Applies to software release v6.5 Form 7653P • February 2025...
  • Page 2 Inquiries should be made directly to those companies. This document may also have links to third-party web pages that are beyond the control of Sencore. The presence of such links does not imply that Sencore endorses or recommends the content on those pages. Sencore acknowledges the use of third-party open source software and licenses in some Sencore products.

  • Page 3: Table Of Contents

    Contents Contents Document Revision History 1 INTRODUCTION 1.1 About the Probe ........1.1.1 Probe –...
  • Page 4 4.6.4 The VB243 ASI Redundancy switch (VB220 option) ... . 4.6.5 The VB252 COFDM Dual Demodulator Module (VB220 option) ..4.6.6 The VB256 ISDB-T Dual Demodulator Module (VB220 option) .
  • Page 5 6.3.1 OTT — Active testing ......6.3.2 OTT — Details ....... . 6.3.2.1 OTT —...
  • Page 6 6.9.1 ETR 290 — Overview ......6.9.2 ETR 290 — ETR Details ......6.9.3 ETR 290 —...
  • Page 7 6.16.2 RF — Tuning setup ......6.16.3 RF — RF threshold .
  • Page 8 6.21.12Setup — Routing ....... 6.21.13Setup — Security ......6.21.13.1Setup —...
  • Page 9 D Appendix: SRT Streams D.1 Introduction ........D.1.1 Overview .

  • Page 10: Document Revision History

    Document Revision History Date Version Description February 2025 6.5 Updated manual to reflect changes in v6.5 software March 2024 6.3 Updated manual to reflect changes in v6.3 software June 2023 6.2 Updated manual to reflect changes in v6.2 software February 2022 6.1 Updated manual to reflect changes in v6.1 software February 2020 5.6 Updated manual to reflect changes in v5.6 software...

  • Page 11: Introduction

    1 INTRODUCTION 1.1 About the Probe 1.1.1 Probe – Overview The VB220 probe enables full confidence monitoring of one Ethernet input (electrical or optical) in addition to optional contents check of one electrical ASI transport stream input. It provides detailed IP packet monitoring of up to 260 IP multicasts as well as T2MI analysis, L2TP analysis and monitoring of up to 4 Secure Reliable Transport (SRT) streams.

  • Page 12: Probe - Features

    The probe can also be managed via the VideoBRIDGE Controller – a centralized server management solution. The VBC adds management features like alarm aggregation and report functionality as well as centralized access and user roles. The VB220 probe is a module housed in a 1 RU chassis. Three probe modules may be installed in one chassis, thus tripling the monitoring capacity.
  • Page 13 The advanced Ethernet protocol analysis tool automatically detects all protocols carried over Ethernet past the port the Probe is connected to, and it displays statistics like percentage utilization of the interface and percentage of the different transported protocols. This gives the Probe a real-time sniffer capability.

  • Page 14: How To Use This Manual

    H Appendix: Restoring probe factory defaults details how to reset the Probe to factory default settings. Note that current version of the User’s Manual can be obtained from Sencore ProCare support by emailing procare@sencore.com. VB2xx GigE User’s Manual version 6.5...

  • Page 15: Principle Of Operation

    2 PRINCIPLE OF OPERATION The probe module is equipped with two RJ45 Ethernet ports and one SFP optical port. The user selects which transport stream signal input to be used by the monitoring engine, either the Ethernet video/data port or the SFP optical input. Management of the probe is conducted via the Ethernet management port or alternatively in-band via the video/data ports.
  • Page 16 SNMP Alarm Alarms Lists Alarm Settings Threshold Settings Signal Measurements Figure 2.2: Simplified Diagram of the Alarm Handling in the Probe VB2xx GigE User’s Manual version 6.5...

  • Page 17: Safety

    3 SAFETY Read the installation instructions before connecting the chassis unit to the power source. Do not install the chassis unit with power on. The equipment described in this user manual is considered professional equipment to be installed by skilled personnel. The equipment should be connected to protective earth through the ground lug at the back of the chassis marked clearly with the ground symbol.

  • Page 18: Installation And Initial Setup

    4 INSTALLATION AND INITIAL SETUP 4.1 Quick Installation Guide 1. Read the safety instructions, refer to chapter 3 2. Install the unit in a 19 inch rack for rack mount probes, refer to section 4.7 3. Connect the signal cables, refer to section 4.6.1 4.

  • Page 19: Cooling System

    4.2.2 Cooling System The chassis is equipped with six long-life fans that suck in air from front of the chassis. The air exits at the back of the unit. The fans are temperature controlled, allowing them to run at an optimum speed.

  • Page 20: Vb300-Dc Power Supply

    4.3.3 VB300-DC Power Supply The VB300-DC unit is equipped with two −48V DC / 50W power inlet connectors. The power plug is a male 3-PIN D-sub(15) connector. Matching female plugs are supplied with the VB300-DC unit. This plug should be soldered to the power cable in accordance with the drawing in figure 4.4. Figure 4.3: The VB200-DC Power connector on the chassis Figure 4.4: Soldering the Female 3-PIN D-sub(15) Connector to the Power Cable 4.4 Serial Number Location...

  • Page 21: The Vb200/Vb200-Dc Hardware (Vb220)

    4.5 The VB200/VB200-DC Hardware (VB220) In the cases where redundant power supplies are not required the VB200 and VB200-DC chassis options are suitable. Each VB200 or VB200-DC unit consists of a 1RU chassis with 3 option slots. The unit can be equipped with either a 100–240V AC power supply (VB200) or a −48V DC power supply (VB200- DC).

  • Page 22: Serial Number Location

    Figure 4.6: The VB200-DC Power Plug Figure 4.7: Soldering the Female 3-PIN D-sub(15) Connector to the Power Cable 4.5.4 Serial Number Location The serial number of the VB200/VB200-DC unit is located at the rear of the unit. The serial numbers of the individual optional modules are located on the components side of the modules.

  • Page 23: The Hardware Modules And Connectors (Vb220)

    4.6 The Hardware Modules and Connectors (VB220) 4.6.1 The Probe Module The Probe module is equipped with the following connectors: USB: USB serial port emulator for initial set-up of the probe – Type A 1PPS: 1PPS reference clock input – 50 ohm BNC female ASI IN: ASI transport stream input –...

  • Page 24: The Vb242 Asi Input Module (Vb220 Option)

    4.6.2 The VB242 ASI Input Module (VB220 option) The VB242 module is equipped with the following connectors: ASI 1 – 6: ASI transport stream input – 75 ohm BNC female For each ASI input an associated LED indicates current status: GREEN: The associated ASI input is currently being monitored and there is ASI sync RED: The associated ASI input is currently being monitored and there is not ASI sync ORANGE: The associated ASI input is not currently being monitored...
  • Page 25 The VB246 module is equipped with the following connectors: VB2xx GigE User’s Manual version 6.5...

  • Page 26: The Vb243 Asi Redundancy Switch (Vb220 Option)

    ASI 1 – 6: ASI transport stream input – 75 ohm BNC female For each ASI input an associated LED indicates current status: GREEN: The associated ASI input is currently being monitored and there is ASI sync RED: The associated ASI input is currently being monitored and there is not ASI sync The VB246 module is capable of continuous monitoring of all 6 ASI inputs in parallel.
  • Page 27 The module is remote controllable via the GUI and in addition there is a button interface consisting of 3 push-buttons for manual override, this is further explained in chapter 6.13. LED indicators clearly show the current path of the ASI signal as well as the operating mode of the module.

  • Page 28: The Vb252 Cofdm Dual Demodulator Module (Vb220 Option)

    • SuperLocal: The switching between the A and the B path can only be performed from the front panel or the probe user interface. No further switching is possible from third party NMS systems until the operating mode is changed to Manual or Auto. The operating mode can be directly seen via the light of the AUTO button: •...

  • Page 29: The Vb256 Isdb-T Dual Demodulator Module (Vb220 Option)

    You can optionally use the 1PPS input on the controlling VB220 probe instead of on the COFDM module. The additional benefit of connecting the 1PPS timing reference to the VB252 module is that the readout of the Center Frequency Offset of the tuned COFDM frequency is improved. A variant of VB252 called VB252-SMA is also available.

  • Page 30: The Vb262 Dual Qam/8Vsb Demodulator Module (Vb220 Option)

    One input is activated by default and the 3 remaining inputs can be opened up through probe licensing. The connectors are: RF1 – 4: RF input – 75 ohm F-connector 1PPS IN: 1PPS reference clock input – 50 ohm BNC female An LED indicates whether the demodulator locks to the incoming RF signal or not.

  • Page 31: The Vb272 Dual Dvb-S/S2 Demodulator Module (Vb220 Option)

    4.6.9 The VB272 Dual DVB-S/S2 Demodulator Module (VB220 option) The VB272 DVB-S/S2 Demodulator is an optional input interface module capable of receiving DVB-S (QPSK) and DVB-S2 (8PSK, 16APSK, 32APSK) signals. The module has two RF inputs. The second input can be activated through a software option key. The connectors are: RF IN 1 –...

  • Page 32: The Vb273 Dvb-S/S2/S2X Redundancy Switch (Vb220 Option)

    Four LEDs indicate whether the demodulators lock to the incoming RF signals or not. Each RF connector is capable of providing up to 0.3A of antenna LNB power 4.6.11 The VB273 DVB-S/S2/S2X Redundancy switch (VB220 option) The VB273 DVB-S/S2/S2X satellite IF redundancy switch is an input module capable of automati- cally switching between two IF input signals for redundancy purposes.
  • Page 33 IF in 2: 75 ohm female BNC for 70 MHz IF signals as found in satellite uplink scenarios. Second input terminal. The input signal level should lie in the range −15 dBm to 0 dBm in order to guarantee a correct level on the up-converted RF out 2 terminal IF out: 75 ohm female BNC carrying either the IF-1 signal or the IF-2 signal depending on redundancy switch state.

  • Page 34: Installing The Unit In A Rack (Vb220)

    A in Term Latch Relay Driver Term Latch Relay Sense B in Driver A test B test Figure 4.8: Block diagram • Off/no light: Manual mode • Permanently on: Auto mode • Slowly flashing: SuperLocal mode. Basic specifications: IF frequency range: 50 to 140 MHz Main Line Loss: Typically 1 dB Isolation: Typically 60 dB for 70–140 MHz Oscillator feedthrough: Typically −60 dBm at 1094 MHz...

  • Page 35: Optional Installation - Connectors At The Rear Of Rack

    4.7.2 Optional Installation — Connectors at the Rear of Rack For rear mounting of the chassis, the rack ears should be moved prior to rack installation. Unscrew the six size 2 Phillips screws holding the rack ears, and move the six screws covering the rear mounting holes to the front mounting holes.

  • Page 36: Initial Configuration Using The Pre-Set Ip-Address

    1. By using the preconfigured IP address of the probe management port 2. Via serial console emulated over USB For most users the first method will be the easiest. Note that if there are several Probe modules in the chassis, each module should be configured individually, one by one.
  • Page 37 Figure 4.11: Setting the IP address manually in Windows Windows, the new device will appear as a COM port in the Device Manager view as shown in figure 4.12. If your operating system does not detect the probe, you may have to download and install a driver for it.
  • Page 38 Figure 4.12: Connecting to the serial console over USB • Parity: None • Stop bits: 1 • Flow control: None a few times to bring up the login prompt. Log in using the user name admin and the Press Enter password elvis (this password can be changed in the Setup —...

  • Page 39: Verifying Correct Initial Setup Of The Probe

    Menu: /ewe/probe/core/setup/ethernet/ ============================================================================== <0> Back <9> Exit <1> ethStatusDoc ------------------------------------------------------------------------------ <A> data_medium - Copper Input for the video traffic <B> data_dhcp - false RJ45 data port (eth0) DHCP <C> data_ipa - 10.0.30.101 RJ45 data port (eth0) IP address <D> data_mask - 255.255.255.0 RJ45 data port (eth0) netmask <E>...

  • Page 40: Initial Setup Troubleshooting

    Figure 4.14: Web-based management view • Google Chrome • Mozilla Firefox • Microsoft Edge • Apple Safari Type the IP address of the probe in the browser URL field and press . The IP address of Enter the probe is that of the eth0 or eth1 port (the one used for management) as set in the initial set-up procedure.
  • Page 41 • Verify that the laptop and the probe are configured on the same subnet and that they have different addresses. The network settings of the probe can be verified through RS232/USB as described earlier • Make sure that the IP address of the gateway and the network interface are not the same •...

  • Page 42: Quick Setup Guide

    5 QUICK SETUP GUIDE This quick setup guide is intended to provide a step-by-step explanation of how to setup a probe once the initial setup has been performed (as described in chapter 4). More detailed instructions are found in chapter 6 of this manual. The Return Data Path and Full Service Monitoring features are not covered by this quick setup guide.

  • Page 43: Ott Input (Ott Engine Option Only)

    Note: The sequence of the multicast definitions will be reflected in monitoring, so order the multicasts correctly if required. Also note that ETR 290 monitoring for Ethernet streams is disabled by default, so if this is required, it will have to be enabled by the user (on a per-stream basis).

  • Page 44: Adjusting Alarm Thresholds

    5.4 Adjusting Alarm Thresholds When the probe inputs and streams have been defined using default thresholds, the result will usually be a number of more or less permanent alarms, some which may not be relevant under the current circumstances. In order for the user to get rid of unwanted alarms, the probe provides alarm filtering functionality in the form of alarm thresholds and alarm on/off selection.

  • Page 45: Probe Graphical User Interface

    6 PROBE GRAPHICAL USER INTERFACE The VB220 web interface is reached by pointing a web browser to the IP address of the Probe as shown in the screenshot above. The following web browsers are recommended: • Google Chrome VB2xx GigE User’s Manual version 6.5...
  • Page 46 • Mozilla Firefox • Microsoft Edge • Apple Safari Note that different web browsers behave differently with respect to memory leaking, and if the VB220 GUI should be available at all times the browser should be selected carefully. A browser memory leak manifests itself as the browser responding more and more slowly, and this is corrected by closing down the application and restarting.

  • Page 47: Main

    6.1 Main 6.1.1 Main — Summary The intention of this page, together with the alarm list, is to provide enough information for the operator to immediately see if there is anything seriously wrong with one or more input streams. At the very top, a graphic is displayed representing the front panel of the probe, indicating the status of the different inputs.
  • Page 48 System 1PPS: The source of the 1PPS synchronization signal. Displays “–” if no such source is available, otherwise can be one of Controller, Slot 2 or Slot 3 Updated: The time since the last time synchronization update. Freq offset: Indicates the measured frequency offset for the system clock. Timezone: The time zone as selected by the operator in the Setup —...
  • Page 49 The probe employs a memory-based disk, which means that the amount of available free memory decreases as more files (such as recordings, thumbnails, PCAPs, etc.) are stored. Traffic RX data: The total bitrate of received data traffic Monitored data: The total bitrate of multicasts and unicasts monitored (analyzed) by the probe Data interface (Bulb): The bulb indicates whether the data interface is connected and active or not.
  • Page 50 IAT>=thresh: The number of currently active Ethernet IAT alarms, i.e. the total number of ‘IAT>= warning-threshold’ and ‘IAT>= alarm-threshold’ alarms RTP alarms: The number of currently active RTP alarms, i.e. the total number of ‘RTP packet drop’, ‘RTP duplicates’ and ‘RTP out of order’ alarms Other alarms: The total number of currently active Ethernet alarms not included in the alarm figures specified above OTT info...

  • Page 51: Main - Stream Overview

    6.1.2 Main — Stream overview The Stream overview offers an easy way to get an overview of the status of a single channel by collecting the relevant information views from various parts of the probe and displaying them all in one place.

  • Page 52: Main - Cpu Usage

    6.1.3 Main — CPU usage The CPU usage view is meant for troubleshooting performance issues in case of excessively high traffic load. Three internal performance indicators (System, User and Idle) are displayed as percentage numbers and also graphed for the last minute. Issues can potentially arise if the System indicator becomes high (>80%).

  • Page 53: Main - Eii Graphing

    If 3 or more fans have failed, an alarm is raised and the respective bulbs turn red. If more than 4 fans have failed the error is critical, and must be attended to in order to avoid damage. Please contact Sencore to have the chassis serviced.
  • Page 54 The screenshot shows the bandwidth of two IP streams being graphed by sampling the Eii interface every 2 seconds. The graph is stored in the client web browser for as long as the graph window remains open. The graph starts again with zero history if the window is closed and then opened again.
  • Page 55 Refresh (seconds) selects how often samples are read and plotted on the graph. Click Apply to store the parameters and then click the Plot chart link to open the chart. Eii OTT parameter Using the Eii OTT parameter plot, it is possible to plot analysis parameters from any of the monitored OTT channel.

  • Page 56: Alarms

    6.2 Alarms SNMP Alarms Alarm Lists Alarm Settings System Events and Scheduling FSM Settings FSM Measurements OTT Thresholds Content Thresholds ETH Thresholds ETR Thresholds Content Service Thresholds PID Thresholds Service Thresholds Demodulator Thresholds OTT Channel ETH Multicast ASI/QAM/QPSK/COFDM Stream OTT Analysis ETH Measurements ASI/QAM/QPSK/COFDM Measurements OTT Option...

  • Page 57: Alarms - All Alarms

    6.2.1 Alarms — All Alarms The Alarms view gives the user the possibility of viewing alarms according to type or as one combined list. The individual alarm lists can hold the number alarms indicated below independently of each other, meaning that one may become full without affecting the other lists. Alarm list capacity Ethernet alarms (ETH) 10000 alarms Full Service Monitoring and Microbitrate (FSM) 100 alarms...

  • Page 58: Alarms - Alarm Setup

    to type a text string and the alarm list is updated to display only streams and alarms matching the specified text. To update the offline alarm list click the Auto-refresh list button and then go back to the offline mode. Clicking the blue link text of any alarm in the alarm list opens the Main —...
  • Page 59 Error: If enabled, the alarm will be present in the alarm list, color orange Major: If enabled, the alarm will be present in the alarm list, color red Fatal: If enabled, the alarm will be present in the alarm list, color black The following alarms and events are configured: ETH (Ethernet) alarms No signal: There has been no UDP packet for the prede-...
  • Page 60 Bitrate overflow: The net stream bitrate exceeds the maximum Default: Enabled, bitrate Ethernet threshold value specified by severity Error the operator Bitrate underflow: The net stream bitrate goes below the mini- Default: Enabled, mum bitrate Ethernet threshold value speci- severity Error fied by the operator FSM (Full service monitoring &...
  • Page 61 Too few SCTE 35 The service has not had enough placement Default: Enabled, placement opportunities: opportunities signaled in SCTE 35 or SCTE severity Error 104 for the previous clock hour SCTE 35 placement gap: The service has not had SCTE 35 or SCTE Default: Enabled, 104 placement opportunities for longer than severity Error...
  • Page 62 CRC: Table checksum error Default: Enabled, severity Major PCR: Program Clock Reference error Default: Enabled, severity Major PCR Accuracy: Program Clock Reference accuracy error (PCR Default: Enabled, jitter) severity Major PTS: Presentation Time Stamp error Default: Enabled, severity Major CAT: Conditional Access Table error Default: Enabled, severity Major NIT: Network Information Table error...
  • Page 63 CA System: CA System error Default: Enabled, severity Major PID min. bitr. PID minimum bitrate below threshold Default: Enabled, severity Major PID max. bitr. PID maximum bitrate exceeds threshold Default: Enabled, severity Major PID checks: PID check error Default: Enabled, severity Major Service min.
  • Page 64 Symbol rate: Difference between received and configured sym- Default: Enabled, bol rate exceeds specified threshold (VB252, severity Major VB258, VB262 and VB272) Post BCH FER: DVB-T/T2 BCH Frame Error Rate exceeds spec- Default: Enabled, ified threshold (VB252 and VB258 in DVB-T severity Major mode) T2MI Errors in DVB-T2 Modulator Interface protocol...
  • Page 65 Profile stream type changed: The stream type of the profile changed Default: Enabled, in the manifest severity ‘Warning’ Minimum profiles The channel has less profiles than speci- Default: Enabled, fied in the threshold severity Warning Wrong profile type The channel has profiles of a different Default: Enabled, type than specified in the threshold severity Warning...

  • Page 66: Alarms - Event Log

    HTTP server error: HTTP 5xx server error Default: Enabled, severity Major Static manifest: Manifest file unchanged for longer than Default: Enabled, configured threshold severity Major Mis-alignment detected: One or more profiles are out of visual Default: Enabled, alignment severity Major Manifest parse error: Failed to parse manifest file.

  • Page 67: Alarms - Flash Alarms (Requires Flash-Opt)

    To enable/disable logging of ETR stream events go to the Setup — ETR view. 6.2.4 Alarms — Flash Alarms (requires FLASH-OPT) The FLASH option enables the Flash alarms tab. This alarm list contains the last 20,000 alarms and keeps them in non-volatile memory so that they survive reboots and power-outages. This opens up a lot of possibilities for probes that cannot be reached while doing measurements and for probes that need to be powered down and consulted elsewhere.
  • Page 68 License expires in N hours The current license activation is about to expire and the system is not able to connect to the internet to refresh it automatically. Please refer to E Appendix: On-line License Activation for more details. Stopped processes One or more of the required system processes have stopped. This can be due to an intermittent software failure (bug), in which case the alarm should go away after a little while.
  • Page 69 Error copying IDProm to file The VB220 is unable to read from internal storage. If the problem persists, please contact technical support. N fans have failed Several of the internal fans in the VB220 have failed. Please contact technical support to have the unit serviced. No power from XX One of the redundant power supplies in the chassis is not de- power supply...

  • Page 70: Ott (Option)

    6.3 OTT (Option) 6.3.1 OTT — Active testing The OTT option enables monitoring of up to 50 OTT channels. Up to 5 OTT engines (depends on license) can operate in parallel, and each engine licensed allows any channels to be analyzed. Each engine analyses channels in series and can be configured with any number of channels up to the maximum allowed by the license.
  • Page 71 Status bulb: A bulb indicates the current status of the channel, i.e. the most severe profile status. Thumb: If thumbnail extraction has been enabled, a thumbnail is displayed for the channel if supported. Thumbnail decoding is a process asyn- chronous of the channel analysis and therefore should not be expected to be updated at the same time.

  • Page 72: Ott - Details

    6.3.2 OTT — Details Click the blue information button on a channel to open the details window. This window provides detailed information about the status and alarms on all the profiles for the selected channel. The same pop-up can be opened from the Content — Thumbnails view, see chapter 6.10.1 for more information.
  • Page 73 Profile status: The channel health bar displays the current status for individual channel profiles. Profiles are separated by vertical black lines. Colors indicate profile alarm status: • Green: OK • Yellow: Warning • Orange: Error • Red: Major • Black: Fatal Format: The channel format is shown here (Apple HLS, Microsoft Smooth Streaming, Adobe HDS, MPEG DASH, SHOUTcast or RTMP).

  • Page 74: Ott - Details - Manifest

    6.3.2.2 OTT — Details — Manifest The Manifest view shows health information on the overall manifest file for the channel as well as for the manifest files for the individual profiles for the formats were such are available. Channel Channel: The channel name defined by the user and linked to a URL in the OTT — Channels view.
  • Page 75 Manifest size: The size in bytes of the main/top manifest file for the overall channel. Manifest file: Clickable URL for displaying the manifest file as text for the overall channel. Manifest URL: A clickable link to the current main/top manifest file for the overall channel. HTTP header: The current HTTP header of the main/top manifest file for the overall channel.

  • Page 76: Ott - Details - Alarms

    6.3.2.3 OTT — Details — Alarms The Details — Alarms view gives an at-a-glance overview of any active OTT alarms for the selected channel. An alarm log for the selected channel is also provided here. In the right corner of the pop-up window is a free text search field used to narrow down the entries in the alarm log.

  • Page 77: Ott - Details - Thumbnails

    6.3.2.4 OTT — Details — Thumbnails The Thumbnails view will provide information about the current thumbnails in the channel. The quality of the content in the selected profile can be viewed in the thumbnail section, and the user may alter the selected profile in the drop down list. The section on the right hand side provides specific decoder and segment information.

  • Page 78: Ott - Details - Alignment

    Segment Information Engine ID: The OTT engine monitoring the selected channel. Channel ID: The ID of selected channel corresponding to the list of channels defined by the user. Profile Name: The name of the OTT profile as flagged in the manifest files. Bitrate: Bitrate rate of the a segment.
  • Page 79 Sequence Number: The segment or sequence number for the current thumbnail. This is either signaled in the channel manifest (HLS, HDS, DASH, Smooth Streaming), or generated by the VB220(RTMP, SHOUTcast). If the sequence numbers are highlighted in yellow, the thumbnails are not generated from the same segment for all profiles, and may therefor appear to be out of synchronization.

  • Page 80: Ott - Channels

    6.3.3 OTT — Channels The OTT Channel Configuration list shows OTT channels configured by the user. To add a channel to the list click the Add new channel button. This will open the Edit channel pop-up view, allowing the user to define channel parameters. A channel entry can be selected by clicking the channel;...
  • Page 81 General Name: A name should be assigned to each OTT channel. The name will be used throughout the VB220’s user interface when referring to this channel. Manifest URL: The URL of the OTT channel. Player URL: In this field you can enter the URL to a web page which will open the OTT channel in your browser.
  • Page 82 OTT Threshold: The OTT threshold that should be assigned to the OTT channel. OTT thresholds that have been defined in the OTT — Thresholds view are available for selection from the drop-down menu. Content thresholds: The Content thresholds specify content alarming options. Selectable Content thresholds templates are defined in the Content —...
  • Page 83 DRM system: If this channel is encrypted using a Verimatrix VCAS server, selecting the Verimatrix VCAS 3.7 or Verimatrix VCAS 4.3 option and entering the IP address or hostname of the VCAS server’s encoder interface in the DRM hostname field will allow descrambling of the encrypted segments. See OTT descrambling with Verimatrix for more info.
  • Page 84 DRM hostname: If used with a DRM system, configure enter the IP address or hostname of the DRM server here. DRM username: When using the Irdeto DRM system, add the username used to log in to the Irdeto server here. DRM password: When using the Irdeto DRM system, add the password used to log in to the Irdeto server here.
  • Page 85 Verify TLS host If the channel is requested over a TLS connection, enabling this option verifies that the presented server certificate is valid for the host name used for the request. This setting can be enabled without having the CA certificate available. CA certificate If the channel is requested over a TLS connection, selecting a CA certificate here verifies that the presented server certificate is trusted by it.
  • Page 86 System routing: If enabled, the request for the advanced manifest URL uses the system routing table. If disabled, the request uses the routing configured for the associated OTT engine. Cache response: Defines for how long the advanced manifest response should be cached. If set to a non-zero value, the server is not queried again for the same URL until at least the configured number of minutes has passed.

  • Page 87: Ott - Settings

    6.3.4 OTT — Settings The Settings view makes it possible to change global and per-engine OTT monitoring parameters. Press Apply to confirm changes made. Settings Reset connection after: Configures the VB220 OTT engines to reset the connections after the specified number of minutes. This is useful for cases where the server has a limit for how long a session can live.

  • Page 88: Ott - Thresholds

    Routing interface: Selects the interface on which to connect to the OTT server. This defaults to the interface selected in the Setup — Routing view, but can be overridden for each engine. The routing applies to all channels monitored by this engine. Page name: This setting allows names to be associated with different pages.
  • Page 89 To disable a threshold alarm, set the threshold value to –1 or Any. This does not apply for Manifest XML size. Threshold preset Name: The threshold template name defined by the user. Refs: The number of channels associated with the threshold template Profile stream type: The stream type (Live or VoD).
  • Page 90 Actual bitrate media type: The profile types that the actual bitrate alarm applies to. If set to Any, the actual bitrate is checked for all profiles. Sequence age: The maximum time a manifest can remain unchanged before a manifest age alarm is raised. Manifest size: The maximum detected size of the manifest before a manifest size alarm is raised.

  • Page 91: Multicasts

    6.4 Multicasts 6.4.1 Multicasts — Parameters The Multicasts — Parameters view displays detailed information about each stream. The user selects which group of measurements should be displayed. Selections are IP parameters, TS parameters, Ethernet parameters, RTP and FEC parameters, User-defined parameters and Statistical parameters.
  • Page 92 of the small thumbnails to view a larger thumbnail that is updated more frequently. Note that it is possible to disable probe thumbnail extraction in the Setup — Params view. When All streams (offline) is clicked a complete list of measurements for all joined streams is displayed.

  • Page 93: Parameter Columns

    6.4.1.1 Parameter columns Following is a listing explaining the meaning of the columns which may be shown for the joined multicasts view at Multicasts — Parameters. The columns displayed may be selected in see Multicasts — Parameters — Fields. Common parameters i : Click the information icon to access the Detailed Monitoring pop-up view.
  • Page 94 IAT avg: Average Inter-Arrival Time. The average time between consecutive IP frames (in milliseconds). Recalculated each second. For SMPTE ST 2022-7 combined streams, the path differential (PD) is shown instead, with the sign indicating which of the paths is ahead of the other. IAT min: The Minimum Inter-Arrival Time is the minimum registered time between two consecutive IP frames carrying video.
  • Page 95 RTP drops: Accumulated number of dropped IP-frames due to network errors. Only avail- able for multicasts that carry RTP information, and for L2TP streams that carry sequence numbers. When running video inside an RTP wrapper it is possible to exactly deduce the number of dropped IP frames due to network issues. This is possible as a result of the 16-bit sequence counter inside the RTP header.
  • Page 96 ES(RTP): Number of seconds during selected period with RTP packet drops. ES(overfl): Number of seconds during selected period with bitrate overflow. ES(nosig): Number of seconds during selected period without signal. Peak(IAT): Peak Inter-packet Arrival Time during selected period. Sum(MLR): Sum of Media Loss during selected period (equals number of TS packets lost). Peak(bitr): Peak stream bitrate during selected period.
  • Page 97 The signal cannot be decoded because the Transport Error Indicator bit (TEI) is set. The signal cannot be decoded because the video bitstream contains errors. It might be possible to create thumbnails from this stream by enabling the “Ignore bitstream errors”...
  • Page 98 Detailed Monitoring — Services The Probe is continuously gathering detailed information for the selected multicast. The VB220 will continue updating the detailed information for the selected multicast until another is selected. The Detailed Monitoring — Services view lists detected MPEG-2 TS services (by analyzing the PSI/SI tables), providing the following aggregate information for each service: Service/Pid: For each service, the service-name or service-id is obtained from the PSI/SI tables.
  • Page 99 The event log contains informative text that may prove helpful for diagnosing transport and bitstream level errors. Detailed Monitoring — IAT In the Detailed Monitoring — IAT view, the Inter Arrival Time histogram shows the accumulated number of IAT measurements within each presented interval. Vertical green lines indicate the maximum and minimum IAT values.
  • Page 100 The IAT histogram is a very useful and intuitive measure of how well the network is performing in terms of forwarding real-time traffic. A predictable and tightly bunched graph indicates small levels of network jitter. An unbound graph indicates network jitter issues typically brought forward by traffic congestion or misconfigured routers.
  • Page 101 Object URI The URI of the object as given from the field of the object URI Object Info MSYNC packet. If the file contains control information, i.e. the object type field of the MSYNC packet is equal to Object Info control Media manifest the URI is displayed as a link and the content of the object may be downloaded.
  • Page 102 The Thumb View pop-up is accessed by clicking an information icon in the Detailed Monitoring — Services view. This view presents a large thumbnail, as well as video and audio metadata for the selected stream, with an increased update rate compared to non-selected streams. The same pop-up can be opened from the Content —...
  • Page 103 SCTE 35 Placements: If the probe has been licensed with the SCTE 35 Signaling Analysis and Logging option, this displays a status bulb indicating whether the Too few SCTE 35 placement opportunities alarm is active. The SCTE 35 alarming threshold values are set as part of the content threshold template associated with each multicast (refer to the Content —...
  • Page 104 SRT Latency: The configured latency for the SRT connection. SRT streams only; not displayed for multicasts. SRT Host: The host address of the SRT stream source. SRT streams only; not displayed for multicasts. Not displayed in case of SRT mode ‘Listener’. SRT Port: The port used to receive from the SRT stream source.
  • Page 105 Interlace: Whether the video source is interlaced or not Video color metadata Range: Whether the range of visual content values in the video source are limited or not. Possible ranges: Full range, Narrow range Color primaries: The specific primary colors used to encode all colors in the video source.

  • Page 106: Multicasts - Parameters - Fields

    6.4.2 Multicasts — Parameters — Fields The Multicasts — Parameters — Fields view enables selection of the parameters to be displayed in the Multicasts — Parameters view. They are only in effect when User-defined parameters is selected as shown in Multicasts — Parameters. Note that thumbnails must also be enabled in the Setup —...
  • Page 107 The intention of this page, together with the alarm list, is to provide enough information for the operator to immediately see if there is anything seriously wrong with one or more Ethernet input streams. The overall status for the Full Service Monitoring (FSM) is also shown. Throughout this view the bulb colors indicate the most severe active alarm.

  • Page 108: Multicasts - History

    ES(RTP): Number of seconds in selected period with RTP packet-drop ES(overfl): Number of seconds in selected period with bitrate overflow ES(nosig): Number of seconds in selected period where no signal (i.e. no data) was received 6.4.4 Multicasts — History The probe keeps statistical Ethernet information for the last 4 days for visual inspection in the history timeline view.

  • Page 109: Multicasts - Detect

    RTPdrop: Accumulated number of dropped IP-frames due to network errors in the interval represented by the bar. This parameter corresponds to the sum of RTP drops reported by all streams. RTPdup: Accumulated number of duplicate IP-frames in the interval represented by the bar. This parameter corresponds to the sum of RTP dups reported by all streams.

  • Page 110: Multicasts - Join

    The source address makes it possible for the Probe to distinguish between multicasts with the same destination IP address and port, provided that Source specific multicasts has been enabled in the Setup — Params view. If the stream is currently joined by the Probe (i.e. the VB220 is currently monitoring the stream), the Joined field is set to yes.

  • Page 111: Multicasts - Streams

    6.4.8 Multicasts — Streams In this view the operator can define multicasts available to the probe and associate a name with each multicast address. This name will be used by the probe when referring to the multicast. If no name has been defined the probe will use the multicast address:port notation.
  • Page 112 General Name: A name should be assigned to each unicast/multicast. The name will be used throughout the VB220 user interface when referring to this stream. It may also be used by an external management system like the VideoBRIDGE Controller. To enable SMPTE ST 2022-7 monitoring, create two streams with the same name, but with a different class name, for each of the paths, and enable SMPTE ST 2022-7 monitoring on the Advanced tab.
  • Page 113 Extract thumbnails: When enabled, the probe will generate thumbnails for this multicast. In order to enable this option, Extract thumbnails also needs to be enabled in the Setup — Params view Join interface: Select which interface to join the selected multicast. The data interface(s) are listed, as well as any enabled VLAN interface (defined in Setup —...
  • Page 114 ETR (ETR290 Option) Enable ETR: ETR monitoring of a stream will not take place unless it is enabled by this setting. This parameter is only relevant if the probe is ETR enabled. ETR monitoring is not supported for SMPTE ST 2022-7 combined streams.
  • Page 115 Content Content thresholds: The Content thresholds specify content alarming options. Selectable Content thresholds templates are defined in the Content — Content thresh. view. Service thresholds: The Content service threshold group that should be assigned to the mul- ticast. Content service threshold groups that have been defined in the Content —...
  • Page 116 T2MI (T2MI Option) Container stream: For an T2MI inner stream the container stream (outer stream) must be specified. Select the container stream from the drop-down menu. For streams other than T2MI inner streams (none) should be selected. Data PID: The container stream PID carrying the inner stream PLP ID: The PLP ID for the inner stream.
  • Page 117 More information on SRT streams can be found in D Appendix: SRT Streams. Advanced Has FEC: The stream carries COP3 (SMPTE ST 2022-5) Forward Er- ror Correction. If enabled, statistics about FEC drops and correctible errors will be reported for the stream. SMPTE ST 2022-7 monitoring: This is a Seamless Protection Switching (SMPTE ST 2022-7) combined stream.

  • Page 118: Multicasts - Ethernet Thresh

    The VB220 supports monitoring as a receiver class C for SBR streams, as defined in SMPTE ST 2022-7:2019. L2TP (remote PHY) streams are mapped into multicasts. In order to identify the correct stream the multicast address is entered in the General tab and the session ID of the L2TP stream is specified here.
  • Page 119 entries are selected by using the regular Ctrl + click or Shift + click functionality. Click the Edit button to edit one or more selected threshold templates. Note that the predefined ‘Default’ threshold template cannot be deleted or changed. In the threshold presets list the ‘Refs’ column displays how many streams are associated with each stream threshold template.
  • Page 120 IAT:MLR warning: This threshold contains warning limits for IAT (Inter-packet Arrival Time) and MLR (Media Loss Rate). The IAT limit, in milliseconds, is the first parameter (before the colon), the MLR limit, in number of TS packets, is the last parameter. If the IAT limit is exceeded the alarm ‘IAT >= warn-thresh’...

  • Page 121: Mw (Media Window)

    PCR packets do not carry a valid CC field). The patented Sencore VideoBRIDGE Media Window presents both jitter and packet loss mea- surements in one graph, with jitter (IAT) values growing upwards (+ve Y) and packet loss (MLR) growing downwards (-ve Y).
  • Page 122 interval that depends on the range of the graph selected. Periods of no sync are also displayed in the graph. Error-second statistics for the graph-interval is displayed to the right. As the graphs are zoomed or scrolled the error-second statistics is updated as well as the graphs. Tool-tip provides the exact jitter (IAT) and packet loss (MLR) values for a selected bar in a selected graph, the denotation is IAT::MLR.

  • Page 123: Media Window - Selected Channel

    6.5.1 Media Window — Selected channel The Media Window — selected channel view is activated by clicking a multicast label in the MW page. Clicking anywhere in the running graph will zoom in, unless you already are at the maximum zoom level.

  • Page 124: Media Window - Bandwidth Graph

    6.5.2 Media Window — Bandwidth graph By clicking the BW:MLR button the graph displays the peak bandwidth as a function of time. The negative part of the composite graphs is still the packet loss (i.e. the MLR). If the stream contains a transport stream (mapping TS/x) the bitrate corresponds to the Multicasts parameter Net bitrate (i.e.

  • Page 125: Rdp (Return Data Path)

    6.6 RDP (Return Data Path) The Return Data Path feature enables forwarding of streams from any probe interface to another destination IP address. Stream may also be recorded to file, either directly or triggered by alarms. The probe supports forwarding or recording of two streams in parallel. 6.6.1 RDP —...

  • Page 126: Rdp - Setup

    6.6.2 RDP — Setup Each of the RDP engines is configured separately. First the Mode is selected. Depending on the mode either the Relay or Record settings needs to be configured. The Input selects the stream or interface to relay or record. These are the settings: Mode and Input Mode: Select whether this RDP engine should relay, record or trigger-record.
  • Page 127 Selected PIDs: The user can specify the PIDs to be selected, default is all PIDs. Typically PAT and PMT PIDs should be forwarded in addition to video and audio PIDs, however this depends on the equipment receiving the forwarded stream. When mode Relay over IP has been selected, the RDP parameters are: Relay IPv4-address: The unicast address or multicast address to forward to.

  • Page 128: Traffic

    SRT configuration options Mode: SRT can be connected using one of three connection modes: Caller: the probe sends the connection request to the peer, which must be listener, to initiate the connection. Listener: the probe waits to be contacted by any peer caller.
  • Page 129 Max bitrate: The maximum bitrate during any 1s period Min bitrate: The minimum non-zero bitrate during any 1s period Frames/sec: Traffic speed in number of IP packets per second Frames: Number of Ethernet frames Frames %: Percentage of total number of frames Min flen: Minimum Ethernet frame length Max flen: Maximum Ethernet frame length Bitrates...

  • Page 130: Traffic - Detect

    COP3 Errors: Either the L/D parameters are not consistent across the streams or payload/FEC packets are received too late or too early according to the buffer model. The number of packets with these errors. 6.7.2 Traffic — Detect The Traffic Detect view displays all UDP traffic sensed by the probe. Note that generally the upstream switch or router will not output streams that are not joined by downstream equipment, i.e.

  • Page 131: Traffic - Filter Statistics

    enabled for the probe the Detect list will contain the following additional columns: Mapping, signal, RTP drops, CC errors and Bitrate. These parameters are the same as on the Multicasts page. i : Click the blue information icon to pop up the detailed stream info if the stream is already monitored.
  • Page 132 The Traffic — Filter statistics view makes it possible to view statistics for different stream types. Stream types are defined by the user in the Traffic — Filter setup view. Statistics is displayed for a time period selected by clicking one of the time duration buttons. Filter statistics: Filter: The filter name, as defined by the user in the Traffic —...
  • Page 133 The detailed graph window displays up to 4 days of history. Trending Clicking the Trending last 60m button will present at-a glance trending graphs for each parameter for the last 60 minutes. Clicking a graph icon displays the corresponding detailed graph for the selected filter. Clicking the trend graphs itself will bring up the same detailed graph but will plot all the filters so that they can easily be compared.

  • Page 134: Traffic - Filter Setup

    The detailed trending graph above displays MLR errors for all filters. 6.7.4 Traffic — Filter setup The Traffic — Filter setup view makes it possible to define stream filter requirements affecting the Traffic — Detect and Traffic — Filter statistics views. Ten filters can be defined and enabled by the user.
  • Page 135 IP dst: The IP destination address mode: No filtering or Require matching specified value (a specific IP address/netmask) IP src: The IP source address mode: No filtering or Require matching specified value (a specific IP address/netmask) UDP dst: The UDP destination mode: No filtering or Require matching specified value (a specific UDP port number) UDP src: The UDP source mode: No filtering or Require matching specified value (a specific UDP port number)

  • Page 136: Traffic - Microbitrate

    6.7.5 Traffic — Microbitrate The Microbitrate feature allows sampling of bitrate at various sampling intervals. When enabling this feature, each Ethernet frame is timestamped in hardware on probe ingress. This timestamp is used to calculate bitrates at various sampling intervals. Due to quantisation error, the 0.1ms interval may show higher peak values than the theoretical maximum.
  • Page 137 Figure 6.2: OTT traffic example Figure 6.2 is a typical OTT traffic graph where the client periodically requests limited amounts of data at maximum speed resulting in traffic that is bursting near line-speed for short intervals while the average bitrate for larger intervals is only a fraction. This traffic shape is challenging for network equipment since it demands all remaining capacity up to line speed.
  • Page 138 Microbitrate Setup There are two alarms defined for Microbitrate: • Microbitrate bursting • Microbitrate excessive ES bursting These alarms are both associated with the user-interval, which is a user-specified graph sampling interval. If the bitrate of the user-interval exceeds the Burst threshold setting, the Microbitrate bursting alarm will be raised.

  • Page 139: Traffic - Multicast Scan

    6.7.6 Traffic — Multicast scan The Multicast scan feature is useful for scanning an IPv4 multicast interval to see which multicasts are available in the network. Detected multicasts can easily be added to the stream list. The parameters displayed are the same as in the Traffic — Detect view, please see chapter 6.7.2 for details.

  • Page 140: Ethernet

    In fast networks it is useful to increase the Simultaneous joins to a larger number. Please note that the Multicast scan and the Detect features are mutually exclusive, so it is necessary to click the Exit scan mode to resume population of the Detect list. 6.8 Ethernet 6.8.1 Ethernet —...
  • Page 141 IP address: IP address. Must be numeric, host name is not accepted OK: Total number of valid checks Fail: Total number of invalid checks Max: Maximum response time recorded Min: Minimum response time recorded Current: The current (most recent) response time Timer: Button to reset and immediately restart the service State: Current state of the service.

  • Page 142: Ethernet - Fsm - Setup

    6.8.1.2 Ethernet — FSM — Setup Each of the 10 FSM services may be defined or edited by clicking on the corresponding Edit button in the left hand table. The probe supports ping and generic HTTP GET protocols for online status verification of arbitrary targets.

  • Page 143: Ethernet - Fsm - Syslog

    Name: User-defined name of service Protocol: Select between ping and HTTP. Device: Ethernet interface to use for this service. Probe cycle: Time interval in seconds to wait between each activation. A value below 30 is not recommended. Fails threshold: The number of consecutive errors needed to raise an alarm Hostname: The IP address for the target.

  • Page 144: Ethernet - Igmp

    Newest Move to the first page Much newer Move 10 pages backwards Newer Move 1 page backwards Older Move 1 page forwards Much older Move 10 pages forwards Oldest Move to the last page Syslog server has a limited capacity which is usually enough to store the latest 10,000 messages depending on the size of the syslog messages.

  • Page 145: Ethernet - Pcap

    No: The message number since the list was cleared Time: The probe time when the message occurred Millisec: The milliseconds timestamp Source: The source IP address Destination: The destination IP address Code: The timeout code Message: The interpreted IGMP message Group: The IGMP group address 6.8.3 Ethernet —...

  • Page 146: Etr 290 (Option)

    Capture only header If enabled, only 64 first bytes of Ethernet frame is captured. This (first 64 bytes): allows higher bitrate traffic to be recorded and over longer time Capture all Check to record non-IPv4 traffic such as ARP, PIM or IPv6 non TCP/UDP traffic: Capture all TCP traffic: Check to capture all IPv4 TCP traffic Capture all UDP traffic: Check to capture all IPv4 UDP traffic...

  • Page 147: Etr 290 - Overview

    round-robin fashion by the engine. A maximum of 260 Ethernet streams may be analyzed in total. Please note that if T2MI extraction is enabled for ASI or satellite inputs, the number of multicasts that can be monitored is reduced to 247. If demodulated streams from an optional demodulator interface are present, these will also be analyzed in succession.

  • Page 148: Etr 290 - Etr Details

    data, and grey indicates that a check is disabled. Tool-tip functionality allows the user to view the name of an individual check in the MicroETR display. Let the mouse pointer hover over the field for a moment to view the tool-tip. When clicking one of the MicroETR icons the detailed ETR 290 status for that stream is displayed in the ETR 290 —...
  • Page 149 The ETR 290 parameters are grouped into five different categories. The first three groups are defined in the ETSI TR 101 290 guidelines. The fourth category contains checks defined by Sencore allowing CA system checks, custom PID and service checks and the Gold TS reference checks. The last category contains checks of the input interfaces such as RF measurements for demodulators.
  • Page 150 Clicking the Show alarm graph button opens the Alarm graph pop-up view. The alarm graph shows the ETR alarm status over time in the form of a status timeline. The timeline bar shows the stream status for a time span of 90 minutes, 8 hours or 24 hours as selected by clicking the time selection buttons below the timelines.

  • Page 151: Etr 290 - Pids

    6.9.3 ETR 290 — PIDs This view lists the PIDs of the currently active stream of the selected input. The PID list can be sorted by clicking a table column header. The name of the current stream is displayed in addition to the two round-robin indicator icons when relevant: the time cycle icon and the lock icon.

  • Page 152: Etr 290 - Services

    PID: The PID for which the following parameters apply Current bitrate: The current bitrate measurement for this PID. The bitrate is averaged over 1 second. Minimum bitrate: The minimum bitrate measurement for this PID since the start of the monitoring period. (I.e. when the probe tuned to the frequency or when the monitoring of this frequency was restarted by the user clicking on Clear status in the ETR 290 —...
  • Page 153 stopped or resumed. A DVB, ATSC or ISDB icon indicates the analysis mode. The analysis mode is defined as part of the ETR thresholds. When tree nodes are selected, detailed information will be displayed on the right hand side of the view.
  • Page 154 If a PID is scrambled this is indicated in the service tree by the color green or blue (for even and odd scrambling respectively). A missing PID is indicated by the color red. Click on the PID to show more details. Click the Show thumbnail button to view a thumbnail of the selected service.
  • Page 155 Components: A list of the component PIDs and reference types. For PIDs which have a language descriptor (typically audio PIDs) the language code is also shown. EPG: If DVB EIT is present in the stream, the EIT check is enabled in the ETR template used by the stream and EIT table IDs are configured in the Setup —...
  • Page 156 Minimum bitrate: The minimum bitrate measurement for this PID since the start of the monitoring period. (I.e. when the probe tuned to the frequency or when the monitoring of this frequency was restarted by the user clicking Clear status in the ETR 290 — ETR Details view.) Maximum bitrate: The maximum bitrate measurement for this PID since the start of the monitoring period.

  • Page 157: Etr 290 - Bitrates

    6.9.5 ETR 290 — Bitrates This view shows a graphical representation of service and PID bitrates. The current bitrate is shown as the length of the light blue bar whereas the dark blue bar represents bitrate variation, spanning from minimum to maximum measured bitrate. The name of the current stream is displayed in addition to the two round-robin indicator icons when relevant: the time cycle icon and the lock icon.
  • Page 158 This view lists the PSI and SI or ATSC tables and table contents of the currently active stream of the selected input. The name of the current stream is displayed in addition to the two round-robin indicator icons when relevant: the time cycle icon and the lock icon. By clicking the lock icon the round-robin cycling is stopped or resumed.
  • Page 159 The selected table entry is highlighted in the table dump. Note that values shown in the table list may not correspond directly to the highlighted hex dump byte(s), because some of the table entries do not add up to whole bytes. By hovering the cursor over the items in the tree a tool-tip is displayed showing the start position of the data in the hexadecimal dump and the length of data.
  • Page 160 For streams which have electronic program guide (EPG) information in the EIT table and the extraction of this information is enabled (in ETR thresholds and in Setup — ETR) the tree will show the text EPG (for ATSC streams EPG will be displayed regardless if EITs are present in the stream).
  • Page 161 To get detailed information about one event, click the binary symbol . This will open a popup window with parsing of the underlying EIT table. The information can be displayed either in detailed hex mode: VB2xx GigE User’s Manual version 6.5...

  • Page 162: Etr 290 - Pcr

    Or in summary mode: 6.9.7 ETR 290 — PCR The PCR jitter histogram displays PCR jitter as measured by the probe. A list of detected PCR PIDs in the selected stream is shown together with their current and maximum PCR jitter values. A PCR PID is selected for histogram presentation by clicking the associated table entry.
  • Page 163 stopped or resumed. The push-buttons Zoom in and Zoom out enables rescaling of the graph. This makes it possible to view PCR jitter values that are outside the range defined by the auto-scaling. Clicking the Clear button will clear historical data from the histogram. Tool-tip functionality provides information about each histogram bar: the number of samples, the percentage of total number of samples and the jitter interval represented by the bar.

  • Page 164: Etr 290 - T2Mi (Requires T2Mi-Opt)

    6.9.8 ETR 290 — T2MI (requires T2MI-OPT) T2MI monitoring is a licensed option available for transport streams over ASI, satellite and Ethernet. T2MI is enabled on a per stream basis, most of the information is found in this GUI extracted from the L1 current packets in the T2MI streams.
  • Page 165 Crc Errors BB header: The number of CRC errors on the BB header detected since the monitoring of the stream started. Crc Errors whole packet: The number of CRC errors calculated over the whole T2MI packet since the monitoring of the stream started. L1 information: T2 version: The version of the T2 spec used.
  • Page 166 Number of RF: The number of RF frequencies used to transmit the signal. Frequencies: The list of frequencies used to transmit the signal. Normally only one frequency will be used. Current RF index: The index of the frequency currently being used for the transmission. Start RF idx: The starting RF index.
  • Page 167 Detailed PLP information: PLP: The ID of the signaled PLP. Type: The signaled type of the PLP. Data PLP Type 1 is the most common, some signals can have a common PLP as well as well as other PLP types. Payload: Payload type of this PLP.

  • Page 168: Etr 290 - Status

    In band B: Says if in-band type B signaling is used for this PLP. PLP mode: The PLP mode for this PLP. Static: Says whether the PLP bandwidth is static or not static. Static padding: Says whether the padding is static or can change between each BB frame.

  • Page 169: Etr 290 - Compare

    6.9.10 ETR 290 — Compare The Compare view is based on analysis performed by the ETSI TR 101 290 engine and only the streams monitored by ETR will be listed. The Compare view allows comparison of services or transport streams across different probe interfaces.
  • Page 170 presented in one column for each service/stream, and it is easy to recognize differences in signal contents or alarm status. The number of streams that can be compared depends on screen size. The compare column consists of several sub-views: Stream overview Stream overview shows a number of key parameters for the selected stream/service.
  • Page 171 Min. eff. bitr: The minimum effective bitrate (null packets removed) measured for the selected stream or the stream containing the selected service Max. eff. bitr: The maximum effective bitrate (null packets removed) measured for the selected stream or the stream containing the selected service Min.
  • Page 172 If a transport stream is selected for comparison the Service alarms sub-view displays a list of services present in the stream. If there is one or more active alarms for a service this will be indicated by a red ‘bulb’ whereas a green ‘bulb’ indicates no active alarms. If a service is affected by one or more active alarms these alarms may be viewed by expanding the service tree.
  • Page 173 The Alarm graph sub-view shows similar alarm graphs as the ETR 290 — ETR Details — Alarm graph popup view. Please refer to the ETR 290 — ETR Details section of this User’s Manual for a comprehensive description of this view. ETR Details The ETR details sub-view shows the same alarm overview as the ETR 290 —...

  • Page 174: Etr 290 - Etr Threshold

    6.9.11 ETR 290 — ETR threshold The ETR thresholds make it possible to define detailed conditions for ETR 290 alarm triggering on a per-stream basis. There are seven predefined ETR threshold templates that are write-protected and cannot be edited by the operator: •...
  • Page 175 Deleting an ETR threshold template is done by highlighting the threshold template that should be removed and clicking Delete highlighted. Note that if the deleted threshold template is assigned to a stream currently being monitored, the new threshold for that stream will default to the predefined Default threshold template.
  • Page 176 Error timeout (s): The number of seconds an alarm stays active before it is cleared, if no new alarms are generated. For all table related alarms the actual alarm timeout used is the sum of the Error timeout parameter and the maximum table repetition period.
  • Page 177 Minimum section The minimum allowed gap between transmission of two consecutive gap (ms): sections with the same table ID. If the sections are transmitted too rapidly the STB may not be able to process the data in time and various problems can occur.
  • Page 178 PAT – Allowed When this field is left blank all TS IDs are considered valid. If one or Transport Stream IDs: more TS IDs are specified (separated by commas or as a range) only these IDs are considered valid, and any other TS ID will trigger an alarm.
  • Page 179 ETR Thresholds — Priority 2: Transport: Enable or disable alarming of Transport error indicator errors CRC: Enable or disable alarming of checksum errors for tables CRC – Check EIT: When enabled alarming of CRC errors in the EIT tables will be performed.
  • Page 180 PTS – Minimum The minimum allowed value for the measurement of the signaled PTS ahead of PCR (ms): PTS versus the current PCR clock. If the PTS value sent refers to a PCR clock time that have already passed the measurement will be negative.
  • Page 181 ETR Thresholds — Priority 3: NIT: Enable or disable alarming of Network Information Table errors. Only relevant when DVB mode is selected. NIT – Maximum The maximum allowed section repetition interval for the NIT interval actual (ms): actual table. Default according to ETSI TR 101 290: 10 s NIT –...
  • Page 182 NIT – Terrestrial If set to ‘Required’ an alarm will be generated if a DVB-T Ter- descriptor (DVB-T): restrial descriptor is not present in the NIT for the monitored frequency. Similarly if set to ‘Not allowed’, an alarm will be generated if the DVB-T Terrestrial descriptor is present.
  • Page 183 EIT – Maximum The maximum allowed section repetition interval for the EIT interval actual (ms): actual table. Default according to ETSI TR 101 290: 2 000 ms EIT – Minimum The minimum allowed section gap interval for the EIT tables. gap interval (ms): Default according to ETSI TR 101 290: 25 ms EIT –...
  • Page 184 MGT – Maximum The maximum allowed section repetition interval for the MGT interval (ms): table. Default: 150ms VCT: Enable or disable alarming of Virtual Channel Table errors. Only relevant when ATSC mode is selected. VCT – Require TVCT: Require presence of the Terrestrial Virtual Channel Table. VCT –...
  • Page 185 ATSC EIT – Maximum The maximum allowed section repetition interval for the ATSC interval EIT–1 to EIT–1 to EIT–3 tables. Default: 5000ms EIT–3 (ms): ATSC EIT – Maximum The maximum allowed section repetition interval for the ATSC interval EIT–4 to EIT–4 to EIT–127 tables.
  • Page 186 ETR Thresholds — Other checks: CA system checks: Enable or disable alarming of Conditional Access System errors. CA system checks – The maximum allowed ECM repetition interval. Default: 500 ms Maximum ECM interval (ms): CA system checks – The maximum time allowed between ECM changes. Default: Maximum ECM 25000ms change period (ms):...
  • Page 187 Service checks – Check this box to enable service ID checks against the service ID Only allow services listed list specified in the service threshold template associated with the in service template: stream. MIP check: Enable or disable alarming of errors related to the Megaframe Insertion Packet.
  • Page 188 Time information check: Enable or disable alarming if there are errors in the time information sent in the streams. Probe should use NTP time sync to use this functionality. Time information check – Check the time in the TDT table and alarm if it is wrong. Check TDT: Time information check –...
  • Page 189 Pre FEC bit error If enabled an alarm will be raised provided that the pre FEC BER rate check: measured is above the threshold value associated with the stream. Only relevant for RF signals. Post FEC bit error If enabled an alarm will be raised provided that the post FEC BER rate check: measured is above the threshold value associated with the stream.
  • Page 190 SFN measurement check – To further improve the SFN drift measurements a PCR PID can Use PCR compensation. be specified. This PID will be used to zero-adjust the SFN drift PCR PID: measurements automatically when the interface card have been retuned.

  • Page 191: Etr 290 - Pid Thresholds

    EVM: Enable or disable alarming when the Error Vector Magnitude is higher than the threshold set in the RF template.Only relevant for DVB-S/S2 RF signals. LDPC iteration Enable or disable alarming when the LDPC iteration count needed count check: to recover the signal is higher than the threshold set in the RF template.
  • Page 192 threshold template is by highlighting one of the templates already defined and then click the Duplicate highlighted button. Deleting a PID threshold template is done by highlighting the threshold template that should be removed and clicking Delete highlighted. Note that if the deleted threshold template was assigned to a stream being monitored, the new threshold for that stream will default to the predefined Default threshold template.
  • Page 193 Monitor max BW: An alarm is raised if the maximum PID bandwidth specified is ex- ceeded (bandwidth in kbit/s or Mbit/s) and monitoring is enabled. Max PTS interval (ms): If the checkbox is enabled, the PTS interval measurement will be enabled for this PID and use the configured threshold.

  • Page 194: Etr 290 - Service Thresh

    6.9.13 ETR 290 — Service thresh. The Service thresholds make it possible to define detailed conditions for alarm triggering on a per-service basis. There is one predefined service threshold template that cannot be edited by the operator: Default. The Default service threshold template contains no service definitions and will therefore not alter alarming for any service.
  • Page 195 Edit Service Threshold Name: A text string that identifies the service threshold group Description: Text field that should contain a meaningful description of the threshold Service Threshold Parameters Selection: The user selects if the requirements should apply for a specific service ID (as specified in the ID column), for all services of a specified type or for a service with a specified service name (as specified in the Monitor name column).
  • Page 196 Report name: It is possible to define the service name that should be used for alarm traps and for alarm reporting to the VideoBRIDGE Controller. This can be convenient to be able to track a service that changes name (as signaled in PSI/SI) in the signal chain, when services within an MPTS are unnamed (no service names in the SDT) or when services should be recognized by the VideoBRIDGE Controller under a different name than indicated in the...

  • Page 197: Etr 290 - Gold Ts Thresholds

    6.9.14 ETR 290 — Gold TS thresholds The Gold TS reference feature is used to compare the tables in the transport stream with a set of stored reference tables. This allows the operator to be notified of any changes in the PSI/SI tables such as: •...
  • Page 198 There are two different ways of creating a Gold TS reference template: • Creating a template for the currently tuned stream on a specific input • Creating a template for all streams on a specific input (or all inputs) When creating a template for a specific stream the table set is saved immediately. It is therefore recommended that the ETR tuning is locked to this stream to avoid the round-robin operation from tuning to a new frequency just before the table set is stored.
  • Page 199 The reference check needs to be set to alarm if the Gold TS reference checking are to be performed. The settings are as follows: Also check version By default the version number and the original CRC of the tables are number and CRC not checked.
  • Page 200 Verify CAT table When enabled the Conditional Access Table will be checked. This allows the operator to catch errors related to the signaling for the CA Systems such as EMM PID disappearing or the CA System ID being changed Verify SDT actual table When enabled the SDT table for the current stream will be checked. This allows the operator to catch changes is service and operator names, service types and the various descriptors, both DVB defined and private descriptors...
  • Page 201 robin. To view the status go to the ETR Details page for the stream and click the Reference check: All the different tables and sections monitored are listed here. If there have been any changes to the tables the check will turn red and alarms be sent. When the ETR engine is tuned to a stream it is possible to compare the tables for this stream with the stored reference tables by clicking on the entry in the list.
  • Page 202 If the tables are inspected and the change found to be OK the operator can then go back to ETR 290 — Gold TS thr. and update the stored table set to the new version. VB2xx GigE User’s Manual version 6.5...

  • Page 203: Content

    6.10 Content 6.10.1 Content — Thumbnails The Thumbnails view displays a mosaic of all decoded thumbnails. By default the Normal mode is used. Placeholder images will be displayed if thumbnail generation has not been enabled in the Setup — Params view, or by default for demodulator and ASI inputs, indicating the type of stream being received.
  • Page 204 Freeze-frame status: Status bulbs are displayed indicating the current freeze-frame and color- freeze status for the streams. The freeze-frame error timeout values are set as part of the content threshold template associated with each multicast or OTT channel (refer to the Content – Content thresh. view). The different bulb colors are: White: Unknown (typically due to the VB220 being unable to decode video) Grey: freeze-frame detection is disabled.

  • Page 205: Content - Scte 35 (Requires Scte35-Opt)

    6.10.2 Content — SCTE 35 (requires SCTE35-OPT) SCTE 35 is a specification which allows equipment to splice in local content at specific times, SCTE 35 is basically just the signaling mechanism the equipment uses to know when to switch from the master transmission to insert local content.
  • Page 206 Content — Content thresh. and configure the transport stream or OTT channel to use that content threshold. If it contains SCTE 35 or SCTE 104 information, the stream will be added to the list in the SCTE 35 view. By pressing the blue information button a new pop-up will show up, the pop-up will give specific information about events in the specified transport stream or OTT channel.

  • Page 207: Content - Content Thresh

    Please note that for some OTT manifest formats, the SCTE 35 message is not transmitted in binary form, and the message shown in the Event details view is then synthesized from the available input. 6.10.3 Content — Content thresh. Thresholds are used to determine when to actually raise an alarm upon detection of an error. The Content thresholds are used for generating content alarms as well as for calculating error-seconds.
  • Page 208 will appear allowing the user to define alarm conditions. Another way of creating a user-defined threshold template is by highlighting one of the threshold templates already defined and then click the Duplicate highlighted button. Deleting a threshold template is done by highlighting the threshold template that should be removed and clicking Delete selected.
  • Page 209 Freeze-frame detection sensitivity: Picture matching in video streams is not an exact science, as noise can be introduced in many of the stages the stream goes through. This setting makes it possible to de- fine the amount of noise to be allowed when performing freeze-frame detection.
  • Page 210 SCTE 35 Monitor SCTE 35: If enabled, SCTE 35 and SCTE 104 events are cap- tured and displayed in the Content – SCTE 35 view Maximum SCTE 35 event gap: Specifies the maximum number of seconds allowed between two SCTE 35 or SCTE 104 events before an alarm is raised.
  • Page 211 Minimum event pre-roll time: Specifies the minimum number of seconds allowed between when the SCTE 35 event is received and when the splice is supposed to happen. An alarm will be raised for five seconds when this is detected. Set to –1 to disable these alarms.

  • Page 212: Content - Service Thresh

    6.10.4 Content — Service thresh. Thresholds are used to determine when to actually raise an alarm upon detection of an error. The Content — Service thresh. view makes it possible to define detailed conditions for alarm triggering on a per-service basis. This is particularly useful to specify individual alarm handling rules for services in a multi-program transport stream (MPTS).
  • Page 213 Edit Service Threshold Name: A text string that identifies the service threshold group Description: Text field that should contain a meaningful description of the threshold Service Threshold Parameters ID: The service ID for which the associated thresholds should apply. For an SPTS the service ID will generally be 1;...

  • Page 214: Asi

    6.11 ASI The ASI will have status information and configuration settings for the built in ASI port. More information about the stream being monitored is found in the ETR 290 — ETR Details view. Thumbnails for the ASI services are accessed from the ETR 290 — Services and Content — Thumbnails views.
  • Page 215 Network ID: The network ID as specified in the NIT table Transport Stream ID: The transport stream ID as specified in the PAT table Total bitrate: Total transport stream bitrate including null packets (PID 8191) Min total bitrate: The minimum total bitrate including null packets Max total bitrate: The maximum total bitrate including null packets Effective Bitrate: Transport stream bitrate excluding null packets (PID 8191) Min effective bitrate: The minimum effective bitrate excluding null packets...
  • Page 216 SFN drift slew rate: The SFN drift slew rate measurement takes the individual, unfiltered and non-averaged SFN drift measurements and computes a number of difference measurements between current and previous value. A number of the most recent difference measurements are then summed together and divided by the averaging window constant setting that forms part of the ETR290 template.

  • Page 217: Asi - Setup

    6.11.2 ASI — Setup The ASI — Setup view enables selection of thresholds for the ASI input transport stream. In addition a name is assigned to the ASI stream. When changes have been made in the ASI — Setup view the Apply changes button should be clicked for the changes to take effect. ASI - ASI setup info: Name: A user specified name for the ASI transport stream ETR thresholds: The name of the ETR threshold template assigned to the ASI...

  • Page 218: Asi (Vb242 And Vb246 Option For Vb220)

    Content schedule: The scheduling scheme that should be assigned to the content monitoring for the ASI transport stream. Scheduling schemes that have been defined in the Setup — Scheduling view are available for selection from the drop-down menu. Scheduling allows masking content alarms at predefined time periods. The schedules can be overridden for specific services using Content service thresholds.

  • Page 219: Vb246

    VB220 VB220 ASI1 ASI1 ASI2 ASI2 ASI3 ASI3 ASI4 ASI4 ASI5 ASI5 VB242 VB242 ASI6 ASI6 ASI1 ASI1 ASI2 ASI2 ASI3 ASI3 ASI4 ASI4 ASI5 ASI5 VB242 VB242 ASI6 ASI6 Figure 6.4: Signal routing with two VB242 modules 6.12.2 VB246 The VB246 module offers continuous monitoring of all 6 ASI inputs.

  • Page 220: Asi Redundancy Switch (Vb242/Vb246 And Vb243 Option For Vb220)

    The left part of the screen displays summary information for all 6 ASI inputs on the VB246 card. This information includes the tuning name, TS sync status, effective and total bitrates. Clicking on one of the inputs selects that input for display and the information on the rest of the screen updates to display more in depth status.
  • Page 221 and the redundancy has to be enabled in the drop-down list and checkbox. Each interface may have their own thresholds set in the corresponding tuning setup. Typically one would want to have the same threshold used for both inputs in a redundancy system. VB2xx GigE User’s Manual version 6.5...

  • Page 222: Redundancy Status And Overview

    6.13.3 Redundancy status and overview The Redundancy tab GUI will provide a simple overview of the status on both input signals, which ETR alarms and redundancy options that is enabled, and which redundancy mode is enabled. 6.13.4 Redundancy modes The probe has three different redundancy modes giving the operator different levels of control. When the physical buttons on the redundancy card is pressed this will override the settings configured in the GUI.

  • Page 223: Status For Input

    6.13.5 Status for input Each input may have different status, thresholds and redundancy rules defined. Both of the inputs will have a dedicated area in the Redundancy tab. ETR parameters is listed with colors and shapes depending on the status. Input status: A square with solid color means that the input signal has both alarming and redundancy switching enabled for the ETR check.

  • Page 224: Cofdm - Status

    6.14.1 COFDM — Status (Channel Impulse Response graph requires The Advanced RF Option.) The COFDM — Status view gives an overview of the key input interface parameters. Click the graph button to display a detailed graph for the specified parameter. For probes licensed with FLASH32-OPT, the graph can contain up to 7 days of measurements.
  • Page 225 Sync: A ‘bulb’ indicating frequency lock when green, red indicates no lock 1 PPS input lock: A ‘bulb’ indicating reference signal lock when green, red indicates no lock for the 1 PPS input Level: This is a measure of the channel power into the channel bandwidth configured.
  • Page 226 SFN zero offset: When a PCR PID has been specified the accuracy of the SFN drift measurements will be improved. When the probe tunes to the signal the SFN drift measurement will be automatically zero adjusted for optimum performance. The adjustment factor used will be displayed as SFN zero offset.
  • Page 227 PID thresholds: The name of the PID threshold template assigned to the current fre- quency Service thresholds: The name of the Service threshold template assigned to the current frequency RF thresholds: The name of the RF threshold template assigned to the current frequency VBC thresholds: The name of the VBC threshold template assigned to the current fre- quency Please note: If the signal power is stronger than −10 dBm there will be a warning shown by GUI.
  • Page 228 DVB-T L1 Information Mode: The OFDM mode (DFT size). Possible OFDM modes are 2K and 8K GI: The guard interval. The guard interval may be 1/4, 1/8, 1/16 or 1/32 Constellation: Modulation constellation. Constellation may be QPSK, 16-QAM or 64- Hierarchy: DVB-T hierarchy can have the values ‘None’, 1, 2 or 4.
  • Page 229 T2 Version: DVB-T2 Version: 1.1.1 1.2.1 1.3.1 Post scrambling: Informs if L1-Post scrambling is enabled, supported from DVB-T2 v1.3.1. ‘True’ or ‘False’. DVB-T2 profile: Determines current profile of DVB-T2 Signal: Base Lite (only supported in DVB-T2 v1.3.1) Base compatible with Lite: Indicates if the DVB-T2 Base Profile is compatible with DVB-T2 Lite profile.
  • Page 230 L1 Repeat: L1 repeat enable flag. ‘True’ or ‘False’. GI: The guard interval used for the current super-frame. ‘1/4’, ‘1/8’, ”1/16”, ‘1/32’, ‘1/218’, ‘19/128’, ‘19/256’ PAPR: Peak to average power ratio indicator. ‘None’, ‘ACE’, ‘TR’, ‘TR- ACE’ L1 post constellation: The L1-post modulation in the current frame. ‘BPSK’, ‘QPSK’, ‘16-QAM’, ‘64-QAM’.
  • Page 231 Rotated: Indicates if constellation is rotated. ‘True’ or ‘False’. FEC: The FEC (Forward Error Correction) type used on this PLP. ‘LDPC (Low-density parity-check) 16K (Short FECFrame)’, ‘LDPC (Low- density parity-check) 64K (Long FECFrame)’. - DVB-T2 Base Only. Num blocks: Maximum number of PLP blocks. Frame interval: The T2 frame interval within the super frame of this PLP.

  • Page 232: Cofdm - Tuning Setup

    6.14.2 COFDM — Tuning setup In this view the operator can define frequencies that will be used by the RF demodulator for tuning. A name is associated with each tuning configuration, and this name will be used by the probe when referring to the stream.
  • Page 233 COFDM — Tuning setup — Edit: Name: A name should be assigned to each tuning configuration. Frequency: The channel center frequency in MHz. Note that the center fre- quency of DVB-T/T2 transmissions is sometimes changed by an offset of ±167 kHz in order to avoid interference with neighboring analogue channels.
  • Page 234 Content service thresholds: The Content service threshold group that should be assigned to the current frequency. Content service threshold groups that have been defined in the Content — Service thresh. view are available for selection from the drop-down menu. Content schedule: The scheduling scheme that should be assigned to the content monitoring for the current frequency.

  • Page 235: Cofdm - Rf Threshold

    6.14.3 COFDM — RF threshold The probe will raise an alarm if one of the threshold settings associated with a tuning is violated. Note that this alarm may be disabled in the ETR 290 — ETR thr. — Edit view (Input interface checks).
  • Page 236 The RF threshold parameters are: RF threshold — Edit: Name: A text field describing the threshold template Maximum pre Viterbi/LDPC BER: Threshold level for bit error ratio before Viterbi or LDPC error correction Maximum pre RS/BCH BER: Threshold level for bit error ratio before Reed-Solomon or BCH error correction Maximum post BCH FER: Threshold level for bit error ratio after BCH error correc- tion...
  • Page 237 Minimum signal strength: Threshold level for minimum signal strength. This is a measure of the stream signal power. It is expressed according to the level mode selection made in the Setup — ETR view: dBm: in decibels relative to a reference value of 1 mW dB µV: in decibels relative to a reference value of 1 µV dB mV: in decibels relative to a reference value of 1 mV Maximum signal strength: Threshold level for maximum signal strength.
  • Page 238 Enable: It is possible to enable or disable time location and level check of an impulse. Mark the ‘Enable’ check- box for the probe to raise alarm if an impulse peak is not found within the graph box defined by the specified time and power limits.
  • Page 239 Modulation parameter checks: DVB-T2 L1 Pre Constellation: Set the expected Constellation value (modulation scheme) associated with the DVB-T2 system FFT Mode: Set the nominal FFT size for a particular mode GI: Set the expected Guard Interval value PAPR: Describes what kind of PAPR (Peak to Average Power Ratio) reduction that is expected, if any PP: Set the expected pilot pattern used for the OFDM data symbols Data symbols: Set the expected number of OFDM data symbols per T2-frame (excluding P1...
  • Page 240 Network ID: Set the expected ID of the current DVB network Cell ID: If non-zero, check if this T2 system has the expected geographic cell within the DVB-T2 network CRC32: Set the expected 32-bit error detection code computed from the entire L1-pre signaling Modulation parameter checks: DVB-T2 L1 PLP Type: Set the expected type of Tx input stream carried within the T2 super-frame...

  • Page 241: Cofdm - Impulse Response (Requires Advanced Rf Option)

    6.14.4 COFDM — Impulse response (Requires Advanced RF Option) The impulse response graph displays impulses as a function of time and power with reference to the main impulse. If impulse threshold values have been assigned to DVB-T/T2 stream (frequency) these will become visible in the graph as highlighted boxes defining minimum and maximum values for impulse time and power for each enabled impulse.

  • Page 242: Isdb-T (Vb256 Option Module For Vb220)

    The RF parameters and measurements list gives a status overview of all monitored DVB-T/T2 frequencies from the selected RF input. The parameters and measurements in this list refer to the last completed monitoring period or, for a stream currently monitored, the current monitoring period. List of RF parameters and measurements: Name: The name assigned to the stream Frequency: The stream frequency that the associated parameters apply to...

  • Page 243: Isdb-T - Status

    ISDB-T1 is the leftmost input as seen from the front of the unit. There can be up to four ISDB-T tabs (ISDB-T1 through to ISDB-T4) depending on card configuration and licenses. For the VB256 one input is active by default and the second input can be activated through the SECOND-RF-INPUT-OPTION license key.
  • Page 244 Min effective bitrate: The minimum effective bitrate excluding null packets Max effective bitrate: The maximum effective bitrate excluding null packets ISDB-T status - ISDB-T demod info: Sync: A ‘bulb’ indicating frequency lock when green, red indicates no lock Level: This is a measure of the channel power into the channel bandwidth configured.

  • Page 245: Isdb-T - Tuning Setup

    Please note: If the signal power is stronger than −10 dBm there will be a warning shown by GUI. This is to warn a user to apply some attenuation on the input to protect the analog front end on the VB256.
  • Page 246 The following parameters are defined for each tuning entry: ISDB-T — Tuning setup — Edit: Name: A name should be assigned to each tuning configuration. Frequency: The channel center frequency in MHz. Channel spacing: The channel spacing in MHz RF thresholds: Selection of the ISDB-T threshold template that should be as- signed to the current frequency ETR thresholds: Selection of the ETR threshold template that should be assigned to the current frequency...
  • Page 247 Content service thresholds: The Content service threshold group that should be assigned to the current frequency. Content service threshold groups that have been defined in the Content — Service thresh. view are available for selection from the drop-down menu. Content schedule: The scheduling scheme that should be assigned to the content monitoring for the current frequency.

  • Page 248: Isdb-T - Rf Threshold

    6.15.3 ISDB-T — RF threshold The probe will raise an alarm if one of the threshold settings associated with a tuning is violated. Note that this alarm may be disabled in the ETR 290 — ETR thr. — Edit view (Input interface checks).
  • Page 249 The RF threshold parameters are: RF threshold — Edit: Name: A text field describing the threshold template Maximum pre Viterbi/LDPC BER: Threshold level for bit error ratio before Viterbi or LDPC error correction Maximum pre RS/BCH BER: Threshold level for bit error ratio before Reed-Solomon or BCH error correction Maximum post BCH FER: Threshold level for bit error ratio after BCH error correc- tion...

  • Page 250: Rf (Vb258 Option Module For Vb220)

    Maximum signal strength: Threshold level for maximum signal strength. This is a measure of the stream signal power. It is expressed according to the level mode selection made in the Setup — ETR view: dBm: in decibels relative to a reference value of 1 mW dB µV: in decibels relative to a reference value of 1 µV dB mV: in decibels relative to a reference value of 1 mV Maximum frequency offset: Threshold level for maximum center frequency offset...

  • Page 251: Rf - Status

    6.16.1 RF — Status The RF — Status view gives an overview of the key input interface parameters. The parameters shown will depend on the modulation type of the currently tuned signal. Click the graph button to display a detailed graph for the specified parameter. For probes licensed with FLASH32-OPT, the graph can contain up to 7 days of measurements.
  • Page 252 Sync: A ‘bulb’ indicating frequency lock when green, red indicates no lock 1 PPS input lock: A ‘bulb’ indicating reference signal lock when green, red indicates no lock for the 1 PPS input Level: This is a measure of the channel power into the channel bandwidth configured.
  • Page 253 SFN zero offset: When a PCR PID has been specified the accuracy of the SFN drift measurements will be improved. When the probe tunes to the signal the SFN drift measurement will be automatically zero adjusted for optimum performance. The adjustment factor used will be displayed as SFN zero offset.
  • Page 254 Status - Tuning info: Name: The name assigned to the current frequency channel Frequency: The channel center frequency in MHz Transmission system: The transmission system can be DVB-T, DVB-T2, DVB-C, QAM B, ISDB-T, ATSC 1.0 and ATSC 3.0 Channel spacing: The channel spacing in MHz ETR thresholds: The name of the ETR threshold template assigned to the current fre- quency PID thresholds: The name of the PID threshold template assigned to the current fre-...
  • Page 255 DVB-T L1 Information Mode: The OFDM mode (DFT size). Possible OFDM modes are 2K and 8K GI: The guard interval. The guard interval may be 1/4, 1/8, 1/16 or 1/32 Constellation: Modulation constellation. Constellation may be QPSK, 16-QAM or 64- Hierarchy: DVB-T hierarchy can have the values ‘None’, 1, 2 or 4.
  • Page 256 DVB-T2 L1 Pre Information T2 Version: DVB-T2 Version: 1.1.1 1.2.1 1.3.1 Post scrambling: Informs if L1-Post scrambling is enabled, supported from DVB-T2 v1.3.1. ‘True’ or ‘False’. DVB-T2 profile: Determines current profile of DVB-T2 Signal: Base Lite (only supported in DVB-T2 v1.3.1) Base compatible with Lite: Indicates if the DVB-T2 Base Profile is compatible with DVB-T2 Lite profile.
  • Page 257 BW extended: Bandwidth extension indicator (only for 8K/ 16K/ 32K). ‘True’ or ‘False’. S1: S1 Signaling. P1 S1 0 – T2_SISO (Single input, single output) 1 – T2_MISO (Multiple input, single output) 2 – Non DVB-T2 S2: S2 Signaling. P1 S2 0 –...
  • Page 258 Number frames: Number of T2-frames per T2 super-frame. Number symbols: Number of OFDM symbols per T2-Frame. Regen: Regeneration count indicator. Post ext: L1-post extensions enabled. Number RF Freqs: The number of RF frequencies in use. RF Index: The current RF index. PLP count: Number of PLPS (Physical Layer Pipes) CRC32: The CRC32 value signaled for the L1 information) DVB-T2 L1 PLP Information:...

  • Page 259: Rf - Tuning Setup

    Mode: PLP (Physical Layer Pipe) Mode. ‘HEM (High Efficiency Mode)’, ‘Normal’ DVB-T2 L1 Post Information Sub Slices per frame: The number of sub-slices per T2 Frame. PLP count: The number of PLPs (Physical Layer Pipes) in the current super frame. Aux count: Number of auxiliary streams.
  • Page 260 The following parameters are defined for each tuning entry: RF — Tuning setup — Edit: Name: A name should be assigned to each tuning configuration. Frequency: The channel center frequency in MHz. Note that the center fre- quency of DVB-T/T2 transmissions is sometimes changed by an offset of ±167 kHz in order to avoid interference with neighboring analogue channels.
  • Page 261 SFN drift reference: For DVB-T signals this should be set to ‘DVB-T MIP’ to use the information in the MIP table to perform the SFN timing analysis. For DVB-T2 the RF signal does not contain the information needed to calculate the SFN drift (this also applies to signals with DVB-T2 MIP).
  • Page 262 Extract thumbnails: When enabled, the probe will generate thumbnails for this tuning whenever tuned to it. If not, they can be generated manually by opening the thumbnail pop-up from the Content — Thumbnails and ETR 290 — Services views. Enable tuning: If this box is checked, the transport stream associated with the current frequency will be monitored It is also possible to add new frequencies manually by copying existing tuning list entries using the Duplicate highlighted button.

  • Page 263: Rf - Rf Threshold

    Rename existing: If the ‘Rename existing’ checkbox is marked, imported tun- ings that are already present in the tuning list will be renamed in accordance with the naming policy selected by the user. 6.16.3 RF — RF threshold The probe will raise an alarm if one of the threshold settings associated with a tuning is violated. Note that this alarm may be disabled in the ETR 290 —...
  • Page 264 The RF threshold parameters are: RF threshold — Edit: Name: A text field describing the threshold template Maximum pre Viterbi/LDPC BER: Threshold level for bit error ratio before Viterbi or LDPC error correction Maximum pre RS/BCH BER: Threshold level for bit error ratio before Reed-Solomon or BCH error correction Maximum post BCH FER: Threshold level for bit error ratio after BCH error correc- tion...
  • Page 265 Minimum signal strength: Threshold level for minimum signal strength. This is a measure of the stream signal power. It is expressed according to the level mode selection made in the Setup — ETR view: dBm: in decibels relative to a reference value of 1 mW dB µV: in decibels relative to a reference value of 1 µV dB mV: in decibels relative to a reference value of 1 mV Maximum signal strength: Threshold level for maximum signal strength.
  • Page 266 Enable: It is possible to enable or disable time location and level check of an impulse. Mark the ‘Enable’ check- box for the probe to raise alarm if an impulse peak is not found within the graph box defined by the specified time and power limits.
  • Page 267 Modulation parameter checks: DVB-T2 L1 Pre Constellation: Set the expected Constellation value (modulation scheme) associated with the DVB-T2 system FFT Mode: Set the nominal FFT size for a particular mode GI: Set the expected Guard Interval value PAPR: Describes what kind of PAPR (Peak to Average Power Ratio) reduction that is expected, if any PP: Set the expected pilot pattern used for the OFDM data symbols Data symbols: Set the expected number of OFDM data symbols per T2-frame (excluding P1...
  • Page 268 Network ID: Set the expected ID of the current DVB network Cell ID: If non-zero, check if this T2 system has the expected geographic cell within the DVB-T2 network CRC32: Set the expected 32-bit error detection code computed from the entire L1-pre signaling Modulation parameter checks: DVB-T2 L1 PLP Type: Set the expected type of Tx input stream carried within the T2 super-frame...

  • Page 269: Rf - Impulse Response

    6.16.4 RF — Impulse response The impulse response graph displays impulses as a function of time and power with reference to the main impulse. If impulse threshold values have been assigned to DVB-T/T2/ISDB-T stream (frequency) these will become visible in the graph as highlighted boxes defining minimum and maximum values for impulse time and power for each enabled impulse.
  • Page 270 The RF parameters and measurements list gives a status overview of all monitored DVB-T, DVB-T2, DVB-C, QAM B, ISDB-T, ATSC 1.0 and ATSC 3.0 frequencies from the selected RF input. The parameters and measurements in this list refer to the last completed monitoring period or, for a stream currently monitored, the current monitoring period.

  • Page 271: Qam/Vsb/Rf (Vb262 Option For Vb220)

    6.17 QAM/VSB/RF (VB262 Option for VB220) For the VB220 the QAM, VSB or RF tab will only be present in the graphical user interface provided that the probe chassis is equipped with an optional QAM/VSB (VB262) demodulator module. One input is active by default and the second input can be activated through the SECOND-RF- INPUT-OPTION license key.
  • Page 272 Packet length: Indicates if the transport stream packets are 188 or 204 bytes Original network ID: The original network ID as specified in the NIT table Network ID: The network ID as specified in the NIT table Transport stream ID: The transport stream ID as specified in the PAT table Total bitrate: Current total transport stream bitrate (including null packets –...
  • Page 273 Symbol rate offset: The measured QAM symbol rate offset. The last measurement, as well as the minimum and maximum measurements are dis played. QAM status - QAM tuning info: Name: A name should be assigned to each frequency channel Frequency: The QAM tuning frequency in MHz Symbol rate: The QAM symbol rate in Msym/s Modulation: The QAM modulation scheme - may be 16, 32, 64, 128 or 256 Mode: The modulation mode: DVB-C (Annex A) or QAM-B (Annex B)

  • Page 274: Qam - Tuning Setup

    6.17.2 QAM — Tuning setup In this view the operator can define frequencies that will be used by the QAM demodulator for tuning. A name is associated with each frequency, and this name will be used by the probe when referring to the stream.
  • Page 275 NIT Import Select NIT: The ‘Select NIT’ drop-down menu shows NIT tables available in the trans- port stream currently being analyzed. Information in the selected NIT will be used to generate a tuning list when the Import tunings button is clicked. Naming policy: The probe will automatically name tunings according to the naming policy selected by the user: ‘Frequency’, ‘TS ID’...
  • Page 276 Service thresholds: Selection of the Service threshold template that should be as- signed to the current frequency Reference table set: The Reference table set selection is used to compare the tables in the transport stream with a set of stored tables. These tables are defined in the ETR 290 —...

  • Page 277: Qam - Rf Threshold

    6.17.3 QAM — RF Threshold If a probe measurement is not in accordance with predefined threshold values, an alarm will be raised. Note that this alarm may be disabled in the ETR 290 — ETR thr. — Edit view (Input interface checks).
  • Page 278 RF threshold - Edit: Name: A text field describing the threshold template Maximum pre FEC BER: Threshold level for bit error ratio before forward error correc- tion Maximum post FEC BER: Threshold level for bit error ratio after forward error correction Minimum MER: Threshold level for modulation error ratio (dB) Minimum signal to noise ratio: Threshold level for signal to noise ratio (dB) Minimum signal strength: Minimum threshold level for signal strength.

  • Page 279: Qam - Rf Overview

    Maximum PAL carrier level: The maximum limit for PAL carrier level when monitoring analog signals. The QAM auto threshold functionality enables automatic generation of QAM thresholds based on current measurements. The user specifies how large deviations from current measurements should be tolerated before an alarm is raised.

  • Page 280: Sat (Vb272 Option For Vb220)

    The RF parameters and measurements list gives a status overview of all monitored QAM frequencies from the selected RF input. The parameters and measurements in this list refer to the last completed monitoring period or, for a stream currently monitored, the current monitoring period. List of RF parameters and measurements: Frequency: The stream frequency that the associated parameters apply to Symbol rate: The detected QAM symbol rate...

  • Page 281: Sat - Status

    Thumbnails of SAT services are accessed from the ETR 290 — Services and Content — Thumb- nails views. To get thumbnails for SAT, make sure that the Extract thumbnails check box is enabled when defining the tuning frequency, and also that the global thumbnail extraction setting is enabled in Setup —...
  • Page 282 Total bitrate: Current total transport stream bitrate (including null packets – (PID 8191)) Min total bitrate: Minimum total transport stream bitrate (including null packets) Max total bitrate: Maximum total transport stream bitrate (including null packets) Effective bitrate: Current transport stream bitrate (excluding null packets) Min effective bitrate: Minimum transport stream bitrate (excluding null packets) Max effective bitrate: Maximum transport stream bitrate (excluding null packets) SAT status —...
  • Page 283 : Energy per symbol to noise power spectral density ratio in dB Link margin: Link margin in dB Transmission system: The modulation standard – may be DVB-S, DVB-S2. Modulation: The SAT modulation scheme – may be QPSK, 8PSK, 16APSK or 32APSK Tuner bandwidth: The tuner bandwidth in MHz Tuner frequency: The RF tuner frequency in GHz...

  • Page 284: Sat - Tuning Setup

    22kHz tone: Enable or disable 22kHz tone DiSEqC: The satellite front-end module supports DiSEqC 1.2 signaling. The operator can enable a particular DiSEqC message to be transmitted towards the antenna for each frequency defined in the tuning setup typically used to control L-band switches. Specifically, the message sent has the format ( 0xE0 0x10 0x38 N ), where N is a byte configurable by the user to be between 0x00 and 0x0f.
  • Page 285 In this view the operator can define frequencies that will be used by the SAT demodulator for tuning. A name is associated with each frequency, and this name will be used by the probe when referring to the stream. The frequencies and some associated key parameters are shown in the SAT tuning list. Each entry in the list may be edited by clicking the Edit field.
  • Page 286 NIT Import Select NIT: The ‘Select NIT’ drop-down menu shows NIT tables available in the trans- port stream currently being analyzed. Information in the selected NIT will be used to generate a tuning list when the Import tunings button is clicked. Naming policy: The probe will automatically name tunings according to the naming policy selected by the user: ‘Frequency’, ‘TS ID’...
  • Page 287 Input stream selection: Chooses the input stream identifier (ISI) for Multi input stream (MIS), AUTO should be selected for Single input stream (SIS) – applies only to DVB-S2 PL scrambling mode: The PL scrambling mode selected: None, Gold, Root – applies only to DVB-S2 PL scrambling code: The PL scrambling code: 0–262141 –...

  • Page 288: Sat - Frequency Scan

    Enable tuning: Enable tuning for frequencies that should be monitored. If tuning for a stream is enabled it will automatically be part of the round- robin analysis loop. T2MI extraction: Enables extraction of T2MI and specifies which PLP to extract. T2MI data PID: PID of the container stream.

  • Page 289: Sat - Rf Threshold

    As opposed to a satellite scan, which scans according to pre-set transponder values it’s purpose is to find transponders on a particular satellite without any scanning rules. It “blindly” scans every possible horizontal and vertical satellite frequency and symbol rate. It means that the tuner will do an automatic scan of the incoming satellite signal in small steps for active symbol rates to determine if there are any live transponder signals.
  • Page 290 The probe will raise an alarm if one of the threshold settings associated with a SAT frequency is violated. Note that this alarm may be disabled in the ETR 290 — ETR thr. — Edit view (Input interface checks). To add a new threshold template to the list click the Add new threshold button. A pop-up window will appear allowing the user to enter parameters.

  • Page 291: Sat - Rf Overview

    Minimum signal strength: Minimum threshold level for signal strength. This is a measure of the stream signal power. It is expressed according to the level mode selection made in the Setup — ETR view: dBm: in decibels relative to a reference value of 1 mW dB µV: in decibels relative to a reference value of 1 µV dB mV: in decibels relative to a reference value of 1 mV Maximum signal strength: Maximum threshold level for signal strength.

  • Page 292: Sat (Vb278 Option For Vb220)

    6.19 SAT (VB278 Option for VB220) The SAT tab will only be present in the graphical user interface provided that the probe chassis is equipped with an optional DVB-S/S2/S2X demodulator module. The VB278 DVB-S/S2/S2X option module offers four independent RF input modules. For VB278 one input is active by default and the and the three other inputs can be activated with license keys.
  • Page 293 SAT status — Stream info: Stream type: Indicates transmission system: DVB-S, DVB-S2, or DVB-S2X Packet length: Indicates if the transport stream packets are 188 or 204 bytes Original network ID: The original network ID as specified in the NIT table Network ID: The network ID as specified in the NIT table Transport stream ID: The transport stream ID as specified in the PAT table Total bitrate: Current total transport stream bitrate (including null packets –...
  • Page 294 : Energy per information bit to noise power spectral density ratio in bin f : Energy per symbol to noise power spectral density ratio in dB. Link margin: Link margin in dB. Transmission system: The modulation standard – may be DVB-S, DVB-S2, or DVB- S2X.
  • Page 295 DiSEqC: The satellite front-end module supports DiSEqC 1.0 signaling. The operator can enable a particular DiSEqC message to be transmitted towards the antenna for each frequency defined in the tuning setup typically used to control L-band switches. Specifically, the message sent has the format ( 0xE0 0x10 0x38 N ), where N is a byte configurable by the user to be between 0x00 and 0x0f.

  • Page 296: Sat - Tuning Setup

    6.19.2 SAT — Tuning setup In this view the operator can define frequencies that will be used by the SAT demodulator for tuning. A name is associated with each frequency, and this name will be used by the probe when referring to the stream.
  • Page 297 When one tuning entry has been defined it is possible to click the button Import from NIT in order to have the other frequencies automatically added to the list, as defined in the Network Information Table analyzed by the probe. Default values will be assigned to parameters that are not a part of the NIT.
  • Page 298 The following parameters are defined for each SAT frequency: SAT — Tuning setup: Name: A name should be assigned to each frequency channel Transponder frequency: The transponder frequency in GHz LNB Local osc.: The LNB local oscillator frequency in GHz LNB voltage: The LNB voltage –...
  • Page 299 Content service thresholds: The Content service threshold group that should be assigned to the current frequency. Content service threshold groups that have been defined in the Content — Service thresh. view are available for selection from the drop-down menu. Content schedule: The scheduling scheme that should be assigned to the content monitoring for the current frequency.

  • Page 300: Sat - Rf Threshold

    6.19.3 SAT — RF threshold The probe will raise an alarm if one of the threshold settings associated with a SAT frequency is violated. Note that this alarm may be disabled in the ETR 290 — ETR thr. — Edit view (Input interface checks).

  • Page 301: Sat - Rf Overview

    Minimum signal strength: Minimum threshold level for signal strength. This is a measure of the stream signal power. It is expressed according to the level mode selection made in the Setup — ETR view: dBm: in decibels relative to a reference value of 1 mW dB µV: in decibels relative to a reference value of 1 µV dB mV: in decibels relative to a reference value of 1 mV Maximum signal strength: Maximum threshold level for signal strength.

  • Page 302: Sat Tuning Setup

    Both of the RF outputs on the VB273 blade must be connected into the corresponding inputs on the VB272/VB278 blade. For the VB278 the first two inputs are used for the redundancy switching, while the two remaining inputs can be used to monitor other satellite signals. The redundancy switch needs two identical signals delivered over two different mediums, that will have to be connected into each IF input.
  • Page 303 22kHz tone: Enable or disable 22kHz tone. Set to DISABLED when used with VB273. DiSEqC: The satellite front-end module supports DiSEqC 1.2 signaling. Set to OFF when used with VB273. Symbol rate: The SAT symbol rate in Msym/s. Set to the corresponding symbol rate used by the modulators.

  • Page 304: Threshold Setup

    Content schedule: The scheduling scheme that should be assigned to the content monitoring for the current frequency. Scheduling schemes that have been defined in the Setup — Scheduling view are avail- able for selection from the drop-down menu. Scheduling allows masking content alarms at predefined time periods.
  • Page 305 VB2xx GigE User’s Manual version 6.5...

  • Page 306: Redundancy Status And Overview

    6.20.4 Redundancy status and overview The Redundancy tab GUI will provide a simple overview of the status on both input signals, which ETR alarms and redundancy options that is enabled, and which redundancy mode is enabled. 6.20.5 Redundancy modes The probe has three different redundancy modes giving the operator different levels of control. When the physical buttons on the redundancy card is pressed this will override the settings configured in the GUI.

  • Page 307: Status For Input

    6.20.6 Status for input Each input may have different status, thresholds and redundancy rules defined. Both of the inputs will have a dedicated area in the Redundancy tab. ETR parameters is listed with colors and shapes depending on the status. Input status: A square with solid color means that the input signal has both alarming and redundancy switching enabled for the ETR check.

  • Page 308: Setup

    6.21 Setup 6.21.1 Setup — Params The Setup — Params view is used to configure basic parameters for the Probe. This page is displayed by default when accessing the web interface, until the configuration has been saved by clicking the Apply changes button. Various Probe name: Each probe can be assigned a user defined name.
  • Page 309 Enable thumbnails: Enable or disable thumbnail generation globally. When enabled, thumb- nails are only decoded automatically if the Extract thumbnails option has been enabled in the associated tuning, OTT or multicast setup. If freeze-frame or color-freeze alarming has been enabled in the Content threshold template, the video frames are investigated regardless of this setting.
  • Page 310 Gap between joins (millisecs): When monitoring a lot of multicasts, sending join requests for all of them at the same time may overload the network infrastructure. This setting specifies the minimum time, in milliseconds, between join requests. Time synchronization Use time server: Select between Off, NTP (Ethernet), TDT (QAM, COFDM, SAT, ASI) and TOT (QAM, COFDM, SAT, ASI).

  • Page 311: Setup

    Year in trap time: If enabled, dates in SNMP traps include the year number. 6.21.2 Setup — Pages The Setup — Pages view allows names to be associated with different pages. Individual multicasts can be assigned to different pages in the Multicasts — Streams view, to facilitate easier navigation in the different Multicasts views.

  • Page 312: Setup - Time

    A freeze color is defined by clicking the Add new color button and assigning an RGB value to a name. A maximum of four colors may be defined. An existing color may be modified by clicking the associated Edit link. Edit color Name: The color name.

  • Page 313: Setup - Ethernet

    6.21.5 Setup — Ethernet The Setup — Ethernet view defines the Ethernet setup parameters for the management interface (eth1) and the data/video interface (RJ45/eth0 or SFP/eth2). If the license for the second data interface is enabled, both data interfaces can be configured. The link statuses for the interfaces are updated live to reflect the current settings.
  • Page 314 Input: Select whether to use the electrical RJ45 (eth0) or the optical SFP (eth2) port as the data port. IP settings – data/video RJ45 (eth0) Enable DHCP: If enabled, IP address (eth0), netmask (eth0) and gateway are updated by a remote DHCP server next time the probe boots. IPv4 address: IPv4 IP address of management interface IPv4 netmask: IPv4 netmask of management interface Enable management: If enabled a web server will be started on eth0 next time the probe boots.

  • Page 315: Setup - Ethernet - Ipv6 Settings

    Host name: The host name is displayed when logging in to the probe over the USB serial port and is also visible in LLDP broadcasts. DNS Server: If DHCP is not enabled, this field can be used to define the IP address of the DNS server.

  • Page 316: Example 1 - Separate Management Ipv4

    Note that auto-configuration should only be enabled for one of the Ethernet ports to avoid possible conflicts. IPv6 settings – data/video SFP (eth2) Enable IPv6: If IPv6 is enabled, the probe will use IPv6 for management on eth2. Enable IPv6autoconf: If IPv6 auto-configuration is enabled, the probe will receive IPv6 ad- dress, IPv6 prefix and gateway address from a network router when booting.

  • Page 317: Example 2 - In-Line Management Ipv4

    Parameter Management Data/video Explanation (eth1) (eth0) Enable Optional Optional Use DHCP to configure the eth1 and/or DHCP eth0 interface automatically IP address 192.168.7.5 10.0.30.5 The IP addresses of each interface Netmask 255.255.0.0 255.255.255.0 The netmasks – 16 and 24 bits Enable Only run web server on the management management...

  • Page 318: Setup - Vlans

    Since there is only one default gateway, in this case pointing to the management network, clients accessing the probe via the data/video interface need to be on the same subnet as the probe’s data/video interface. Parameter Management Data/video Explanation (eth1) (eth0) Enable Run web server on both interfaces...

  • Page 319: Setup - Login

    Netmask: The Netmask of the interface. Gateway: The Gateway of the interface. Description: A user given description of the interface. Note that editing VLANs should not require a reboot to take effect. 6.21.7 Setup — Login By default, there is no access control and all users have access to all features. When access control is activated, anyone with access to the VB220 will first be presented with the login view, requiring the user to log in before being able to access the user interface.

  • Page 320: Setup - Etr

    To restrict access, the Setup — Security — Authentication view can be used to set up log-in that restricts all access to the user interface. Use the firewall settings in the Setup — Security — Access control view to allow certain addresses. Log-in is performed by providing the correct username and password.
  • Page 321 131 (0x83): ‘Disabled’, ‘Extended video descriptor’ or ‘logical channel descriptor v1’ 134 (0x86): ‘Disabled’ or ‘caption service descriptor’ 135 (0x87): ‘Disabled’, ‘logical channel descriptor v2’ or ‘content advisory descriptor’ 138 (0x8a): ‘Disabled’ or ‘cue identifier descriptor’ 151 (0x97): ‘Disabled’ or ‘SCTE_adaptation_field_data_descriptor’ 161 (0xa1): ‘Disabled’, ‘service location descriptor’...
  • Page 322 If the locking mechanism works in a time limited mode a clock icon (see image above) is superim- posed on the regular lock icon in the different ETR 290 sub-views. When the specified lock time is out the round-robin cycling will resume. When ETR tuning control parameters have been changed, click the Apply button for changes to take effect.
  • Page 323 EIT table IDs: 78 P/F for Actual TS 79 P/F for Other TS 80–95 Schedule for Actual TS 96–111 Schedule for Other TS Inactive inputs It is possible to hide disabled inputs from the ETR 290 views. This is convenient when one ore more inputs are never used, and therefore have been disabled.

  • Page 324: Setup - Meas. Log

    6.21.9 Setup — Meas. log The measurement logger enables logging and storage of several parameters and measurements from the ASI, terrestrial, cable and satellite inputs. This includes stream, RF, service and PID data. The measurements are sampled at a configurable rate. The samples are stored in comma-separated values files, and the individual measurements are stored as key-value pairs.
  • Page 325 The common settings, in the table above, apply to all inputs. The input specific settings, in the table below, apply to the inputs individually. If none of the input specific settings are enabled, the logging on that input will be disabled completely and no files are created. Input specific settings Input: Specifies the input.
  • Page 326 Stream information The following table describes the stream information fields. These are included if one or more of the Input specific setup options are enabled. Stream information Log key Parameter Description Presence Name Name The name of the stream. This is set by the user in the tuning setup Frequency...
  • Page 327 symbolRate Symbol rate The symbol rate of the QAM, SAT transmitted signal specified in symbols per second. This is set by the user in the tuning setup syncLossCnt Sync loss count The number of sync losses during the current monitoring period transmissionSys Transmission...
  • Page 328 SNR-dBx10 Signal noise ratio Logged in dB and increased COFDM, QAM, by a factor of 10 Pre-Viterbi-BER Pre Viterbi BER The BER before the Viterbi COFDM forward error correction (DVB-T only), (DVB-S only) Pre-RS-BER The BER before the COFDM Reed-Solomon Reed-Solomon forward error (DVB-T only) correction...

  • Page 329: 10Setup - Vbc Thresh

    PID measurements The following table describes the PID measurements logged by the probe. The ETR 290 — PIDs section contains more information about the PID measurements. PID measurements Log key Parameter Description Presence Packet identifier 13 bit number used to identify content of a transport stream Bandwidth This is the bitrate of the...
  • Page 330 The VBC error second thresholds are used by the VideoBRIDGE Controller to issue VBC specific alarms. The VBC will raise an alarm when the number of error seconds exceeds the error seconds threshold. The VBC thresholds are only relevant when a VideoBRIDGE Controller is part of the monitoring system.
  • Page 331 VBC thresholds Name: The name of the VBC threshold template No signal: Number of seconds with ‘No signal’ RTP error: Number of seconds with RTP packet drops. This measurement will be zero unless the stream is encapsulated in RTP headers VB2xx GigE User’s Manual version 6.5...
  • Page 332 MLR error: Number of seconds with packet drops in the TS layer (seconds when media loss rate is non-zero). This is equal to the number of error seconds with CC errors. IAT error: Number of seconds when the inter-packet arrival time exceeds the threshold Max bitrate error: Number of seconds the bitrate can exceed the error-threshold before a VBC alarm is generated...

  • Page 333: 11Setup - Scheduling

    6.21.11Setup — Scheduling The Setup — Scheduling view enables definition of schedules. These schedules can be used to mask alarms during selected time intervals, e.g. due to maintenance. To mask ETR 290 alarms, schedules can be assigned to a PID threshold or service threshold. To mask content alarms, schedules can be assigned to a multicast, RF channel or OTT channel, or to a specific service using a content service threshold.

  • Page 334: 12Setup - Routing

    6.21.12Setup — Routing The Setup — Routing view allows configuring the default interface for out-going probe traffic, and VBC detection. System networking configuration is configured using the Setup — Ethernet view. Note: When monitoring both multicast (UDP) and OTT (TCP) traffic, we recommend using different network interfaces.

  • Page 335: 13Setup - Security

    Routing setup Default This setting determines the default interface, and is configured through the Setup — Ethernet view. IP monitoring Defines the interface to use for the multicasts specified in the Multicasts — Streams view. The available interfaces depend on the probe license. OTT Interface to use for OTT channels specified in the OTT —...

  • Page 336: 1Setup - Security - Ports

    6.21.13.1 Setup — Security — Ports The Setup – Security — Ports view makes it possible to enable and disable a number of protocol ports used by the VB220. To disable a protocol, deselect it by removing the associated check-mark and click the Apply changes button.
  • Page 337 License activation proxy Proxy URL When using on-line activation, the Probe needs to be able to connect to the license activation server. If the Probe is not connected directly to the Internet, you can add the URL to a proxy server that it can use here. If not configured, the Probe will try to use the proxy installed on the VBC host, as configured in the Setup —...

  • Page 338: 2Setup - Security - Authentication

    6.21.13.2 Setup — Security — Authentication The Setup — Security — Authentication view makes it possible to restrict access to the VB220 user interface by requiring the user to log in first. Authentication method Disabled VB220 authentication is disabled, and no login is required when accessing the VB220 from a web browser.

  • Page 339: 3Setup - Security - Tacacs

    6.21.13.3 Setup — Security — Tacacs+ This view is used to configure a Tacacs+ server for user authentication. For this to be used, Tacacs+ authentication must be selected in the Setup — Security — Authentication view. To use Tacacs+ authentication, the IP address of the Tacacs+ server must be specified, along with the secret key used to encrypt the communication between the Tacacs+ server and the VB220 server.

  • Page 340: 4Setup - Security - Local Users

    6.21.13.4 Setup — Security — Local users This view is used to configure local users that are allowed to access the VB220 user interface. For these to be used, Local users authentication must be selected in the Setup — Security — Authentication view.

  • Page 341: 5Setup - Security - Access Control

    6.21.13.5 Setup — Security — Access control The probe user interface can be protected by a firewall. The firewall is configured in the Setup — Security — Access control view. The firewall settings are remembered across reboots. It is possible to lock oneself completely out of the web and remote login interfaces.

  • Page 342: 6Setup - Security - Password

    6.21.13.6 Setup — Security — Password The Setup — Security — Password view is used to change the password used to access all of the Setup — Security section. The password is changed by entering a new password and clicking the Apply changes button. If authentication has been enabled in the Setup — Security — Authentication view, the password defined here can be used with the special username “admin”.

  • Page 343: Data

    6.22 Data 6.22.1 Data — Configuration Full and partial configuration of the Probe can be exported as XML documents. This is achieved by clicking one of the links inside the Export XML frame. A new browser window pops up containing the selected XML document.

  • Page 344: Configuration Snapshots

    Please refer to the document Eii External Integration Interface for detailed information about XML import and export. Note that the Ethernet setup parameters (IP address, netmask and gateway) and probe name and location are not part of the XML document. Hence exporting the full configuration of one Probe and restoring it on another will make the two Probes identical except for the network settings.

  • Page 345: Data - Software

    6.22.2 Data — Software The software section allows the Probe to be upgraded to a newer software version and for timezone definitions to be updated independently from the software. Select the .tea file from the local PC and click Go! to copy the software to the VB220. When the upload is complete, clicking the Save flash button will store the new software to flash.

  • Page 346: Data - Certificates (Requires Ott-Opt)

    Upgrading to a new major release requires a valid software maintenance license, please refer to F Appendix: Software Maintenance for more details. If the current software maintenance license does not cover the uploaded software version, the upgrade will be aborted and the current version is kept.

  • Page 347: Data - Table Descriptors

    It is possible to upload parser files to the probe adding support for private descriptors. Private descriptors should be enabled (in the Setup — ETR view). Contact Sencore for more information about private descriptors. VB2xx GigE User’s Manual version 6.5...

  • Page 348: Data - Eii

    6.22.5 Data — Eii The External integration interface (Eii) allows inclusion of Sencore VideoBRIDGE equipment into 3rd party NMS systems. In order to facilitate integration the Data — Eii view allows export of XML files containing the data typically being requested by an NMS system via the regular Eii interface.

  • Page 349: Data - Storage (Requires Flash32-Opt)

    This view makes it possible to map the logical network interface names data, data2 and manage- ment to the physical network interfaces available on the VB220. These mappings are used when importing and exporting configuration files between probes of different types and when using the setrdp Eii interface.

  • Page 350: About

    6.23 About 6.23.1 About — Release info This view shows the software version, the software build date and the hardware type of the Probe. VB2xx GigE User’s Manual version 6.5...

  • Page 351: About - License

    6.23.2 About — License The License view displays the currently active license. The license includes the available Probe options and software maintenance details. By clicking the blue information icon associated with each option it is possible to view option details. The Probe supports two different licensing schemes, on-line activated licenses and classic licenses.

  • Page 352: About - Technologies

    A basic probe may be upgraded to include the ETR 290 option. This can be done on-site by the user when the option has been purchased. 6.23.3 About — Technologies The Technologies view lists some of the technologies available in the Sencore VideoBRIDGE product family. VB2xx GigE User’s Manual version 6.5...

  • Page 353: About - Credits

    6.23.4 About — Credits This view shows information about the software included with the Probe. VB2xx GigE User’s Manual version 6.5...

  • Page 354: About - System

    6.23.5 About — System The System view displays a snapshot of the current status of the system, to ensure correct Probe operation. The Probe processes overview displays the VB220 services that are required. All the VB220 services listed should have status Running or Disabled if the corresponding feature is not licensed or available.

  • Page 355: A Appendix: Vb220 Versus Vbc Alarms

    A Appendix: VB220 Versus VBC Alarms The VB220 Probe alarms are independent of the VideoBRIDGE Controller alarms. The Probe has been designed to yield instantaneous alarms based on the current measurements. This typically results in lots of short-lived alarms that would be “too much” for the VBC to report, as the VBC may control a large number of Probes.
  • Page 356 Alarms Alarm Settings ETH Multicast Thresholds ETH Measurements P r o b e Figure A.1: VBC alarming based on Probe measurements VB2xx GigE User’s Manual version 6.5...

  • Page 357: B Appendix: Monitoring Practices

    B Appendix: Monitoring Practices This Appendix summarizes a few useful monitoring practices. B.1 RTP Monitoring When running video inside an RTP wrapper it is possible to exactly deduce the number of dropped IP frames due to network issues. This is possible as a result of the 16-bit sequence counter inside the RTP header.

  • Page 358: Strategy For Mediawindow Analysis

    PID: 50 PID: 51 PID: 50 PID: 51 PID: 50 PID: 51 PID: 50 PID: 51 PID: 50 PID: 51 CC: 12 CC: 1 CC: 13 CC: 2 CC: 14 CC: 3 CC: 15 CC: 4 CC: 0 CC: 5 PID: 50 PID: 51 PID: 50...
  • Page 359 The MLR value is always calculated using the continuity counter inside the transport stream packets. Since the continuity counter is expected to increase by one for each packet of the same PID it is possible to detect missing TS packets by noting gaps in the continuity counters. Knowing that there are usually 7 transport stream packets inside one UDP packet you expect a continuity counter error of 7 if one UDP packet goes missing.

  • Page 360: Iat Before And After Router

    B.3.1 IAT Before and After Router Packet-loss that occurs before or inside a router will usually not be visible since the queuing mechanism at the outgoing interface of the router will send out packets in an orderly fashion. If however the packet-loss did occur after the router (due to line noise for example) thus affect the timing between two neighboring packets –...

  • Page 361: Multicast Thresholds

    The pink line indicates a packet loss of 1-4 with no jitter component. As a rule of thumb, the co-existence of small MLR readings (1-4) and no IAT readings can be assumed to have been caused by packet loss in the original TS data. The pink line indicates a packet loss of 6 or 7 and a doubling of the jitter component.

  • Page 362: Content Thresholds

    As a rule of thumb the IAT warning threshold could be set to 50% above the max IAT value observed over a considerable period of time, the last 24h or so. The IAT error threshold could be set a little below the maximum jitter the system can tolerate –...

  • Page 363: Monitoring Rtmp And Shoutcast

    By default, the OTT profiles are identified by their URL. Some streaming systems generate profile URLs based on a session ID, and in some cases these session IDs are re-generated every time the master manifest is downloaded. In these cases, the OTT engine will see all profiles as new every round and is unable to retain any profile history.

  • Page 364: C Appendix: Ott Profile Health

    C Appendix: OTT Profile Health C.1 OTT Profile Health Bar The profile health bar displayed at channel level shows an overview of current status for individual channel profiles. Different colors indicate status: • Green: OK • Yellow: Warning • Orange: Error •...
  • Page 365 The OTT profile health timeline shows information about channel bitrate and channel alarm status for the last two hours, with a time resolution of one minute. Green parts of the timeline indicate profile download time versus segment length. The graph is scaled so that 100% indicates a segment download time identical to segment length (in seconds), segment length being signaled in the profile manifest.

  • Page 366: D Appendix: Srt Streams

    D Appendix: SRT Streams D.1 Introduction D.1.1 Overview SRT is a user-level transport protocol that ensures secure, reliable transport of video and audio across multiple unstable network connections. With the UDP data transfer protocol at its base, SRT introduces several enhancements such as end-to-end encrypted data packets (using AES), improved congestion control and efficient packet loss recovery.

  • Page 367: Transmission

    D.1.3 Transmission The probe supports relaying up to two streams using RDP (Return Data Path), and these may be transmitted using the SRT protocol. SRT transmission is configured in the RDP — Setup view. When mode Relay over IP is selected, Encapsulation can be set to SRT. Encapsulation can be set to SRT when the Relay over IP mode is selected.

  • Page 368: E Appendix: On-Line License Activation

    E Appendix: On-line License Activation E.1 Introduction The Probe uses licenses which are activated and updated periodically over the Internet, without the need for human intervention. When the Probe sends the on-license activation over the Internet, it includes some basic information to verify the Probe.
  • Page 369 Off-line activation procedure If the VB220 network is completely disconnected from the Internet, it is still possible to activate the license using the off-line activation procedure. Click the Renew license off-line button to start the off-line activation procedure. This procedure has to be repeated yearly. Follow the steps described in the dialog to renew or activate the license.
  • Page 370 Select the file that was downloaded in the first step, and optionally add a license key if the .bin system you are activating did not already have a license attached. Once done, click the Request license button and save the license document file to the computer. If needed, re-connect to the VB220 network, return to the Renew license off-line view, select the file that was generated by the license manager and press Go! .pem...

  • Page 371: F Appendix: Software Maintenance

    F Appendix: Software Maintenance Purchasing yearly software maintenance enables future feature protection and guarantees access to the latest software for the Probe. The software maintenance can be purchased for a two or four year period, typically initially purchased together with the system itself, during which new major releases can be installed. The current software maintenance period is displayed in the About —...

  • Page 372: G Appendix: Software Upload

    G Appendix: Software Upload The process of performing a software upload to the probe involves the following steps: 1. Obtain the software image. 2. Export and save the probe configuration. 3. Delete any existing probe stream recordings. 4. Transfer the image to the probe using the software upload functionality in the Data — Soft- ware view or by using ftp, and save the image to flash.

  • Page 373: Delete Any Existing Probe Stream Recordings

    G.3 Delete any existing probe stream recordings If any stream recordings is stored on the probe, this may prevent software upgrade, as there might not be enough internal disk space available for the software image upload to be possible. Therefore delete any recordings prior to software upload –...
  • Page 374 Using ftp and telnet/ssh This method is only available if the corresponding services have been enabled in the Setup — Security — Ports view. The ftp service is needed for the file transfer, and either telnet or ssh for remote login. Step 1, alternative A: Using Windows Explorer Open a Windows Explorer window.

  • Page 375: Wait While The Software Is Being Saved

    230 User logged in. ftp> binary 200 Transfer type changed to BINARY ftp> put vb330-5.2.0-10.tea ftp> Step 2: Initiate the save to flash using telnet, ssh or USB cable The image, which is now stored on the probe’s RAM-disk, needs to be saved to flash. In a terminal window type these commands, replacing the IP address with the relevant one (note that the password will not be visible on the screen): telnet 10.0.20.101...

  • Page 376: Software Upload Troubleshooting

    Probes that are unable to execute the user program (usually caused by interrupting the save-to-flash process described above) can still be upgraded. Contact Sencore for details. To verify that the probe is unable to start the user program, connect the USB cable as explained in section 4.9.2 and reboot the probe.

  • Page 377: H Appendix: Restoring Probe Factory Defaults

    H Appendix: Restoring probe factory defaults It is possible to reset the probe to factory settings, erasing most information about the probe configuration and alarm history. For convenience, the network configuration is kept. Also note that the unit license key should be noted and stored before the factory reset is performed, as it might be reset by the factory reset process.
