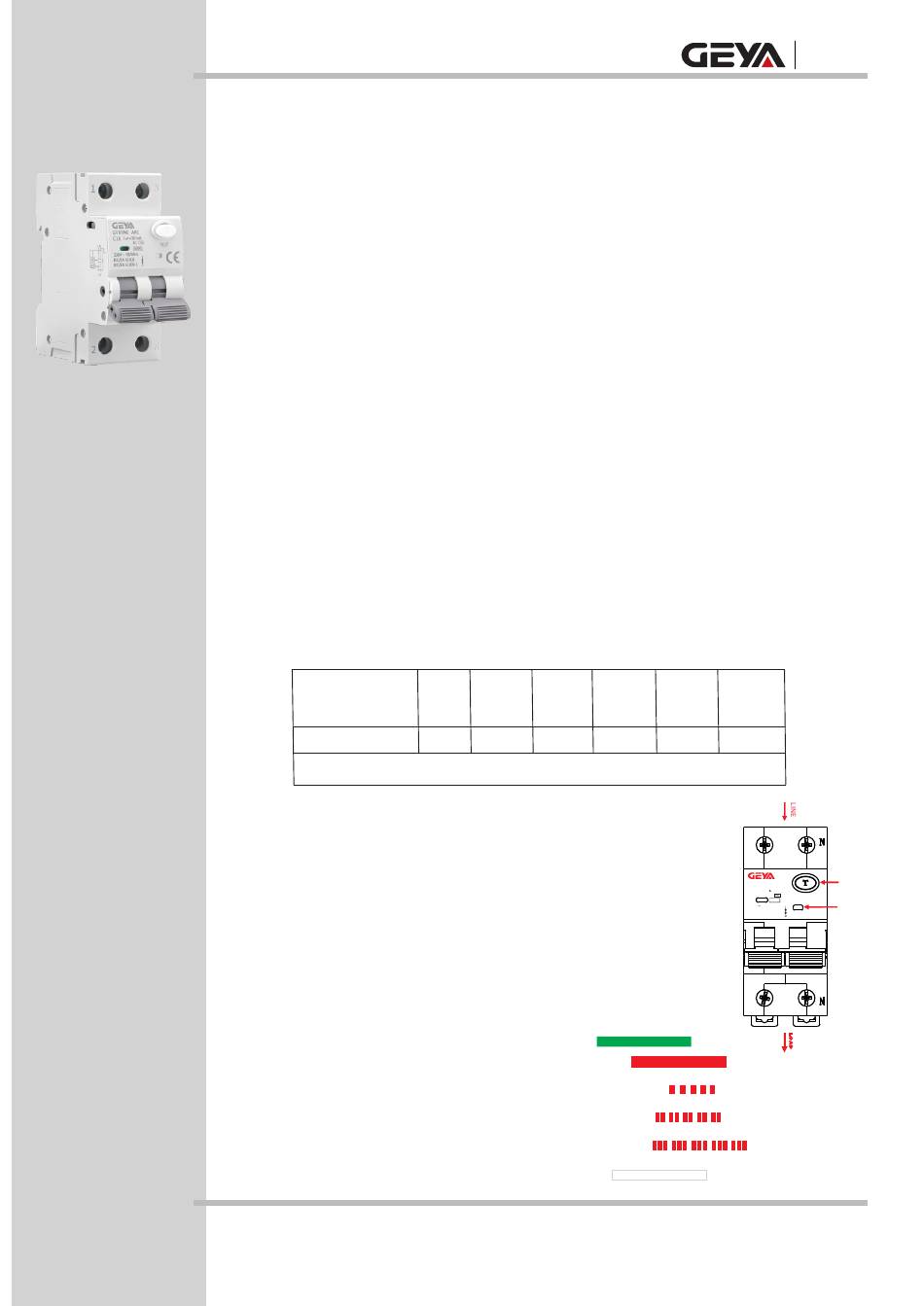

GEYA GYR9NE-ARC Series Quick Start Manual

www.cngeya.com
GYR9NE-ARC Arc Fault Circuit Breaker
1 Function and application
GYR9NE-ARC series arc fault circuit breakers are widely used in household and similar AC
circuits with a rated current of 40A and below;
The arc fault protection unit of GYR9NE-ARC series,can detect and identify the series arc fault,
parallel arc fault and ground arc fault in circuits;For example: the aging, damage and humidity
of the insulation layer of the line are prone to arc fault. When the GYR9NE-ARC series arc fault
circuit breaker detects that there is an arc fault in the line, it will automatically trip and cut off
the power;
2 Technical Parameters
1）Compliant with:IEC/EN62606、IEC/EN61009-1、GB/T31143、GB16917.1
2）Rated voltage Ue: 230V~;
3）Rated insulation voltage: Ui: 400V
4）Rated impulse withstand voltage Uimp: 4kV;
5）
Rated current (A): 6, 10, 16, 20, 25, 32, 40;
6）pole number: 1P+N;
7）Instantaneous trip: type C
8）Breaking capacity: 6kA;
9）Rated residual current (mA): 30, 100, 300;
10）Operating characteristics when the residual current has DC component: type AC, type A;
3 Features
GYR9NE-ARC series arc fault circuit breaker proetct from arc fault, overvoltage(275±5%),
overload, short circuit, and electrical leakage.
Breaking limit value (63A and below) of rated voltage 230V GYR9NE-ARC
RMS value of test
arc current
Max breaking time
The test arc current is the expected current before burning occurs in the test circuit;
4 Wiring indication
Wiring indication:Instructions: After wiring according to the wiring diagram, connect
the power supply at input terminal, when the device is in the trip position, the LED
light is off;
Switch the device on again:
Switch on the device: if the green LED is always on, it means that the product can be
used normally; if LED is off, it means that there is a problem with the power supply
of the device, please contact us; if the red LED keeps on, it means that the self-test
failed, pelase contact us;
When the device trips when in use, how to confirm the cause of the trip: the device
needs to be closed again,
The load at the lower end needs to be disconnected before closing (the electrical
appliance is turned off), and the specific operation is as follows;
a、The green LED keeps on, and the device works normally;
b、The red LED is always on, indicating that the self-test has failed;
c、The red LED flashes once for 5 cycles, indicating that the last trip was
caused by a fault arc;
d、The red LED flashes twice for 5 cycles, indicating that the last trip
was caused by an overvoltage fault;
e、The red LED light flashes 3 times for 5 cycles, indicating that the last
trip was caused by leakage fault;
f、The LED light is off, indicating that there is no power supply;"
3A 6A 13A
1s 0.5s 0.25s
20A 40A 63A
0.15s 0.12s 0.12s
1
GYR9NE ARC
C32 I n=30mA
AC
6000
240V 50/60Hz
IEC/EN 62606
IEC/EN 61009-1
2
www.geya.net
GEYA
test button
TEST
Arc fault indication
