GEYA GRD9L-R Instruction Manual

MCB / RCCB with Auto Reclosing
Instruction Manual
Technical parameters
Control mode
Supply terminals
Voltage range
Power input
Voltage range
Supply voltage tolerance
Power input
Supply voltage tolerance
Supply indication
Action time
Auto reclosing times
Auto reclosing interval time
Reset the closing times
No trip or manual reset within 15 minutes after successful closing
Mechanical life
Electrical life(AC1)
Operating temperature
Storage temperature
Mounting/DIN rail
Protection degree
Operating position
Overvoltage cathegory
Pollution degree
solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12)
Dimensions
Weight
Combination with accessories
Auxillary contact
Alarm contact
Shunt release
Under voltage release

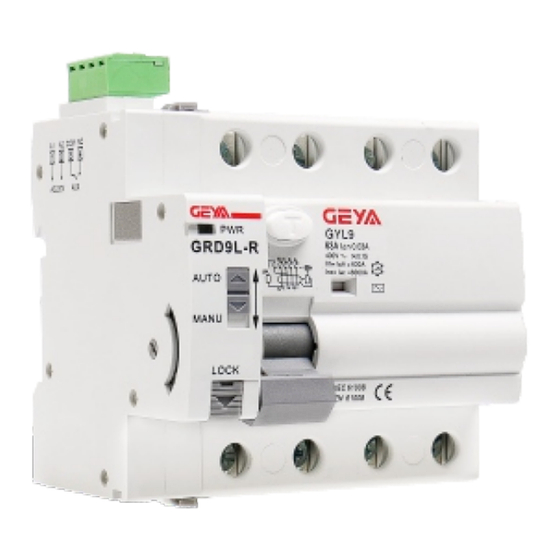

GRD9L-R
Auto Reclosing
A1-A2
DC12V,DC24V-48V
DC max.1W(standby) max.20W(action)
AC 220V(50-60Hz)
-10%;+10%
AC max.1VA(standby) max.20VA(action)
-10%;+10%
red LED
≤1s
3
10s-60s-300s
10000
4000
-20℃ to +55℃（-4℉ to 131℉）
-35℃ to +75℃（-22℉ to 158℉）
Din rail EN/IEC 60715
IP20
any
82×18×78mm
80g
Yes
Yes
Yes
Yes
GEYA ELECTRICAL CO.,LTD
Add:Wenzhou Brige Industrial Zone,Beibaixiang Town,
Yueqing,Zhejiang,China 325603
Tel:0086-577-62771036
Fax:0086-577-62711079
E-mail:sale@cnyeya.com
Web:www.geya.net
General
■Applications
-Can be widely used in power grid terminal line, such as meter box,
new energy circuit management, PV solar control box, smart elec-
tricity, smart home, new energy vehicle charging pile, and so on.
■Function Features
-It can be matched with circuit breaker / leakage protection switch
and automatically reclose when MCB / RCCB trips unexpectedly,
No need for manual closing, reduce the cost of manual maintenance,
and eliminate faults in time to improve efficiency.
-built in 3 reclosing times, continuous closing failure within 15 minutes
can send alarm through auxiliary contact.
-With manual / automatic selector switch.
-With mechanical / electronic double locking function.
-The shaft transmission mode is more stable and reliable.
-Can match other accessories.
- Work status is indicated by LED.
- 1-MODULE.
■Model and connotation
GRD9L R
Note: The matching MCB / RCCB specification and model shall
be indicated when ordering.
Example 1: GRD9L-R + GYM9 2P C40
Example 2: GRD9L-R + GYL9 2P 40A 30M
Panel Diagram
Status indicator
Mode selection
Closing lock
Wiring Diagram
-1-
Rated control supply voltage:
D12:DC12V
D48:DC24V-48V
A220:AC220V
Auto Reclosing+AUX
GRD9L Series
PWR GYL9
GRD9L 40A
I 0.03A
△n
230V~ t≤0.1s
Im=I △ m=500A
N 1
T Inc=I △ c=6000A
AUTO
N 2
MANU
LOCK
IEC 61008
EN 61008
GRD9L-R
A1 A2 COM NC
1 2 3 4
AC220V
AUX
MAX100mA
RCCB/MCB
Operation handle
