GEYA GYW6 Series Manual

GYW6
万能式
断路器

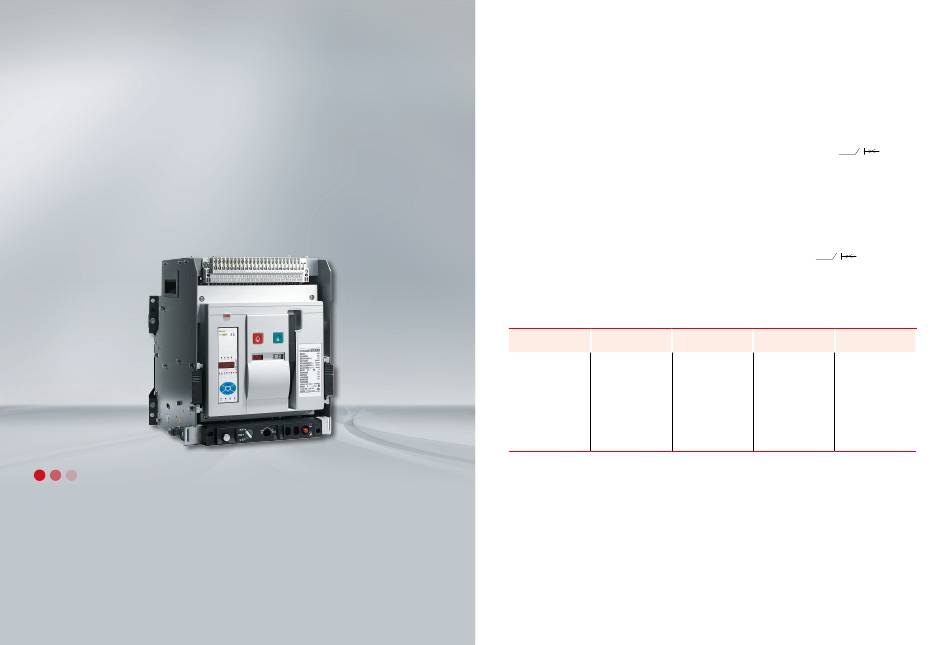

GYW6 Series Universal
Circuit Breaker
温升低
●
Low temperature rise
小体积
●
Small volume
一体化
●
Integration
采用多把触刀设计
●
Adopting multiple contact knife designs
具有热磁式保护功能
●
Equipped with thermal magnetic protection function
1
至 高 至 上 · 大 展 宏 图
至 高 至 上 · 大 展 宏 图
GYW6 系列万能式断路器
GYW6 series universal circuit breaker
用途及适用范围
Purpose and Scope of Application
GYW6 系列智能型万能式断路器（以下简称断路器），适用于交流 50Hz，额定电压至 AC690V 及以下，额定电流从 200A~6300A 的配电网络
中，用来分配电能和保护线路及电源设备免受过、欠压、短路、单相接地等故障的危害。断路器具有智能化保护功能，选择型保护精确，能提高供
电可靠性，避免不必要的停电。同时带有开放式通讯接口，可进行 "四遥"，以满足控制中心和自动化系统的要求。断路器在海拔 2000 米时脉冲耐
压 8000V，（不同海拔按标准修正，最高不超过 12000V）。该断路器不带智能控制器及传感器可作隔离用，标识为
断路器符合标准 GB/T14048.2 及 IEC60947-2《低压开关设备和控制设备第 2 部分断路器》。
The GYW6 series intelligent universal circuit breaker (hereinafter referred to as the circuit breaker) is suitable for distribution networks
with AC 50Hz, rated voltage up to AC690V and below, and rated current ranging from 200A to 6300A. It is used to distribute electrical
energy and protect lines and power equipment from the hazards of under voltage, short circuit, single-phase grounding, and other faults.
The circuit breaker has intelligent protection function and precise selective protection, which can improve power supply reliability and
avoid unnecessary power outages. At the same time, it has an open communication interface and can be used for "four remotes" to meet
the requirements of the control center and automation system. The circuit breaker has a pulse withstand voltage of 8000V at an altitude
of 2000 meters (corrected according to standards for different altitudes, with a maximum voltage not exceeding 12000V). This circuit
breaker does not come with an intelligent controller or sensor and can be used for isolation, marked as
The circuit breaker complies with the standards GB/T14048.2 and IEC60947-2 "Low voltage switchgear and control equipment - Part 2:
Circuit breakers".
型号及含义
Model and meaning
GY
W
企业代号 万能式断路器
Enterprise code Universal circuit breaker Design serial number
分类
Classification
按安装方式分 Classified by installation method
a. 抽屉式 a. Drawer style
b. 固定式 b. Fixed
按极数分：三极、四极 Divided by number of poles: three poles, four poles
按操作方式分 Divided by operation method
a. 电动操作 a. Electric operation
b. 手动操作（检修、维护用） b. Manual operation (for maintenance and repair)
.
6 2500 3P
极数
（3 表示三极、4 表示四极）
设计序号 断路器壳架等级
Number of poles
Circuit breaker housing level
(3 represents three poles,
4 represents four poles)
。
2
