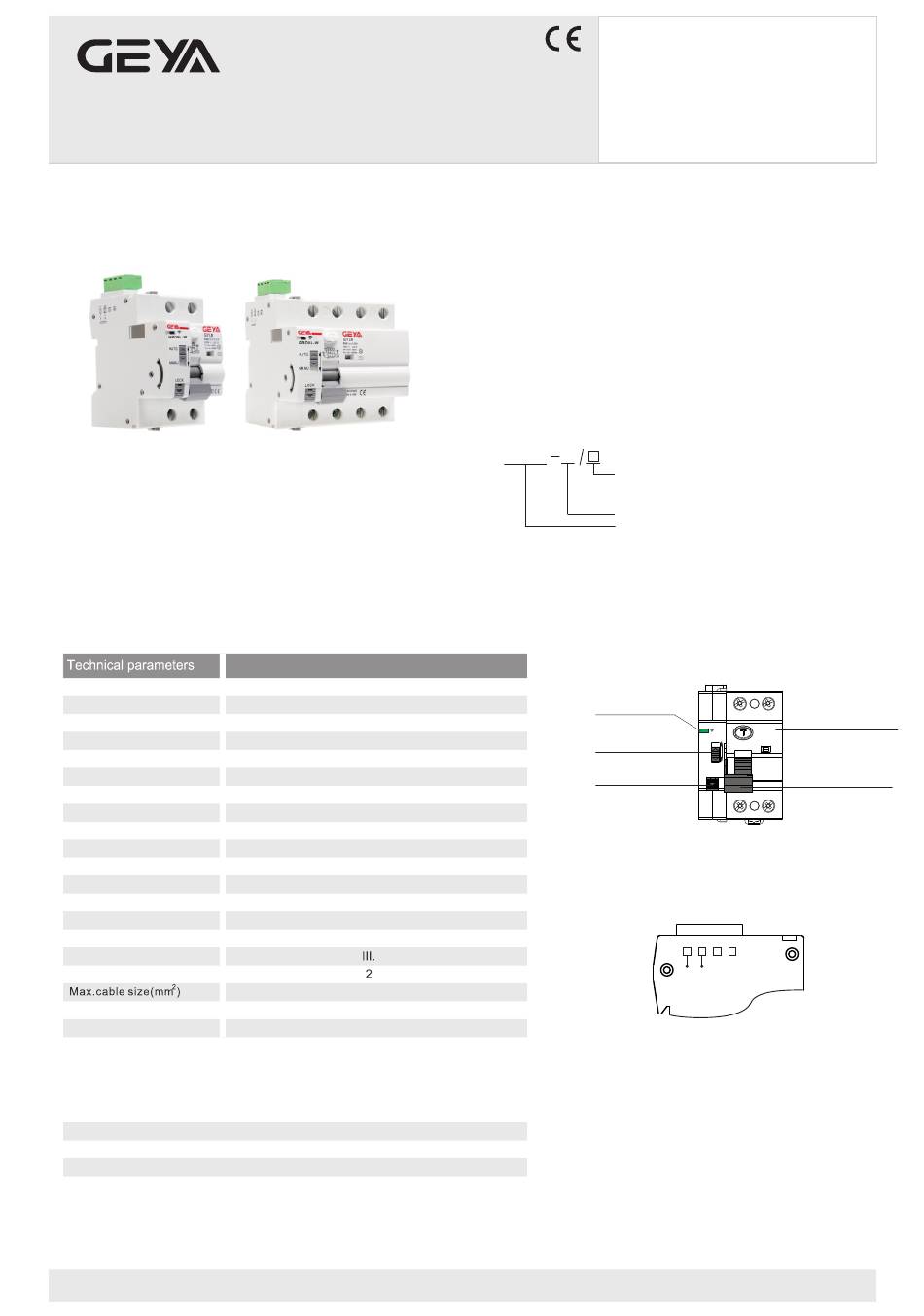

GEYA GRD9L-W Instruction Manual

MCB/RCCB/RCBO controlled by WiFi
Instruction Manual
Technical parameters
Control mode
Supply terminals
Voltage range
Supply voltage tolerance
Power input
Supply voltage tolerance
Action time
WIFI connectivity
Mechanical life
Electrical life
Operating temperature
Storage temperature
Mounting/DIN rail
Protection degree
Operating position
Overvoltage cathegory
Pollution degree
solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12)
Dimensions
Weight
Combination with accessories
Auxillary contact
Alarm contact
Shunt release
Under voltage release
GRD9L-W
WiFi
A1-A2
AC 220V(50-60Hz)
-10%;+10%
AC max.1VA(standby) max.20VA(action)
-10%;+10%
≤1s
802.11 b/g/n 2.4GHz
10000
Refer to MCB / RCCB /RCBO catalogue
-20℃ to +55℃
-35℃ to +75℃
Din rail EN/IEC 60715
IP20
any
82×18×78mm
80g
Yes
Yes
Yes
Yes
GEYA ELECTRICAL CO.,LTD
Add:Wenzhou Brige Industrial Zone,Beibaixiang Town,
Yueqing,Zhejiang,China 325603
E-mail:sale@cngeya.com
Web:www.geya.net
General
■
Applications
-It can be used for intelligent household electricity management and
photovoltaic distribution systems.
■
Function Features
-It can be matched with MCB/RCCB/RCBO and remotely controlled for
closing and opening through the APP.
-RCCB/MCB/RCBO (timing switch function) can be set to be turned
ON/OFF at any time through the APP.
-With manual / automatic selector switch.
-With mechanical / electronic double locking function.
-The shaft transmission mode is more stable and reliable.
-Can match other accessories.
- Work status is indicated by LED.
- 1-MODULE(RD).
■
Model and connotation
GRD9L W
Note: The matching MCB / RCCB/ RCBO specification and model shall
be indicated when ordering.
Example 1: GRD9L-W + GYM9 2P C40
Example 2: GRD9L-W + GYL9 2P 40A 30M
Panel Diagram
Status indicator
Mode selection
Closing lock
Wiring Diagram
-1-
Rated control supply voltage:
A220:AC220V
Control through WiFi
GRD9L Series
GRD9L-W
AUTO
MAUN
LOCK
IEC 61008
EN 61008
GRD9L-W
A1 A2 NC NC
1 2 3 4
AC220V
RCCB/MCB/RCBO
Operation handle
